Assembly Instructions:

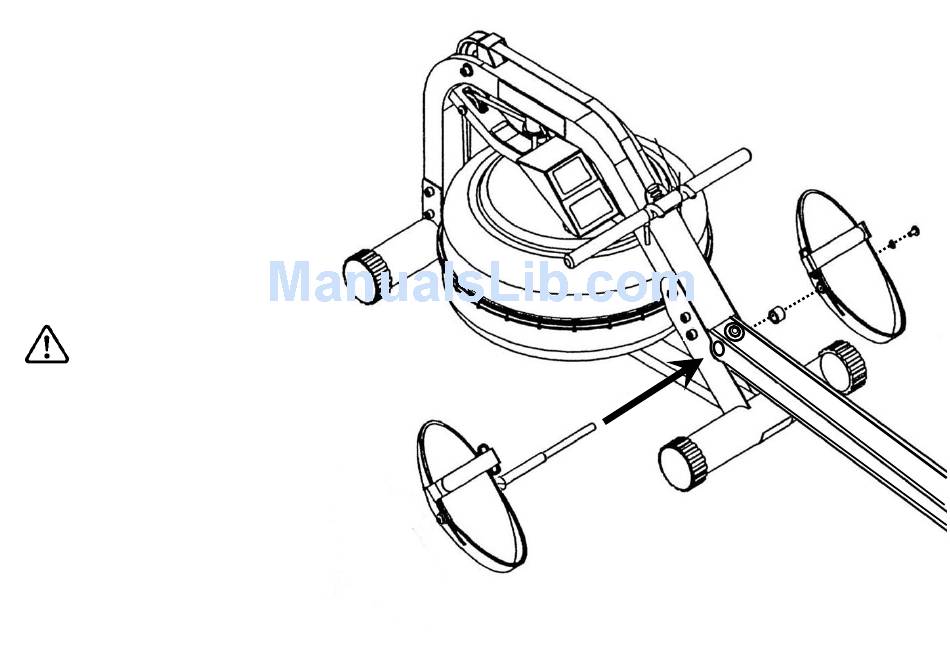

Step 6: Install the footplate onto the
rower.
Tip: When mounting the footplate
assembly onto the rower, it is only
necessary to remove one side,
and leave the other intact as
shown here.
Note: 2 Allen keys of the same
size are provided for this portion
of the assembly.
Footplate assembly left side. For ease of
assembly, leave the left side of the footplate
and seat rail spacer in place as shown.
