M10x85mm bolt
and 11x21x2T
Washer
M10 Nylock Nut and
11x21x2T Washer
Sensor lead
Using the M10x25mm bolt, 11x21x2T Washer and
Rear leg, install as shown. Once rear leg is tight-
ened, install the rear Rubber End Cap.
Assembly Instructions:

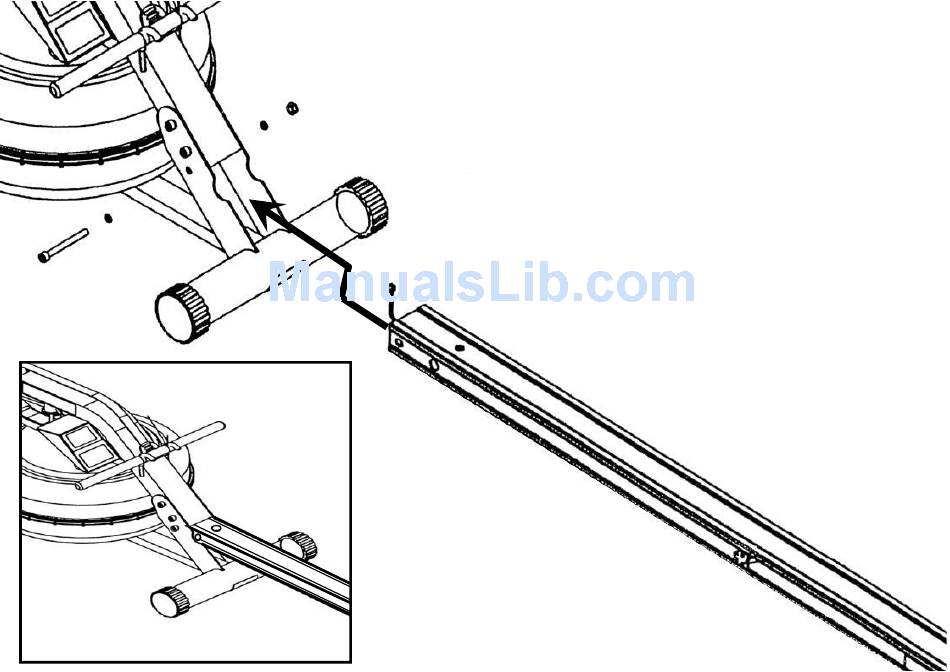

Step 4: Install the seat rail onto the mainframe.
Attach sensor lead from seat rail to main frame,
then align the front seat rail holes with main-
frame and install, using 1x M10x85mm bolt, 2x
11x21x2T washers and 1xM10 Nylock nut.
Hide quick links:
