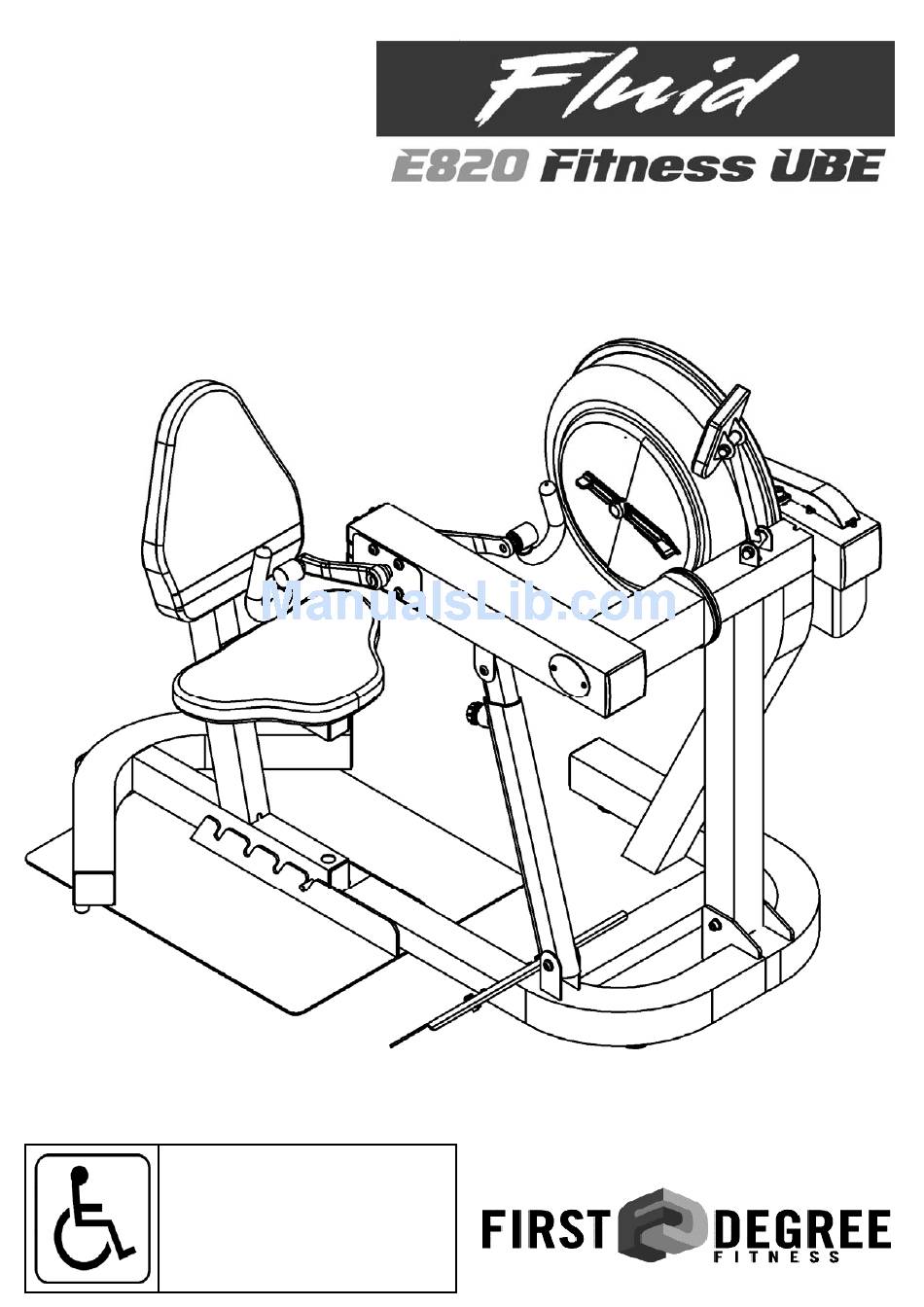

Page 1: Owners Manual
Owners Manual Wheelchair Accessible... - Page 2 Training with the E820 As with any piece of fitness equipment, consult a physician before beginning your E820 exercise program. CAUTION Use two hands and follow all safety instructions whenever raising or lowering the E820 control arm. Warning Do not remove hands while crank is in motion. The crank will continue to rotate and could cause injury.
- Page 3 Box Contents E820 Ix Seat Frame and Baseplate 1x Handle right 1x Main frame with telescoping tube and internal gas assist 1x Fill funnel/hose Hex Key M10x25 21x11x2 Mainframe bolts Frame bolt washers Telescoping tube attachment bolts/ spring washers M10x2 3x Frame levelers 1x Multi-tool Mainframe Nylock nut...
- Page 4 E820 Assembly Instructions 4x 8x15mm bolts and 4x M8 spring washers Adjuster knob Step 1: Remove contents from box. Attach telescoping tube to the underside of the control arm using 4x M8x15mm bolts and 4x M8 spring washers. The control arm is heavy and may swing freely during this stage of CAUTION assembly.
- Page 5 E820 Assembly instructions Step 2: Attach base plate to lower mainframe using 2x M10x25mm bolts, 2x M10 Nylock nuts and 4x 21x11x2 washers. M10x25mm bolt M10 Nylock nut 21x11x2 washer Step 3: Tilt the seat rearward until transport wheel is engaged. Secure the seat in any of the 4 adjustment slots, or leave off entirely if wheelchair access is required.
- Page 6 E820 Assembly Instructions Note: Allow 15 minutes for the thread locker to activate before first time use. Check pedal tightness periodically thereafter with a 15mm wrench. Step 4: Secure right pedal onto Crank arm. The pedal threads have a blue coating which will feel very tight when threaded onto the crank arm.
- Page 7 The E820 Control Arm Chain tensioning bolts: Allows for tightening the chain or adjustment from side to side. Make sure when tightening only to adjust the same amount for both bolts, otherwise the sprocket will be mis- aligned. Note: Tightening the right bolt only will pull the right side of the crank assembly toward you, tighten- ing the left will pull the left side toward you.
-
Page 8: Tank Filling And Water Treatment
Tank Filling and Water Treatment Note: A large bucket is required for filling (Not included) In areas where tap water quality is known to be poor, FDF recommends the use of distilled water. Open the rear upper yellow tank plug and insert hose into tank (rotating the im- peller slightly may be necessary to allow the hose to pass), move the... -
Page 9: Long Term Water Treatment And Basic Operation
Do not use any water treatment other than the tablets supplied with this machine. For re- placement tablets, contact your local First Degree Fitness distributor. Water treatment schedules for the E820 will vary according to the fluid tanks exposure to sunlight, but expect 8-12 months near a bright, sunlit window and 2 years or more for a darker location. - Page 10 E820 Ergometer. Note: For complete operational Quick start provides instant workout infor- instructions, please refer to the mation. Just start training to activate. You computer manual, which is in- can choose to change UNITS displayed. cluded with your E820. UNITS displays WATTS, RPM,...
-
Page 11: Maintenance Chart
Maintenance Chart. Item Timeframe Instructions Notes Seat and Frame. Weekly. Wipe down weekly with lint free cloth or more often with heavy club use. PK belt tension. Monthly. Check monthly for signs of slip- page. Adjust/tighten as required. Tank and water 12 months to 2 years. -
Page 12: Troubleshooting Guide
Troubleshooting Guide: Fault Probable Solution Cause Water changes color or be- Rower is in direct Change rower location to reduce direct expo- comes cloudy. sunlight or has not sure to sunlight. Add water treatment and had water treatment. blue dye or change tank water as directed in the water treatment section of this manual. - Page 13 Tank Belt Adjustment Step 1: Remove large metal inspec- tion plate as shown above right. Step 2: Using a long tool, push out the rear end cap as pictured above right. This will give you access to the tank tensioning bolt (shown bottom right).
- Page 14 E820 Exploded Diagrams Refer to Tank Refer to Computer Assembly Assembly 20850 12047 10067 10040 10043 Refer to Crank Arm Assembly Refer to Control Arm Assembly 10170 33937 23921 10072 10066 10070 23144 33938 33941 33100 10096 10082 Description Description Bolt M12x140 10040 10170...
-
Page 15: Seat Assembly
Seat Assembly 10081 10080 20117 20115 10069 10120 20123 23501 23008 20009 10041 10082 10103 10101 Description Nut M10 Nylock 10041 10069 End Cap 75x50mm 10080 Bolt M6x20 10081 Washer M6 23700 Washer M10 10082 10101 Rubber Bumper 10103 Transport Wheel 10120 Bolt M6x15 23008... - Page 16 E820 Crank Arm Assembly Part No. Description 10081 Washer M6 10082 Washer M10 10171 Bolt M6x8 12047 Handle Complete 12048 Handle Grip 12068 Axle / Sprocket for E820 20020 Bolt M10x35 20052 Side Bearing Cover E720/820 20132 French Screw M8x20xP1.0 Crank End Cap 20133 20134...
- Page 17 Main Drive Assembly Description 10011 Bearing Housing 10109 10012 NSK 6005ZZ Bearing 10015 Large PK Transmission Pulley 150mm 10083 10138 10017 Key way 7x7x32 10052 Grub Screw M4x6 10052 10083 Bolt M10x20 10015 10109 Belt 7PK 926mm HUTCHINSON 10139 10011 10138 Shaft washer 30x10.2x3t 10017...
- Page 18 A010 Tank Assembly 10207- Tank Plug Yellow 10039 (O Ring 32x3.5-CR) Refer to Tank Back Assembly A006 Sensor Kit Refer to Tank Cover Assembly 70321-Tank Plug Black 10044 Tank Black Outer Cover Ring 10039 (O Ring 32x3.5-CR) 10046 (Large Tank Seal) 10062 Bolt M3x12 A053 Flywheel Assembly E720/820/920 18 x 10035...
- Page 19 Tank Cover Assembly Description 10027 Adjuster Handle Shaft 10028 Stainless 0.8mm Backing Plate 10036 10030 Blue Adjuster PP Tank Ring 10030 10032 Adjuster O Ring 12x9x1.5 10033 Stainless Washer 10x4.2x1 10028 10034 Nut M4 Stainless 10035 Bolt M4 Stainless 10036 Screw M3x20mm for Blue Tank Ring PC Tank Cover &...
- Page 20 Metal Frame – 10 Year Limited Warranty First Degree Fitness will repair or replace the metal Main Frame of the E820 should it fail due to any defect in materials or workmanship within 10 years of the original purchase. Warranty does not apply to frame coating.
