rEar WhEEl driVE

planeTarY GearBOX
The single stage planetary gearbox is permanently
sealed and lubricated with no maintenance required.
To vent the gearbox, there is a small vent cap located

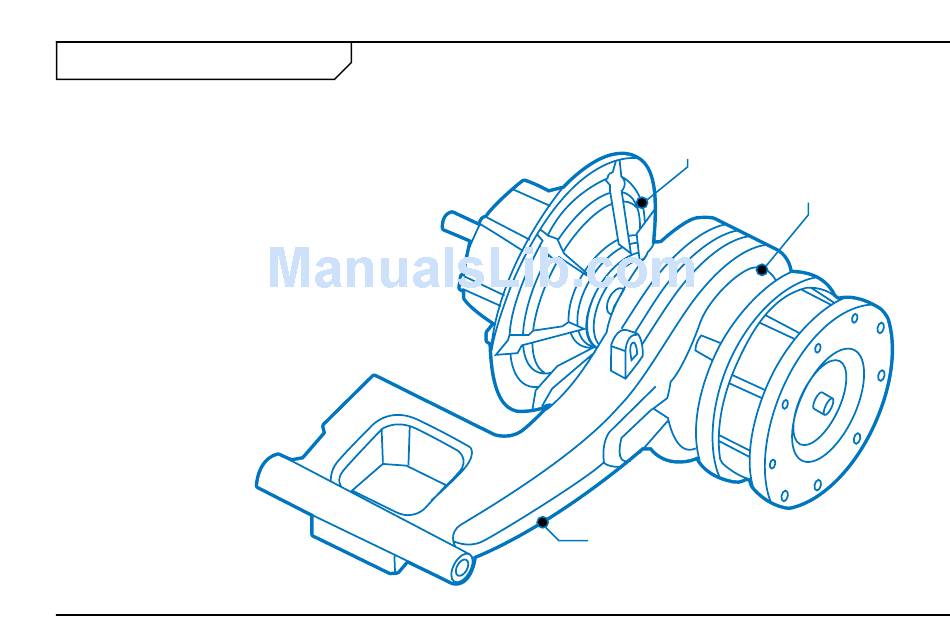

Vent Cap
on the top side of the motor side swing arm centered
on the motor. This vent should be kept clean of dirt,
Motor / Gearbox
debris and excessive water.
BrUShleSS DC MOTOr
The brushless DC motor is mounted in the motor side
swing arm with its shaft connected to the gearbox in
the rear wheel. There is no need for the consumer
to remove the motor cover. Motor cover removal
should only be done by an authorized service agent.
Removing the motor cover could lead to entrance of
dirt and moisture and/or disrupt the adjustment of
the encoder.
Motor Side Swing arm
