2 System Connectivity

2.1

Board connectivity

Display Active
Digital source
Active Preset
Master volume & Source
IR Receiver
/Preset selection
12VDC 2x Un-balanced
RCA inputs
Power Input
2.2

Typical setup

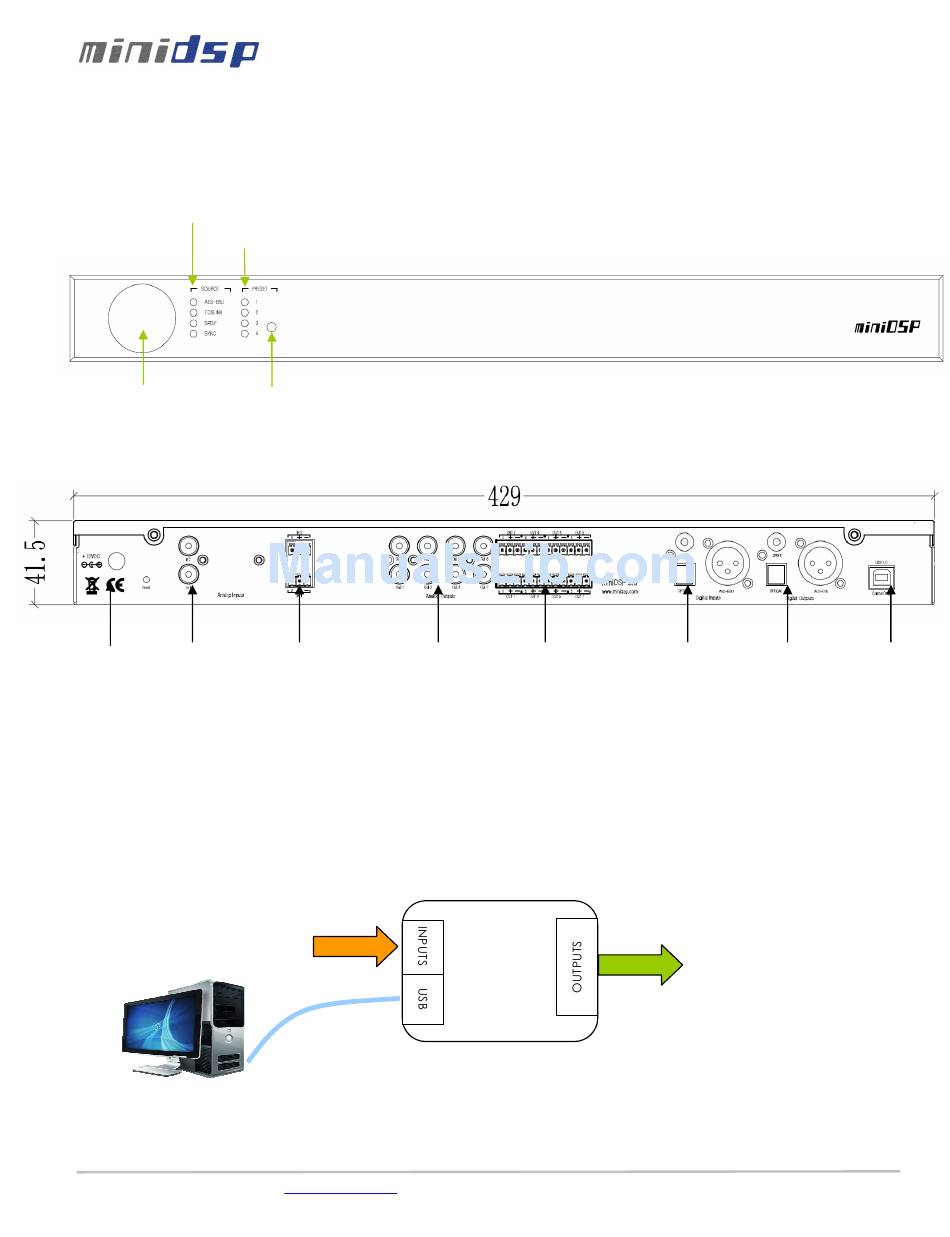

The following diagram is a typical connectivity diagram for a basic setup with analog inputs, analog outputs. To prevent any
damage, make sure the board is turned OFF before doing any connection modifications.
Analog/Digital Audio
source (e.g. PC/CD
player/Preamp...)
PC/MAC for initial
configuration only – Not
required afterward
