To check wireless network status, follow these steps:

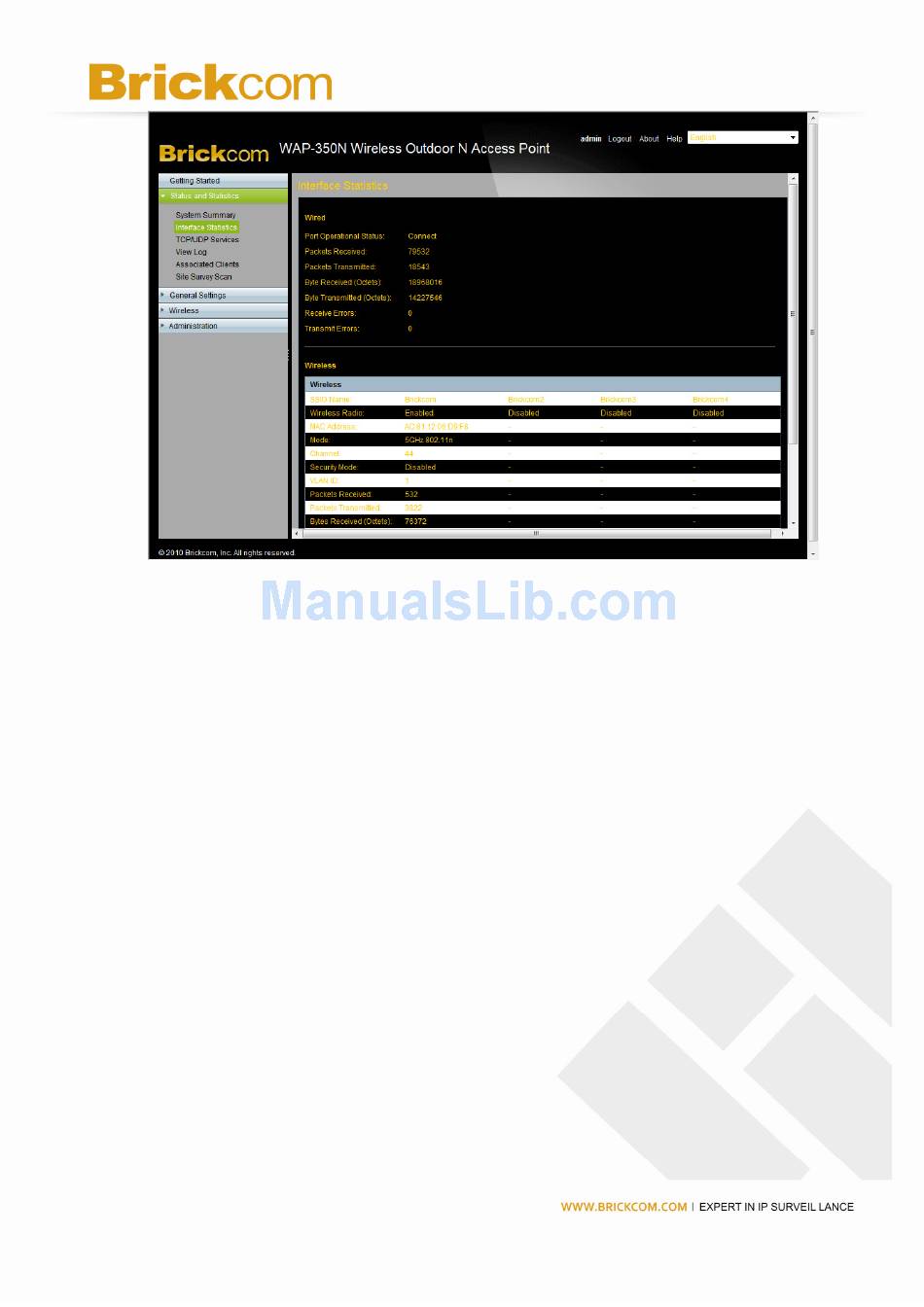

1. Click Status and Statistics > Interface Statistics.
This page displays the status information of your access point:
• Wired Settings
- Port Operational Status—The physical connection of the access point with the computer.
- Packets Received—The number of packets received.
- Packets Transmitted—The version of the access point's current software.
- Byte Received (Octets)—The number of bytes received.
- Byte Transmitted (Octets)—The number of bytes transmitted.
- Received Error—The error number of bytes received.
- Transmit Error—The error number of bytes transmitted.
• Wireless Settings
- SSID Name—The Service Set Identifier, or network name. This access point may have
up to four wireless networks, each with a unique SSID.
- Wireless Radio—The status of current wireless radio.
- MAC Address—The MAC address of the wireless radio..
- Mode—The wireless mode used by the network.
- Channel—Channel setting selected on the Basic Wireless Settings screen.
- Security Mode—The wireless security method used by the access point.
- VLAN ID—The VLAN ID for this wireless network.
