S-FCRW730

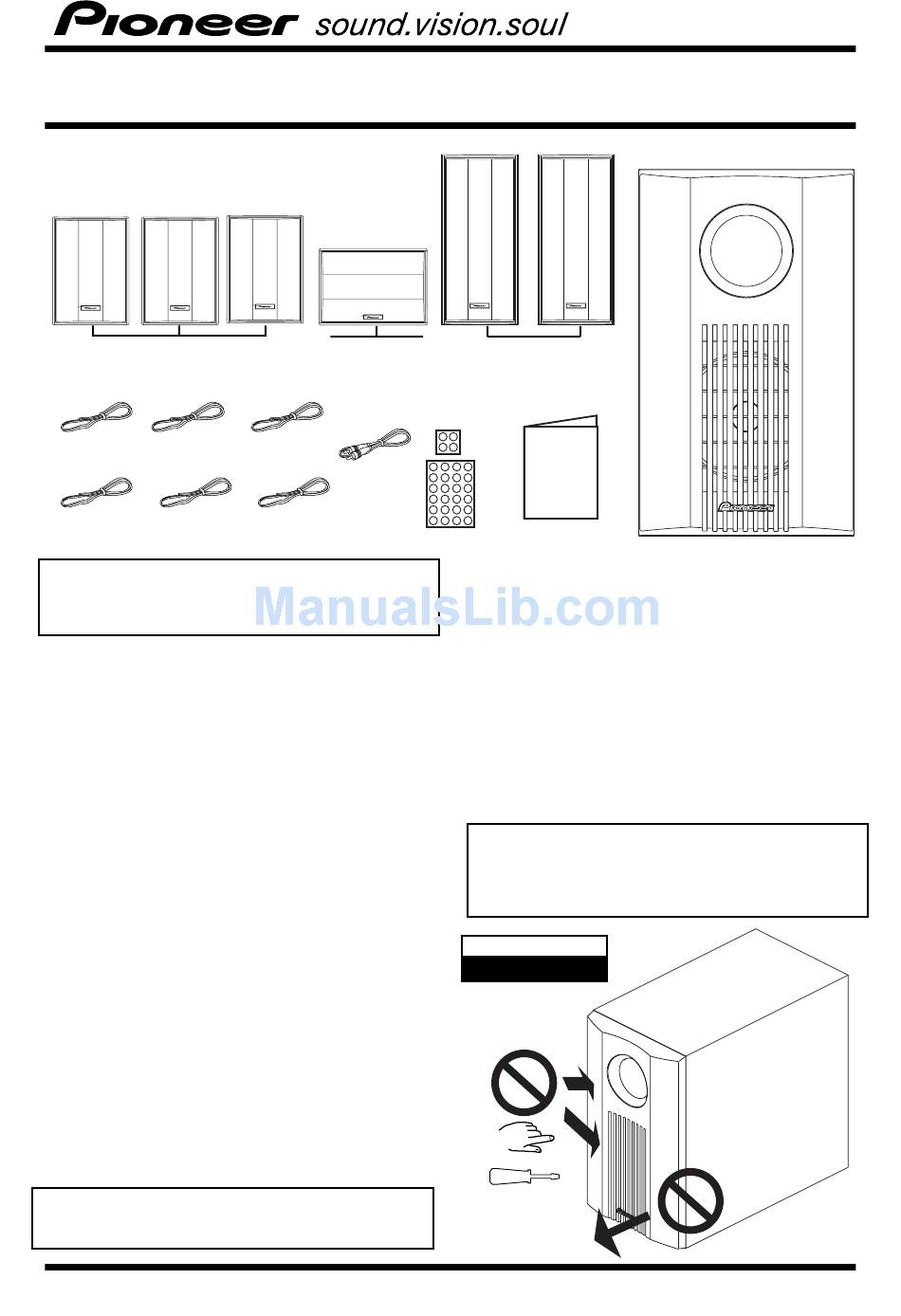

CONTENTS
REAR SPEAKERS
ACCESSORIES
FRONT LEFT
FRONT CENTER
SPEAKER WIRE
SPEAKER WIRE
REAR LEFT
REAR CENTER
SPEAKER WIRE
SPEAKER WIRE
IMPORTANT:
The serial number for this equipment is located on the rear of the
subwoofer. Please write this serial number on the warranty page
and keep it in a secure area for future reference.
BEFORE USE
Thank you for buying this Pioneer product.
Please read through this operating guide before using your
speaker system to optimize performance.
FRONT / CENTER/ REAR SPEAKERS
The nominal impedance of this speaker system is 8 ohms.
Connect the speaker system to a AV amplifier with a load
impedance rating ranging from 4 to 16 ohms
In order to prevent damage to the speaker system resulting
from input overload, please observe the following precau-
tions:
Do not supply signal to the speaker system in excess of the
maximum permissible input.
When connecting or disconnecting cables, be sure amplifier
power is OFF.
Do not use excessive amplifier volume if using a tone control
to emphasize high or low frequencies.
INSTALLATION PRECAUTIONS
FRONT / CENTER / REAR SPEAKERS
Do not install these units near a stove or other heating
appliance, or put them in a place exposed to the sun. Such
locations may cause the cabinet to change color and the
speaker system to break down.
If mounting to walls, examine them to confirm that their
strength is sufficient to bear the weight of the speaker system.
This system is not provided with any hardware for installa-
tion, so select suitable components corresponding to the
construction of your walls.
If you are unsure of the quality and strength of the walls,
consult a professional for advice.
CAUTION:
Pioneer will not be responsible for any accidents or damage that
may result from improper installation.
CENTER SPEAKER
FRONT RIGHT
SPEAKER WIRE
RCA CABLE
REAR RIGHT
SPEAKER WIRE
PROTECTION PADS
HOME THEATER LOUDSPEAKER SYSTEM
FRONT SPEAKERS
OPERATING GUIDE
The front and center speakers are magnetically shielded
for use near your television. However, in some cases, if
the speaker system is installed extremely close to the
screen of a television set, color distortion may occur. If this
happens, turn off the power switch of the television set,
and turn it on after 15 to 30 minutes. If the problem persists,
place the speaker system away from the television set.
POWERED SUBWOOFER
Do not place a TV set on top of the cabinet.
Do not spill liquid on the cabinet.
Place the subwoofer at least 8 inches from any wall or curtain
in order to avoid heat build-up.
CAUTION:
Do not remove the front plastic cover. This should be performed
by a qualified technician.
Do not attempt to reach the amplifier or speaker driver through
the front openings.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
www.pioneerelectronics.com
OPERATING GUIDE
SUBWOOFER
1

Advertisement

Table of Contents
loading

  Summary of Contents for Pioneer S-FCRW730

  • Page 1 • If you are unsure of the quality and strength of the walls, consult a professional for advice. CAUTION: Pioneer will not be responsible for any accidents or damage that may result from improper installation.
  • Page 2: Safety Instructions

    DAMAGE REQUIRING SERVICE – The appliance supporting structure, grounding of the lead-in FOLLOW INSTRUCTIONS – All operating and use in- should be serviced by a Pioneer authorized wire to an antenna discharge unit, size of structions should be followed. service center or qualified service personnel grounding conductors, location of antenna WATER AND MOISTURE –...
  • Page 3 A damaged power cord can cause fire or give you an electrical shock. Check the power cord periodically. If you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. FRONT / CENTER / REAR /REAR CENTER SPEAKERS Correct wiring of your loudspeakers is essential for achieving the best sound quality.
  • Page 4 www.pioneerelectronics.com POWERED SUBWOOFER WALL MOUNTING Sound spreads in all directions in the very low frequency range. SEE INSTALLATION PRECAUTIONS on page 1 Human hearing cannot easily detect the source of very low Attach screw (or anchor) leaving a 1/8” (3mm) gap between frequencies.
  • Page 5 www.pioneerelectronics.com OPERATING YOUR SYSTEM CABINET MAINTENANCE Turn on your receiver with the level control initially at zero. Use a polishing cloth or dry cloth to wipe off dust and dirt. When the cabinet is very dirty, clean with a soft cloth dipped in IMPORTANT: some neutral cleanser diluted five or six times with water, and Follow the instructions for your receiver and set the speakers...
  • Page 6: Troubleshooting

    www.pioneerelectronics.com TROUBLESHOOTING FRONT / CENTER / REAR SPEAKERS SYMPTOM PROBABLE CAUSE REMEDY 1. No sound • Bad speaker wire or connection • Connect correctly or replace wire • Receiver is off • Turn on receiver • Volume control is at zero •...
  • Page 7: Specifications

    www.pioneerelectronics.com SPECIFICATIONS REAR SPEAKER FRONT SPEAKER Enclosure ............Closed box type System ............1-way loudspeaker Enclosure ............Closed box type System ............2-way loudspeaker Drive Units Drive Units Full range ............... 3” cone Tweeter ..............3/4” dome Midrange ........3” cone magnetically shielded Nominal Impedance ............
  • Page 8: Limited Warranty

    WARRANTY PERIOD For the period specified below from date of original retail purchase (the warranty period) from an authorized Pioneer dealer, Pioneer Electronics (USA) Inc. (PUSA), and Pioneer Electronics of Canada, Inc. (POC) warrants that products distributed by PUSA in the U.S.A., and by POC in Canada that fail to function properly under normal use due to a manufacturing defect when installed and...
