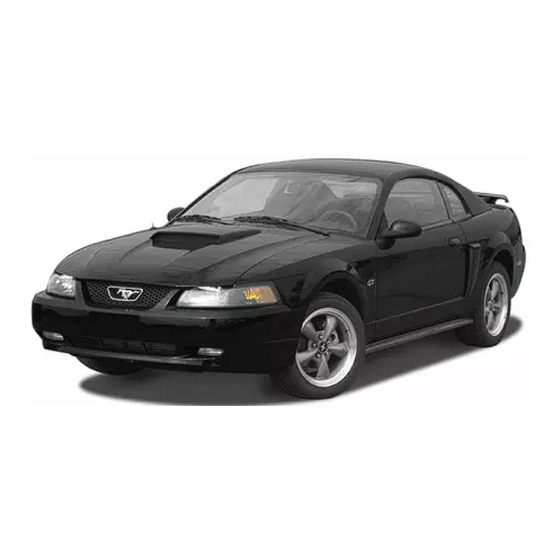

Ford MUSTANG 2004 Quick Reference Manual

22021_Mustang QRG_110403.qxd 11/20/03 11:19 AM Page 1
November 2003
Second Printing
Quick Reference Guide
FUSES If your electrical components
aren't working properly, a fuse may
have blown.*
FUEL PUMP SHUT-OFF SWITCH
pump shut-off switch may need to be reset
after a collision. (The engine would crank but
not start.) The switch is located on the left side of
the trunk between the left rear tail light and the
trunk liner, to the left of the hole in the trunk liner.*
FUEL TANK CAPACITY Your tank holds 15.7 gallons of
fuel; for optimum performance, use "Regular" unleaded fuel
with a pump (R+M)/2 octane rating of at least 87.
CHANGING THE TIRES Your vehicle is equipped with a temporary
spare tire, which is smaller than a regular tire and designed for
FORD MOTOR COMPANY
emergency use only. The jack, spare tire, jack handle and the lugnut
wrench are located in the wheel well underneath the trunk floor.
This CD is not intended to replace the Owner's
Guide that contains more detailed information Your tire pressure is set at the dealership
TIRE PRESSURE
concerning the features of your vehicle and according to the specifications found on the Certification Label on
important safety warnings to help reduce the risk
the front door latch pillar on the driver's side. Tire pressure
of injury to you and your occupants. Always
information can also be found on the Tire Information label on the
carefully read your entire Owner's Guide
inside of the fuel filler door. Please check your tire pressure during
when first learning about your vehicle and routine maintenance and seasonal changes.
consult the appropriate section when
ROADSIDE EMERGENCIES In addition to your New Vehicle Limited
questions arise.
Warranty, Ford provides new vehicle owners with a complimentary
4R3J-19G217-AA roadside assistance program; this service is available 24 hours,
seven days a week for three years or 36,000 miles. It covers:
CHANGING A FLAT TIRE / JUMP STARTS
*F4R3J19G217AA*
LOCK-OUT ASSISTANCE / TOWING OF YOUR VEHICLE
*See your Owner's Guide for more information.
CONVERTIBLE TOP (IF EQUIPPED) The convertible top POWER SIDE VIEW MIRRORS (IF EQUIPPED)
switch is located on the console in front of the mirror selector control all the way to the left to adjust
armrest. Use this switch to raise or lower the top. the left mirror or all the way to the right to adjust the
Note: The convertible top will not operate unless the right mirror. Next, move the control in the direction
Your fuel
parking brake is engaged. you wish to tilt the mirror. Return the selector control to
the center position to lock the mirrors in place.
The top can be lowered with the side windows either up or down.
Don't lower the top when the top material is wet or when the
REMOTE ENTRY SYSTEM
vehicle is moving. To prevent damage to the rear glass window,
UNLOCK
never store articles behind the rear seat.
driver's door, and twice to unlock the passenger's door.
When raising the top, the front and rear-side windows must be After the first press, the interior lamps will then illuminate.
lowered. Open both top clamps before the top meets the
LOCK
windshield header. Remove the boot cover and store it in the
doors. Pressing the control a second time will chirp the
luggage compartment when not in use. To prevent damage to the
horn and flash the lights to confirm that all doors are
top, never raise it while the vehicle is moving.
closed and locked.
Please refer to your Owner's Guide for detailed information on
PANIC ALARM
operating your convertible top.
panic alarm. Press the control again to deactivate.
TRUNK
TILT STEERING WHEEL LEVER (IF EQUIPPED) The tilt
the trunk is closed and latched before driving your vehicle. Failure to
steering wheel lever is located to the left of the
latch the trunk may cause objects to fall out of the trunk or block the
steering column underneath the turn signal. Pull the
rear view.
lever toward you to move the steering wheel up or
down. Hold the control while adjusting the wheel to the
The interior lights will turn on when the remote is used to unlock
desired position, then release the control to lock the steering wheel the doors or sound the personal alarm. The interior lights will turn
in position. Warning: Never adjust the steering wheel when the off if the ignition is switched to the ON position. The dome lamp
vehicle is moving.
control (if equipped) must not be set to the OFF position for the
illuminated entry system to operate. The remote-control entry
/ LIMITED FUEL DELIVERY
features only operate with the ignition in the LOCK position.
Move the
A
FAN SPEED CONTROL Rotate the knob to adjust the volume of
air circulated in the vehicle.
Press this control once to unlock the B
Rotate the knob to adjust the
TEMPERATURE CONTROL
temperature of the airflow inside the vehicle.
C
MAX A/C Uses recirculated air to quickly cool the vehicle. MAX
Press this control once to lock all of the
A/C is noisier than A/C, but is more economical and efficient. This
mode may reduce undesirable odors from entering the vehicle.
D
A/C Uses outside air to cool the vehicle. Airflow will be from the
instrument panel vents.
Press this control to activate the
E
PANEL Distributes outside air through the instrument
panel vents.
Press this control once to open the trunk. Ensure that
F
Distributes outside air through the floor vents.
FLOOR
G
Distributes outside air through the
FLOOR AND DEFROST
windshield defroster vents and the floor vents.
H
DEFROST Distributes outside air through the windshield
defroster vents. It can be used to clear ice or fog from the windshield.
SINGLE-CD RADIO MACH1000 ® SIX-CD IN-DASH RADIO
A
A
VOLUME/POWER CONTROL Press the control to turn the audio system on VOLUME/POWER CONTROL Press the control to turn the audio system on
or off. Turn the control to raise or lower volume. The speed sensitive volume feature
or off. Turn the control to raise or lower volume.
automatically adjusts radio volume in accordance with vehicle speed to compensate
B
for road and wind noise. To engage, press and hold the volume control for five
AM/FM SELECT In radio mode, press to select AM or FM frequency bands. In
seconds (with the radio on), then press SEL to choose the compensation level.
CD mode, press to stop play and begin radio play.
B
CD/AUX Press to select CD/AUX modes. No CD will display if there is not a
C
SEEK FUNCTION In radio mode, press to find the next listenable station CD present in the audio system. If a disc is loaded, there will be a number (1-6)
up or down the band. In CD mode, press to select the next/previous track on the
inside the circle on the display.
current disc.
C
AM/FM Press AM/FM to select AM or FM frequency bands. In CD mode, press
D AM/FM to stop play and begin radio play.
TUNE/DISCS In radio mode, press to move to the next frequency up or down
the band. D
SETTING MEMORY PRESET STATIONS Select AM, FM1, or FM2 band, then
select a station. Next, press and hold a memory preset control until the sound returns.
E
SCAN FUNCTION In radio mode, press to hear a sampling of all listenable
E
stations. In CD mode, press to hear a brief sampling of all selections. SETTING THE CLOCK Press MENU until SELECT HOUR or SELECT MINUTE is
displayed. Press SEL to set the time. Press MENU again to disengage the clock mode.
F
SETTING MEMORY PRESET STATIONS Select AM, FM1, or FM2 band,
F
DIGITAL SIGNAL PROCESSING Press DSP to access the Ambiance menu.
then select a station. Next, press and hold a control until the sound returns.
Ambiance gives you the feeling of "being there" to your music. Press SEL to
G engage/disengage. Press DSP again and then SEL to access the desired occupancy
COMP (COMPRESSION) In CD mode, press to bring louder and softer
mode (ALL SEATS, DRIVER SEAT, REAR SEATS).
levels into a more comfortable listening level. The compression icon (c) will
appear in the display. G
SEEK FUNCTION In radio mode, press to move to the next listenable station
up or down the band. In CD mode, press to select the next/previous track on the
H
SETTING THE CLOCK Press and hold CLK and press SEEK to set the hour. current disc.
Press and hold CLK and press TUNE to set the minute.
H
DISC/TUNE CAT In radio mode, press to manually move up or down the
I frequency band. In CD mode, press to select the next/previous disc in the CD player.
FAST REVERSE AND FAST ADVANCE To Fast Reverse or Fast Advance in
CAT is only available when equipped with satellite radio. The kit to enable satellite
CD mode, press and hold the respective button. When the desired position in the
reception is available through your Ford dealer. Detailed satellite instructions are
track is heard, release the button.
included with the dealer-installed kit.
J
I
CD Press to enter CD mode or to play a CD already loaded into the system. SCAN FUNCTION In radio mode, press to hear a sampling of all listenable
stations. In CD mode, press to hear a brief sampling of all selections on the current CD.
J
SAT (SATELLITE) Your MACH1000 ® radio comes equipped with satellite-
ready capability. The kit to enable satellite reception is available through your Ford
dealer. Detailed satellite instructions are included with the dealer-installed kit.
K
LOAD CD Press to open the CD door, then load the CD into the player. Press
LOAD and then a preset number to select a slot. Press and hold LOAD to activate
autoload. In radio mode, press to begin CD play.
2004MUSTANG / QUICK REFERENCE GUIDE
