- Page 1 Instructions for use Upright refrigerator - freezer...
-
Page 2: Table Of Contents
Thank you for your confi dence in buying our appliance and congratulations on the excellent choice. We hope it will successfully serve its purpose for many years. Upright refrigerator - freezer (hereinafter: the appliance) is combined from two parts: top part is refrigerator and bottom part is upright freezer. -
Page 3: Before Fi Rst Operation
Before fi rst operation • The appliance is manufactured in compliance with all relevant safety standards; however, it is recommended that persons with impaired physical, motional, or mental abilities, or persons with inadequate experience and knowledge, do not use the appliance without due supervision. -
Page 4: A Few Tips On How To Save Power With Your Refrigerator-Freezer Combo
• Rating plate with basic information is located in the interior of the appliance. If the sticker plate is not suitable for your language, replace it with the attached one. • Warning: Ventilation slots on the appliance or built-in element should always be kept clean and unobstructed. -
Page 5: Description Of The Appliance

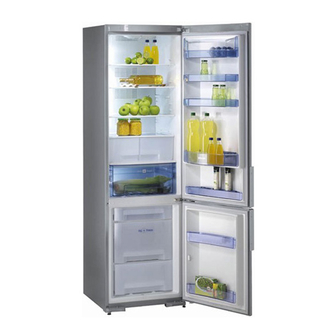

Description of the appliance A Refrigerator B Freezer 1 Interior light 2 Shelf (adjustable height) 3 Foldable egg rack (closed - six eggs, open - 12 eggs) 4 Vegetable crisp pan* 5 ZeroZone food storage drawer with pull-out guides (may. 20 kg)* 6 Bottle rack* 7 Refrigerator door shelf (options:... -
Page 6: Installation And Connection
Installation and connection Selecting the location • Place the appliance in dry and well aired room. The appliance operates best at temperature ranges indicated in the chart below. Relevant class of the appliance is indicated on the rating plate. Class Ambient temperature SN (subnormal) from +10°C to +32°C... - Page 7 Connecting to power • Use the power cord to connect the appliance to the mains supply power. Wall outlet must be fi tted with ground terminal (safety socket). Nominal voltage and frequency are indicated on the relevant label or rating plate of the appliance. •...
-
Page 8: Appliance Control
Appliance control Control unit I Control unit is located at the exterior side of the door. Setting ON Setting OFF A Refrigerator temperature selector and ON/OFF button B Freezer temperature selector and ON/OFF button C Alarm button D Refrigerator fast cooling button Fast freeze button Quick cooling of beverages in the refrigerator G Economy button... - Page 9 The ON/OFF button First plug the power cord into the wall outlet. The LCD display is on and indicates dashes. • Switch the appliance on/off by pressing buttons (A, B), for 3 seconds. • Single compressor appliances (HZS 4066, 3567, HZF 3267, 3767, 3761 EFV, HZKF 3067, 3567 EFV and EBFV) are switched on/off (both the refrigerator and the freezer) by pressing the button (B).
- Page 10 Other settings Alarm Continuous sound - opened refrigerator door. If the refrigerator door is open for more than one minute, the sound signal (continuous tone) starts and symbol appears. Alarm goes off by closing the door, or by pressing the alarm off button (C).
- Page 11 Fast freeze function Press the fast freeze button (E) to activate the intensive cooling of the freezer. If you fail to switch this function off manually by pressing the button adjacent to the symbol, it turns off automatically after 50 hours of operation. The function is intended for fast freezing of large quantities of inserted food.
-
Page 12: Appliance Control
Appliance control Control unit II The control unit is located on the outer side of the door. setting activated setting deactivated A Refrigerator on/off key B Signal light: on when refrigerator is in operation C Acoustic alarm off key D Signal light: on when high temperature alarm is activated Super Cool (refrigerator boost) key Signal light: on when the Super Cool (refrigerator boost) is activated G Refrigerator temperature setting key... - Page 13 Switching the appliance To switch on the appliance for the fi rst time, connect the plug to on/off a mains socket. The digital display will light up. Dashes will be displayed for refrigerator and freezer temperature. • To switch on the appliance, press the (A, K) key and hold it for 3 seconds.
- Page 14 Other settings Alarm Continuous acoustic signal - open refrigerator door alarm If the refrigerator door is open for more than one minute, a continuous acoustic signal (beep) is activated and the signal light (D) will light up. The acoustic alarm will go off when the door is closed or when the alarm is acknowledged with the (C) key.
- Page 15 Freezer boost (Super Freeze) function Press the (M) key to activate the freezer boost (Super Freeze). When the freezer boost (Super Freeze) is activated, the signal light (F) will be on. Freezer boost (Super Freeze) will be activated. If the setting is not deactivated manually by pressing the key next to the symbol again, the setting will be deactivated automatically 50 hours after activation.
-
Page 16: Recommended Distribution Of Food
Recommended distribution of food Recommended Refrigerator compartments: distribution of food - top section: canned food, bread, wine, cake, … - middle section: dairy products, cheese, readymade food, desserts, juices, beer, TV-dinners, … - bottom section: meat, meat products, delicatessen, … - crisp pan: resh fruit, vegetables, salads, appliances without ZeroZone drawer also: root vegetables, potatoes, onions, garlic, tomatoes, tropical fruit, sauerkraut, turnips, …... -
Page 17: Storing Fresh Food In The Refrigerator
Storing fresh food in the refrigerator Important precautions Proper use of the appliance, adequately packed for storing fresh food food, correct temperature and hygienic precautions produce substantial impact on the quality of stored food. Always respect the best before date, printed on the packaging. - Page 18 • Crisp tray below the glass shelf at the bottom of the refrigerator is used for storage of fruit and vegetables. It retains the right level of moisture and prevents drying out. • The refrigerator door liner consists of various shelves or holders used for storing cheese, butter, eggs, yogurt, and a stock of other smaller packages, tubes, cans etc.
-
Page 19: Storing Of Food In The Zerozone Drawer
Storing of food in the ZeroZone drawer The ZeroZone drawer provides storage of wide selection of fresh food approximately three times longer than in the traditional refrigerator. Food remains fresh for long time and it preserves its taste and nutritive ingredients. It reduces decay and loss of mass, so fruit and vegetables are more fresh and natural. - Page 20 Approximate storage Food Storage period time in the ZeroZone* Meat: drawer sausages, cold cuts, beef, pork, venison, up to 7 days raw meat poultry up to 5 days fi sh up to 4 days seafood up to 3 days Vegetables: cabbage, garlic, carrots up to 180 days celery, herbs...
-
Page 21: Storage Of Food In The Freshzone
Storage of food in the FreshZone The FreshZone drawer provides storage of wide selection of fresh food longer than in the traditional refrigerator. Food remains fresh for long time and it preserves its taste and nutritive ingredients. It reduces decay and loss of mass, so fruit and vegetables are more fresh and natural. -
Page 22: Freezing And Storage Of Frozen Food
Freezing and storage of frozen food Freezer interior • The freezer interior door lining is also fi tted with various accessories shelves and holders (certain models only) used for storing frequently used frozen food - quick access (ice-cream, open packages of vegetables, etc.) Freezing procedure •... -
Page 23: Important Precautions
Important precautions Freeze only such food which is suitable for freezing and for freezing of fresh food sustain low temperatures. Food should be of adequate quality and fresh. Select adequate packaging for each kind of food and pack it correctly. The packaging should be air tight and well sealed without leaking since this could cause substantial vitamin loss and dehydration. -
Page 24: Defrosting The Appliance
Defrosting frozen food Partially thawed or defrosted foods should be used as soon as possible. Cold air preserves the food but it does not destroy microorganisms which rapidly activate themselves after defrosting and make foods perishable. Partial defrosting reduces the nutritional value of food, especially fruits, vegetables and readymade meals. -
Page 25: Cleaning
• Avoid using defrosting sprays, as they may cause damage to the plastic parts and may be hazardous to health. • Clean the interior of the appliance and wipe it dry (see chapter Cleaning). • Before reloading food into the freezer switch the appliance on. Defrosting the NO •... -
Page 26: Troubleshooting Guide
Troubleshooting guide Fault: Cause/Remedy The appliance does not operate • Check if there is power in the socket and if the appliance is after connection to the mains: switched on. Cooling system operates • Ambient temperature too high. continuously without intermittent •... -
Page 27: Noise Level
Fault: Cause/Remedy Bulb replacement: • Before replacing the light bulb, disconnect the appliance form the power supply. Using the screwdriver remove the cover, replace the bulb with a new one (E14, same voltage as the factory one) and fi t back the cover. •... - Page 28 HZOKS 3766, 3367, HZOKF 3067, 3567 HZS 4066, 3567; HZF 3267, 3767, 3761 EFV; HZKF 3067, 3567 COMBI EXC en (09-12)
