Gorenje Simplicity Series Detailed Instructions For Use

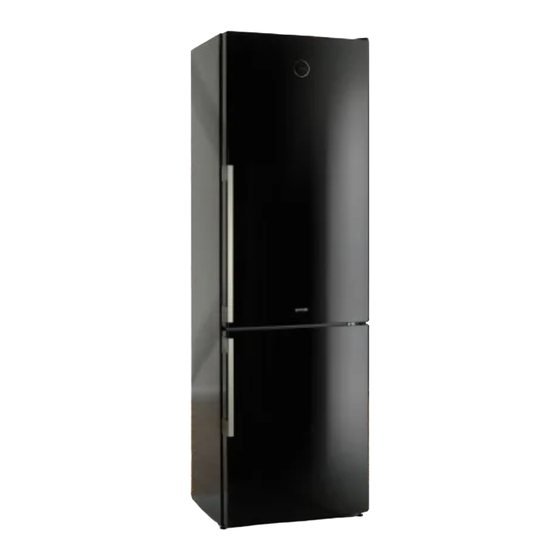

Upright refrigerator and freezer
Hide thumbs Also See for Simplicity Series:
Table of Contents

Advertisement

Quick Links

GB
DETAILED
INSTRUCTIONS FOR
USE OF UPRIGHT
REFRIGERATOR AND
FREEZER
www.gorenje.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Simplicity Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gorenje Simplicity Series

Summary of Contents for Gorenje Simplicity Series

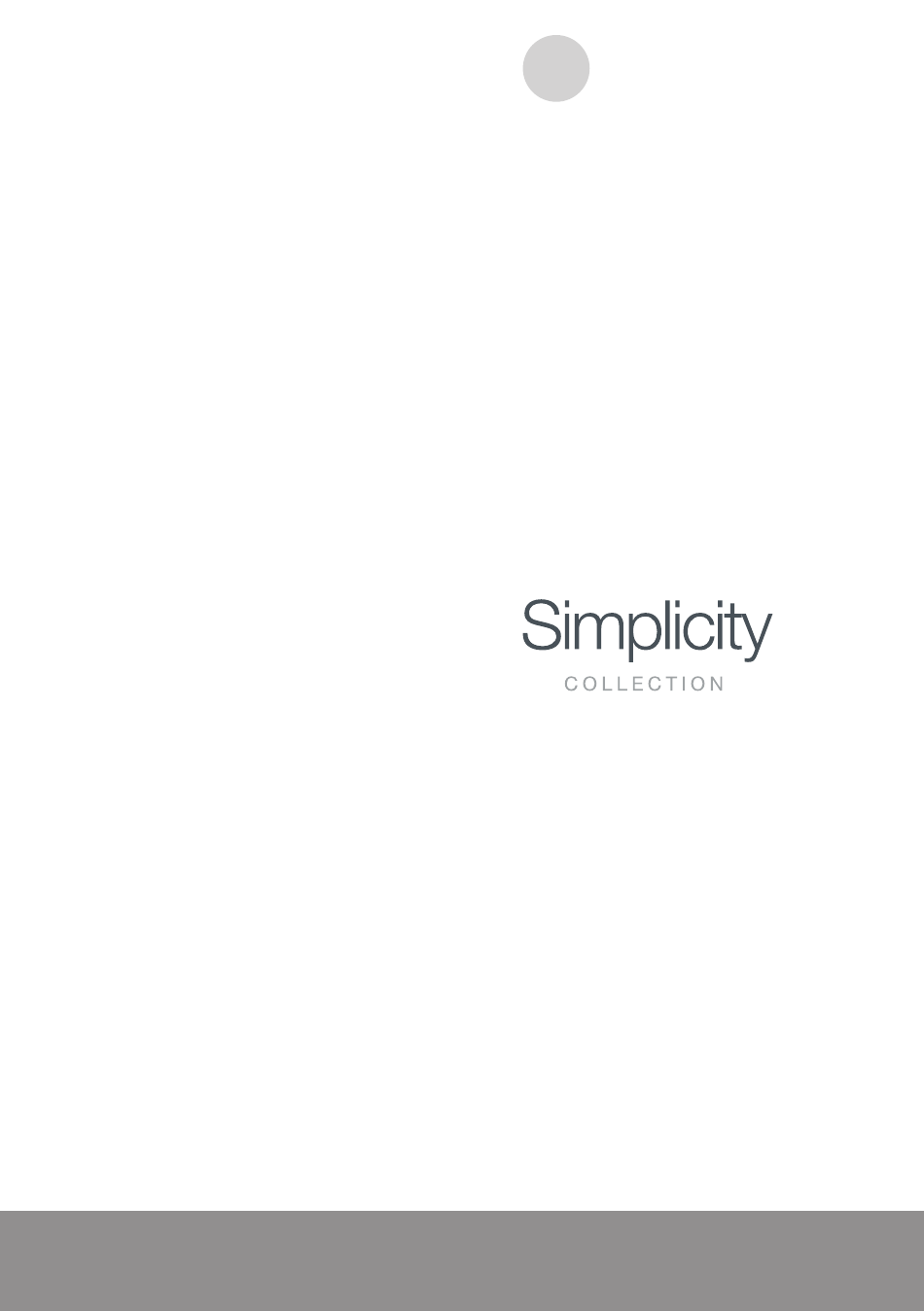

  • Page 1 DETAILED INSTRUCTIONS FOR USE OF UPRIGHT REFRIGERATOR AND FREEZER www.gorenje.com...
  • Page 2 Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. http://www.gorenje.com Important safety warning General information and tips Protecting the environment...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 Before using the appliance for the first time 5 Important safety instructions 8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE 9 ENVIRONMENT PROTECTION 10 ADVICE FOR SAVING POWER WITH REFRIGERATION APPLIANCES APPLIANCE 11 INSTALLATION AND CONNECTION...

  • Page 4: Important Notes And Precautions

    IMPORTANT NOTES AND PRECAUTIONS BEFORE USING THE APPLIANCE FOR THE FIRST TIME Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models; thus, settings or equipment may be described herein which is not available in your appliance.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING! Risk of fire/flammable materials. The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations. WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Before cleaning the appliance, unplug it from the power mains (unplug the power cord from the wall outlet).
  • Page 6 Danger of frostbite Never put frozen food in your mouth and avoid touching frozen food as this may cause frostnip or frostbite. Safety of children and vulnerable persons The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 7 Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Warning regarding the refrigerant The appliance contains a small amount of an environmentally friendly yet flammable gas R600a. Make sure that no parts of the cooling system are damaged.

  • Page 8: Important Information On The Use Of Appliance

    IMPORTANT INFORMATION ON THE USE OF APPLIANCE WARNING! This appliance is intended to be used in household and similar applications such as: – staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments;...

  • Page 9: Environment Protection

    Technical information on the appliance Rating plate can be found in the appliance interior. It indicates data on voltage, gross and net volume, type and amount of refrigerant, and information on the climate classes. If the language on the rating plate is not the language of your choice or the language of your country, replace it with the one supplied.

  • Page 10: Advice For Saving Power With Refrigeration Appliances

    ADVICE FOR SAVING POWER WITH REFRIGERATION APPLIANCES • Install the appliance as specifi ed in the instruction manual. • Do not open the door more often than necessary. • Occasionally make sure air circulation underneath the appliance is unobstructed. • Condenser unit on the rear wall should be kept clean (see chapter Cleaning the appliance).

  • Page 11: Installation And Connection

    INSTALLATION AND CONNECTION SELECTING THE ROOM • Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specifi ed in the table. The appliance class is indicated on the rating plate / label with the basic information on the appliance.
  • Page 12 INSTALLING THE APPLIANCE Appliance installation should be carried out by at least two persons to avoid any physical injury or damage to the appliance. • The appliance must stand level or tilted slightly to the back, stable on a 30 mm solid base.
  • Page 13 CONNECTING THE APPLIANCE • Connect the appliance to the power mains using a connection cable. The wall outlet should be fi tted with a ground contact (safety socket). Nominal voltage and frequency are indicated on the rating plate/ label with basic information on the appliance.

  • Page 14: Appliance Description

    APPLIANCE DESCRIPTION A Refrigerator 1 Control unit 2 LED lighting of refrigerator interior 3 Pull-out glass shelf (height-adjustable) 4 Crisper (fruit and vegetables drawer) 5 Height-adjustable door 6 Bottle shelf B Freezer 7 Freezer drawers 8 Glass shelves • The drawers are protected against pulling out. To remove a drawer from the appliance, pull it out as far as it will go, then lift at the front and pull out completely.

  • Page 15: Changing The Direction Of Door Opening

    CHANGING THE DIRECTION OF DOOR OPENING Tools required: socket wrench No. 8, Phillips screwdriver, torx 25, flat screwdriver The procedure to change the direction of door opening should be carried out by at least two persons. 1. Remove the upper hinge cover (A) and the cover from the connector (B1). 2.

  • Page 17: Operating The Appliance

    OPERATING THE APPLIANCE A Temperature and extra function key B Refrigerator compartment set temperature and »eco« function indicator C Refrigerator compartment set temperature indicator D Refrigerator compartment set temperature and »longer absence« (holiday) function indicator E Intensive freezing (freezer boost) function indicator F High temperature alarm indicator To set the appliance temperature or activate extra functions, press the A key successively.
  • Page 18 SWITCHING THE APPLIANCE ON/OFF When you connect your appliance to the mains for the first time, it will be in standby mode (powered, but switched off). To switch on the appliance press A key for 3 seconds. To switch off the appliance press again A key for 3 seconds.
  • Page 19 The numbers 1, 3, 5, 7 and 9 indicate the degrees Celsius (°C) in the appliance refrigerator compartment. • The recommended temperature setting is +4 °C. At this temperature, food quality and freshness are preserved longer. • The temperature in the refrigerator compartment also aff ects the temperature in the freezer compartment.
  • Page 20 FREEZER BOOST FUNCTION To activate the intensive freezing (freezer boost) function, press the A key several times until the symbol E lights up. • When the intensive freezing function is activated, temperature may be lower both in the refrigerator and the freezer compartment.
  • Page 21 HIGH TEMPERATURE ALARM If the temperature inside the appliance is too high, acoustic alarm will be activated (intermittent tone) and the F symbol will flash. • Every time the appliance is switched on with the A key, there is a 24- hour delay in high temperature alarm operation.
  • Page 22 MANUALLY ADJUSTABLE FLAP (ONLY WITH SOME MODELS OF NOFROST APPLIANCES) The flap is located behind the fruit and vegetable bin. As a factory setting, it is in position 2 or 3. If it is not possible to reach the right temperature, then set it as described in the section "Troubleshooting".

  • Page 23: Appliance Interior Equipment

    APPLIANCE INTERIOR EQUIPMENT (* Equipment depends on the model) SHELF • For easier access to food and clarity, the shelves can be partly pulled out. • The shelves may be adjusted tu suit your preferences using the guides in the refrigerator interior. To remove a shelf from the refrigerator, pull it out tot he point when it is stopped by the guide.
  • Page 24 ELASTIC BOTTLE MAT* • Some models feature an elastic mat on which bottles or cans can be placed. • The mat can also be used as a trivet for hot pans. CrispZone – FRUIT AND VEGETABLE BIN WITH HUMIDITY CONTROL •...
  • Page 25 INTERIOR SIDE OF THE REFRIGERATOR DOOR Mounted on the refrigerator door are compartments intended for storing cheese, butter, eggs, yoghurt and other smaller packages, tubes, cans, etc. There is a bottle shelf at the lower end of the door. ADJUSTABLE DOOR BINS The height of door bins can be adjusted to your preferences without having to take them out of the...
  • Page 26 FAN* • The fan placed under the refrigerator compartment ceiling or hidden in the freezer unit will make sure the temperature is distributed more evenly and reduce condensation (dew) on the storage surfaces. IONIZER (IONAIR)* • Air ionizer installed in the refrigerator compartment keeps the air permanently fresh.

  • Page 27: Recommended Distribution Of Food In The Appliance

    RECOMMENDED DISTRIBUTION OF FOOD IN THE APPLIANCE Sections in the refrigerator compartment: - upper part: canned food, bread, wine, pastry etc. - middle part: dairy products, ready-made meals, desserts, soft drinks, beer, cooked food, etc. - FreshZone bin: - meat, meat produce, delicatessen; - Fruit and vegetable bin: fresh fruit, vegetables, salads, root vegetables, potatoes, onions, garlic, tomatoes, sauerkraut, turnips etc.

  • Page 28: Storing Food In The Refrigerator

    STORING FOOD IN THE REFRIGERATOR IMPORTANT WARNINGS REGARDING FOOD STORAGE Correct use of the appliance, appropriate packaging, maintaining the right temperature, and observing the food hygiene standards has a decisive impact on the quality of food storage. Observe the expiry dates for the food, specified on the packaging.
  • Page 29 AVOID CONTAMINATION OF FOOD To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a signifi cant increase of the temperature in the compartments of the appliance. • Regularly clean surfaces that can come in contact with food and accessible drainage systems.
  • Page 30 STORING FOOD TYPE OF FOOD Optimum Optimum Approximate storage storage humidity storage time temperature (°C) level (%) Pork -1 to 4 3 days Beef 0 to 4 up to 3 weeks Lamb 0 to 4 14 days Chicken 0 to 4 3 days Fish 0 to 4...
  • Page 31 TYPE OF FOOD Optimum Optimum Approximate storage storage humidity storage time temperature (°C) level (%) Leeks 95-100 2 to 3 months Mushrooms 3 to 4 days Parsley 95-100 2 to 3 days Parsnip 98-100 4 to 6 months Radish, winter 95-100 2 to 4 months Horseradish...
  • Page 32 TYPE OF FOOD Optimum Optimum Approximate storage storage humidity storage time temperature (°C) level (%) Cherries 0 to 2 90-95 2 to 3 weeks Kiwi, unripe 0 to 2 90-95 2 to 6 months Nectarines  0 to 2 90-95 1 to 3 weeks Oranges  0 to 2 90-95...

  • Page 33: Storing Food In The Freshzone Drawer

    STORING FOOD IN THE FreshZone DRAWER (Only in some models) In the FreshZone compartment, food stays fresh longer than in a conventional refrigerator, retaining more flavour and nutrients. Decay and loss of mass are slowed down; therefore, fruit and vegetables remain fresh and natural longer.

  • Page 34: Freezing And Storing Frozen Food

    FREEZING AND STORING FROZEN FOOD FREEZING PROCESS Maximum amount of fresh food that may be inserted at once is specified on the appliance rating plate. If the amount of food to be frozen exceeds the indicated amount, the quality of freezing will be inferior; in addition, the quality of the food already frozen will deteriorate.

  • Page 35: Important Warnings On Freezing Fresh Food

    IMPORTANT WARNINGS ON FREEZING FRESH FOOD Only freeze the food that is suitable for freezing in the freezer. Make sure the food you freeze is of high quality and fresh. Choose appropriate packaging and use the packaging correctly. Packaging should not be permeable to humidity; it should be airtight to prevent the food from drying out and loss of vitamins.

  • Page 36: Frozen Food Storage Time

    FROZEN FOOD STORAGE TIME Recommended storage time in the freezer Type of food Time fruit, beef from 10 to 12 months vegetables, veal, poultry from 8 to 10 months Venison from 6 to 8 months Pork from 4 to 6 months minced meat 4 months bread, pastry, ready-to-eat meals, lean...

  • Page 37: Defrosting The Appliance

    DEFROSTING THE APPLIANCE AUTOMATIC REFRIGERATOR DEFROSTING Refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically. Any accumulated ice will melt when the compressor unit is inactive. Drops will flow through an opening in the refrigerator rear wall into a tray fitted above the compressor, from where they will evaporate.

  • Page 38: Cleaning The Appliance

    CLEANING THE APPLIANCE Before cleaning, unplug the appliance from the power mains – switch off the appliance (see chapter Switching the Appliance On/Off) and unplug the power cord from the wall outlet. • Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface.

  • Page 39: Troubleshooting

    TROUBLESHOOTING Problem: Cause or remedy: Appliance is connected • Make sure there is voltage in the power outlet and to the power mains but that the appliance is switched on. it does not work. Cooling system • Too high environment temperature. operates continuously •...
  • Page 40 Problem: Cause or remedy: Water leaking from the • Clogged water discharge opening or water refrigerator: dripping past the water gutter. • Clean the clogged opening, for example using a plastic straw. • If a thick layer of ice builds up, defrost the appliance manually (see Defrosting the Appliance).

  • Page 41: Information About Appliance Noise

    INFORMATION ABOUT APPLIANCE NOISE Cooling in refrigerator freezers is made possible by a cooling system that also includes a compressor (and a fan with some appliances), which generates some noise. The level of noise depends on installation, proper use, and age of the appliance.
  • Page 44 COMBI FS600 ADV SY en (08-19)

This manual is also suitable for:

Combi fs600 adv sySimplicity nrk621syw4Simplicity nrk621syb4Simplicity nrk611syw4Simplicity nrk611syb4
