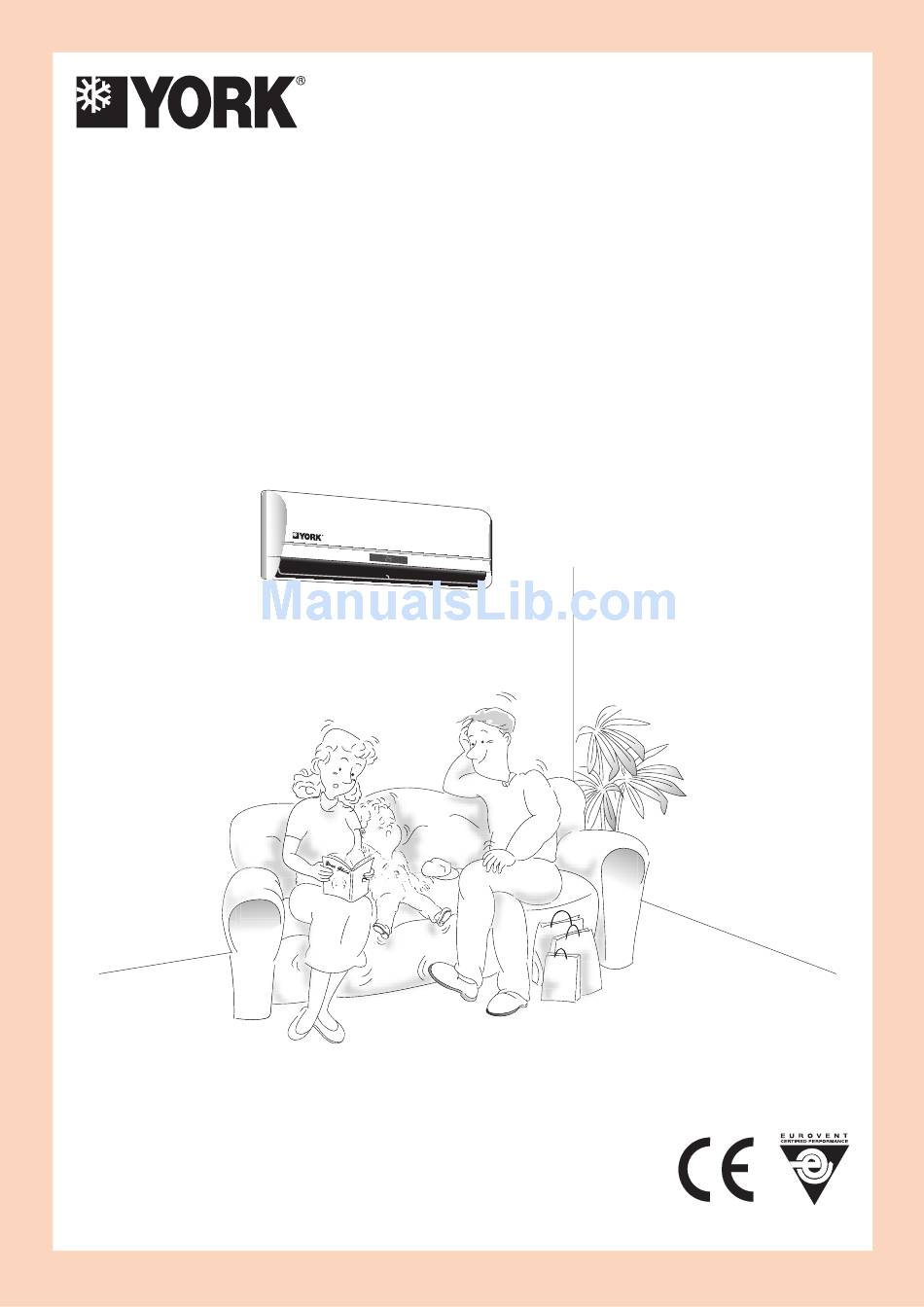

Page 1: Air Conditioner
Installation & Owner’s Manual MINISPLIT MODELS RLCA-RLHA 07-30 HIGH WALL AIR CONDITIONER The units comply with one or more of the following marks - see unit for details. EN 035M80147-000... - Page 2 CONTENTS Safety Precautions Part Names Manual Operation How the air conditioner works Optimal operation Preparation Before Installation Installation Procedure Maintenance Operation tips Please read this installation Troubleshooting Guide manual carefully before starting the installation. It will tell you Technical Speci cation necessary information.
-
Page 3: Safety Precautions
REQUIRED TOOLS EXTENDED PARTS 1. Screw driver 9. Manifold gauge 1. Refrigerant Pipe 2. Hexagonal wrench 10. Gas leak detector Models 07-09 12-18 24-30 3. Torque wrench 11. Vacuum pump Liquid size 1/4 inch 1/4 inch 3/8 inch 4. Spanner 12. -
Page 4: Part Names
PART NAMES INDOOR UNIT INDOOR & OUTDOOR UNIT Front panel Remote controller signal Air inlet receiver Air lter Remote controller Air outlet Manual control button Horizontal air ow grille Connecting pipe, drain hose Vertical air ow louver Air inlet (side and rear) Display panel Air outlet... -
Page 5: Manual Operation
MANUAL OPERATION Manual operation can be used temporarily in case you can not nd the remote controller or its batteries are exhausted. 1 Open and lift the front panel up to an angle at which it remains xed with a clicking sound. 2 Press the button until the AUTO indicator is lit, the unit will work in forced AUTO mode. -
Page 6: Optimal Operation
OPTIMAL OPERATION To achieve optimal performance, Please note the following: • Adjust the air ow direction correctly so that it is not directed on people. • Adjust the temperature to achieve the highest comfort level. Do not adjust the unit to excessive temperature levels. - Page 7 OUTDOOR UNIT PICTURES RLDA-RLJA 07-09 RLDA-RLJA 12-18 Ø420 RLDA-RLJA 24-30 301.5 141.5 560.1 ENGLISH...
-
Page 8: Installation Procedure
PARTS INSTALLATION Number Name of part Q’ty Installation plate Clip anchor Self-tapping screw A ST3.9X25 Liquid side ø 6.35 ø 9.53 (<12000Btu/h model) Connecting Parts you pipe must ø 12.7 (21000Btu/h model > Cooling Gas side assembly purchase capacity f 12000Btu/h model) ø... -
Page 9: Drain Hose
MODEL 24-30 Above 150mm from the ceiling Hooked Part Hooked Part Hooked Part 1080 Above 120mm from Above 120mm from Right the wall the wall Right Pipe hole Pipe hole Indoor Unit Outline Right Left Right CAUTION Rear Bottom • Be careful when handling the sharp edge of the mount- ing plate. -
Page 10: Refrigerant Piping Connections
Indoor Unit Fixing • Thread the indoor unit piping and cable through the hole. • Hang the top of the unit onto the upper ridge of them in mounting plate. • Make sure that the unit is correctly hung in place by sliding it to the left, then to the right. •... - Page 11 To this effect, when the piping has been evacuated, close the pressure gauge tap, note the value on the gauge, then wait for 15 minutes. If the needle moves, there is a leak in the system. Make the necessary adjustments or repairs and repeat this procedure until the needle no longer moves.
-
Page 12: Electrical Connections
Wiring Prepare the power source for exclusive with the air conditioner. The supply voltage must comply with the rated voltage of the air conditioner: The plug socket shall be accessible after installation. Remark: All the wiring must be based on the wiring nameplate which is shown on the model. CAUTIONS •... - Page 13 Wiring Connection Models : 07-18 Indoor Outdoor Terminal block of indoor unit Terminal block of outdoor unit 1 2(N) 3 4 1 2(N) 3 4 2(N) 2(N) 3 Cord clamp Wire-holding To outdoor unit To outdoor unit board Cooling & heating type Cooling only type Cooling &...
- Page 14 Electrical Work Model Power Source Switch and Fuse rating Wiring size 220-240V ~ 50Hz 7000-9000 Btu/h f 1.0 mm 220-230V ~ 60Hz 220-240V ~50Hz 12000 Btu/h f 1.5 mm 220-230V ~ 60Hz 220-240V ~50Hz 18000 Btu/h 220-230V ~ 60Hz f 2.5 mm 220-240V ~50Hz 24000-30000 Btu/h 220-230V ~ 60Hz...
-
Page 15: Checks Before Operation
MAINTENANCE WARNING It is necessary to stop the air conditioner and disconnect the power supply before cleaning. Household Drain Cleaner Cleaning the indoor unit and remote controller CAUTION • Use a dry cloth to wipe the indoor unit and remote controller. •... -
Page 16: Operation Tips
OPERATION TIPS The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection • The compressor can not restart for 3 minutes after it stops. Anti-cold air (Cooling and heating models only) • The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached. -
Page 17: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Probable cause Remedy A. The air conditioner does not 1. Power failure. 1. Wait for power resume. 2. Fuse blown or circuit breaker open. 2. Replace the fuse or reset the run. 3. Voltage is too low. breaker. -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS Technical Speci cations : Everest RLCA-RLHA “R22” - 50Hz RLEA-RLKA Indoor Unit RLEA07 RLKA07 RLEA09 RLKA09 RLEA12 RLKA12 RLEA18 RLKA18 RLEA24 RLKA24 RLEA28 RLKA28 Models RLDA-RLJA Outdoor Unit RLDA07 RLJA07 RLDA09 RLJA09 RLDA12 RLJA12 RLDA18 RLJA18 RLDA24 RLJA24 RLDA28 RLJA28... - Page 19 TECHNICAL SPECIFICATIONS Technical Speci cations : Everest RLCA-RLHA “R22” - 60Hz RLEA-RLKA Indoor Unit RLEA07 RLKA07 RLEA09 RLKA09 RLEA12 RLKA12 RLEA18 RLKA18 RLEA24 RLKA24 RLEA30 RLKA30 Models RLDA-RLJA Outdoor Unit RLDA07 RLJA07 RLDA09 RLJA09 RLDA12 RLJA12 RLDA18 RLJA18 RLDA24 RLJA24 RLDA30 RLJA30...
-
Page 20: Declaration Of Conformity
Authorized Representative: CM Choi Shipping Manager YORK International (Northern Asia) Ltd. 15/F., Tower II, World Trade Square, 123 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Telephone: (852) 2331 9286 Fax: (852) 2331 9840 Technical Service Division: Telephone: (852) 2331 9286 Fax: (852) 2304 0068...
