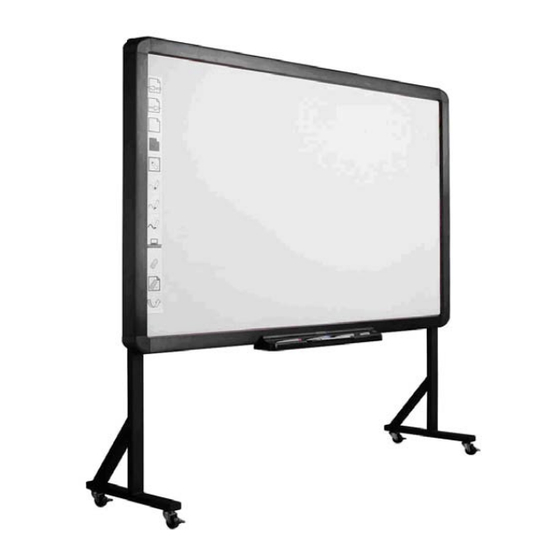

Qomo INTERACTIVE WHITEBOARD Owner's Manual
Hide thumbs
Also See for INTERACTIVE WHITEBOARD:
- Owner's manual (37 pages) ,
- Owner's manual (29 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Qomo INTERACTIVE WHITEBOARD
Summary of Contents for Qomo INTERACTIVE WHITEBOARD
- Page 1 INTERACTIVE WHITEBOARD Owner’s Manual...
-
Page 2: Table Of Contents
Whiteboard Software Features............5 How to Install Hardware..............6 How to Install Software ..............15 How to Use Whiteboard Annotation Software......... 20 Troubleshooting Guide ..............21 QOMO Interactive Whiteboard User Tips ........23 Specifications ..................24 Technical Support ................28... -
Page 3: What's In The Box
What’s In The Box Thank you for your purchase of the QOMO Interactive Whiteboard. If any items are missing or damaged, please contact your authorized reseller immediately. CONTENTS: White Board * 1 pc Writing Pen *3 pc USB Cable 49 ft (7.5m) * 1 pc... -
Page 4: Qomo Whiteboard System Requirements
QOMO Whiteboard System Requirements Lowest Environmental Requirements: · CPU: 300MHz ×86 · Memory: 128M · Display Card: Support 256 or above · Hard Disk: 100M · Screen Display Resolution: 800×600、1024×768 、 1280×1024 · USB1.1 port Recommended: · CPU: 1GHz ×86 ·... -
Page 5: Introduction
The system can support up to 40 writing locations. Touch System: QOMO Interactive Whiteboard is sensitive to touch speed and can be used as a high-resolution interactive white board. Touch Recognition: Can recognize touch of a single-finger, certain gesture, right-click, left-click and double click. -
Page 6: Whiteboard Software Features
Whiteboard Software Features: Designed for teaching and conference systems. High gain and low glare screen. Saves images in Vector image format. Vector images take up less storage space and makes file transferring easier and faster Users can customize pen type, line width, and color schemes to fit their individual preferences. -
Page 7: How To Install Hardware
How to Install Hardware 1. How to install QWB56/200/300/100WS hardware Install Pen Tray: In the frame of the board, prior to securing the pen tray you will find a slot that accommodates a Kensington lock. If you would like to use a Kensington lock insert and loop the cable through the center hole on the frame, position the pen tray in line with the four screws, and then screw the pen tray in place. - Page 8 Install Wall-mounting: Set desired height according to user’s preferences. Using the wall-mounting brackets as a template, place the 8 stilettos on the wall and screw bolts into each hole. Align the wall-mounting brackets onto the bolts and tighten the bolts. Check that each location hole faces each corresponding bolt and hang the white board to the wall.
- Page 10 Install White Board on a Floor Stand: (1) Lock all four casters in the down position (as shown) (2) With an assistant’s help, hang Interactive whiteboard on the floor stand by lowering the two bolts onto the top hooks and securing the bottom bolts into the bottom hooks.
- Page 11 2. How to install QWB200 SLIM /300 SLIM Hardware Install Securing Pen Tray: White color frame with aluminum pen tray: Install aluminum pen tray at the bottom of the interactive whiteboard (with the screws at the bottom of the back of the interactive whiteboard) shown below:...
- Page 12 Grey color frame with pen tray: In the frame of the board, prior to securing the pen tray you will find a slot that accommodates a Kensington lock. If you would like to use a Kensington lock insert and loop the cable through the center hole on the frame, position the pen tray in line with the four screws, and then screw the pen tray in place.
- Page 13 Install Wall-mounting: (1) Install two wall-mounting brackets A at the back of the interactive whiteboard (with the four screws at the top of the back of the interactive whiteboard), shown below: (2) Install two wall-mounting brackets C at the back of the whiteboard (with the two screws at the bottom of the back of the whiteboard), shown below:...
- Page 14 B. Make sure the distance between the two wall-mounting brackets B is fit for hanging the interactive whiteboard. Shown below: After hanging the whiteboard, place 2 stilettos on the wall according to the actual position and screw bolts into each hole to fix the wall-mounting brackets C.
- Page 15 (1) Assemble the stand with screws, shown below: (2) Lock all four casters in the down position (as shown) （3）With an assistant’s help, hang Interactive whiteboard on the floor stand by lowering the two bolts onto the top hooks and securing the bottom bolts into the bottom hooks.
-
Page 16: How To Install Software
“found new hardware” and the following window will appear: Pease click “Cancel” and use the following method to install the application software. Once the QOMO Interactive Whiteboard CD is placed in the computer’s CD-ROM, the following window will appear:... - Page 17 Click Whiteboard Software to begin installation Follow the prompts in the dialog box messages to complete the installation. Double-click on the Microsoft DirectX9.0 to install Direct X9.0 Follow the prompts to install DirectX9.0. Once the installation of the DirectX and Whiteboard Setup is complete, click ‘Yes” to restart your computer.
- Page 18 Once the software is installed an icon will appear in the computer’s windows system tray. indicates a connection has been made to the Whiteboard, indicates no connection has been made, please check the hardware connection and USB driver. Note: Under Windows XP, the USB driver may need to be reinstalled if the connection to another USB port.
- Page 19 System setup is used to set the simulation of mouse’s right-click and double-click based on user’s preferences. To Simulate Right-click: The pen will function as a mouse right-click when the pen tip stops on the screen more than 1500 milliseconds (right-click time) and moves a distance less than 20 pixels (response time).
- Page 20 Users can calibrate image if the projected touch point is offset from actual contact location. To calibrate, click ‘Calibrate’ on the options menu then click ‘Start’ Using the Interactive Whiteboard white dots will appear on the screen, to orient the projected image on the board, follow the on screen instructions by clicking on the white dot each time it appears on the screen.
-
Page 21: How To Use Whiteboard Annotation Software
Writing pens and eraser There are three colored writing pens and one eraser, red, black, and blue. The writing pen can write with the same color or users can choose a different color from the color palette in the software. ★... -
Page 22: Troubleshooting Guide
Troubleshooting Guide Problem Reason Try the following Install/reinstall the driver by run The whiteboard driver is not stalled icon appears in windows START menu on the task bar at the lower right of Connection Failure between the Retry the connection screen computer and the whiteboard Restart computer and reinstall... - Page 23 Frequently Asked Questions Why isn’t anything showing up on the screen? ：The selected stroke color may be the same as or similar to the background color. Please change the stroke color and try again. Otherwise, the pen may not be working properly. Please contact your reseller immediately. Do I have to run calibration after reinstalling the application software? ：No.
-
Page 24: Qomo Interactive Whiteboard User Tips
QOMO Interactive Whiteboard User Tips When searching for a specific page among many pages enter the Page Index mode and look up this page quickly on the Page Sorter window. 、 、 Press the Ctrl+ key combination ( ) to move/place objects accurately. -
Page 25: Specifications
Specifications 56" Interactive Whiteboard QWB56 Technology Infrared Touch System Pen, Wand or Finger Touchable range 46" x 33" (1159mm x 831mm) Resolution 1024 x 1024 Response Time First dot:25ms,continuous dot:8ms Cursor Speed 120 inches/second Coordinate Accuracy Consumer Current Active ≤75mA... - Page 26 78" Interactive Whiteboard QWB200 Technology Infrared Touch System Pen, Wand or Finger Touchable range 65" x 46" (1653mm x 1159mm) Resolution 1024 x 1024 Response Time First dot:25ms,continuous dot:8ms Cursor Speed 120 inches/second Coordinate Accuracy Consumer Current Active ≤80mA Area Size (Diagonal)
- Page 27 88" Interactive Whiteboard QWB300 Technology Infrared Touch System Pen, Wand or Finger Touchable range 72" x 52" (1817mm x 1323mm) Resolution 2048 x 2048 Response Time First dot:25ms,continuous dot:8ms Cursor Speed 120 inches/second Coordinate Accuracy Consumer Current Active ≤85mA Area Size (Diagonal)
- Page 28 105" Interactive Whiteboard QWB100WS Technology Infrared Touch System Pen, Wand or Finger Touchable range 84" x 46" (2145mm x 1159mm) Resolution 4096 x 4096 Response Time First dot:25ms,continuous dot:8ms Cursor Speed 120 inches/second Coordinate Accuracy Consumer Current Active ≤100mA Area Size (Diagonal)
- Page 29 78" Interactive Whiteboard QWB200 SLIM Technology Infrared Touch System Pen, Wand or Finger Touchable range 65" x 46" (1653mm x 1159mm) Resolution 4096 x 4096 Response Time First dot:25ms,continuous dot:8ms Cursor Speed 120 inches/second Coordinate Accuracy Consumer Current Active ≤80mA...
- Page 30 88" Interactive Whiteboard QWB300 SLIM Technology Infrared Touch System Pen, Wand or Finger Touchable range 71" x 51" (1796mm x 1303mm) Resolution 4096 x 4096 Response Time First dot:25ms,continuous dot:8ms Cursor Speed 120 inches/second Coordinate Accuracy Consumer Current Active ≤85mA...
-
Page 31: Technical Support
Product serial number(s) Date of purchase Detailed and specific questions Online Technical support is also available online at QOMO’s web site at www.qomo.com. You can enter your questions and concerns through our online form. Or you can email us at support@qomo.com. - Page 32 Copyrights © 2004 QOMO Hitevision, LLC. All Rights Reserved.
