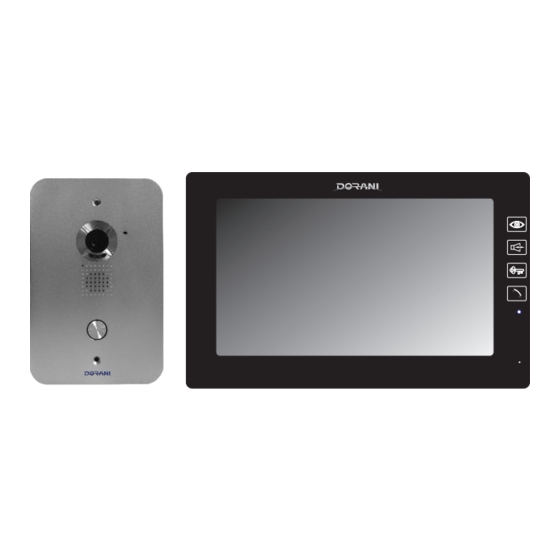

- Page 1 7” COLOUR VIDEO INTERCOM SYSTEM 600 SERIES Memory & Non-Memory Models INSTALLATION AND USER GUIDE WWW.DORANI.COM.AU Dorani (PJM Sales) – 03 9357 0942 4/1 Merri Concourse, Campbellfield, Victoria 3061...
-
Page 2: Specifications
SPECIFICATIONS WIRING Distance: 70m (Max) Door to Furthest Monitor Recommended Cable Type: Cat 5 Signal Wires 14/020 Figure 8 Power Note: Cable diameter required is 0.5mm per signal conductor When using Cat 5 Join 2 conductors per signal wire Looped Configuration: Door Station –... -
Page 3: Operating Instructions
OPERATING INSTRUCTIONS Monitor Layout Monitor [1] Internal Call [2] Unlock [3] Answer [4] Speaker Volume Microphone Microphone Door Station Layout Camera with LED illumination Speaker Call Button Visitor Communication To Place a Call from front station - Press Call But ton and chime is heard at Door station and Internal Monitors –... - Page 4 Volume Control Slide internal monitor switch up/down for High & Low Volumes Picture Memory – (Models fitted with Memory feature ONLY) Images Available on ALL Memory monitors Press Answer [4] button to bring up last recorded picture Scroll through pictures using buttons [2] & [3] To Delete recorded picture press button [1], Delete will flash, Press button [1] again to confirm deletion.
- Page 5 WIRING AND INSTALLATION (Sample Diagrams Pages 5-6) Note: Signal Cables are looped from monitor to monitor (Max 70m Door to furthest monitor) Monitors are powered individually Cat 5 is recommended cable, utilise 1 pair per signal conductor (Diagram 1) Monitor Connections Door Station 1 Door Station 2 Power...
- Page 6 1 TO 1 WIRING SAMPLE (Diagram 2) 12VDC Recommended Cable: Strike Cat 5= 2 Conductors per 1,2,3,4 15VDC Max Distance Door to Last Monitor =70m Door J1 = Master/Slave Configuration Station ON - FIRST monitor in line OFF - All Other monitors J2 = Video Termination ON - LAST monitor in line OFF - All Other monitors...
- Page 7 2 TO 4 WIRING (Diagram 4) 12VDC 12VDC Strike Strike 15VDC Door Door Station Station J1 = ON (Master) J2 = OFF Recommended Cable: 15VDC Cat 5= 2 Conductors per 1,2,3,4 Max Distance Door to Last Monitor =70m J1 = Master/Slave Configuration ON - FIRST monitor in line OFF - All Other monitors J2 = Video Termination...
- Page 8 CONGRATULATIONS, on your new Dorani Video Intercom Product Dorani Video Intercoms pride themselves on providing innovative solutions in domestic, commercial and apartment video intercom systems. We endeavour to provide all of our clients with the highest level of customer service, and ongoing product support.
