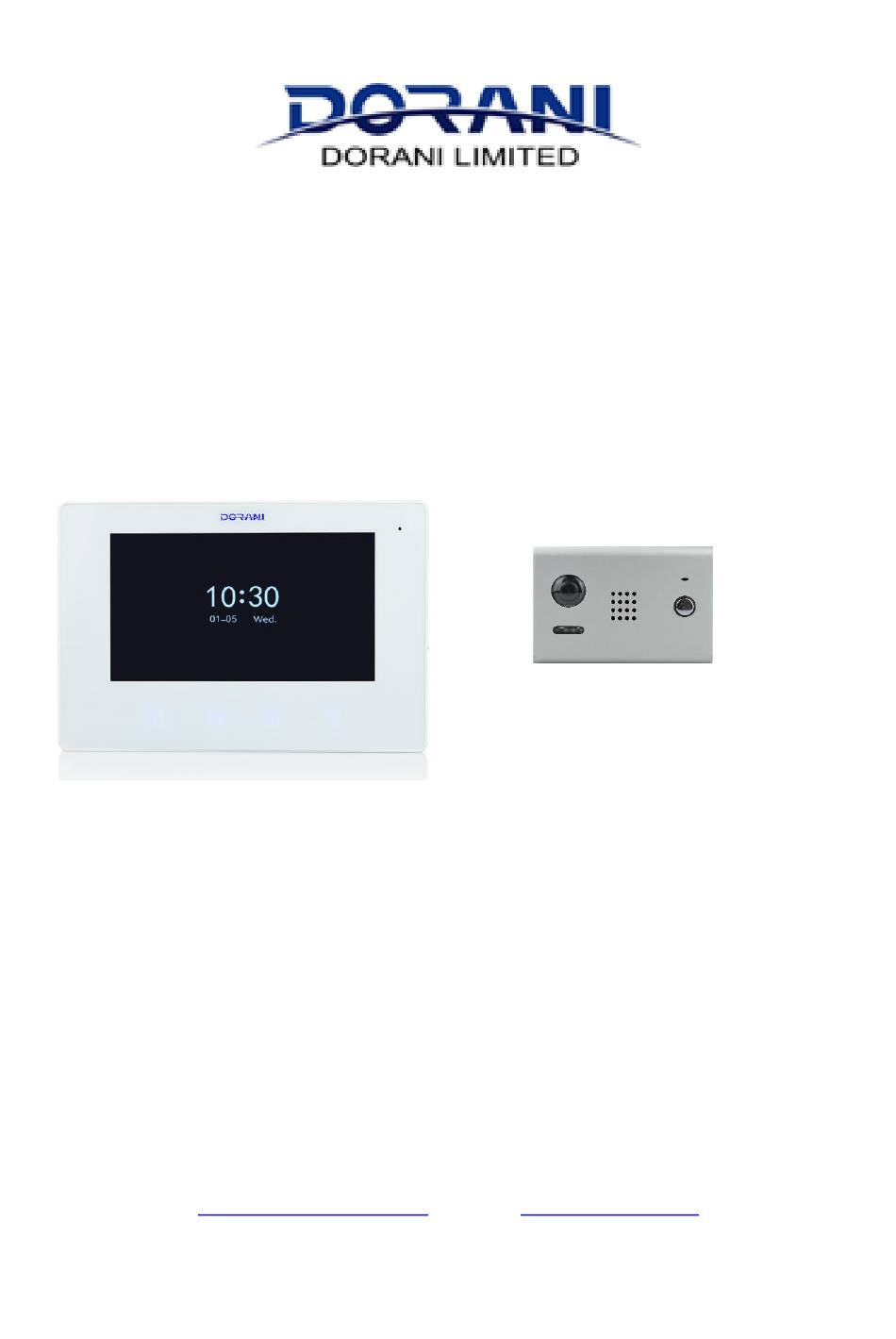

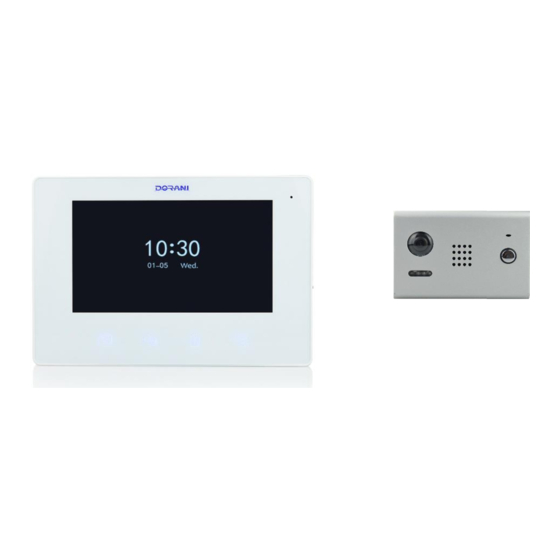

- Page 1 700 SERIES 7” Colour Video Intercom System User Guide and Installation Manual Dorani Pty Ltd Video Intercom, CCTV, Security Products 4/1 Merri Concourse Campbellfield, VIC, 3061 reception@dorani.com.au www.dorani.com.au...
- Page 2 SPECIFICATIONS WIRING Distance: TOTAL Cable Length 70m Maximum Recommended Cable Type: Signal Wires: 4 Core 14/020 Power: 14/020 Figure 8 Note: Cable diameter required is 0.5m m 2 per signal conductor When using Cat 5 Join 2 conductors per signal wire Configuration: Door Station –...
- Page 3 GENERAL LAYOUT GENERAL OPERATION Placing and Answering a Call To Instigate call Press Intercom Call Button on Door Station The Intercom Monitor will Ring and the Video Image appears Press the Answer button to initiate communication Press the Unlock button to unlock if a locking device is connected Press the Answer button to hang up the call Viewing the Outdoor Station Press Monitor Button on the Indoor Monitor...
- Page 4 MENU OPERATIONS MENU OPERATIONS Note: If a User does not operate any of the functions on the indoor device for 1 minute, the system will enter standby mode automatically This “ ” button is a 3 way button: Press IN for Enter Scroll UP and DOWN to move cursor to desired location In standby mode, press the button “...
- Page 5 Mode Menu This Menu is an Installer level Menu Master/Slave Setting Unlock Time Setting Alarm Menu Please Note: This Menu is NOT functioning in the Australian Dorani product range Color Menu This Menu Allows the Brightness, Contrast and Colour Adjustments for Door Stations Please Note: The Camera function is not functioning in the Australian Dorani product range...
- Page 6 INSTALLATION LOCK RELEASE Note: The Lock release on the door station is a RELAY only NO/C – Power is Required if an electric Strike is to be used. Electric Strike Connection Momentary Trigger Request to Exit (Door Control) (Momentary ONLY) Supply Single Door Station Cabling 12VDC...
- Page 7 2 x Door Station Cabling 12VDC IMPORTANT SETTING: Coax Switch - J1 ON - Monitor 1 OFF – Monitor 2,3,4 Coax Switch - J2 ON - Last Monitor OFF – All Others 12VDC Monitors 2,3,4 SLAVE monitor must be selected in MODE Menu Continue Continue 4 Monitor TOTAL...
- Page 8 Dorani Video Intercoms pride themselves on providing innovative solutions in domestic, commercial and apartment video intercom systems. We endeavour to provide all of our clients with the highest level of customer service, and ongoing product support. We value your feedback, and provide you with our warranty details below. Warranty All Dorani Video Intercom products come with a limited 24 month warranty from time of initial purchase.
