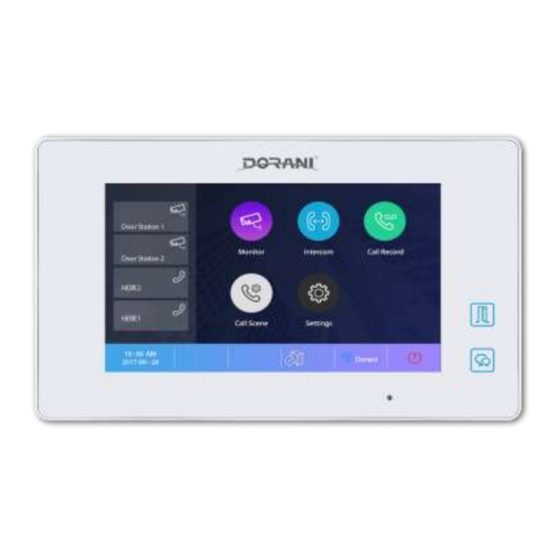

- Page 1 DORANI TOUCH VIDEO INTERCOM SYSTEM INSTALL MANUAL MODEL: DORVT 2 WIRE SYSTEM WWW.DORANI.COM.AU Dorani (PJM Sales) – 03 9357 0942 4/1 Merri Concourse, Campbellfield, Victoria 3061...
- Page 2 FEATURES True Touch Screen functionality 4 x Door station connectivity 4 x Internal Monitors connectivity (SEE NOTE) Video Memory Recording (with addition of Micro SD Card) 2 Door Releases from the 1 Door Station (with DORV15 ) Auto Divert to Mobile when not at home (with DORVT05/06 Installed) 2 Camera - CCTV Viewing from monitors Internal monitor paging and broadcasting Integrated Access Keypad Available...
-
Page 3: Cable Diagrams
CABLE DIAGRAMS To Achieve Maximum Distances Quoted 1.0mm Twisted Cable is required Additional Figure 8 required for 12V DC Supply to Strike Image 1.1: Looped System Green Connections No Polarity Additional Supply & Cable required for Dip 6 = ON Latch/Mag Lock Last Monitor See Door Station Connections... - Page 4 CABLING SECONDARY DOOR STATIONS Image 2.1 Additional Doors Outdoor Station 2 Green Connections No Polarity Gate/ Latch Latch Power A B C D Additional Supply & Cable required for 4 Branch Latch/Mag Lock Outdoor Power See Door Station Connections Module Station 1 Supply Monitor Connections...
-
Page 5: Installer Programming
INSTALLER PROGRAMMING Accessing Installer Setup Touch Screen to bring up Main page Press Dorani Symbol to show parameters Press and Hold Door release button until Installer Setup keyboard is viewed Monitor Address Programming Set Monitor Address by typing the numbers below and pressing OK. ON EACH MONITOR –... - Page 6 KEYPAD DOOR STATIONS: Type Master Code (Default) 1234 # - Keypad lights should be White Type 14# - Keypad lights should be Yellow Type 0# (Default) = Door 1 Lights should go green then white Type 1# = Door 2 Lights should go green then white Type 2# = Door 3...
- Page 7 KEYPAD DOOR STATION DEFAULTING To Default all settings WITH Master Code Master Code # 00 # Master Code # - Wait till lights change colour - * to exit EG: If Master Code is Default (1234 # 00 # 1234 # WAIT) To Default WITHOUT Master Code Power Down Door Station Press and hold call button and Power up System (Hold for 3 seconds)
- Page 8 CONGRATULATIONS, on your new Dorani Video Intercom Product Dorani Video Intercoms pride themselves on providing innovative solutions in domestic, commercial and apartment video intercom systems. We endeavour to provide all of our clients with the highest level of customer service, and ongoing product support. We value your feedback, and provide you with our warranty details below.
