Summary of Contents for Risco Agility

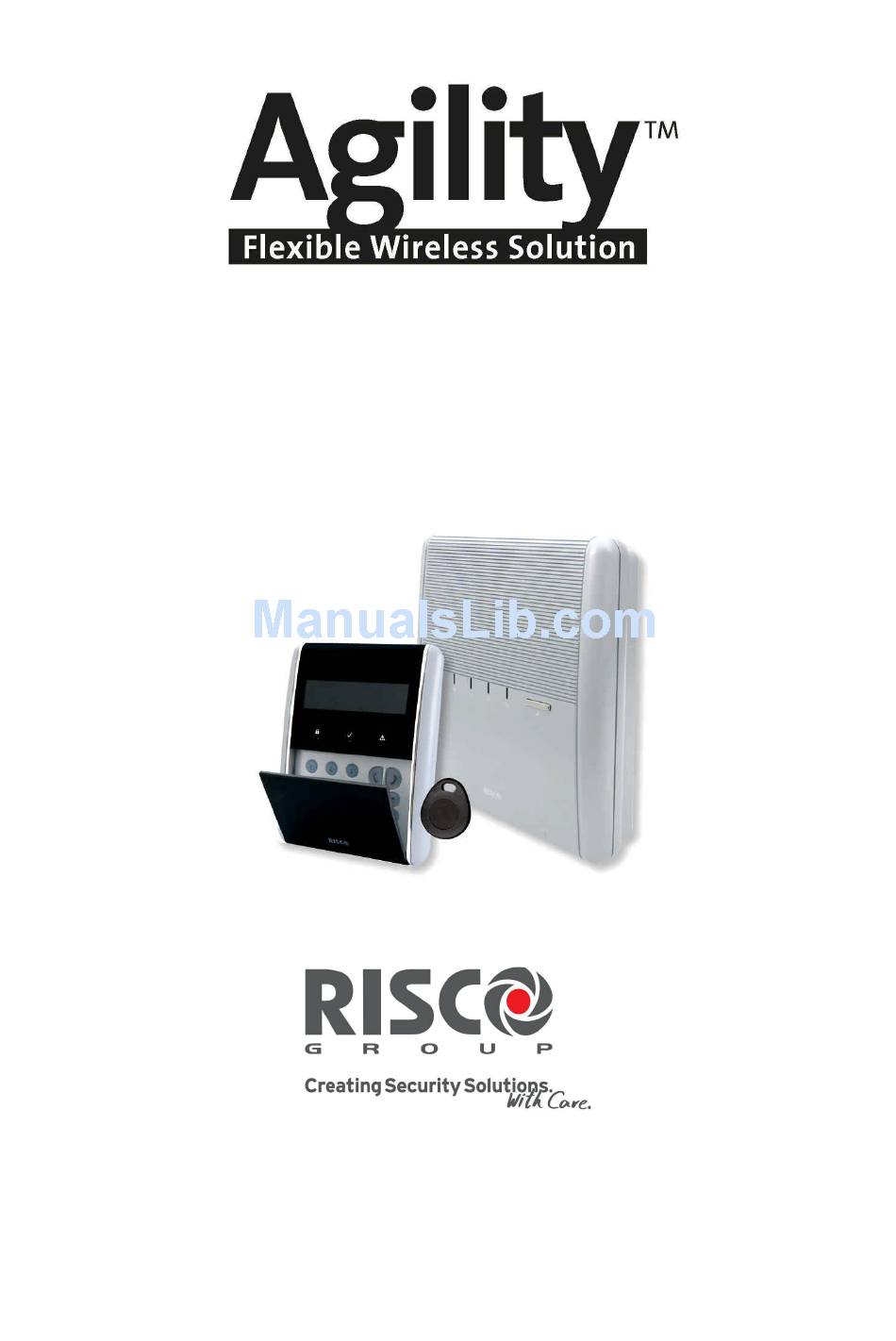

  • Page 1 User Manual...

  • Page 2: Important Notice

    Corporate and individual names and data used in examples herein belong to their respective owners. Compliance Statement Hereby, RISCO Group declares that the Agility series of central units and accessories are designed to comply with: EN50131 Grade 2, Environmental class II...

  • Page 3: Table Of Contents

    Agility User Manual Table of Contents Chapter 1 Introduction ......................5 1.1 Main Features ..........................5 1.2 Agility Architecture.........................6 1.3 User Operating Tools........................6 1.4 Status Indications ..........................8 LED Indicators ..........................8 S.O.S / Status Button.........................8 Voice Messaging ........................9 SMS Messaging..........................9 Sound Indications ........................9 Chapter 2 Local System Operation ................11...
  • Page 4 Agility User Manual Page 4...

  • Page 5: Chapter 1 Introduction

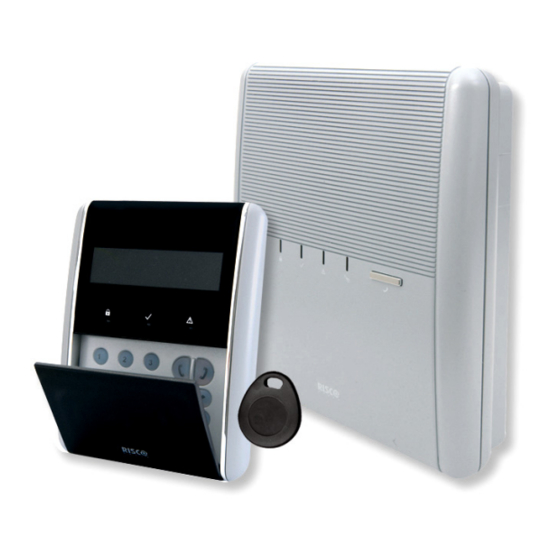

    Chapter 1 Introduction Congratulations on your purchase of Agility - RISCO Group's Flexible Wireless Security System. The Agility has been specifically designed to meet a wide range of security needs for many residential and commercial applications. The Agility is designed to recognize abnormal conditions and inform the system of the status of any protected door, window, hallway, room, or area.

  • Page 6: Agility Architecture

    The following diagram shows the components that make up the system: 1.3 User Operating Tools The Agility system can be operated using several devices, some of which have been designed as bi-directional. If you have purchased a bi-directional device your system is capable of sending a return reply status indication from the panel to the device for each command that is sent to it.

  • Page 7: Configuration Software

    SMS commands for arming and disarming the system and more. Configuration Software: RISCO Group's Configuration Software enables the installer to program the system and enables the user to operate the system and view system status.

  • Page 8: Status Indications

    Agility User Manual 1.4 Status Indications LED Indicators The LED indicators provide typical system indications, as discussed below. Some indicators have additional functions, which are explained later on. Power LED The Power LED indicates system operation. Condition Description Power OK...

  • Page 9: Voice Messaging

    Agility User Manual Voice Messaging Three types of spoken messages are heard when using the Agility, locally in the premises or remotely to your mobile: Event messages: Upon event occurrence, the Agility initiates a call to a remote Follow Me (FM) telephone number, informing you of a security situation by playing a pre-recorded Event announcement message.
  • Page 10 Agility User Manual Page 10...

  • Page 11: Chapter 2 Local System Operation

    Partition arming: Partition 1/2/3/ followed by One of the Agility's advantages is its ability to divide the system in up to 3 partitions. Each partition may be viewed as a separate security system, each of which can be armed and disarmed individually regardless of the condition of the other.

  • Page 12: Disarming Your System

    Entry Delay time to prevent the system from triggering an alarm. The disarming operation will be followed by a local message announcement (if defined). Your Agility offers the following kinds of disarming: System disarming: Disarming deactivates the partitions assigned to the specified user code...
  • Page 13 Central Stations, along with Police Departments, treat duress codes very seriously and take immediate action. Silencing an Alarm: When silencing an alarm the system goes into a disarm state. The Agility will indicate information regarding the cause of the alarm. To disarm using...

  • Page 14: Sending A Panic Alarm

    Agility User Manual 2.3 Sending a Panic Alarm Panic alarms enable you to send a message to the monitoring station in the event of an emergency, send a message to a follow me number, announce a local message or activate a local alarm.

  • Page 15: Chapter 3 Remote System Operation

    Chapter 3 Remote System Operation 3.1 Remote Phone Operation The Agility enables you to operate the system from a remote touch-tone phone by initiating a telephone call to or from the system and interacting with voice menus that guide you through your required remote operation.

  • Page 16: Receiving Calls From The System

    Agility User Manual Operation Quick Key Combination Changing Zone Bypass status Press [3] followed by the zone number and then [#][9] Operating Utility Outputs Press [4] followed by the output number Changing Follow Me(FM) Press [5] followed by the FM number and [#][2].

  • Page 17: Acknowledge Menu

    The Listen In and Talk options enable you to remotely and silently listen in to your premises in order to verify the cause of an event occurrence, through the microphone or remotely talk to your premises via the Agility loudspeaker, for example, to guide someone in distress.

  • Page 18: Sms Operation

    Agility User Manual Bi-directional Audio Options after an Alarm In the event of Burglary, Fire and Medical alarms, the Agility is able to report these events and then stay on the line. This allows the monitoring service to perform Voice Alarm verification, verify the alarm or Verification in order to verify a cause of event or guide someone in distress.

  • Page 19: Sms Confirmation Message

    Agility User Manual Notes: SMS commands can be sent from any mobile phone or from an SMS website. Command words are not case sensitive. A separator between command words is not required although it is accepted. SMS Confirmation Message A confirmation message following a SMS operation is sent to the user, upon request, by adding the letters “RP”...
  • Page 20 Agility User Manual Page 20...

  • Page 21: Chapter 4 User Functions And Settings

    Notes: To define the authority levels refer to your installer. Agility can support up to 32 different user codes. User codes may have variable lengths up to 6 digits. Your Agility was given a Grand Master Code of 1-2-3-4 during manufacturing. Unless your alarm company has already changed it to suit your preference, it's best to modify this code to one that is unique and personalized as herein described.

  • Page 22: Deleting User Codes

    For example, to assign a user code to user index number 6, press Note: In the Agility system, the User Index number is from 00 to 32, where 00 belongs to the Grand Master. Enter the new code and press .

  • Page 23: Proximity Tags

    Agility User Manual 4.2 Proximity Tags The bi-directional keypad enables you to replace the use of a code with a proximity tag to arm and disarm the security system or to activate and deactivate home appliances and utilities, such as heating and lights. Proximity tag programming is performed from the User Functions menu.

  • Page 24: Defining Follow Me Destinations

    Agility User Manual Deleting a proximity tag Deleting proximity tags can be done by in two options: By user number: Use this option to delete a tag for which the user is known By tag: Use this option to delete a tag for which the user is not known...
  • Page 25 Agility User Manual Note: If the Follow-Me is defined to send voice messages, after entering the phone number, two questions are displayed. These questions enable you to define the permission for remote operations assigned to the designated phone. Select one of the following options to define the permission: Y: The user on the FM phone can enter the Remote Operations menu and perform all available options.

  • Page 26: Scheduler

    Agility User Manual 4.4 Scheduler Scheduling weekly programs enables you to automate some system operations. This is performed by defining up to two time intervals per day, during which the system automatically performs one of the following functions: Automatic Arming/Disarming: An arming program automatically arms and disarms the system during your required time intervals.

  • Page 27: Complete Menu Of User Functions

    Agility User Manual 4.5 Complete Menu of User Functions The Agility comes with a variety of selectable user functions that become available when you enter the User Functions mode. The following section lists these functions. Note: Although these functions are in the User Functions menu, you can ask you installer to program them for you.
  • Page 28 Agility User Manual Sounder TMP Mute: Used to silence an alarm initiated by a tamper from a sounder Output Control: Allows user control of previously designated external devices (e.g. an appliance, a motor-driven garage door, etc.) Output Control à Select Output Prepaid SIM à...

  • Page 29: Chapter 5 System Specifications

    Agility User Manual Chapter 5 System Specifications The following technical specifications are applicable for the Agility: Electrical Characteristics System Power 230VAC (-15%+10%), 50Hz, 50mA Units Consumptions Main board: Typical 130mA GSM: Stand by 40mA, During Communication - 300mA Backup Battery Sealed Lead Acid Battery 6V 3.3Ah...
  • Page 30 Notes...
  • Page 31 Notes...
  • Page 32 RISCO Group Limited Warranty RISCO Group and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect the product and because the product may be used in conjunction with products not manufactured by the Seller, Seller can not guarantee the performance of the security system which uses this product.
