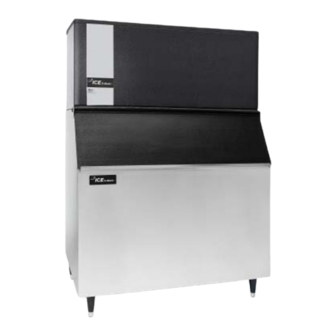

Ice-O-Matic ICE2107 Service & Parts Manual
Ice-o-matic icemaker parts manual
Hide thumbs
Also See for ICE2107:
- Specification sheet (2 pages) ,
- Service and installation manual (164 pages) ,
- Specification sheet (2 pages)
Related Manuals for Ice-O-Matic ICE2107
Summary of Contents for Ice-O-Matic ICE2107
- Page 1 SERVICE PARTS MANUAL MODEL-ICE1806 and ICE1807 Version 3 MODEL-ICE2106 and ICE2107 Version 3 Ice-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081376-01 Date 5/08...
- Page 2 SERVICE PARTS MANUAL 22 INCH WIDE ICE SERIES CUBERS MODEL-ICE0320, ICE0520 Includes 50Hz. Units ICE-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081297-01 PD04/02 Rev1/05...
-
Page 3: Table Of Contents
Check carefully that the correct part is identified and ordered. Table of Contents Exterior Panels Water Cooled Remote Control Box Harvest Assist Water Pump/Float VRC Condenser Ice-O-Matic 11100 East 45th Ave. Denver Co. 80239 800-423-3367 Page 1 Page 1 Page 2 Page 4 Page 6... -
Page 4: Exterior Panels
ICE1800 and 2100 Series Version 3 Exterior Panels Page 2... - Page 5 ICE1800 and 2100 Series Version 3 Item Model Number ICE1806V3 ICE1807V3 2031465-05 2031465-05 9031098-02 9031098-02 3021929-01 3021929-01 9051469-01 9051469-01 9031098-02 9031098-02 3021934-01 3021934-01 9031046-03 9031046-03 3021926-01 3021926-01 9031046-01 9031046-01 3013308-01 3013308-01 9031046-01 9031046-01 3013315-01 3013315-01 3013294-01 3013294-01 3013293-01 3013293-01 ICE2106V3 ICE2107V3 Description 2031465-05 2031465-05 Front Panel...
-
Page 6: Ice1806 Water And Remote Version
ICE1800 and 2100 Series Version 3 Water Cooled Page 4... - Page 7 ICE1800 and 2100 Series Version 3 Item Model Number ICE1806V3 ICE1807V3 9181108-11 9181108-12 9151004-03 9151004-03 9151153-01 9151153-01 9151123-02 9151123-02 9151123-04 9151123-04 9041098-01 9041098-01 9141123-01 9141123-01 9051154-12 9051154-14 3013315-01 3013315-01 9051237-02 9051237-02 2051239-81 2051239-81 2051239-82 2051239-82 2051240-81 2051240-81 2051240-82 2051240-82 9051170-04 9051170-04 9051170-03 9051170-03...
-
Page 8: Remote
ICE1800 and 2100 Series Version 3 Remote Page 6... - Page 9 ICE1800 and 2100 Series Version 3 Item Model Number ICE1806V3 ICE1807V3 9181008-11 9181108-12 9151004-03 9151004-03 9151152-01 9151152-01 9151123-02 9151123-02 9151123-04 9151123-04 9041098-01 9041098-01 9151109-01 9151109-01 9051154-12 9051154-12 3013315-01 3013315-01 9051237-02 9051237-02 2051239-81 2051239-81 2051239-82 2051239-82 2051240-81 2051240-81 2051240-82 2051240-82 9051170-04 9051170-04 9051170-03 9051170-03...
-
Page 10: Control Box
ICE1800 and 2100 Series Version 3 Control Box Page 8... - Page 11 ICE1800 and 2100 Series Version 3 Item Model Number ICE1806V3 ICE1807V3 9101002-06 9101079-02 9101083-01 9101083-01 9101084-02 9101084-02 9101139-03 9101139-03 9101195-01 9101195-01 9101148-01 9101148-01 9101148-01 9101148-01 9041094-01 9041094-01 9181003-21 9181009-20 9181010-10 ICE1806V3 ICE1807V3 9181108-11 9181108-12 9181003-21 9181009-20 9181010-10 ICE2106V3 ICE2107V3 Description 9101002-06 9101079-02 Contactor 9101083-01...
-
Page 12: Harvest Assist
ICE1800 and 2100 Series Version 3 Harvest Assist Page 10... - Page 13 ICE1800 and 2100 Series Version 3 Item Model Number ICE1806V3 ICE1807V3 3013170-01 3013170-01 9161031-01 9161031-01 9131190-01 9131190-01 9131190-04 9131190-04 9051001-13 9051001-13 9051001-03 9051001-03 9031019-08 9031019-08 9051057-01 9051057-01 9021102-01 9021102-01 9031003-03 9031003-03 9031119-01 9031119-01 9051519-01 9051519-01 9101160-01 9101160-01 3051145-02 3051145-02 9031008-44 9031008-44 9031120-01 9031120-01...
-
Page 14: Water Pump/Float
ICE1800 and 2100 Series Version 3 Water Pump/Float Page 12... - Page 15 ICE1800 and 2100 Series Version 3 Item Model Number ICE1806V3 ICE1807V3 3013310-01 3013310-01 9161079-06 9161079-06 9131111-02 9131111-02 9131026-02 9131026-02 9041086-03 9041086-03 2041338-02 2041338-02 2041338-01 2041338-01 9031122-01 9031122-01 9031004-19 9031004-19 9091052-01 9091052-01 9051543-01 9051543-01 9051546-02 9051546-02 9051544-01 9051544-01 3032898-34 3032898-34 9091081-01 9091081-01 9091080-01 9091080-01...
-
Page 16: Vrc Condenser
ICE1800 and 2100 Series Version 3 VRC Condenser Page 14... - Page 17 ICE1800 and 2100 Series Version 3 ICE0500R ICE0600R Item VRC1001 VRC1061 9131452-01 9131452-01 3013222-01 3013222-01 9031019-04 9031019-04 9131451-01 9131451-01 9161117-02 9161117-01 9031001-02 9031001-02 9031003-01 9031003-01 9031118-02 9031118-02 9031019-04 9031019-04 3013224-01 3013224-01 3013226-01 3013226-01 3013227-01 3013227-01 3013228-01 3013228-01 3013226-01 3013226-01 3013232-01 3013232-01 3013225-01 3013225-01...
