Ice-O-Matic ICE 1405 Specifications

Ice-O-Matic
™
ICE1406/1405/1407 - Cube Ice Maker
Options & Accessories
Ice Machine
Model
System
ICE1406 IFQ2
ICE1405 IFQ2
ICE1407 IFQ2
Ice Form
C U B E d I C E
Full Cube
W x D x H (in) 7/8 x 7/8 x 7/8
W x D x H (mm) 22 x 22 x 22
Half Cube
W x D x H (in) 7/8 x 7/8 x 3/8
W x D x H (mm) 22 x 22 x 10
11100 E. 45th Avenue
Denver, CO 80239
ICE_Cubers.indd 18
®
Features
• Produces up to 1,469 lbs (668 kg) of ice per day.
• Harvest Assist
while reducing energy consumption and increasing capacity.
• Pure Ice®
exclusively by Ice-O-Matic. Built-in antimicrobial protection for the life of the ice
maker inhibits bacteria growth on ice maker surfaces. Ice-O-Matic's optional water filtration
system provides protection against unpleasant tastes, odors and scale formation.
• Durable, electroless nickel plating on all evaporator plates ensures reliability.
• Longest warranty in the industry.
cube ice maker, replace the filter every six months, and the evaporator warranty
is extended to 7 years parts and labor (available in the U.S. and Canada only).
• Constructed from corrosion-resistant stainless steel and fingerprint-proof plastic.
• Space saving 26" (660 mm) tall design.

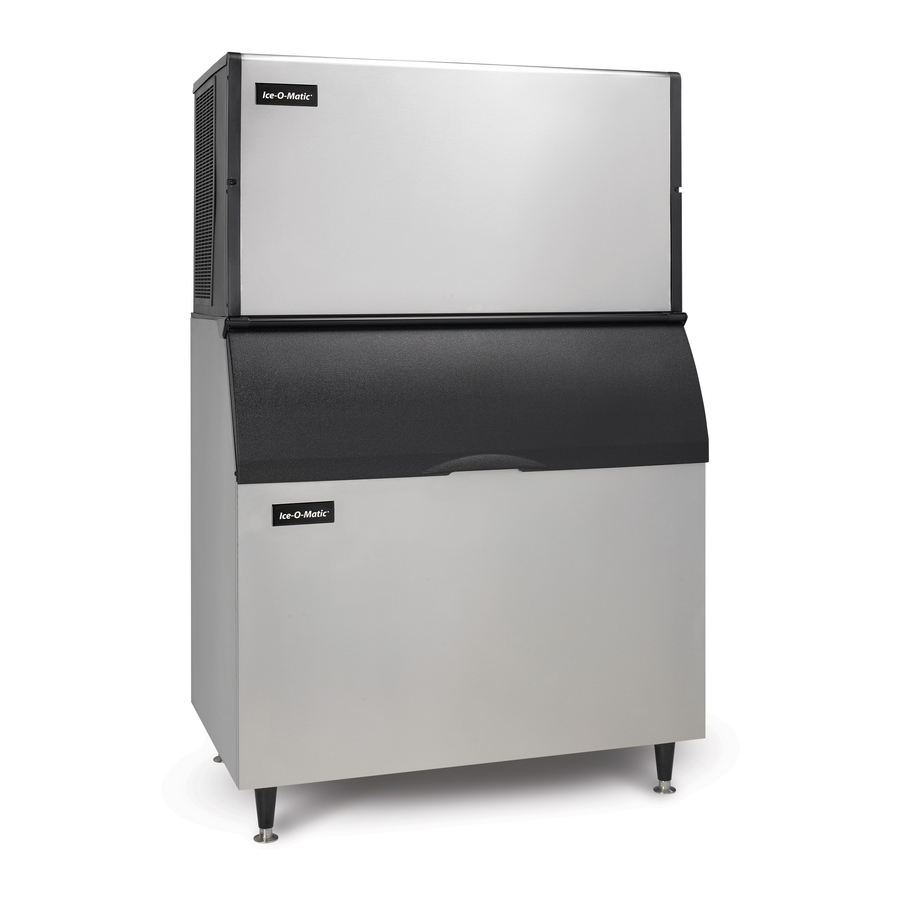

ICE1406 on B100
Water Filters
Manifold Inline
Replacement System
IOMQ (2) N/A
IOMQ (2) N/A
IOMQ (2) N/A
Bin Chart
Kits for Combining Wider Bins with Smaller Models
Model No. B25
Capacity 255 lbs (116 kg) 365 lbs (165 kg)
Width 30 in (762 mm). 30 in (762 mm)
ICE1406 N/A
ICE1405 N/A
ICE1407 N/A
* See Ice-O-Matic Price List for Adapter Kits to combine ice makers with most available ice/beverage dispensers.
ISO 9001 Certified
Phone: 303. 371.3737
Fax: 303. 371.6296
www.iceomatic.com
provides consistent ice production for the life of the ice maker
Purchase an Ice-O-Matic water filter with your
Ice Maker Warranty
Every Ice-O-Matic ice maker is backed by a warranty that provides
both parts and labor coverage.
Parts and Labor.
• Three years
Parts coverage on the evaporator and compressor.
• Five years
Parts and Labor on the evaporator when you
• Seven years
purchase an Ice-O-Matic water filter with your cube ice maker
and replace the filter every six months (available in the U.S. and
Canada only).
Ice Storage Bins
B100
B40 B42 B55
927 lbs (420 kg)
374 lbs (170 kg) 556 lbs (252 kg)
48 in (1219 mm)
22in (559 mm) 30 in (762 mm)
KIT NOT
N/A N/A N/A
REQUIRED
KIT NOT
N/A N/A N/A
REQUIRED
KIT NOT
N/A N/A N/A
REQUIRED
Rev: A-05/08
Part: 1012
B120 B150 B170
1193 lbs (541 kg) 1499 lbs (679 kg) 1866 lbs (846 kg)
48 in (1219 mm) 60 in (1524 mm) 60 in (1524 mm)
KIT NOT KIT NOT KIT NOT
REQUIRED REQUIRED REQUIRED
KIT NOT KIT NOT KIT NOT
REQUIRED REQUIRED REQUIRED
KIT NOT KIT NOT KIT NOT
REQUIRED REQUIRED REQUIRED
5/8/08 11:22:20 AM
