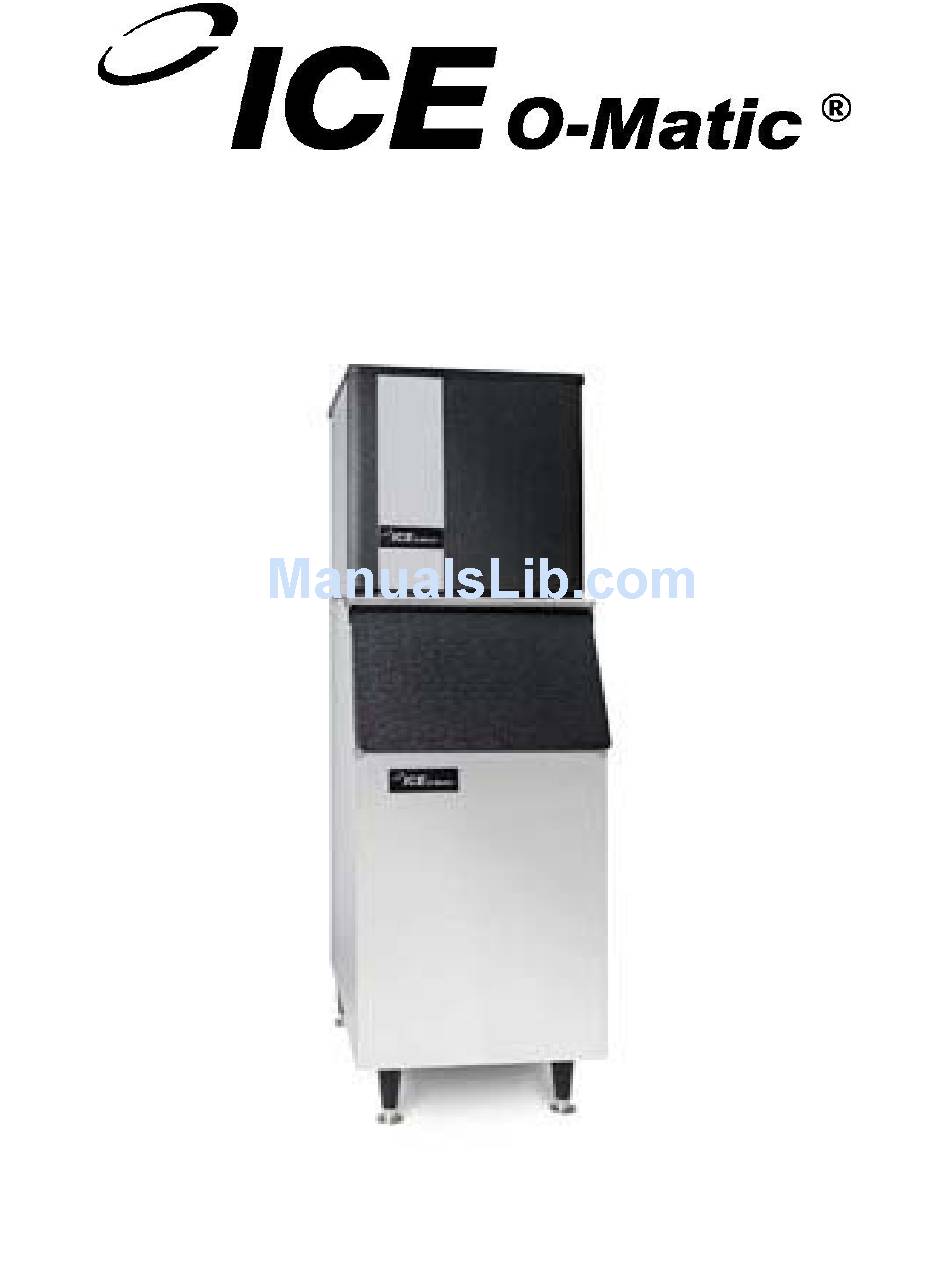

- Page 1 SERVICE PARTS MANUAL 22 INCH WIDE ICE SERIES CUBERS MODEL-ICE0320A3/W3 and ICE0520A3/W3 Includes 50Hz. Units ICE-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081356-01 Date 12/06...
- Page 2 SERVICE PARTS MANUAL 22 INCH WIDE ICE SERIES CUBERS MODEL-ICE0320, ICE0520 Includes 50Hz. Units ICE-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081297-01 PD04/02 Rev1/05...
-
Page 3: Table Of Contents

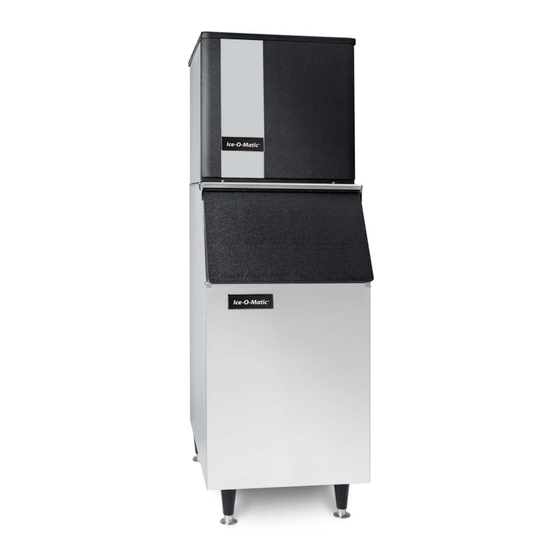

ICE0320/0520 Service Parts This parts list contains the service parts available for the ICE0320A3/W3 and ICE0520A3/W3 icemakers. Check the model number on the data plate and refer to the correct listing for the specific component. Check carefully that the correct part is identified and ordered. -
Page 4: Cabinet Exterior
ICE0320/0520 Series Service Parts Item Model Number ICE0320 ICE0325 2031490-01 2031490-01 3021831-01 3021831-01 3021862-01 3021862-01 3021847-01 3021847-01 2101330-01 2101330-01 9031098-03 9031098-03 9031046-01 9031046-01 3021838-01 3021838-01 Item Model Number ICE0320 ICE0325 2031465-12 2031465-12 3021831-01 3021831-01 3021862-01 3021862-01 3051237-01 3051237-01 9031098-02 9031098-02 2101330-01 2101330-01 9031098-02... -
Page 5: Ice0320/Ice0520 Air Cooled
ICE0320/0520 Series Service Parts Item Model Number ICE0320 ICE0325 9181121-11 9181122-11 9151004-02 9151004-02 9151134-04 9151134-04 9151123-01 9151123-01 9151123-03 9151123-04 9101124-02 9101124-02 3012965-01 3012965-01 3012924-01 3012924-01 2021652-01 2021652-01 9091086-03 9091086-03 9091086-02 9091086-02 9041098-01 9041098-01 9031161-01 9031161-01 3012974-01 3012974-01 9051478-01 9051478-01 9041086-04 9041086-05 9041091-01 9041091-01... -
Page 6: Ice0320/Ice0520 Water Cooled
ICE0320/0520 Series Service Parts Item Model Number ICE0320 ICE0325 9181121-11 9151004-02 9151134-04 9151123-01 9151123-03 9101124-02 3012965-01 3012924-01 2021652-01 9091086-03 9091086-02 9041098-01 9031161-01 3012974-01 9051478-01 9041086-04 9041091-01 9141121-01 9041059-01 ICE0520 ICE0525 Description 9181121-11 Compressor Kit-- See page 6 for Compressor Components 9151004-02 Filter Drier 9151134-01... -
Page 7: Evaporator
ICE0320/0520 Series Service Parts Item Model Number ICE0320 ICE0325 2051222-01 2051222-01 2051222-02 2051222-02 2101387-01 2101387-01 2041338-02 2041338-02 9031122-01 9031122-01 9031004-19 9031004-19 3012747-01 3012747-01 9131413-01 9131413-01 2021651-01 2021651-01 9051135-05 9051135-05 9051136-08 9051136-08 9051136-07 9051136-07 9051135-04 9051135-04 ICE0520 ICE0525 Description 2051232-01 2051232-01 Evaporator-Full Cube 2051232-02 2051232-02 Evaporator-Half Cube 2101355-04... -
Page 8: Control Box
ICE0320/0520 Series Service Parts Item Model Number ICE0320 ICE0325 9101083-01 9101083-01 9101084-01 9101084-02 9101037-01 9101037-01 9101195-01 9101195-01 9101139-03 9101139-03 9181003-09 9181003-40 9181004-27 9181010-26 9041094-01 9041094-01 9101148-01 9101148-01 9101002-07 9101002-06 9181009-08 9041098-01 9041098-01 9101218-11 9101218-11 Specific Compressor Components ICE0320 ICE0325 9181121-01 9181122-01 9181003-39 9181003-40... -
Page 9: Fan Assemblies
ICE0320/0520 Series Service Parts ICE0320/0325 ICE0520/0525 Item Model Number ICE0320 ICE0325 9141118-01 9141118-01 3013111-01 3013111-01 9131225-01 9131384-04 3013059-01 3013252-01 9161089-02 9161078-02 9091119-01 9091119-01 9091074-01 9091074-01 9091083-01 9091083-01 ICE0520 ICE0525 Description 9141118-01 9141118-01 Air Condenser 2021613-01 2021613-01 Fan Shroud 9131384-04 9131384-04 Fan Blade 3013252-01 3013252-01 Fan Motor Bracket 9161112-01... -
Page 10: Harvest Assist Components
ICE0320/0520 Series Service Parts Item Model Number ICE0320 ICE0325 3013170-01 3013170-01 9161030-01 9161031-01 9131190-01 9131190-01 9051001-13 9051001-13 9051001-03 9051001-03 9031019-08 9031019-08 9051057-01 9051057-01 9021102-01 9021102-01 9031003-03 9031003-03 9031119-01 9031119-01 9051519-01 9051519-01 9101160-01 9101160-01 3051145-02 3051145-02 9031008-44 9031008-44 9031120-01 9031120-01 2061962-01S 2061962-02S 2061962-01S 2061962-02S Complete Assembly ICE0520 ICE0525 Description... -
Page 11: Water Pump/Float
