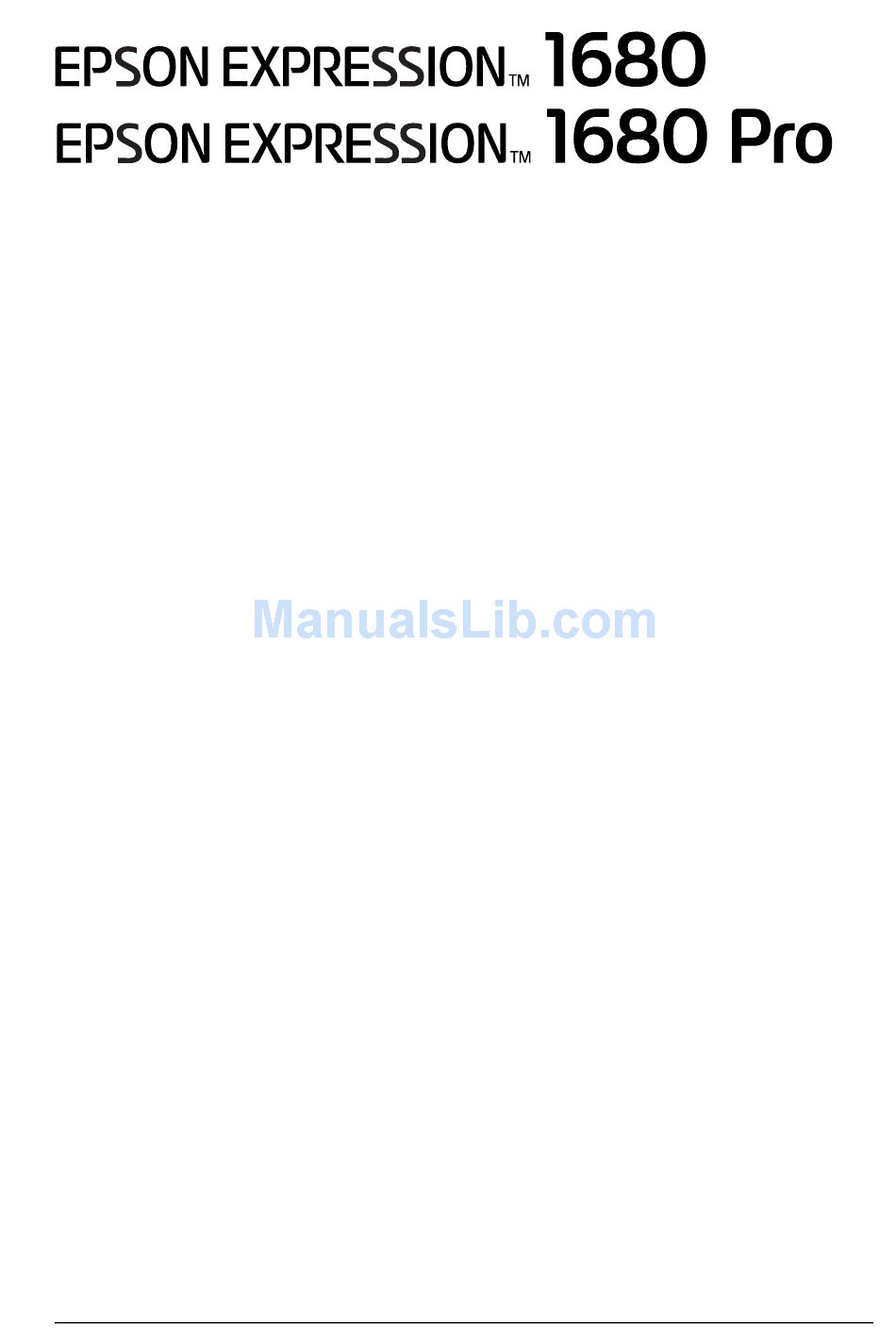

Color Image Scanner
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written permission of SEIKO EPSON
CORPORATION. No patent liability is assumed with respect to the use of the information
contained herein. Neither is any liability assumed for damages resulting from the use of the
information contained herein.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of
this product or third parties for damages, losses, costs, or expenses incurred by the purchaser
or third parties as a result of: accident, misuse, or abuse of this product or unauthorized
modifications, repairs, or alterations to this product.
SEIKO EPSON CORPORATION and its affiliates shall not be liable for any damages or
problems arising from the use of any options or any consumable products other than those
designated as Original EPSON Products or EPSON Approved Products by SEIKO EPSON
CORPORATION.
EPSON is a registered trademark of SEIKO EPSON CORPORATION.
IBM and PS/2 are registered trademarks of International Business Machines Corporation.
Macintosh is a registered trademark of Apple Computer, Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United
States of America and other countries.
Presto! is a trademark of NewSoft Technology Corporation.
General Notice: Other product names used herein are for identification purposes only and may be
trademarks of their respective companies.
Copyright © 2000 by SEIKO EPSON CORPORATION, Nagano, Japan.
Reference Guide

Advertisement

   Related Manuals for Epson Expression 1680

   Summary of Contents for Epson Expression 1680

  • Page 1

    Neither is any liability assumed for damages resulting from the use of the information contained herein. Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product.

  • Page 3: Table Of Contents

    Chapter 2 Understanding EPSON TWAIN Pro Features Using the EPSON TWAIN Pro Main Dialog Box ... . . 2-1 Selecting a Document Source......2-3 Selecting an Image Type.

  • Page 4

    Using the Settings Dialog Box ......2-16 Making Configuration Settings ......2-17 Preview menu .

  • Page 5

    Chapter 4 Options Using the Transparency Unit......4-1 Unpacking the Transparency Unit..... 4-1 Removing the shipping screw .

  • Page 6

    Accelerator boards ....... . . 5-24 Video cards........5-25 Monitors .

  • Page 7: Introduction

    Chapter 1 explains how to optimize the quality of scanned images and how to improve optical character recognition when scanning text. Chapter 2 provides a complete description of EPSON TWAIN Pro and TWAIN Pro Network features. Refer to this chapter when making detailed scanning settings.

  • Page 8: Finding More Information

    Network Online help provides you with detailed information on EPSON TWAIN Pro and EPSON TWAIN Pro Network. To access online help, click the Help button in EPSON TWAIN Pro or EPSON TWAIN Pro Network. Information on PageManager and other software...

  • Page 9: Chapter 1 Optimizing Scanning

    Chapter 1 Optimizing Scanning Recommended Adjustment Order The Adjust tools in EPSON TWAIN Pro’s Preview window offer you a powerful means of improving image quality, but the order in which you use these tools can greatly affect your results. For optimum image enhancement, first click the...

  • Page 10: Adjusting Brightness And Contrast

    6. Manually adjust the tone curve for individual colors in the Tone Correction dialog box. See “Making tone curve settings” on page 1-9. Adjusting Brightness and Contrast Adjust brightness and contrast before adjusting image color. Brightness and contrast settings should be made in the order they appear in this section.

  • Page 11: Making The Shadow Setting

    The pointer changes to an eyedropper, with movement restricted to within the Preview window. 3. Move the eyedropper to the location you want to select as the highlight point and click it. The brightness of the pixel at the point you click is set as the highlight level, and the other parts of the image are adjusted accordingly.

  • Page 12

    2. Click the eyedropper button under Shadow. The pointer changes to an eyedropper, with movement restricted to within the Preview window. 3. Move the eyedropper to the location you want to select as the shadow point, and then click. The brightness of the pixel at the point you click is set as the shadow level, and the other parts of the image are adjusted accordingly.

  • Page 13: Making The Gamma Setting

    Making the Gamma setting Gamma is the difference in contrast between the light tones and dark tones of an image. Changes in the gamma level only affect mid-tones, and can be effective for bringing out details normally hidden in shadow or highlights. Follow these steps to adjust the Gamma setting.

  • Page 14

    Click the Tone Correction button in the Preview window, then select a preset tone curve from the Tone Curve Name list. The preset tone curves are described below. Linear A linear tone curve has no tone correction. Use this setting if you are satisfied with the tone of the previewed image.

  • Page 15: Adjusting Color

    Adjusting Color Color adjustments should be made after adjusting settings related to brightness and contrast. Color settings should be made in the order they appear in this section. Making the Gray Balance Intensity setting This setting allows you to remove a cast (tint) from a specific color. 1.

  • Page 16: Making The Saturation Setting

    4. To change the gray balance intensity level of the color you selected, move the slider left or right, or enter a value in the text box. You can enter a value between 0 and 100. Changing the value causes the color in the right hand box to change accordingly. Your changes are also reflected in the image in the Preview window.

  • Page 17: Making Tone Curve Settings

    Making tone curve settings After you have made the other color settings described in this section, you can use the tone curve to fine-tune the intensity of colors in your image. Note: The Tone Correction feature is unavailable whenever Black & White is selected as the Pixel Depth setting and None is selected as the Halftone setting.

  • Page 18

    To change the tone curve back to its default, select Linear from the Tone Curve Name list. To add your settings to the Tone Curve Name list, type a name for the settings in the list, then click Save. Output values These are the current values for output data in accordance with the current locations of the points inside the tone curve editor.

  • Page 19: Improving Text Scanning For Ocr

    Follow these steps to improve character recognition performance. 1. In the EPSON TWAIN Pro main dialog box, make sure OCR is selected in both the Image Type and Destination list boxes. Then click the Image Type button. The Image Type dialog box appears.

  • Page 20: If You Still Have Problems

    OCR software to recognize characters. If you still have problems... 1. In the EPSON TWAIN Pro main dialog box, try increasing the Resolution value to 400. Be aware that scanning at higher resolution takes longer and may not greatly increase the recognition rate.

  • Page 21: Chapter 2 Understanding Epson Twain Pro Features

    Note for Macintosh users: The screens shown in this section are for Windows, and may differ slightly from the Macintosh version of EPSON TWAIN Pro or EPSON TWAIN Pro Network. However, the method for making settings is the same unless otherwise noted.

  • Page 22

    Note for EPSON TWAIN Pro Network users: Although the screens shown in this guide are for EPSON TWAIN Pro, they also apply to EPSON TWAIN Pro Network. Note: If you attempt to scan an image that exceeds your computer’s available memory or disk space, an alert appears on the screen.

  • Page 23: Selecting A Document Source

    Select one of these settings when using the Transparency Unit. If you are scanning negative film, select TPU for Neg. Film, and if you are scanning positive film (or slides), select the TPU for Pos. Film setting. Understanding EPSON TWAIN Pro Features...

  • Page 24: Selecting An Image Type

    The Image Type list provides the predefined settings described below. There is a predefined setting to suit most image types, so EPSON recommends using the predefined settings first. If you later want to make fine adjustments to the Image Type setting, use the Image Type button.

  • Page 25: Line Art

    256 grays, high quality, and de-screening is selectable (default is no de-screening) Line Art Black and white, draft quality Black and white, best quality Copy & Fax Black and white, hard halftone, draft quality, Auto Area Segmentation Understanding EPSON TWAIN Pro Features...

  • Page 26: Image Type Button

    B/W Option in the Preview window. Click the Preview button in the main dialog box to open this window. Image Type Name The names of predefined settings and any custom settings you have saved appear in the Image Type Name list. Understanding EPSON TWAIN Pro Features...

  • Page 27: Scanning Mode

    Auto Exposure Option Allows you to specify the kinds of adjustments made by the Auto Exposure feature. When scanning photographs or documents that contain high quality images, select Photo. Select Document when scanning printed text. Understanding EPSON TWAIN Pro Features...

  • Page 28

    To make grayscale images clearer and text recognition more accurate, select this option. This function separates text from graphics. Note: The B/W Option setting is available only when Black & White is selected as the Pixel Depth setting. Understanding EPSON TWAIN Pro Features...

  • Page 29: Selecting A Destination

    The Destination setting allows you to specify the application or the output device for which the scanned image is intended. Use the Destination list to select a predefined or user-defined destination, or use the Destination button to customize Destination settings. Understanding EPSON TWAIN Pro Features...

  • Page 30: Destination List

    Scan EPSON 360 dpi 150 dpi medium Stylus Printer (Fine) EPSON 720 dpi 300 dpi medium Stylus Printer (Photo) Laser Printer 600 dpi 200 dpi medium 200 dpi 200 dpi 300 dpi 300 dpi 2-10 Understanding EPSON TWAIN Pro Features...

  • Page 31: Destination Button

    If you are using an EPSON Stylus printer and are printing scanned images with the Economy, Normal, or Fine Print Quality settings in your printer software, selecting EPSON Stylus Printer (Fine) is recommended. If you are printing with the SuperFine or Photo Print Quality settings, select EPSON Stylus Printer (Photo).

  • Page 32: Unsharp Mask

    You can choose between four Unsharp Mask settings: Off, Low, Medium, and High. Selecting High improves image sharpness the most, but may cause your software to work more slowly. You can see the effects of your settings in the Preview window. 2-12 Understanding EPSON TWAIN Pro Features...

  • Page 33: Setting The Resolution

    The Target values indicate what size the image will be when it is output. Note: The Source and Target size settings are closely related to the Resolution setting. If you change these settings arbitrarily, the resulting image may not be what you expect. 2-13 Understanding EPSON TWAIN Pro Features...

  • Page 34

    Select pixels, inches, or cm as the unit of measure. Storage size indicator The storage size of an image is indicated in KB or MB. As you change Target values, this value also changes. 2-14 Understanding EPSON TWAIN Pro Features...

  • Page 35

    Resolution setting. Move the slider or click the left or right arrows to change the Target size in 1% increments. You can also type a value in the Scale field and press the Tab key. 2-15 Understanding EPSON TWAIN Pro Features...

  • Page 36: Using The Settings Dialog Box

    Save. To delete a setting from the list, select the setting name in the list, then click Delete. To apply saved settings, select a setting name from the list, then click OK. To restore the previous settings, click Cancel. 2-16 Understanding EPSON TWAIN Pro Features...

  • Page 37: Making Configuration Settings

    Preview menu This menu allows you to make basic settings that affect the properties of the Preview window. Preview Window Size Select the size of the Preview window. Your choices are Large, Medium, and Small. 2-17 Understanding EPSON TWAIN Pro Features...

  • Page 38: Fast Preview

    If you select the 3 x 3 pixels or 5 x 5 pixels setting, an average of the color values of the sampled pixels is used when adjusting the Highlight, Shadow, or Gray Balance setting. 2-18 Understanding EPSON TWAIN Pro Features...

  • Page 39: Color Menu

    Depending on the version of Windows you are using, some settings may not be available. See below for details. Color Controls The Color Controls setting allows you to make settings that affect the gamma for your monitor and the way the Auto Exposure feature works. 2-19 Understanding EPSON TWAIN Pro Features...

  • Page 40

    Note: The ICM and ColorSync settings are provided for experienced users. If you are not familiar with color management systems, select Color Controls to avoid unexpected results. 2-20 Understanding EPSON TWAIN Pro Features...

  • Page 41

    In Windows 95, you can select the ICM setting, but the Source (Scanner) and the Target settings are not available. If you select ICM or ColorSync in EPSON TWAIN Pro when using Adobe Photoshop 5.0 or 5.5, be sure to clear the Display Using Monitor Compensation check box in Photoshop’s RGB Setup...

  • Page 42

    Select this setting for best results when making your own color profile using a color calibration device. Note: This setting is not available in Windows 95 and NT 4.0. 2-22 Understanding EPSON TWAIN Pro Features...

  • Page 43: Densitometer Menu

    Densitometer samples. You can choose between 1 x 1 pixel, 3 x 3 pixels, or 5 x 5 pixels. Note: You can change the sampling area while viewing the Densitometer window by pressing your computer’s Ctrl and E keys. 2-23 Understanding EPSON TWAIN Pro Features...

  • Page 44: Other Menu

    Save Preview Image and Settings When this check box is selected, the image that was shown in the Preview window the last time EPSON TWAIN Pro was used will appear with its associated settings the next time you start EPSON TWAIN Pro.

  • Page 45: Using The Scan Button

    Cancel button to cancel the operation. After the scan is finished, the scanned image is transferred to the application you used to open EPSON TWAIN Pro so that you can work with the image from within that application. Note: You cannot scan an image whose size exceeds available memory or disk space.

  • Page 46: Using The Preview Window

    TWAIN Pro Network. However, the method for making settings is the same unless otherwise noted. Note for EPSON TWAIN Pro Network users: Although the screens shown in this guide are for EPSON TWAIN Pro, they also apply to EPSON TWAIN Pro Network. 2-26...

  • Page 47

    To open the Preview window and the Densitometer, click Preview in the EPSON TWAIN Pro main dialog box. The Preview window displays the effects of the following settings. Image Type: Pixel Depth, Dropout, and Halftone Destination: Unsharp Mask Image Controls...

  • Page 48: Using The Densitometer

    If Pixel Depth is set to one of the gray settings, only the luminosity value is shown. If Pixel Depth is set to Black & White, then RGB and luminosity values are replaced with a Bit value. 2-28 Understanding EPSON TWAIN Pro Features...

  • Page 49: Using The Preview Buttons

    Densitometer opens. See “Densitometer menu” on page 2-23 for instructions. Using the Preview Buttons The Preview buttons let you zoom in on selected portions of the previewed image. 2-29 Understanding EPSON TWAIN Pro Features...

  • Page 50: Zoom Button

    You can use one marquee to select an area you want to enlarge using the Preview buttons, or you can use one or several marquees to adjust and to scan selected portions of an image. 2-30 Understanding EPSON TWAIN Pro Features...

  • Page 51: Making And Modifying Marquees

    If you select several marquees at once, you can apply image adjustments to all of the selected areas, and you can scan each of the selected areas individually with a single click of the Scan button. 2-31 Understanding EPSON TWAIN Pro Features...

  • Page 52

    You cannot resize an active marquee if any other marquees are selected. To cancel the selection of a marquee, click the marquee while holding down the Ctrl button (for Windows) or the Shift button (for Macintosh) on your keyboard. 2-32 Understanding EPSON TWAIN Pro Features...

  • Page 53: Using The Marquee Tools

    Preview window. Delete button Clicking the Delete button removes the active and selected marquees. To delete all marquees at once, first click the All button, then click this button. 2-33 Understanding EPSON TWAIN Pro Features...

  • Page 54: Duplicate Button

    This button is unavailable when one or more marquees are selected in addition to the active marquee. Auto Locate button Click the Auto Locate button to automatically frame a previewed image with a marquee, thus eliminating unnecessary borders. 2-34 Understanding EPSON TWAIN Pro Features...

  • Page 55: Marquee Number Indicator

    All button Click this button to select all marquees in the Preview window. This feature is useful when you want to scan all the selected areas, or when you want to delete all marquees. 2-35 Understanding EPSON TWAIN Pro Features...

  • Page 56: Using The Adjust Buttons

    All adjustments you make with these tools are shown in the previewed image. For further information on using these buttons to optimize scanning, see “Recommended Adjustment Order” on page 1-1. Auto Exposure Image Controls Tone Correction Color Adjustment Reset Focus 2-36 Understanding EPSON TWAIN Pro Features...

  • Page 57: Auto Exposure

    The Auto Exposure feature overrides any Gamma, Highlight, or Shadow settings made in the Image Controls dialog box. Be sure to use Auto Exposure before making any of the these settings. The Auto Exposure feature is automatically activated when scanning without previewing. 2-37 Understanding EPSON TWAIN Pro Features...

  • Page 58: Image Controls

    The Gamma, Highlight, and Shadow settings are overridden by the Auto Exposure feature. Be sure to use the Auto Exposure feature before making these settings. See “Auto Exposure” on page 2-37 for more information on using this feature. 2-38 Understanding EPSON TWAIN Pro Features...

  • Page 59

    “Making the Highlight setting” on page 1-2. Shadow The Shadow setting allows you to adjust the darkness level of the darkest parts of an image. You can select from 0 to 60 by moving the slider. 2-39 Understanding EPSON TWAIN Pro Features...

  • Page 60: Tone Correction

    Tone Correction button opens the Tone Correction dialog box. The settings described in this section allow you to adjust the tonal relationship between the original image and its reproduction on a monitor or printer. 2-40 Understanding EPSON TWAIN Pro Features...

  • Page 61: Output Options

    If the check box is cleared, the point will be affected by the movement of other points. Channels options You can select the combined red, green, and blue (RGB) channel to modify all colors, or select each of these colors separately. 2-41 Understanding EPSON TWAIN Pro Features...

  • Page 62: Color Adjustment

    If Image Type setting is not 48-bit Color (Hifi), 24-bit Color (Std) or 24-bit Color De-screening, or Pixel Depth is set to 8-bit Gray or Black & White, the Color Adjustment feature is not available. 2-42 Understanding EPSON TWAIN Pro Features...

  • Page 63: Reset

    If you did not alter any settings, this button is not available. Focus Click the Focus button to set the focus position to either 2.5 or 0.0. The current setting is indicated under the button. 2-43 Understanding EPSON TWAIN Pro Features...

  • Page 64

    0.0. If Flatbed, or Auto Document Feeder is selected, the value is automatically set to 0.0. EPSON does not recommend changing the setting unless you want to have the scanned images out of focus or you are scanning an object that is not flat.

  • Page 65: Chapter 3 Setting Up The Start Button

    (for Windows Millennium Edition, 98, and 2000 users only) Scan and send the scanned document to a specified application (if you have installed Presto! PageManager for EPSON from the scanner software CD-ROM) Note: If you are using your scanner over a network, you cannot use the scanner’s...

  • Page 66: Making Windows Millennium Edition, 98, And 2000 Settings

    Making Windows Millennium Edition, 98, and 2000 Settings This section explains how to make settings that control which application opens when you press the scanner’s Start button. You can specify one application to open automatically when you press the Start button, or you can have a window open allowing you to choose from a list of applications.

  • Page 67

    To have your document scanned and sent to an application with one press of the Start button, select Presto! PageManager for EPSON, complete the steps in this section, then proceed to “Making PageManager Settings” on page 3-4. If you want to choose from a list of applications when you...

  • Page 68: Making Pagemanager Settings

    Send to this application list. 6. To save your settings, click OK, then click OK again. If you did not select Presto! PageManager for EPSON, or if you selected multiple applications, close all applications and try...

  • Page 69

    2. From the File menu, select Scan Buttons Setting. 3. In the Scan Buttons Setting dialog box, click the Start Button Setting tab. 4. In the Select target application window, click the icon of the application or device to which you want to send scanned data. Note: If the application or device you want to select does not appear in the Select target application window, you can add its icon to the...

  • Page 70: Chapter 4 Options

    Unit, you can leave it in place even when you scan other types of documents. Unpacking the Transparency Unit Make sure that all the items shown below are included and have not been damaged during shipping. Contact your EPSON dealer if any item is missing or damaged. Transparency Unit installation screws (2)

  • Page 71: Removing The Shipping Screw

    Removing the shipping screw A shipping screw is installed on the Transparency Unit to prevent damage during shipping. Be sure to use the following procedure to remove this screw before attempting to use the unit. 1. Turn over the Transparency Unit so its glass side is facing up. 2.

  • Page 72: Installing The Transparency Unit

    Note: Before transporting the scanner, remove the Transparency Unit and return the shipping screw to its original shipping hole. See “Transporting the scanner and the Transparency Unit” on page 5-2 for details. Installing the Transparency Unit Follow the steps below to install the Transparency Unit on the scanner.

  • Page 73

    4. Insert the two installation screws provided with the Transparency Unit into the holes as shown below, and then tighten the screws with a coin. 5. Close the Transparency Unit. 6. Connect the Transparency Unit’s connector to the option connector on the scanner. Options...

  • Page 74: Preparing Transparencies For Scanning

    Preparing transparencies for scanning Four film holders for scanning various types of transparencies are included with this unit. For instructions on loading your transparencies into the film holders and positioning them on the scanner, go to the section listed below that matches the type of transparency you want to load.

  • Page 75

    35-mm film strips 1. Place the 35-mm film strip holder on a flat surface, and remove a strip cover. 2. Insert a strip of film in the film strip holder, making sure the glossy (smooth) side of the film is facing down. Options...

  • Page 76

    3. Replace the strip cover that you removed in step 1. Repeat steps 1 through 3 for all the film strips you scan. 4. Open the Transparency Unit, then place the film strip holder on the document table and align it as shown below. 5.

  • Page 77

    Note: Make sure to select TPU for Neg. film or TPU for Pos. film as the Document Source setting in EPSON TWAIN Pro. When TPU for Neg. film or TPU for Pos. film is selected as the Document Source setting, the focus position is automatically set to 2.5 to accommodate the use of the film holders.

  • Page 78

    2. Open the Transparency Unit, then place the slide holder on the document table. Align the slide holder as shown below. 3. If the reflective document mat is installed on the Transparency Unit, remove it, then close the Transparency Unit. Note: Make sure the Transparency Unit is completely closed.

  • Page 79

    Note: Make sure to select TPU for Neg. film or TPU for Pos. film as the Document Source setting in EPSON TWAIN Pro. When TPU for Neg. film or TPU for Pos. film is selected as the Document Source setting, the focus position is automatically set to 2.5 to accommodate the use of the film holders.

  • Page 80

    3. Close the cover. Repeat steps 1 through 3 for all the film you scan. 4. Open the Transparency Unit, then place the film holder on the document table and align it as shown below. 5. If the reflective document mat is installed on the Transparency Unit, remove it, then close the Transparency Unit.

  • Page 81

    Note: Make sure to select TPU for Neg. film or TPU for Pos. film as the Document Source setting in EPSON TWAIN Pro. When TPU for Neg. film or TPU for Pos. film is selected as the Document Source setting, the focus position is automatically set to 2.5 to accommodate the use of the film holders.

  • Page 82

    2. Insert the film in the film holder, making sure the glossy (smooth) side of the film is facing down. 3. Close the cover. Repeat steps 1 through 3 for all the film you scan. 4-13 Options...

  • Page 83

    4. Open the Transparency Unit, then place the film holder on the document table and align it as shown below. 5. If the reflective document mat is installed on the Transparency Unit, remove it, then close the Transparency Unit. Note: Make sure the Transparency Unit is completely closed.

  • Page 84

    Note: Make sure to select TPU for Neg. film or TPU for Pos. film as the Document Source setting in EPSON TWAIN Pro. When TPU for Neg. film or TPU for Pos. film is selected as the Document Source setting, the focus position is automatically set to 2.5 to accommodate the use of the film holders.

  • Page 85: Scanning Normal Reflective Documents

    When placing film directly on the document table, make sure to select TPU for Neg. film or TPU for Pos. film as the Document Source setting, and 0.0 as the focus position in EPSON TWAIN Pro. Scanning normal reflective documents...

  • Page 86

    2. Insert the tabs on the reflective paper document mat into the slots on the Transparency Unit and slide the mat into place. 3. Position the reflective document and close the unit. 4-17 Options...

  • Page 87: Using The Automatic Document Feeder

    To remove the reflective document mat, slide it up and out of the slots on the Transparency Unit. Be sure to store the reflective document mat in the Transparency Unit pocket when not in use. Caution: Do not put anything but the reflective document mat into the Transparency Unit pocket.

  • Page 88: Unpacking The Automatic Document Feeder

    Unpacking the Automatic Document Feeder When you unpack your Automatic Document Feeder, make sure you have all the parts shown below and that none are damaged. If you find any missing or damaged items, contact your EPSON dealer immediately. installation...

  • Page 89

    3. The scanner comes with two installation screws attached; slide the mounting slots on the Automatic Document Feeder forward, underneath these two screws. Do not remove the protective materials from the Automatic Document Feeder’s mounting hardware yet. 4-20 Options...

  • Page 90

    4. Insert the installation screws included with your Automatic Document Feeder into the holes in the scanner, then use a coin to tighten them. 5. Remove the protective materials from the Automatic Document Feeder’s mounting hardware. 6. Close the Automatic Document Feeder. 7.

  • Page 91: Loading Documents Into The Automatic

    Loading documents into the Automatic Document Feeder Your Automatic Document Feeder can automatically load up to 30 sheets of the following paper sizes (based on a paper weight of 64 g/m and a stack thickness of 6.0 mm or less): 76 ×...

  • Page 92

    Note: For checks, move the left edge guide to the center until it stops, then place your checks in the tray and move the right edge flush against them. 2. Insert the document stack into the Automatic Document Feeder until it meets resistance. Make sure that the side you want to scan is facing up.

  • Page 93: Loading Documents Manually

    The scanner automatically find and scans the whole image. Follow the steps below to scan an image or document. Note: The steps below describe the scanning procedure when using Presto! PageManager for EPSON. The procedure may vary slightly when using another application. 4-24 Options...

  • Page 94

    “Loading documents into the Automatic Document Feeder” on page 4-22. 2. Start Presto! PageManager for EPSON. 3. Select EPSON TWAIN Pro from the File menu’s Select Source option if necessary. 4. Select Acquire from the File menu. The EPSON TWAIN Pro main dialog box appears.

  • Page 95: Document Specifications

    2. Start Presto! PageManager for EPSON and select Acquire from the File menu. EPSON TWAIN Pro’s main dialog box appears. 3. Click the Preview button. The first sheet of the document is fed into the scanner, then ejected after being previewed.

  • Page 96

    Paper quality: High-quality bond or thermal paper Document type: Documents printed with impact printers, laser printers, or facsimile machines Document conditions Make sure of the following before feeding a document: Ink on the document is dry. The document has no holes, is not ripped or wrinkled, and has nothing attached to it.

  • Page 97: Using The Ieee 1394 Scanner I/f Card

    Using the IEEE 1394 Scanner I/F Card The optional IEEE 1394 Scanner I/F Card (B808343) offers high- speed data transfer and flexible connectivity for your scanner. It supports a peak data transfer rate of 400 Mbps. You can connect or disconnect the interface cables without having to turn off the scanner or your computer.

  • Page 98: System Requirements

    System requirements For Windows Hardware: PC with built-in IEEE 1394 port, or PC with an IEEE 1394 PCI board installed ® ® Microsoft Windows Millennium Edition or 2000 For Macintosh Hardware: Macintosh equipped with built-in IEEE 1394 (FireWire) port, or with an IEEE 1394 (FireWire) ®...

  • Page 99: Your Scanner

    2. Use a cross-head screwdriver to remove the two screws securing the shield plate to the optional interface slot; then remove the plate. Be sure to keep both screws; you may need to use them again if you re-install the shield plate. Caution: Static electricity can damage electronic components.

  • Page 100: Understanding Ieee 1394 Connections

    4. Secure it with the retaining screws. 5. Reconnect all cables. Understanding IEEE 1394 connections The Scanner I/F Card is equipped with two cable connectors. One is used to connect the card to the computer, and the other is used to connect other IEEE 1394 devices in a daisy chain or tree configuration.

  • Page 101

    1. Connect one end of the cable to any available IEEE 1394 port on the Scanner I/F Card. 2. Connect the other end of the cable to the IEEE 1394 port on your computer. If other IEEE 1394 devices are already connected to the computer’s IEEE 1394 port, connect the scanner to an available IEEE 1394 port on the last device in the chain.

  • Page 102: Chapter 5 Maintenance And Troubleshooting

    Chapter 5 Maintenance and Troubleshooting Maintenance Cleaning the scanner To keep your scanner operating at its best, you should clean it periodically, as described below. 1. Unplug the power cord. 2. Clean the outer case with mild detergent and water. 3.

  • Page 103: Replacing The Fluorescent Lamp

    Caution: Be careful not to scratch or damage the glass of the document table, and do not use a hard or abrasive brush to clean it. A damaged glass surface can decrease the scanning quality. Never use alcohol, thinner, or corrosive solvent to clean the scanner.

  • Page 104

    Preparing the scanner for transportation 1. Make sure the transportation lock lever is in the UNLOCK position. 2. Align the SCSI ID rotary switch with “ ”. 3. Turn on the scanner. 4. After the carriage moves to the back of the scanner, slide the transportation lock lever to the LOCK position.

  • Page 105: Problems And Solutions

    Problems and Solutions Most problems you encounter while operating your scanner and software have simple solutions. This section helps you identify the cause of the problem and provides you with solutions. It is divided into the following categories: “Error indicators” on page 5-4 “Scanner operation problems”...

  • Page 106: Command Error

    Command error The scanner has received incorrect commands from your scanning software. When this error occurs, try to rescan the document. The scanner returns to normal when it receives correct commands. Normally you do not need to reset the scanner when this type of error occurs.

  • Page 107: Scanner Operation Problems

    (See the online Setup Guide.) Incorrect operation of your software (See “Understanding EPSON TWAIN Pro Features” on page 2-1 and “Optimizing Scanning” on page 1-1 in this guide. Also see Chapter 4 of the online Setup Guide, “Using Your Scanner”...

  • Page 108: The Scanner Software Does Not Work Properly

    For USB interface users, try connecting the scanner directly to the computer’s USB port, or use an EPSON USB cable. For USB interface users, try connecting your scanner to a different port on your hub, or to a different hub.

  • Page 109

    PC. For Windows Millennium Edition, 98, and 2000, make sure EPSON TWAIN Pro is installed on the scanner server PC (the PC which is connected to the EPSON scanner). If you want to scan using the scanner server PC, make sure EPSON TWAIN Pro Network is installed on the PC.

  • Page 110

    Make sure the interface board is installed correctly. When connected using the SCSI interface, make sure to turn on the scanner before turning on the computer. Make sure that EPSON TWAIN Pro is selected in your application. EPSON Scan Server does not start.

  • Page 111

    Make sure that a scanner supported by EPSON Scan Server and EPSON TWAIN Pro is connected to the scanner server Make sure EPSON TWAIN Pro Network is installed on the scanner server PC (the PC which is connected to the EPSON scanner). EPSON TWAIN Pro Network does not start.

  • Page 112

    Make sure one of the naming services such as DNS, WINS, or LMHOSTS is used in your network. Otherwise use an IP address to specify the EPSON TWAIN Pro setup dialog box. The Auto Document Feeder or Transparency Unit cannot be selected.

  • Page 113

    Paper jams in the Automatic Document Feeder. Follow these steps to remove the jammed paper. 1. Open the Automatic Document Feeder’s cover. 5-12 Maintenance and Troubleshooting...

  • Page 114

    2. Pull forward on the jam-release lever and slowly pull the jammed paper out of the feeder mechanism. (Be careful not to pull too hard; the paper may tear, making it more difficult to remove.) 3. Close the document feeder cover and make sure the READY light is on and not flashing, and the ERROR light is off.

  • Page 115: Quality Problems

    1 mm from the vertical guide will not be scanned. The image is too dark. Check the EPSON TWAIN Pro settings related to brightness and contrast. See “Adjusting Brightness and Contrast” on page 1-2 for details.

  • Page 116

    Check the brightness and contrast settings of your computer display. Image is dark, with little or no detail. Select Screen/Web as the Destination setting in EPSON TWAIN Pro. For details, see “Selecting a Destination” on page 2-9. Note: Though selecting a printer may cause on-screen colors to differ from the colors of the original, the colors will be reproduced correctly when printed.

  • Page 117

    Straight lines in the image come out jagged. Make sure the document orientation is perfectly straight on the document table. Align vertical and horizontal lines with the scales at the top and side of the document table. The image does not look the same as the original. Make sure the image settings of your software are appropriate for the type of image you want to scan.

  • Page 118

    Place a transparent sheet between the document and document table to defocus the image. Move or angle the document slightly on the document table. Select Off from the Unsharp Mask list in the Destination dialog box. Make the image size slightly smaller. Change the focus setting.

  • Page 119

    Printed colors Printed colors will not exactly match the colors on your monitor, since printers and monitors use different color systems: monitors use RGB (red, green, and blue), while printers typically use CMYK (cyan, magenta, yellow, and black). Check your software and printer documentation, or contact your printer company, for information on color matching and calibration.

  • Page 120: Software Setup Problems

    3-1 of the online Setup Guide. The Scanner Status does not indicate “Device Ready” after you click Test in the EPSON TWAIN Pro dialog box or the Scanner’s Properties dialog box (Windows Millennium Edition, 98, and 2000) in the Control Panel.

  • Page 121: Recovering From Scanner Software Installation Problems In Windows 98, 2000, And Millennium Edition

    Installation Problems in Windows 98, 2000, and Millennium Edition If you canceled the Plug and Play driver installation before the procedure was completed, EPSON TWAIN Pro may be incorrectly installed. Follow the steps below to check the installation. 1. Turn on your scanner and then your computer. Plug the interface cable into your scanner and the computer.

  • Page 122

    Expression1680 should appear under Imaging Device when you click the plus (+) sign next to Imaging Device. If EPSON TWAIN Pro is not correctly installed, an exclamation mark (!) will appear in front of EPSON Expression1680 under Imaging Device, or EPSON Expression1680 will appear under Other devices with a question mark (?), as shown in the illustrations below.

  • Page 123

    1. If an exclamation mark (!) appears beside EPSON Expression1680 under Imaging Device, click EPSON Expression1680. Then click Remove. 2. The Confirm Device Removal dialog box appears. Click OK. 3. Click Close to close the System Properties window. 4. Make sure your scanner is on, then restart your computer.

  • Page 124

    Make sure your scanner is on and connected to your computer. If your scanner is off or not connected to your computer, you cannot reinstall the driver properly. 1. If EPSON Expression1680 appears under Other devices, click EPSON Expression1680. Then click Remove. 2. The Confirm Device Removal dialog box appears. Click OK.

  • Page 125: Sizing Up Your System

    3. Click Close to close the System Properties window. 4. Make sure your scanner is on, then restart your computer. 5. The Add New Hardware Wizard dialog box appears. To install the driver again, follow the instructions in “Installing the Software” on page 3-1 of the online Setup Guide. Sizing Up Your System If you are not satisfied with the quality of the images on your monitor or with the speed of image processing, you may want to...

  • Page 126: Video Cards

    Video cards A video card that is sufficient for text may not be good enough for displaying graphic images, especially in color. If all your scanned images look coarse on your monitor, you may want to upgrade your video card. You will need 24-bit color, also called true color or millions of colors, to make the highest quality image reproductions.

  • Page 127: Contacting Customer Support

    Contacting Customer Support If your EPSON product is not operating properly and you cannot solve the problem using the troubleshooting information in your product documentation, contact customer support services for assistance or contact the dealer where you purchased your product.

  • Page 128: Appendix A Technical Specifications

    RGB color filters on CCD Reading sequence: Monochrome One-pass scanning Color page Three-pass scanning (R, G, B) sequence (This sequence is not supported by EPSON TWAIN Pro) Color byte One-pass scanning (R, G, B) sequence Color line One-pass scanning (R, G, B)

  • Page 129

    1 type for user-defined (Only user-defined Color correction is available in EPSON TWAIN Pro) Interface: SCSI (50 pin half pitch connectors), USB (Type B Receptacle Connector), and optional IEEE 1394 Serial Bus Interface...

  • Page 130: Electrical

    Electrical Input voltage range AC 198 to 264 V Rated frequency 50 to 60 Hz Rated current 0.4 A Power consumption Approx. 30 W (operating) Approx. 10 W (standby) Note: Check the label on the back of the scanner for voltage information. Environmental Temperature: Operation...

  • Page 131: Standards And Approvals

    Standards and Approvals Low Voltage Directive 73/23/EEC EN 60950 EMC Directive 89/336/EEC EN 55022 Class B EN 55024 EN 61000-3-2 EN 61000-3-3 Technical Specifications...

  • Page 132: Scsi Interface

    SCSI Interface Interface type: ANSI X3T9.2/375R Revision 10L (SCSI 2) Functions: BUS FREE phase ARBITRATION phase SELECTION/RESELECTION phase COMMAND phase (Logical Unit Number is fixed to 0 and command link function is not supported.) DATA phase Data in phase Data out phase STATUS phase MESSAGE phase MESSAGE IN phase...

  • Page 133: Usb Interface

    Revision 1.0 Configuration: Element Description Device Full Speed mode (12 Mbit/s) Class: Vendor-specific Vendor ID: 0x04B8 (SEIKO EPSON CORP.) Product ID: 0x010E Configuration Characteristics: Self-powered Remote wake up feature: Not supported Maximum power consumption from VBUS: 2 mA (5 V) Interface...

  • Page 134: Option Interface Connector

    Option Interface Connector Interface type: For use with the optional Automatic Document Feeder (B813163) and Transparency Unit (B813183) only. Electrical specifications: Output voltage DC 21.6 to 26.4V DC 4.75 to 5.25V Output current 0.6A (24 V) 0.3A (5 V) Initialization Methods The scanner can be initialized (returned to a fixed set of conditions) in the following ways: SCSI...

  • Page 135: Transparency Unit

    Hardware The scanner is turned on. initialization The USB cable is unplugged from the USB port on the scanner. Software Software sends the ESC @ (initialize the scanner) initialization command. The scanner receives a Bus Reset from the USB interface. Transparency Unit Electrical Specifications: Supplied voltage:...

  • Page 136: Automatic Document Feeder

    up to 8.5 × 11.7 cm Reflective 216 × 297 mm Readable area: Dimensions: Width: 324 mm Depth: 540 mm Height: 92 mm Weight: Approx. 5 kg Automatic Document Feeder General specifications: Loading orientation Face up Ejection orientation Face down Loading capacity 30 sheets (55 g paper, maximum total thickness under 6 mm)

  • Page 137: Ieee 1394 Scanner I/f Card

    Dimensions: Width: 310 mm Depth: 528 mm Height: 92 mm Weight: Approx. 4.5 kg IEEE 1394 Scanner I/F Card Interface type: IEEE 1394-1995 compatible Data transfer method: Half-duplex Data/Strobe differential serial Synchronization method: Clock synchronization with DS-Link Encoding/decoding: DS-Link Logic level: 3.3 V Compatible connectors: IEEE 1394-1995 compatible...

  • Page 138

    Power class: Power class code 100 No power supply from external sources Fitted with a repeat function with bus power Environmental Conditions: Temperature: Operation 5° to 35°C Storage -25° to 60°C Humidity: Operation 10% to 80%, without condensation Storage 10% to 85%, without condensation A-11 Technical Specifications...

  • Page 139: Glossary

    Glossary additive primary colors The colors of red, green and blue (RGB) - which give the perception of white when combined equally. These are the colors of the color system used by monitors and scanners. bi-level data Image data that is composed of 1 bit per pixel. A pixel is represented by a single bit of digital data that can be expressed as only 1 (light) or 0 (dark).

  • Page 140

    Abbreviation for EPSON Standard Code for Image scanners. A system of commands that allows you to control image scanners from your software. ESC/P Abbreviation for EPSON Standard Code for Printers. A system of commands that allows you to control printers from your software. gamma Gamma is a value that expresses the relationship between the input and output of a device.

  • Page 141

    interface A piece of hardware, a method, or a standard used for connection between or among computer devices. moiré A moiré is a cross-hatch pattern that appears on scanned images when scanning printed material. It is a result of interference that occurs due to the difference between the pitches of the scanning and the halftone screens.

  • Page 142

    subtractive primary colors The colors of cyan, magenta, and yellow (CMY) which produce black when mixed in certain amounts. In printing, black is often added to give more definition as mixing of actual inks cannot produce pure black. terminator A device that stops electronic signals, and prevents them from proceeding or returning to other devices.

  • Page 143

    Index Numerics paper sizes 4-22 precautions 4-27 120/220 film 4-10 scanning full document area 4-24 12-bit Gray (HiFi) 2-4 scanning part of document area 4-25 24-bit Color 5-25 specifications A-9 24-bit Color (Std) 2-4 unpacking 4-19 24-bit Color De-screening 2-4 35 mm film holder 4-6 film strips 4-6...

  • Page 144

    Environmental specifications A-3 Color cast (tinting) 1-7 EPSON Stylus Printer (Fine) 2-10 Color management system, Windows EPSON Stylus Printer (Photo) 2-10 2-20 EPSON TWAIN Pro main dialog box ColorSync 2-20 Command error 5-5 EPSON, TWAIN Pro 4-8 4-10 4-12 Compression, file 5-25...

  • Page 145

    Gamma 1-5 2-38 2-39 Jammed paper 5-12 Gray balance intensity 1-7 2-42 2-43 Lamp, fluorescent 5-2 Halftone 2-6 Laser Printer 2-10 Hard disk 5-24 Legal 4-22 Height 2-14 Letter 4-22 High Contrast 1-5 Lighten 1-5 High resolution monitor 5-25 Line Art 2-4 Highlight 1-2 2-38 2-39...

  • Page 146

    Scanner event 3-3 Output values 1-10 Scanner specifications A-1 Scanners and Cameras 3-2 Scanning negative film 2-3 PageManager for EPSON 3-3 normal (reflective) documents Paper jams 5-12 (Transparency Unit) 4-16 Paper sizes (Automatic Document positive film (or slides) 2-3 Feeder) 4-22...

  • Page 147

    IEEE 1394 A-10 Unpacking scanning A-1 Automatic Document Feeder 4-19 SCSI interface A-5 Transparency Unit 4-1 standards and approvals A-4 Unsharp mask 2-11 2-12 USB interface A-6 USB interface, specifications A-6 sRGB 2-20 USB, port 4-32 Standards A-4 Using tone curve 1-9 Start button 3-1 Storage size 2-13 2-14...
