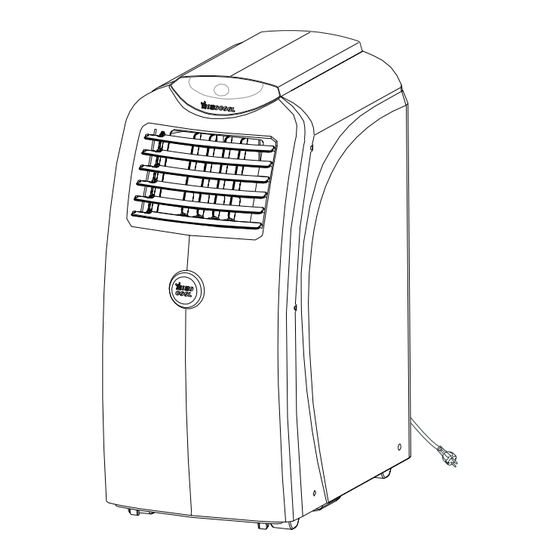

PORTABLE TYPE AIR CONDITIONER USER MANUAL NC-42CP/C Thank you for selecting our quality air conditioner. Please be sure to read this user manual carefully before using. Enquiries should be directed to Nobo on 1800 087 840. - Page 2 • This appliance is fitted with a special safety device. When the compressor switches off, this device prevents it from switching on again for at least three minutes. THIS PRODUCT IS FOR HOUSEHOLD USE ONLY RETAIN THIS MANUAL FOR FUTURE REFERENCE NOBOCOOL NC-42CP/C...
-
Page 3: Table Of Contents
CONTENTS Introduction ..................Installation ..................Control panel ..................Operation of control panel ..............Operation of remote control ..............Water drainage methods ..............Maintenance and service..............Trouble shooting .................. NOBOCOOL NC-42CP/C... -
Page 4: Introduction
• Keep the exhaust hose as short and straight as possible. • Make sure the air intake and outlet grills are unobstructed. • Clean the filters at least once every two weeks. NOBOCOOL NC-42CP/C... - Page 5 6. Cable (power cord and plug) Fig.1 BACK (Fig.2) 1. Hot air outlet grill 2. Low air inlet grill 3. High air inlet grill 4. Power cord hooks 5. Water tank/chassis 6. Water tank drain outlet 7. Plug Fig.2 NOBOCOOL NC-42CP/C...
-
Page 6: Installation
Place the portable air conditioner in a flat location where the air inlets and outlets cannot be covered up. Place the unit no less than 50cm away from a wall or other obstacle. Fig. 3 INSTALLATION ACCESSORIES batteries remote user manual control NOBOCOOL NC-42CP/C... - Page 7 1500mm; use the minimum length when working. • When mounting, try to keep the air exhaust hose horizontal and do not extend its length by attaching it to another hose as this reduces the cooling efficiency of the appliance. Fig. 17 Fig. 5 NOBOCOOL NC-42CP/C...
- Page 8 If the air exhaust hose needs to be bent, the correct method is shown below. (Fig. 7) Fig. 7 Incorrect or excessive bending of the exhaust hose will cause inefficient cooling and possible malfunction. (Fig. 8) Fig. 8 NOBOCOOL NC-42CP/C...
-
Page 9: Window Slider Kit Installation
Insert Altitude unlimited drawing here – awning window and sliding door Fig 11 and 12 Gaps can be sealed using cardboard and duct tape. Window slider length Window (Door) slider height Min. 85cm Max. 123cm Max. 123cm Fig. 11 Fig. 12 NOBOCOOL NC-42CP/C... -
Page 10: Control Panel
To use this accessory, attach one suction cup to the remote control and the other to a conveniently located surface. Best results are achieved by wetting the suction cup before securing it to a hard, flat surface. NOBOCOOL NC-42CP/C... - Page 11 LCD display. At the end of the set time the appliance switches on automatically and operates in the selected mode, for example COOLING 25°C, fan speed HIGH. To cancel the TIMER setting, press the ” TIMER ” button again. NOBOCOOL NC-42CP/C...
-
Page 12: Operation Of Remote Control
SPARE button automatic swing function on/off does not perform any function ON/OFF button MODE button press this button to switch the press this button to select the appliance on/off modes of COOL, DRY or FAN Fig. 15 NOBOCOOL NC-42CP/C... - Page 13 At the end of the set time the appliance switches on automatically and operates in the selected mode, for example Cooling mode, 25°C, fan speed HIGH. To cancel the TIMER setting, press the ” TIMER ” button again. NOBOCOOL NC-42CP/C...
-
Page 14: Water Drainage Methods
3 minutes after the unit is switched on. NOTE: To completely drain all water from the water tank, tilt the unit by lifting it slightly upwards from the front until no more water drains from the outlet. Fig. 20 NOBOCOOL NC-42CP/C... -
Page 15: Maintenance And Service
• Wash the air filter by immersing it gently into warm (about 40°C or 104°F) water with a dishwashing detergent. • Rinse the filter of detergent and dry it thoroughly in a shaded place. • Insert the filters back into their original positions. Fig. 21 NOBOCOOL NC-42CP/C... - Page 16 • Wind the cable around the cable hooks on the back of the appliance. • Wrap the appliance with the plastic bag and keep it in a dry place. Power cord hook Power cord Plug Fig. 22 NOBOCOOL NC-42CP/C...
-
Page 17: Trouble Shooting
Note: In COOLING MODE, the compressor is switched on when cooled air comes out of the air outlet and the compressor light on the control panel is illuminated. In DRY MODE, the compressor operates continuously and compressor light is permanently illuminated. NOBOCOOL NC-42CP/C... - Page 18 (PROBE FAILURE) If this is displayed, contact Nobo on 1800 087 840. Sensor damaged (FULL TANK) Empty the internal tank, see the section on “Water The water tank is full Drainage Method. NOBOCOOL NC-42CP/C...
