Key To Symbols

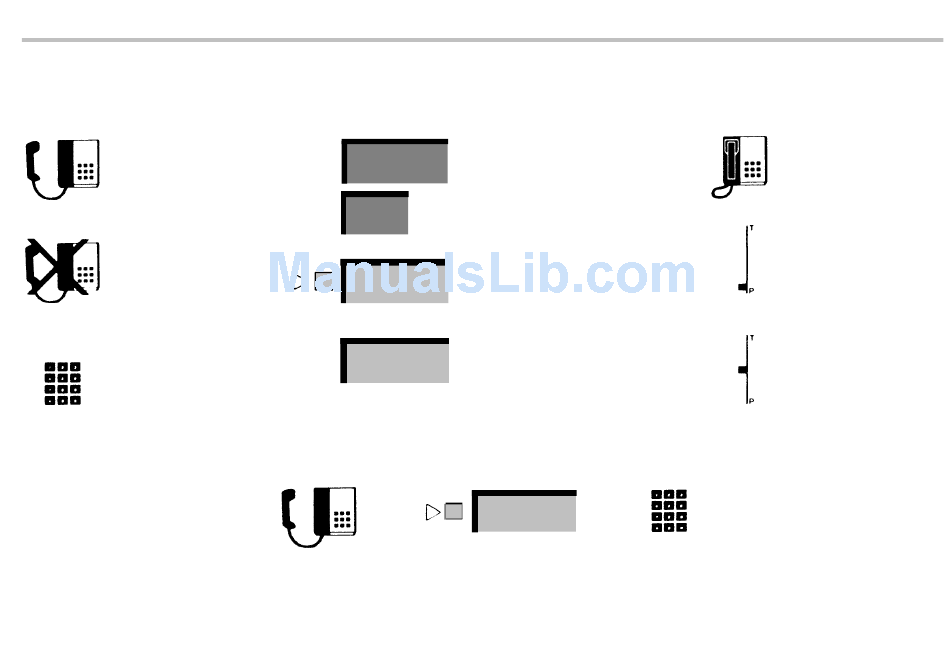

The following symbols are used throughout the document to illustrate the steps for using your MERLIN™ communications system
voice terminal. After you are familiar with the steps, the symbols should serve as a quick reminder. (Buttons are shaded and
labeled to look like the actual buttons on your voice terminal. A shaded light indicates that it is lit.)
Lift handset
Don't lift handset
Dial (an outside
number, intercom, or
feature code)
Since each symbol represents one action, a sequence of two or more symbols illustrates a procedure. For example,
Conference
Speaker
555-1234
Page
+
means, lift your handset, touch the Intercom button, and dial the number.
Touch a fixed feature
button (A dark shaded
button indicates a fixed
feature button.)
Touch a line button
(A lighter shade with a
telephone number in-
dicates a line button.)
Touch a custom
feature button (A
lighter shade with a
feature name indicates
a custom feature
button.)
Intercom
+
Hang up your
handset
Slide the T/P switch
to the P position
Return the T/P switch
to the center position
