Basic Operation
5.9.8

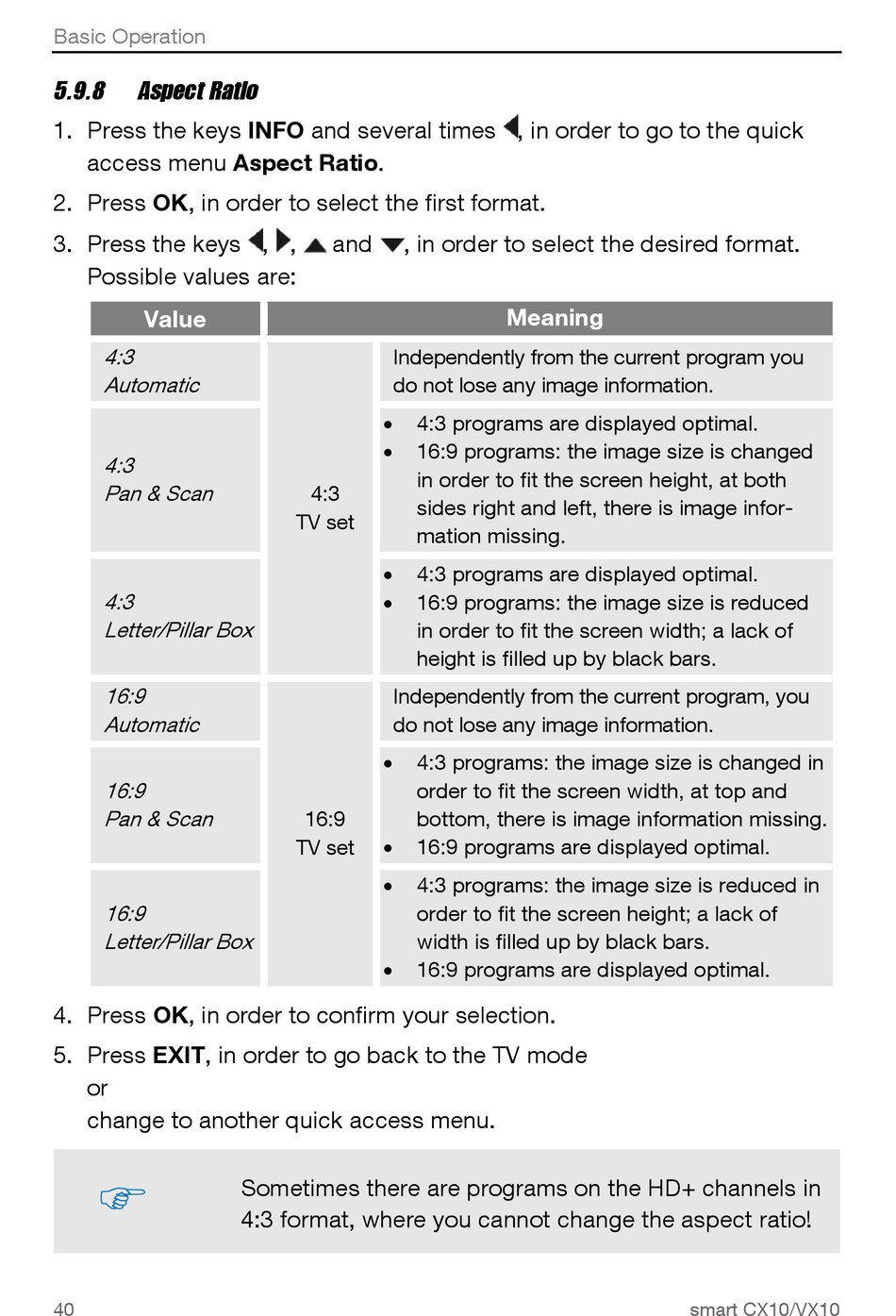

Aspect Ratio

1. Press the keys INFO and several times , in order to go to the quick
access menu Aspect Ratio.
2. Press OK, in order to select the first format.
3. Press the keys , ,
Possible values are:
Value
4:3
Automatic
4:3
Pan & Scan
4:3
Letter/Pillar Box
16:9
Automatic
16:9
Pan & Scan
16:9
Letter/Pillar Box
4. Press OK, in order to confirm your selection.
5. Press EXIT, in order to go back to the TV mode
or
change to another quick access menu.

40
and , in order to select the desired format.
Independently from the current program you
do not lose any image information.
•
•
4:3
TV set
•
•
Independently from the current program, you
do not lose any image information.
•
16:9
•
TV set
•
•
Sometimes there are programs on the HD+ channels in
4:3 format, where you cannot change the aspect ratio!
Meaning
4:3 programs are displayed optimal.
16:9 programs: the image size is changed
in order to fit the screen height, at both
sides right and left, there is image infor-
mation missing.
4:3 programs are displayed optimal.
16:9 programs: the image size is reduced
in order to fit the screen width; a lack of
height is filled up by black bars.
4:3 programs: the image size is changed in
order to fit the screen width, at top and
bottom, there is image information missing.
16:9 programs are displayed optimal.
4:3 programs: the image size is reduced in
order to fit the screen height; a lack of
width is filled up by black bars.
16:9 programs are displayed optimal.
