HearthStone Tucson 8701 Owner's Manual

Soapstone, select collection gas-fired direct-vent heater
Hide thumbs Also See for Tucson 8701:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual & Installation Manual
WARNING: If the information in these instructions
is not followed exactly, a fire or explosion may
result causing property damage, personal injury or
loss of life.
Do not store or use gasoline or other flammable vapors
and liquids near this or any other gas appliance.
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch electrical switches; do not use
phone in your building.
•
Immediately call your gas supplier from a
neighbor's phone. Follow your gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the fire
department.
A qualified installer, service agency or gas supplier
must
perform
installation
Commonwealth of Massachusetts, all installation of gas
lines and gas fitting shall only be done by a licensed
gas fitter or licensed plumber.
the
and
service.
In
the
Installer: Leave this manual with the appliance
Consumer: Retain this manual for future reference
GAS-FIRED DIRECT-VENT HEATER
Owner's Manual
Operation & Installation Guide
Read This Manual in Its Entirety
Operate and maintain this gas heater
according to this instruction manual.
AVERTISSEMENT: Assurez-vous de bien suivre les
instructions donné dans cette notice pour réduire
au minimum le risque d'incendie ou pour éviter tout
dommage matéeriel, toute blessure ou la mort.
Ne pas entresposer ni utiliser d'essence ni d'autre
vaperurs ou liquides inflammables dans le voisinage de
cet apprareil ou de tout autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
•
Ne pas tenter d'allumer d'appareil.
•
Ne touchez à aucun interrupteur.
servir
des
téléphones
batiment où vous vous trouvez.
•
Appelez
immédiatement votre
gaz depuis un voisin.
du fournisseur.
•
Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le service dos incendies.
L'installation et service doit être exécuté par un
qualifié
installer,
agence
fournisseur de gaz.

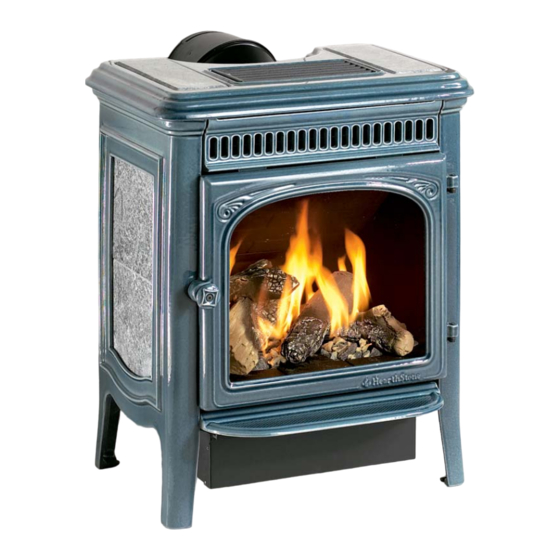

Tucson
(Model 8701)
Ne pas vous
se
trouvant
dans
fournisseur
Suivez les instructions
de
service
ou
Tucson Model: 8701
Manual: 6400-40450
Revised: 9/26/08
le
de
le
