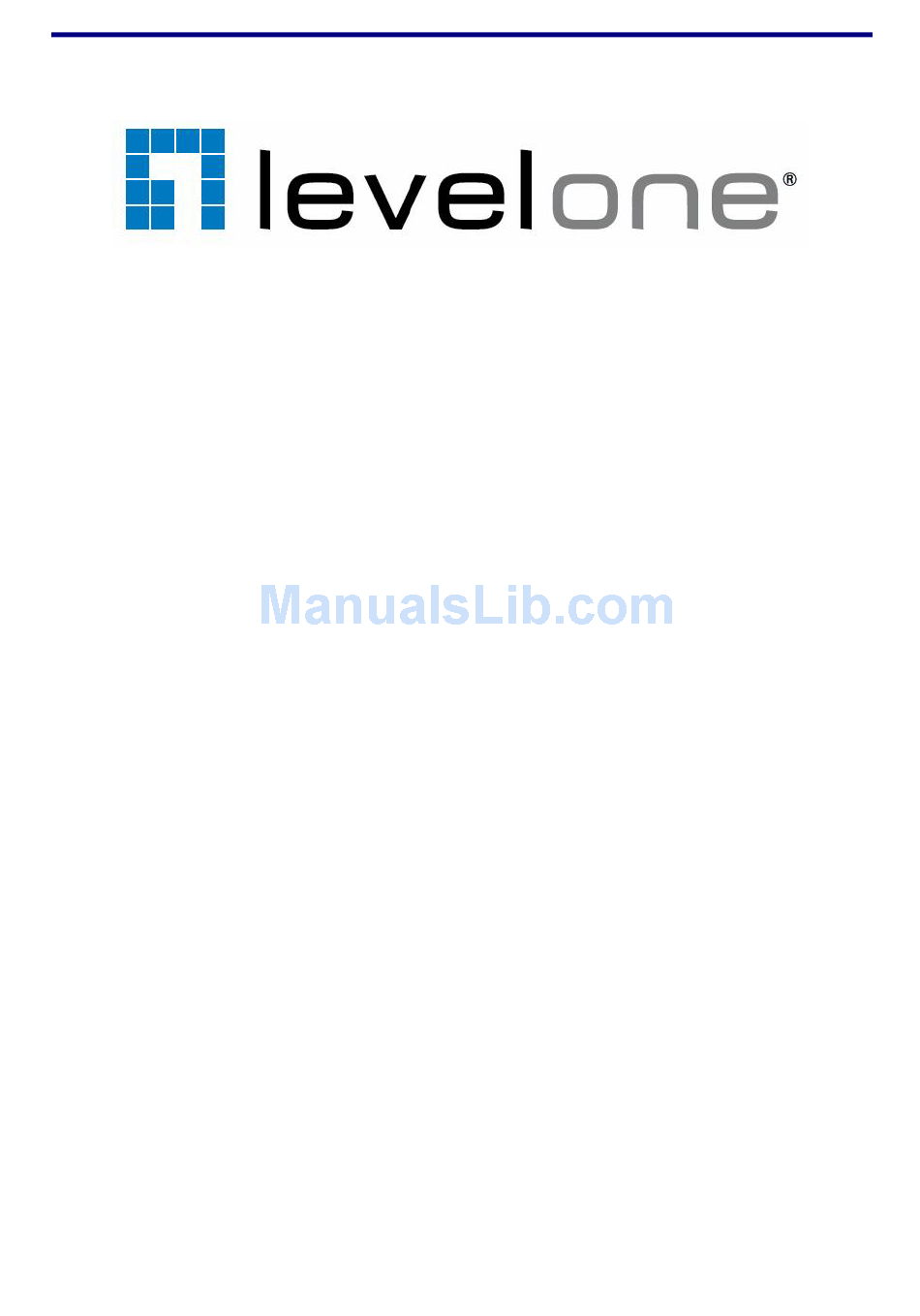

- Page 1 FCS-0071 User’s Manual FCS-0071 2-Megapixel Fish-Eye PoE Network Camera User’s Manual Version: 1.0 Date: 05/30/2012...
-
Page 2: Table Of Contents
General Public License ........................... 2 Notices ................................3 Introduction ..............................4 Installation ..............................5 FCS-0071 – Physical Overview ....................... 5 Terminal block for I/O connectors ....................6 Using the Web UI ............................15 1. Live View ............................16 2. Video ..............................19 General ............................ -
Page 3: General Public License
If you would like a copy of the GPL or other open source code in this software on a physical CD medium, LevelOne (Digital Data Communications) offers to mail this CD to you upon request, for a price of US$9.99 plus the cost of shipping. -
Page 4: Notices
FCS-0071 User’s Manual Notices This user manual is intended for administrators and users of the FCS-0071 Network Camera, including instructions for using and managing the camera on your network. The use of surveillance devices may be prohibited by law in your country. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use. -
Page 5: Introduction

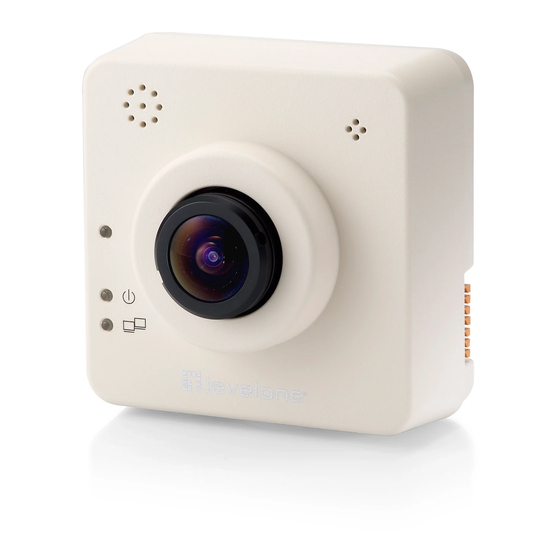

FCS-0071 is a 2 Mega Pixel Fish-Eye Panorama Network Camera with H.264-AVC performance and other rich functions. FCS-0071 is equipped with a fish-eye lens for 360° panoramic wide angle view without blind spots making it the perfect solution for viewing wide areas with like hallways, stores, and offices without the need to install multiple cameras. -
Page 6: Installation
FCS-0071 User’s Manual Installation FCS-0071 – Physical Overview... -
Page 7: Terminal Block For I/O Connectors
FCS-0071 User’s Manual Terminal block for I/O connectors Function Description DO_NO Digital output implementation; Pin7 to COM (Pin6) is a Photo-coupled relay on Normal Open status. External device can directly connect to the terminals. DO_COM However the current that will go through the 2 nodes must not exceed 130mA. -
Page 8: Hardware Connection
FCS-0071 User’s Manual 1. Hardware Connection 1. Prepare a PC with Ethernet link to the network 2. Connect LAN port (RJ45) of the camera to a network switch/hub 3. Connect power jack (ignore if using PoE) 4. Ensure the power adaptor specification matches the power system (110V or 220V) and connect the adaptor to the outlet 5. -
Page 9: Software Installation
FCS-0071 User’s Manual 2. Software Installation The following software is necessary for the proper display and use of the FCS-0071 from the Web site. The software will be taken from the Software Package CD. IP Installer The IP Installer is used to locate and configure network cameras and video servers on the LAN. This utility is useful for conveniently configuring the network settings of the device, or for finding a device once the network settings have been modified. -
Page 10: Network Configuration
Click the [Device Search] to search the device in the LAN. From the list, select the device with the MAC Address that corresponds to the FCS-0071 that is to be configured. The MAC Address is identical to the unit’s S/N (Serial Number). - Page 11 FCS-0071 User’s Manual Double click the select item to open the Property Page or right click the item to select the [Single Device Setting] Modify the network settings of the camera After filling in the properties, click [Set] button to complete the configuration settings.
- Page 12 FCS-0071 User’s Manual Click the [Batch Device Setting] to set several devices.
- Page 13 FCS-0071 User’s Manual Language support for Chinese, English and Spanish.
- Page 14 FCS-0071 User’s Manual Open the Web-based UI of the selected camera To access the Web-based UI of the selected unit, run the Open Web on the select item For first time user, there will be a prompt to install the ActiveX control. Confirm the installation as it is required to view the video stream and some operations.
- Page 15 FCS-0071 User’s Manual Verify and Complete the Installation from Your Browser When browsing the Home Page at the first time with the Microsoft Internet Explorer , you must temporarily lower your security settings to perform a one-time-only installation of the ActiveX...
-
Page 16: Using The Web Ui
FCS-0071 User’s Manual Using the Web UI Start your Web browser and enter the URL or IP address in the Address field. The Home page of the camera is now displayed. -
Page 17: Live View
FCS-0071 User’s Manual 1. Live View Video format Bit rate Frame Rate Resolution IP address of the camera Button Description Click for more general/advance camera settings Select languages among English, traditional Chinese and simplify Chinese Select display mode to view the different type of the video layout. - Page 18 FCS-0071 User’s Manual Button Description Full screen Listen the audio input from local end Talk function Record instant live video Snapshot the image...
- Page 19 FCS-0071 User’s Manual Configuration Pages List Video General Advance Camera General Advance Event Event Server Motion Detection I/O ports Event Configuration Schedule General Storage Network General Advance ...
-
Page 20: Video
The PTZ function will display in Quad with source view, Double with source view , Double view and Triple view of Wall and Wall 720P Mount. Click on the PTZ icon, the web will popup the control panel to control e-PTZ function of FCS-0071. - Page 21 FCS-0071 User’s Manual Double with source view PTZ control panel: 1. Step: Setting the speed of Pan function. (1~10) 2. Pan Arrow: Click to control Pan function. 3. Move the control panel. 4. Close the control panel. 5. Zoom: Digital zoom in/out.(1~10)
- Page 22 FCS-0071 User’s Manual Triple & Quad with source & Double view PTZ control panel: 1. Ch：Select the channel. (1~4) & (2~4) 2. Step：Setting the speed of Pan/Tilt function. (1~10) 3. Pan Tilt Arrow：Click to control Pan/Tilt function. 4. Zoom：Digital zoom in/out. (1~10) 5.
-
Page 23: Advanced
FCS-0071 User’s Manual Advanced Stream 1 Setting: RTSP Path: It is the stream ID used for RTSP client streaming connection, such as VLC player. (default v00) Resolution: 1600x1200, 800x600, 640x480. Video Mode: Choose between variable bit rate (VBR) and constant bit rate (CBR) VBR->... -
Page 24: Camera
FCS-0071 User’s Manual 3. Camera General... - Page 25 FCS-0071 User’s Manual Camera General Setting: Brightness: the luminance of image view. Hue: refer to pure color, it can modify the different display of specific color such as red, green or blue. Saturation: intensity of a specific color.
-
Page 26: Advanced
FCS-0071 User’s Manual Advanced White balance: Adjustment to compensate for different environments in terms of light source. Exposure: Anti-flicker setting for image sensor to fit the frequency of light (power) source. For instance, the power frequency is 50Hz for most European countries, while 60Hz is typically for US. This... - Page 27 FCS-0071 User’s Manual Max Exposure Time: Referring to the shutter speed. Max Gain Control: The amplification factor for the incoming light. Infrared (IR) Cut Filter: The default is automatically switched according to light intensity. Enable indicate the filter is...
- Page 28 FCS-0071 User’s Manual 2. Broad view: 3. Quad with source view: 4. Triple view: Ceiling Mount: Choose Ceiling mount, Go back to live view, there are 2 kinds of video layout to choose from; Original view, Quad view. 1. Original view:...
- Page 29 FCS-0071 User’s Manual 2. Quad view: Wall 720P Mount: Choose Wall 720P mount type, Go back to Live view, there are 3 kinds of n video layout to choose including Broad view、Double view、Double with source view 1. Broad view:...
- Page 30 FCS-0071 User’s Manual 2. Double view: 3. Double with source view:...
-
Page 31: Event
FCS-0071 User’s Manual 4. Event Event Server Click on the [Add FTP] to expand FTP server setting. FTP Server: Name: Give a name for the FTP server Network Address: Input the network address of the FTP server ... -
Page 32: Motion Detection
FCS-0071 User’s Manual Motion Detection To add a motion detection area: 1. Click on [Add] to set up a detection area. (Set up panel will be expanded) - Page 33 FCS-0071 User’s Manual 2. Give a name to this window area. 3. Select the trigger level and sensitivity for this detection window. (0~100, low~high) 4. Select color for detection window. 5. Draw detection window on the image.
-
Page 34: I/O Ports
FCS-0071 User’s Manual 6. Once everything is done, click on [Save] to save the configuration made. Configured detection window will be displayed in motion detection list. (Circled in blue) Note: 1. Maximum number of detection window is 10. 2. Motion Detection windows need to be modified if users changed video layout. -
Page 35: Event Configuration
FCS-0071 User’s Manual Event Configuration The Event Configuration is to assign the actions responding to the specified events (Trigger Conditions). The table lists the configured events. Click on “Add…” or choose an event from the list to expend the panel for detail configurations. - Page 36 FCS-0071 User’s Manual “Send Email Notification” and “Send HTTP Notification to” and “Send Message Notification (TCP)”. 6. Click on [Save] to save the configuration made.
-
Page 37: Schedule
FCS-0071 User’s Manual 5. Schedule General Define the day (specified by days of a week) and time (specified by each single hour) for that will be recording during the scheduled period. Note that only video data will be recorded. User can select which video stream should be recorded, and the size of each sliced file. -
Page 38: Storage
FCS-0071 User’s Manual Storage Display the storage information, includes disk size info, type and status. The warning message shows when recording is on process; Micro SD card should not be removed during the recording process. The “Browse” button allows viewing the list of recorded files. The web page will then be redirect to the root path of the SD storage (if one is inserted). -
Page 39: Network
FCS-0071 User’s Manual 6. Network General Device IP configuration, includes DHCP and Static IP setting. “Enable ARP/Ping” enable device to accept ARP or ping packets from the network. Disable this option may provide extra security from intentional ping. -
Page 40: Advanced
FCS-0071 User’s Manual Advanced Enable or configure other network functions. NTP: Configure a NTP (Network Time Protocol) server, so that the device system date and time can be synchronized with a specified Time Server or DHCP server. HTTP: set the HTTP port that will be applied for Web UI access. -
Page 41: Smtp (E-Mail)
FCS-0071 User’s Manual SMTP (E-Mail) Configure an email host in the device that will send email on behalf of the configured email account in a circumstance like sending an email notice to a specified mail address (Event Configuration). Complete the Mail Server, Server Port, Authentication information (if required) and the sender email address. -
Page 42: Ddns
FCS-0071 User’s Manual DDNS Dynamic DNS configuration; the network device can be assigned with a host name by registering this service (Internet access required). Host Name: Assigned name that will be used for access to the device User Name/Password: Account authentication for logging to this service Update Time: Periodically, the device updates its access info to sever in the configured time. -
Page 43: System
FCS-0071 User’s Manual 7. System Information Lists of System and Network configurations... -
Page 44: User
FCS-0071 User’s Manual User Login users for Web access and operations; authentication required. The Check box is for anonymous logging on to the live view page. Logging for further configurations will still require user name and password. -
Page 45: Date & Time
FCS-0071 User’s Manual Date & Time System date/time configuration. Options of synchronizing with PC and NTP server are provided for automatic adjustment. -
Page 46: Server Maintenance
FCS-0071 User’s Manual Server Maintenance This page provides tool for system maintenance; Reboot and Load default settings, as well as functionalities of launching upgrade process, backup/restore user settings and language defines. -
Page 47: Log Service
FCS-0071 User’s Manual Log Service Most system operations and / or process will be kept in a log system. The link provides the review of these records. -
Page 48: Customize
FCS-0071 User’s Manual 8. Customize This page provides the function of adjusting the look of live view page. There are two types of layout settings; use default look or use custom settings. Use Default Look: the default layout of live/configuration pages. - Page 49 FCS-0071 User’s Manual Use Custom Settings: The modifications allowed are change of Background / Text Color, Background picture, Title, Description, Logo and etc.
-
Page 50: Faq
FCS-0071 User’s Manual Restore Factory Default In some cases, system does not respond to any operation, this process gets the unit back to initial status, so that it can be reconfigurable for up and running again. To restore factory default, please follow the steps:... - Page 51 FCS-0071 User’s Manual then click on “Upgrade” button. The upgrade should start in minutes, depending on file transferring status. The web will then be directed to the system writing progress. Overall upgrading process takes about 5~10 minutes. In this period, DO NOT DISCONECT the power. System of the unit can be damaged otherwise.
