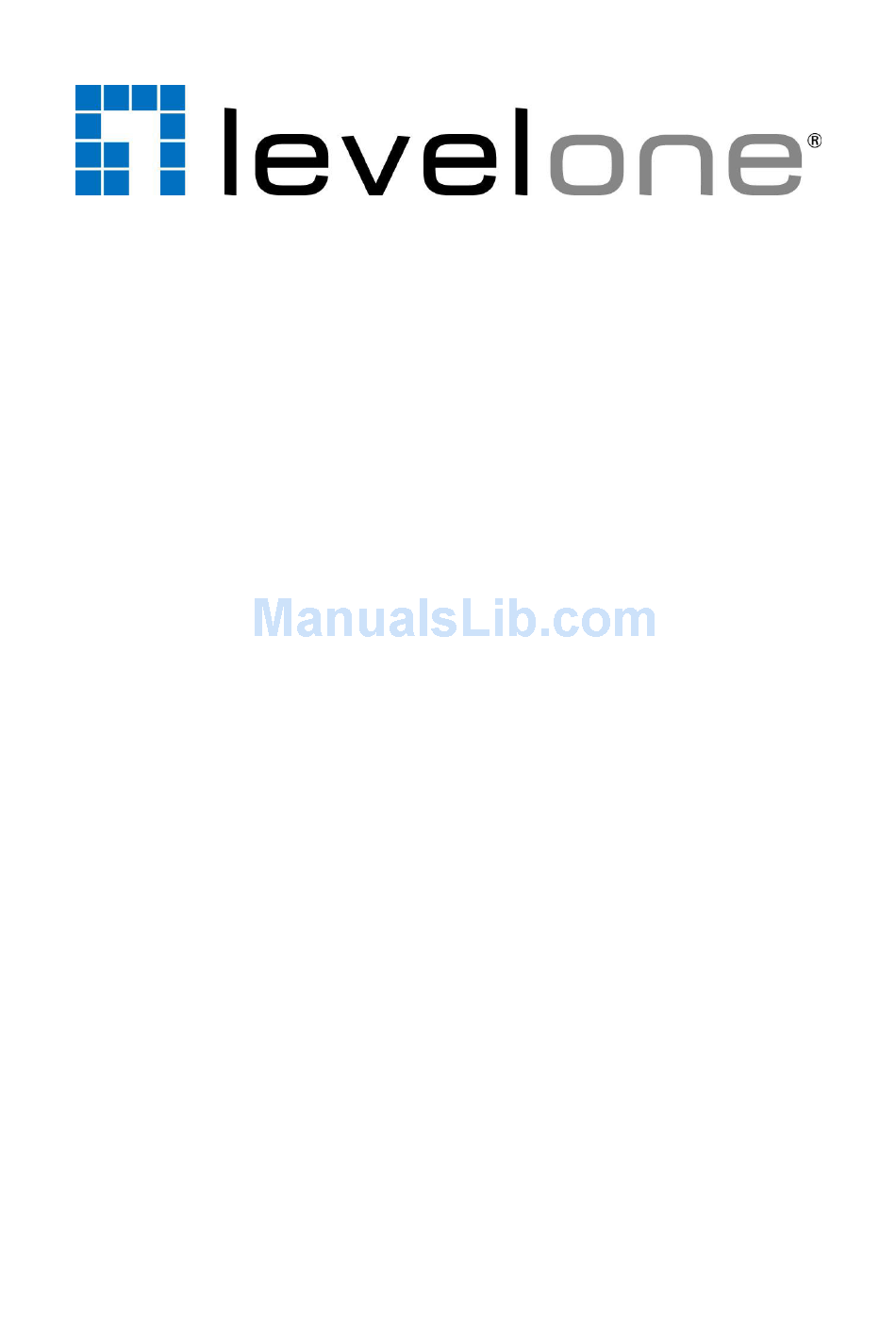

  • Page 1 Fixed Network Camera Hardware User Manual FCS-0051 Ver. 2014/05/05...

  • Page 2: Table Of Contents

    Hardware Manual Table of Contents Precautions Safety Instructions ................5 Introduction List of Models ..................6 Package Contents ................6 Physical Description ................ 7 Basic Connections ................8 Accessing the Camera Configure the IP Addresses ............. 9 Using DHCP Server to Assign IP Addresses ........9 Using the Default Camera IP Address ..........

  • Page 3: Precautions

    Hardware Manual Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.
  • Page 4 Hardware Manual Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Safety Instructions

    Hardware Manual Safety Instructions Don’t open the housing of the product Cleaning Disconnect this video product from the power supply before cleaning. Attachments Do not use attachments not recommended by the video product manufacturer as they may cause hazards. Water and Moisture Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool and the like.

  • Page 6: Introduction

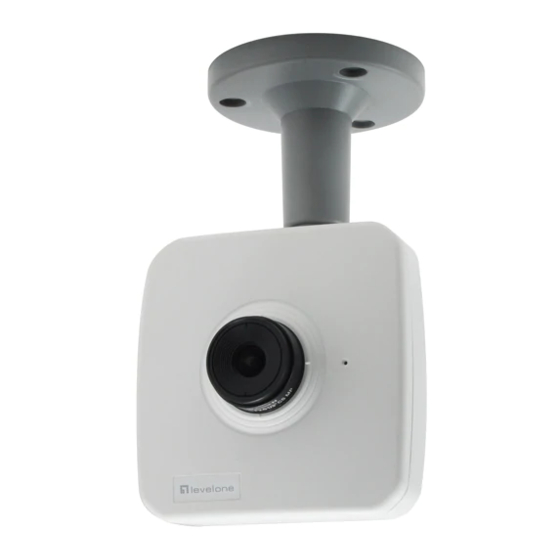

    Hardware Manual Introduction List of Models This hardware manual contains the following models: FCS-0051 Fixed Network Camera, 5-Megapixel, PoE 802.3af, WDR Package Contents Camera Bracket Mounting Screw Kit Quick Installation Guide...

  • Page 7: Physical Description

    Hardware Manual Physical Description Item Description Memory Card Slot Insert a memory card into this slot for local recording purposes. NOTE: Supports microSDHC and microSDXC cards. Built-in Microphone Connects to audio input devices, such as a microphone with built-in amplifier, etc. NOTE: The microphone must have a built-in amplifier.

  • Page 8: Basic Connections

    Hardware Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. Please use a PoE (Power over Ethernet) supported switch or injector: 1) Connect your IP Camera to the PoE Switch / Injector by CAT5 or CAT6 cables with RJ45 connector.

  • Page 9: Accessing The Camera

    Hardware Manual Accessing the Camera Configure the IP Addresses In order to be able to communicate with the camera from your PC, both the camera and the PC have to be within the same network segment. In most cases, it means that they both should have very similar IP addresses, where only the last number of the IP address is different from each other.
  • Page 10 Hardware Manual By double-clicking with the left mouse on the camera model, it is possible to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already. If you work with our cameras regularly, then there is even a better way to discover the cameras in the network –...

  • Page 11: Using The Default Camera Ip Address

    Hardware Manual Using the Default Camera IP Address If there is no DHCP server in the given network, the user may have to assign the IP addresses to both PC and camera manually to make sure they are in the same network segment. When the camera is plugged into network and it does not detect any DHCP services, it will automatically assign itself a default IP: 192.168.0.100...
  • Page 12 Hardware Manual Manually adjust the IP addresses of multiple cameras: If there are more than 1 camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices –...

  • Page 13: Access The Camera

    Hardware Manual Access the Camera Now that the camera and the PC are both having their unique IP addresses and are under the same network segment, it is possible to use the Web browser of the PC to access the camera. You can use any of the browsers to access the camera, however, the full functionality is provided only for Microsoft Internet Explorer.
  • Page 14 Hardware Manual The following examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera. Assuming that the camera’s IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser’s address bar: http://192.168.0.100 Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page.
  • Page 15 Hardware Manual To check the firmware version through the Web Configurator, access the Setup page and click System > System Info. For further operations, please refer to the Firmware User Manual.
