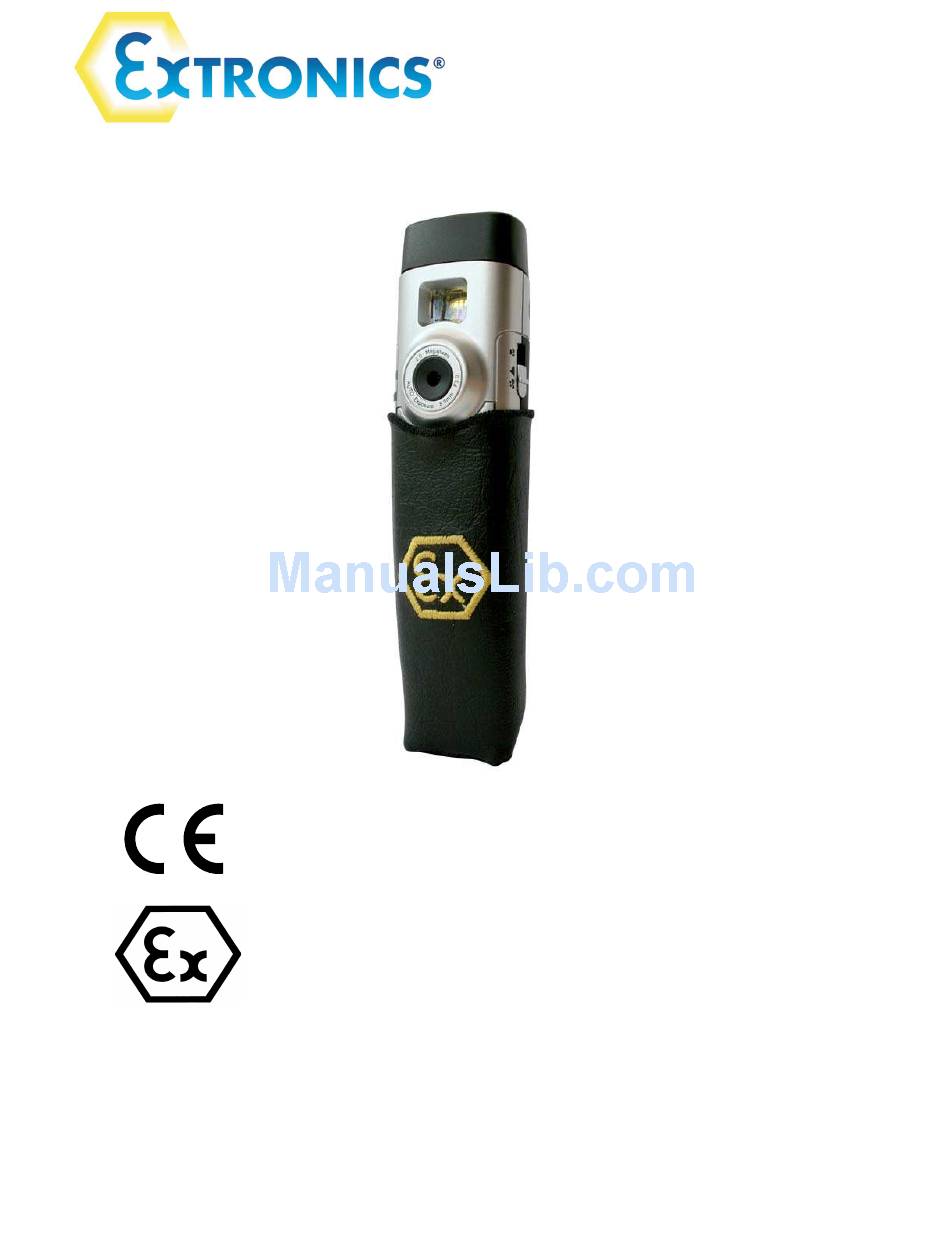

- Page 1 Operating Manual iCAM500...
- Page 2 Operating Manual Issue 9 Intentionally Left Blank 313295 Document Number (See Last Page for Revision Details) ©2006 Extronics Limited. This document is Copyright Extronics limited. Extronics reserve the right to change this manual and its contents without notice, the latest version applies.
-
Page 3: Table Of Contents
7 FAQ – Frequently Asked Questions ........20 8 Hints and Tips................23 8.1 Light Levels ........................23 8.2 Holding the Camera Still ....................23 9 Manual Revision ................ 24 To get the best out of your iCAM500 please refer to Section 8 Hints and Tips of the Manual... -
Page 4: Functional Description
1 Introduction This manual contains data concerning explosion protection, operational data and instructions for operating with a PC. 1.1 Functional Description The iCAM500 is an intrinsically safe USB camera; the iCAM500 is suitable for taking photos in hazardous areas (Ex... -
Page 5: Safety Information And Notes
2 Safety Information and Notes 2.1 Storage of this Manual Keep this user manual safe and in the vicinity of the iCAM500. All persons who have to work on or with the unit should be advised on where the manual is stored. - Page 6 European EEx approval. The user bears the sole responsibility of examining the equipment with regard to its suitability for the intended application and environmental conditions. Extronics Ltd accepts no liability for any lack of suitability. Important:- For installation, maintenance and cleaning of the units, it is important to...
-
Page 7: Operation & User Instructions
Briefly pressing the button on the back of the unit again will take a photo. The blue L.E.D on the side of the iCAM500 will light, and will stay lit for a few seconds during this time the photo will be taken, the time is dependant on the illumination and motion of the subject. -
Page 8: How To Install Battery
When the device is being used as an USB flash drive, the Snap (Picture taking) function will not work. • Power On: Hold Power/Snap key 3 sec and release will turn the power on. • Power Off: The iCAM500 will turn power off. When 90 sec without operation... -
Page 9: How To Use Icam500 As A Digital Camera - Dsc
1. Observe the item you wish to take a picture of through the view finder. 2. Check the iCAM500 is in the ready status (Blue LED is flashing), 3. Press the button to take a photo, Blue LED will then light while the image is stored to memory. -
Page 10: How To Use Icam500 As Macro / Normal Lens
3.5 How to use iCAM500 as Macro / Normal Lens 1. Turn on the Macro switch when target object is close to the iCAM500. 2. Turn off the Macro switch when target is far away from the iCAM500 e.g. landscapes. -
Page 11: Driver Installation (For Windows 98/98Se)
3.7.1 Windows 98/98SE Installation (1)To install the windows 98/98SE driver download the zip file called “iCAM500driver” from the Extronics website, this can be found under the link below www.extronics.com/drivers/icam500driver.zip Download and save the zipped file to your system, unzip the file to a folder When you have unzipped the file to a folder on your system, browse the folder and double click the SETUP.EXE file. - Page 12 Operating Manual Issue 9 (4) Once the installation is finished completely, you can see a “Removable Disk” in “My Computer” when you plug your iCAM500. 3.7.2 Removing the driver for Win 98 / 98 SE To remove the driver from the operating system, simply run the installation procedure again, as if the drivers were being installed, when running installation again, it will prompt you whether you want to remove the driver or not.
-
Page 13: Removing Icam500 From Your Pc
For these three operating systems, NO Driver is required, because Windows has a built-in driver to support the iCAM500’s USB removable disk. Simply plug iCAM500 into the USB port and it will be recognized by the system. The operating system will setup iCAM500 automatically without any need for a driver. - Page 14 Windows will ask you for a driver even after you have installed it. If you plug your iCAM500 into the USB port, the operating system finds it as a new device, but you are unable to see the “Removable Disk” icon appear in “My Computer”, please check and make sure you do not have any other drives or devices...
-
Page 15: Liability
The technical data specified for hazardous areas comply with the values certified in the European Ex approval. The user bears the sole responsibility of examining the equipment with regard to its suitability for the intended application and environmental conditions. Extronics Ltd accepts no liability for any lack of suitability. -
Page 16: Technical Data
Operating Manual Issue 9 5 Technical Data Certificate no.: IBExU 06 ATEX 1044 Certification Type: II 2 G Ex ia IIC T4 Ambient temperature: -20° C ... +50° C Supply: 2 alkaline cells size AAA Type of cells: Duracell MN 2400 AAA, Capacity: 1150 mAh ... -
Page 17: Ec Declaration Of Conformity
Operating Manual Issue 9 6 EC Declaration of Conformity... - Page 18 Operating Manual Issue 9 7 Certification ATEX Certificate...
- Page 19 Operating Manual Issue 9...
-
Page 20: Faq - Frequently Asked Questions
Q5 Will virus infect the iCAM500? How can I prevent it? Yes, the iCAM500 is just like your hard drive, it can get a virus via any files that you save onto it. Therefore anti-virus software is recommended. - Page 21 USB port or connected to the computer through a USB cable with A- type plug and A-type receptacle. Q19 How many times can the iCAM500 be used and how long can the data be stored on the iCAM500? The iCAM500 can write and erase at least 1 million times, while data on the iCAM500 can be stored more than 10 years.
- Page 22 USB hard disk drive is much heavier and more delicate than the iCAM500. It is only a hard disk drive with a USB interface. iCAM500 is much smaller, lighter and rugged.
-
Page 23: Hints And Tips
Operating Manual Issue 9 9 Hints and Tips To help you get the best out of your iCAM500 please follow the tips below: 8.1 Light Levels • The camera functions well down to light levels of 10Lux below this you may notice a reduction of image quality. -
Page 24: Manual Revision
Operating Manual Issue 9 10 Manual Revision Revision Description Date New Manual 18/05/06 A Bates User Instructions added 02/06/06 A Bates Corrections 13/7/06 N Saunders Battery type detail corrected, 15/08/06 A Bates cleaning instruction added Memory size changed from 128MB to 256MB...
