Operating Manual
Country of Origin: United Kingdom
Document Number 401641 Revison 3.0 - Dated 26
©2015 Extronics Limited. Extronics reserve the right to change this manual and its contents without
notice, the latest version applies.
ATEX/IECEx
Safety Instructions
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation
th
October 2016. Part number A34-0025.
iCAM502
Advertisement
Table of Contents
Related Manuals for extronics iCAM502
Summary of Contents for extronics iCAM502
-

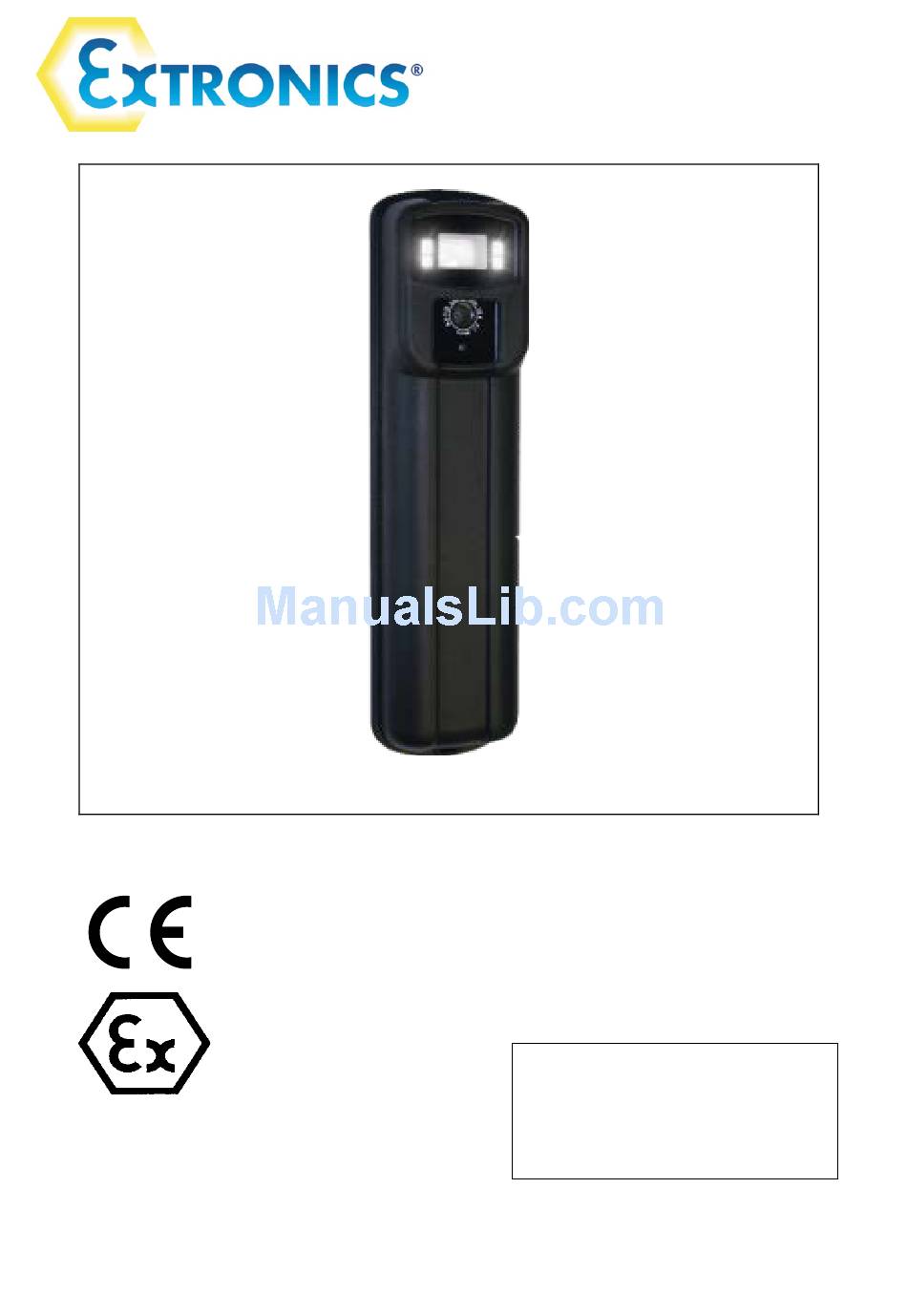

Page 1: Safety Instructions
Country of Origin: United Kingdom Document Number 401641 Revison 3.0 - Dated 26 October 2016. Part number A34-0025. ©2015 Extronics Limited. Extronics reserve the right to change this manual and its contents without notice, the latest version applies. -
Page 2: Table Of Contents
Revision History ....................11 How to Operate the Camera For instructions on how to operate the camera, please see the iCAM502 Quick Start Guide which was included. Copies of this and the full iCAM502 manual are available for download from the Extronics website –... -
Page 3: Safety Instructions
Operating Manual 1 Safety Instructions 1.1 Storage of this Manual Keep this user manual safe and in the vicinity of the device. All persons required to work with the device should be advised on where this manual is stored. 1.2 Special Conditions for Safe Use 1.2.1 ATEX / IECEx (Taken from ITS09ATEX2868X Issue 5 (Amended April 2014) Section 17 and IECExITS09.0027X Issue 5) The conditions of safe use relating to this product:... - Page 4 0 C to 60 Warning! Any connection to the iCAM502 USB port must NOT be made in a hazardous area. Warning! If any damage to the iCAM502 is found which may invalidate the required safety minimum IP rating (IP54 for group I applications), (IP20 for group II), the iCAM502 shall be removed from the hazardous area.
-
Page 5: User Guide
Table 1 iCAM502 cell usage table 2 User guide 2.1 Changing/installing the cells To change or install the cells in the iCAM502 turn the screw as indicated below to remove the cover. Use a coin to turn the screw anti-clockwise, the lid should then pop up. -
Page 6: Structure And Function
The user bears the sole risk in such cases. 3.2 Transportation and Storage All iCAM502 devices must be so transported and stored that they are not subjected to any excessive mechanical stresses. 3.3 Authorized Persons Only persons trained for the purpose are authorized to handle the iCAM502;... -
Page 7: Aggressive Substances And Environments
The iCAM502 is not designed to be subjected to excessive stresses e.g. vibration, heat, impact. Additional protection is required to protect against these external stresses. The iCAM502 will require additional protection if it is used in a location where it may be subjected to damage. -
Page 8: Technical Data
Operating Manual 4 Technical Data Certification Number ITS09ATEX26868X, IECEx ITS 09.0027X ATEX Certification II 1 G Ex ia IIB T4/T3 Ga, II 2 G Ex ia IIC T4 Gb, -20°C ≤Ta≤ +60°C I M1 Ex ia I Ma 0°C ≤Ta≤ +60°C IECEx Certification II 1 G Ex ia IIB T4/T3 Ga, II 2 G Ex ia IIC T4 Gb, -20°C ≤Ta≤... -
Page 9: Eu Declaration Of Conformity
Operating Manual 5 EU Declaration of Conformity... - Page 10 Operating Manual...
-
Page 11: Revision History
Operating Manual 6 Revision History Revision 1.0 – Initial Release, 28/05/15, BS Revision 2.0 – Updated DoC 21/05/2015, AR Revision 3.0 – Updated DoC 26/10/16, PR...
