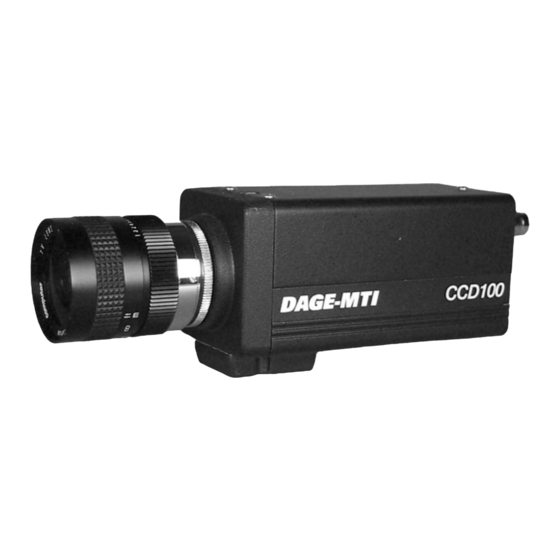

DAGE-MTI CCD-100 User Manual

Camera system
Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual
DAGE-MTI
CCD-100
Camera System

Advertisement

Table of Contents
loading

Related Manuals for DAGE-MTI CCD-100

Summary of Contents for DAGE-MTI CCD-100

  • Page 1 User’s Manual DAGE-MTI CCD-100 Camera System...

  • Page 2: Purchaser's Record

    Purchaser’s Record Model Name: DAGE-MTI CCD-100 Serial Number: Dealer’s Name: Dealer’s Address: Dealer’s Phone Number: Date Purchased: P.O. Number:...
  • Page 3 And with our Dage-MTI series of products, you won't be spending a lot of time setting up your system. That leaves time for what you purchased the camera for in the first place;...

  • Page 4: Installation

    Installation MONITOR WALL MOUNT ADAPTER VIDEO CCD100 POWER Figure 1: CCD-100 Standalone Configuration MONITOR WALL MOUNT ADAPTER GATE CCD100 REMOTE RC100 Figure 2: CCD-100/RC-100 Configuration MONITOR GATE CCD100 REMOTE TABLE TOP SWITCHING WALL MOUNT ADAPTER NOTE: INVESTIGATER POWER SWITCH CONTROLS CAMERA POWER.
  • Page 5 Dage CCD-100 InvestiGater or independently. Figure 1 shows the CCD-100 independently. Attach the power supply to the POWER connector on the . Video output from the CCD-100 VIDEO BNC is available for viewing with a monitor.

  • Page 6: Operation

    Operation Figure 4: CCD-100 Rear Panel POWER The green LED located at the bottom of the rear panel between the switch and the switch lights when power is supplied to the camera either through the POWER, connectors. The camera requires...

  • Page 7: Auto Gain

    GAIN The output level of the camera is determined by the controls. The gain can be in one of three modes: GAIN MAN, AUTO, or AUTO EE MAN GAIN When the switch is in the position, the GAIN output level of the camera is determined by the rear panel pot located above the switch.

  • Page 8: Black Level

    Note: When using the camera in the AUTO EE mode under certain types of lighting such as fluorescent, the camera's output signal may seem as though it is changing in level. This is due to the cyclical nature of the fluorescent light.
  • Page 9 ENHANCE This pot determines the sharpness of the output picture. To sharpen the picture, rotate the pot to the right. In low light situations where the gain of the camera is high, it may be better to not use as much enhancement since it also increases the amount of noise in the output picture.
  • Page 10 PIN # FUNCTION REMOTE SET POS Man Gain Pot (+5V=Max; GND=Min) Center Man Black Pot (+5V=Dark; GND=Light) Center Gain Switch (+5V=AUTO; GND=MAN) AUTO AUTO EE (+5V=ON; GND=OFF) Gamma Switch (+5V=ON; GND=OFF) Power IN (+12V @ 200mA) Black Switch (+5V=AUTO; GND=MAN) AUTO Enhance Pot (+5V=MAX;...
  • Page 11 CCD for extended periods of time. The external gate pulse is placed on the GATE connector pin as shown in the timing diagram below. The camera has an internal pull-up resistor, so only a ground closure is necessary. Figure 5 shows the exact relationship between CCD readout and composite video.

  • Page 12: Specifications

    Specifications: Sensor: 1/3" IT CCD, 768(H) x 494(V) Resolution: Horizontal: 570 TVL Vertical: 350 TVL Signal to Noise: 57 db Gain Range: >18db Enhancement: 0db to +8db @ 5MHz. Electronic Exposure Range: 1/60 to 1/50,000 sec. Minimum Illumination: 0.007 lux for 20% video out (w/ f/1.2 lens) (No IR Filter) ±...

  • Page 13: Troubleshooting

    Troubleshooting No Picture (Check or try the following): 1. Camera Power On? a. External Power Supply Attached? b. AC Power On? c. LED on Camera Rear On? 2. Monitor Connected to Camera Video Output? a. Monitor Power On? 3. Light Level Too Low? a.

  • Page 14: Warranty

    Warranty The DAGE-MTI CCD-100 is warranted to be free of defects in material and workmanship in normal use for a period of one year from the original date of purchase from DAGE-MTI This warranty does not apply to units which have been subject to abuse, neglect, accident, improper installation, or on which the serial number has been removed or damaged.
  • Page 15 1. This warranty is valid only if the malfunctioning unit is returned to service depot. This warranty does DAGE-MTI not cover on-location service. If warranty work is needed, the following should be contacted: DAGE-MTI, INC. Customer Service 701 N. Roeske Ave. Michigan City, IN 46360 (219) 872-5514 Fax: (219) 872-5559 service@dagemti.com...
  • Page 16 DAGE-MTI Inc. 701 N. Roeske Ave. Michigan City, IN 46360 (219) 872-5514 Fax: (219) 872-5559 E-mail: dage@dagemti.com http://www.dagemti.com 970291-01 8/13/02...
