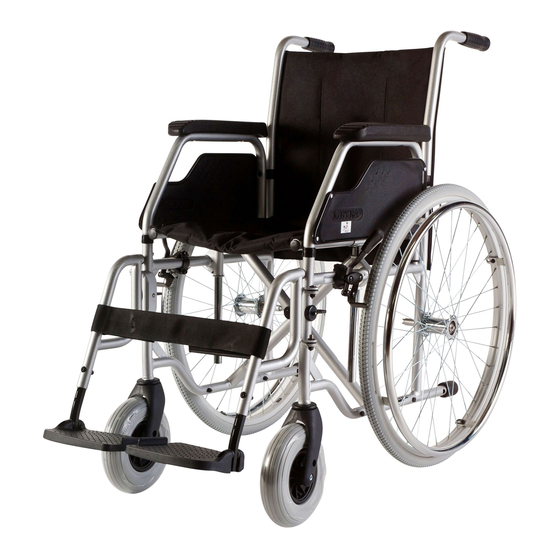

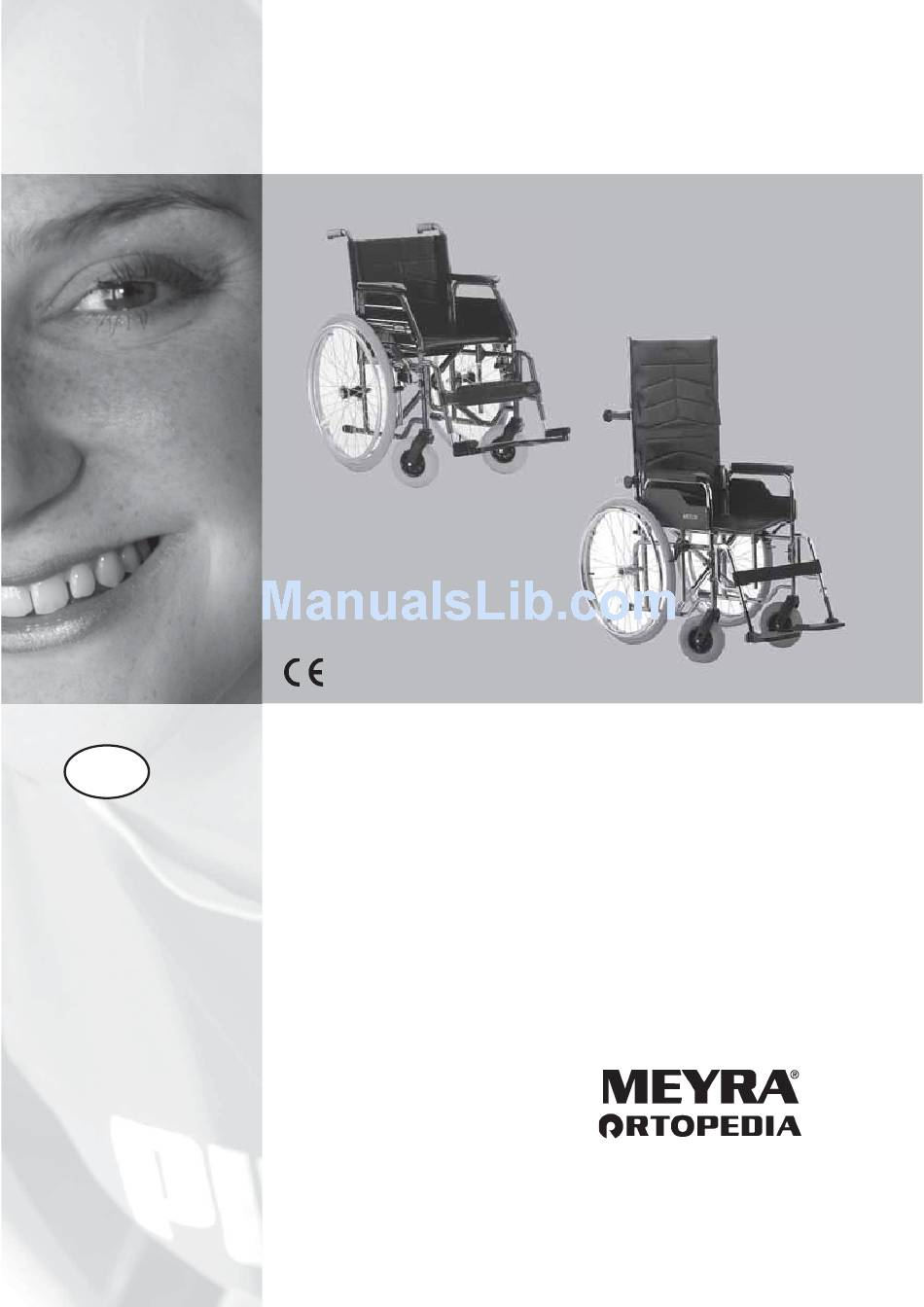

- Page 1 OPERATING MANUAL STANDARD FOLDING WHEEL- CHAIR Model 3.600 Model 3.604 m o v e p e o p l e .
-
Page 2: Table Of Contents
Contents Introduction ....................5 List of models ....................6 Indications ..................... 6 Acceptance ....................6 Specifi cations ....................7 Use ......................... 7 Adjustment ....................8 Life span ......................8 Overview ....................... 9 Model 3.604 ......................10 Supplementary safety information ............11 Brake ...................... - Page 3 Arm support ....................20 Removing the arm support ................21 Inserting the arm support ..................21 Height adjustable armrest .................22 Back support ....................23 Back support with angle adjustment ...............23 30 ° Angle adjustment ..................23 Removable head support ................24 Push bar for back support .................24 Swivelling out the push bar .................24 Attaching the push bar .................24 Wheels ......................
- Page 4 Maintenance ....................30 Maintenance .......................30 Maintenance schedule ..................31 Technical data ..................... 34 Meaning of the labels on the wheelchair ............38 Meaning of the symbols on the type plate ............39 Inspection certifi cate ................. 40 Notes ......................41 Warranty / Guarantee ................. 42 Warrantee / Guarantee section .................43 Inspection certifi...
-
Page 5: Introduction
PDF-fi les of the above mentioned doc- Like any other vehicle, a wheelchair is uments can be accessed on our web- a technical aid. It is subject to expla- site < www.meyra-ortopedia.com >. nations, requires regular care and can ☞ cause danger when used improperly. -
Page 6: List Of Models
ACCEPTANCE This operating manual applies to the All products are checked for faults following models: in the factory and packed in special boxes. Model 3.600 ☞ Model 3.604 Note: However, we request that you check the vehicle for possible INDICATIONS transport damage immediately on receipt –... -
Page 7: Specifi Cations
SPECIFICATIONS The wheelchair of the standard-fold- The wheelchair is universally applica- ing-wheelchair-family, was developed ble on level, fi rm surfaces and can be for adults and adolescents. used as follows: – for indoors (e.g. apartment, day The wheelchair solely serves to trans- care), port one person in the seat and not –... -
Page 8: Adjustment
ADJUSTMENT LIFE SPAN The specialist workshop will hand out We expect an average lifespan of the wheelchair to you under consid- about 4 years for this product, as far eration of all relevant safety instruc- as the product is applied for its des- tions, ready for operation and adjust- ignated purpose and all maintenance ed to your needs. -
Page 9: Overview
OVERVIEW The overview shows, representative for all models, the most important compo- nents of the standard-folding-wheelchair. Pos. Description Pos. Description 1 Push handle 7 Steering wheel 2 Back support 8 Locking lever, leg support 3 Arm support 9 Locking knob – Quick release axle 4 Clothes guard 10 Brake lever –... -
Page 10: Model 3.604
Model 3.604 The overview shows deviating components to the standard folding wheelchair. Pos. Description 13 Head support 14 Stabilising/push bar 15 Angle adjustment of the back support... -
Page 11: Supplementary Safety Information
SUPPLEMENTARY SAFE- TY INFORMATION The following safety information are supplementary to: – Safety and general handling in- structions < Mechanical and mus- cle powered wheelchairs >. ☞ Note: Do not insert fi ngers into open frame tubes (for example after re- moving the arm supports, leg sup- ports or support castors). -
Page 12: Brake
BRAKE By locking the brakes with the brake lever (1), the wheelchair is secured against rolling away unintentionally (parking brake). Depending on the version, the wheel- chair can be equipped with pressure brakes (2) or with drum brakes (3). ☞ Note: Therefore observe the mainte- nance instructions as well as safety... -
Page 13: Pressure Brake - User
Pressure brake - user Locking the brakes To secure the wheelchair against any unintentional rolling, press both brake levers forward all the way (1)+[2]. On a pushing wheelchair with small rear wheels, pull both brake levers up as far as possible [3]. ☞... -
Page 14: Drum Brake For Accompanying Persons
Drum brake for accompany- ing persons The drum brake is operated by the accompanying person by way of the brake levers (1) on the extended push handles or the pushing rod. Attention: With the drum brakes version, the accompanying person must not lift the wheelchair on the extended push handles. -
Page 15: Leg Supports
LEG SUPPORTS Attention: Before any actions on the leg sup- ports the wheelchair is to be se- cured against unintentional rolling motions. ☞ Therefore observe chapter < Brakes >. Calf belt The removable calf belt (1) prevents the feet from sliding off the back of the footplates. -
Page 16: Removing The Calf Belt
Removing the calf belt For removal, open the velcro fasten- ers at the back of the calf belt (1) fi rst, then pull the calf belt off of the upper leg supports (2). Attaching the calf belt For fastening, fi rst pull the two ends of the calf belt through the upper leg supports (2) and fastened on the back of the calf belt with the velcro... -
Page 17: Leg Support Upper Part
Leg support upper part The upper leg support with an in- serted lower leg support is termed leg support. Turning the leg supports to the side For easy transfer out of/into the wheelchair as well as driving closer to a closet, bed or bathtub the leg sup- ports can be swivelled outward [1]. -
Page 18: Removing The Leg Supports
Removing the leg supports For easy transfer into and out of the wheelchair as well as a reduced wheel- chair length (important for transport) the leg supports can be removed [1]. ☞ Note: Before removing the leg supports loosen or remove the calf belt on one side. -
Page 19: Height Adjustment Of The Leg Support
Height adjustment of the leg sup- port Attention: Never put the free hand into the adjustment mechanism while ad- justing the height adjustable leg support. – Danger of crushing! • Have the leg support secured by an accompanying person against unintentionally falling down. -
Page 20: Arm Support
ARM SUPPORT The arm supports [1] can (depend- ing on the model) be removed, ad- justed in height [2] and at the same time serve as a padded arm support, clothes guard and wind protector. Attention: No not grab between the frame and arm support. -
Page 21: Removing The Arm Support
Removing the arm support In order to remove the arm support [1], depending on model and version: 1. Push in the spring button of the lock mechanism [2]. 2. Remove the arm support in an up- wards direction! Inserting the arm support ☞... -
Page 22: Height Adjustable Armrest
Height adjustable armrest The padded arm support is height ad- justable in 7 steps of 10.5 cm each [1]. ☞ After the height adjustment check the locking device by trying to pull or push the padded arm support. Height adjustment Code 81: –... -
Page 23: Back Support
BACK SUPPORT Apart from the standard back sup- port [1] depending on model, the wheelchair can be equipped with an angle adjustable back support: Back support with angle adjustment 30 ° Angle adjustment The back support can be reclined in several positions [1]. -
Page 24: Removable Head Support
Removable head support The head support is removable [1] and can be reinserted into the back tubes [2]. Push bar for back support The push bar/stabiliser rod connects the back tubes to the push handles [2]. Swivelling out the push bar ☞... -
Page 25: Wheels
WHEELS Drive wheels The drive wheels are mounted on a fi xed axle [1] or on a quick release axle [2]. ☞ Note: If the drive wheels has too much sideward lag or the quick release axle does not engage, contact your specialist dealer immediately for repair. -
Page 26: Support Castors
SUPPORT CASTORS Stick-in support castors The insertable support castors can be inserted from the back into the lower frame tubes [1]. Removing/inserting the support castors – Depress the corresponding spring button (2) in order to remove/in- sert a support castor. ☞... -
Page 27: Retaining Strap
RETAINING STRAP The retaining strap [1] serves to strap in a person sitting in the wheelchair. – Additional stabilisation of the sit- ting position. – Prevents the user from slipping forwards out of the seat (e.g. dur- ing abrupt braking). The retaining strap is screwed with mounting links onto the back tubes. -
Page 28: Folding/Unfolding
FOLDING/UNFOLDING Folding the wheelchair Your wheelchair can be folded in a few moments without tools being re- quired [1]. – Remove the seat cushion, if appli- cable. – Remove the calf belt if necessary. – Remove the leg supports or foot- board, resp. -
Page 29: Unfolding The Wheelchair
Unfolding the wheelchair Tip the wheelchair slightly to one side in order to make the unfolding easier. At the side resting on the fl oor, press the seat tube down to the end stop [1]. ☞ Note: ☞ You may need to press down both seat tubes with the hands in order to do this. -
Page 30: Loading
Loading Transport security ☞ The wheelchair can be loaded with The procedure for securing the the aid of ramps or lifting platforms. wheelchair can be read in the document < Safety and general ☞ Note: handling instructions < Mechanical Observe the safety and general and muscle powered wheelchairs >... -
Page 31: Maintenance Schedule
Maintenance schedule WHEN WHAT REMARK Carry out test yourself Before starting out Test brakes for fault- or with a helper. less operation Activate brake lever to the limit. The locked wheels should not be able to turn under op- erating conditions. If they can still turn, the brakes must be re- paired by an author-... - Page 32 WHEN WHAT REMARK Carry out the test your- Before starting out Check back support self or by a helper. for stability deformations Check frame tubes cracks occur in the for damage welding seams, contact a specialist workshop immediately pairs. – Danger of ac- cidents! Especially before driv- Carry out test yourself...
- Page 33 WHEN WHAT REMARK Manufacturer recom- To be carried out by Safety inspection mendation: the specialist dealer. – Vehicle Every 12 months (depending fre- quency of use)
-
Page 34: Technical Data
TECHNICAL DATA Tyre fi lling pressure: Maximum tyre pressure is printed on All model depending data within the the tyres on each side. < Technical data > correspond to the Full tyre pressure – steering wheel standard version of the respective Standard: model and can also be transferred to 2.5 - 3.5 bar = 36 - 50 psi... - Page 35 Model 3.604: ......................52 cm Model 3.604 (with head support): ..............77 mm Seat width Model 3.600: ..............38 / 40 / 43 / 45 / 48 / 51 cm Model 3.604: .................40 / 43 / 45 / 48 cm Seat depth: Model 3.600: ......................44 cm...
- Page 36 Model 3.604: ....................1160 mm Folding length (without leg supports, drive wheels): (Support castors are removed or swivelled underneath the seat) Model 3.600 / 3.604: ..................810 mm Folding width: Model 3.600: ....................310 mm Model 3.604: ....................330 mm Folding height: Model 3.600: ..................min.
- Page 37 Ambient temperature: ..............-25 °C to +50 °C Storage temperature: ............... -40 °C to +65 °C Weights permissible total weight Model 3.600: ................... max. 171 kg Model 3.604: ..................max. 146.8 kg max. user weight (including additional load): Model 3.600: ....................150 kg Model 3.604: ....................
-
Page 38: Meaning Of The Labels On The Wheelchair
Meaning of the labels on the wheelchair Attention! Read the operating manuals and other provided doc- umentation. Do not lift the wheelchair at the arm supports or leg supports. Removable parts are not suitable for carrying. Attention! Readjust the brakes. Attention! Increased danger of tilting when on inclinations / slopes, especially in combination with short wheel... -
Page 39: Meaning Of The Symbols On The Type Plate
Meaning of the symbols on the type plate Manufacturer Order number Serial number Production date (Year – Calendar week) Permitted user weight Permitted total weight Permitted axle loads Permissible rising gradient Permissible falling gradient Permitted maximum speed The product is licensed as a seat inside a handicapped transport vehicle (HTV). -
Page 40: Inspection Certifi Cate
INSPECTION CERTIFICATE Vehicle data: Model: Delivery note no.: Serial-no.(SN): Recommended safety inspection 1st year Recommended safety inspection 2nd year (at least every 12 months) (at least every 12 months) Stamp of specialist dealer: Stamp of specialist dealer: Signature: Signature: Place, date: Place, date: Next safety inspection in 12 months Next safety inspection in 12 months... -
Page 41: Notes
NOTES... -
Page 42: Warranty / Guarantee
Interferences through radiation WARRANTY / GUARAN- sources such as mobile phones with high transmission power, HiFi-equip- ment and other extreme interference We accept legal liability for this prod- radiators outside of norm specifi ca- uct within the scope of or general tions cannot be declared as warranty terms and conditions and warranty or guarantee claims. -
Page 43: Warrantee / Guarantee Section
Warrantee / Guarantee section Please fi ll out! Copy if necessary and send the copy to the specialist dealer. Warranty / Guarantee Model designation: Delivery note no.: SN (view type plate) Date of delivery: Stamp of the specialist dealer: Inspection certifi cate for transfer Vehicle data: Serial-no.(SN): Stamp of specialist dealer:... - Page 44 Your specialist dealer: MEYRA-ORTOPEDIA Vertriebsgesellschaft mbH Meyra-Ring 2 · D-32689 Kalletal-Kalldorf P.O. Box 1 703 • D-32591 Vlotho Fon +49 (0)5733 922-311 Fax +49 (0)5733 922-9311 info@meyra-ortopedia.de www.meyra-ortopedia.de m o v e p e o p l e . 205 986 901 (Status: 2010-05) All technical modifi...
