Century Heating CW2500 Insert Owner's Manual

Us environmental protection agency phase ii certified wood inserts
Hide thumbs Also See for CW2500 Insert:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Operation & Installation Manual

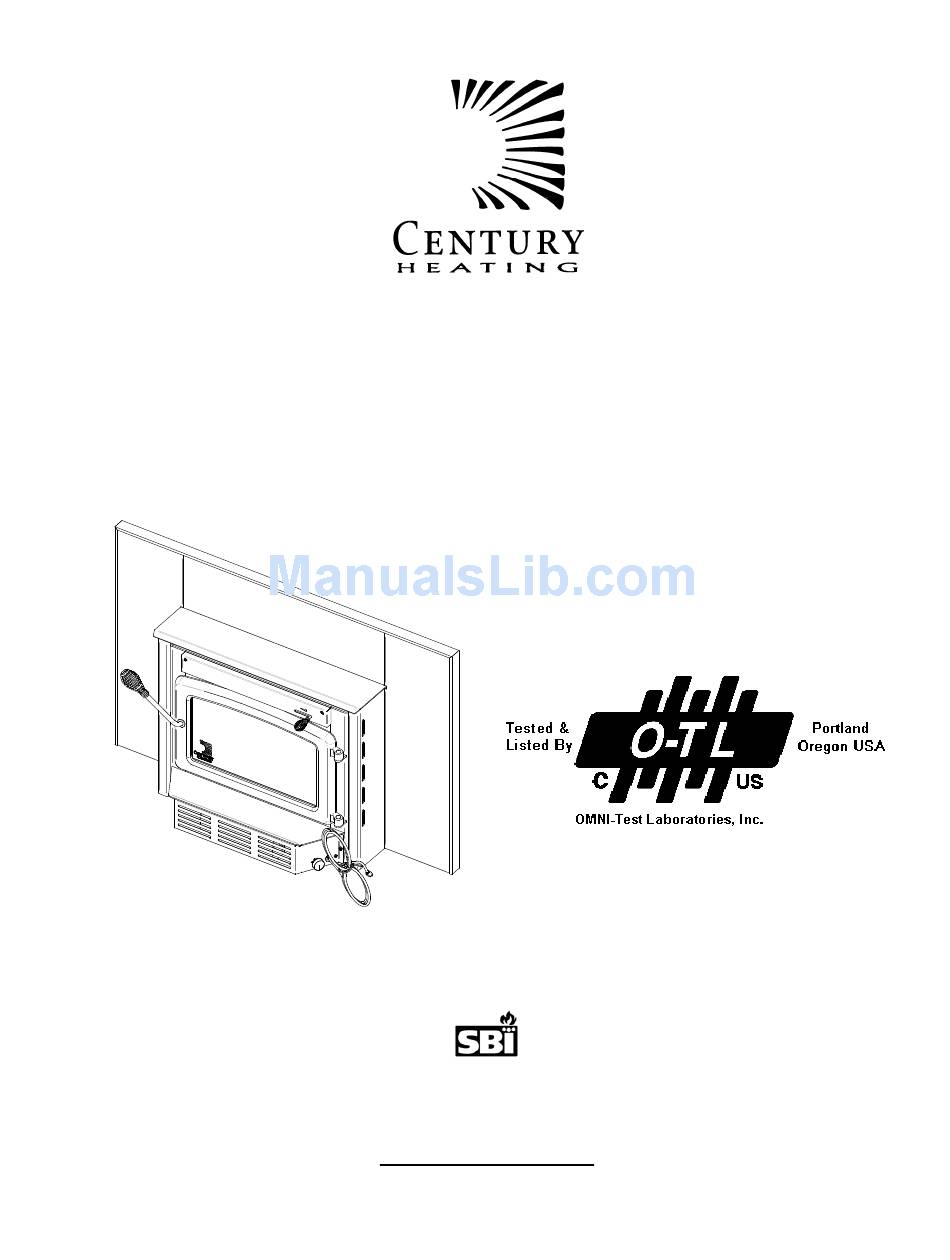

OWNER`S MANUAL

CW2500 Insert

US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED
WOOD INSERTS
Verified and tested following
ULC S628 and UL 1482 Standards
by:
Manufactured by : STOVE BUILDER INTERNATIONAL INC.
1700, Léon-Harmel, Québec (Québec) G1N 4R9
Tel : (418 ) 527-3060
Fax : (418 ) 527-4311
www.century-heating.com
READ AND KEEP THIS MANUAL FOR REFERENCE
45399A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CW2500 Insert and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Century Heating CW2500 Insert

Summary of Contents for Century Heating CW2500 Insert

  • Page 1: Cw2500 Insert

    OWNER`S MANUAL CW2500 Insert US ENVIRONMENTAL PROTECTION AGENCY PHASE II CERTIFIED WOOD INSERTS Verified and tested following ULC S628 and UL 1482 Standards Manufactured by : STOVE BUILDER INTERNATIONAL INC. 1700, Léon-Harmel, Québec (Québec) G1N 4R9 Tel : (418 ) 527-3060 Fax : (418 ) 527-4311 www.century-heating.com...

  • Page 2: Introduction

    Keep your sales invoice. We also recommend that you register your warranty online at www.century-heating.com Registering your warranty online will help us track rapidly the information we need on your insert.

  • Page 3: Table Of Contents

    4.2 Ash Removal ..............................17  4.3 Chimney Cleaning ............................17  Baffle Installation for CW2500 .........................18  4.5 Secondary Air Tube Replacement ......................20  4.6 Fan Maintenance & Care ..........................21  4.7 Removal instructions ...........................21  Section 5.0 Specifications ............................22  5.1 CW2500 Insert ............................22  CENTURY HEATING LIMITED WARRANTY ....................23 ...
  • Page 4 CW2500 Dimensions 27 13/16" 26 13/16" 13 7/16" 9 9/16" 12 13/16" 7 3/8" 10 5/8" 21 11/16" 21 11/16" Faceplate fully extended toward the front Faceplate fully extended toward the back...

  • Page 5: Section 1.0 Pre-Installation Requirements

    Section 1.0 Pre-Installation Requirements 1.1 Masonry & Zero Clearance Requirements The masonry fireplace must meet the minimum code requirements, or NFPA 211 or the equivalent for a safe installation. Contact your local Building Inspector for requirements in your area. An inspection of the fireplace should include the following: 1.

  • Page 6: Venting Requirements

    1.2 Venting Requirements The flue is a critical component to a satisfactory installation. Your Century insert will attain its best performance if installed with a chimney that generates its own draft. The minimum requirement of a flue will be the installation of a flue connector (the liner must conform to UL1777 chimney liners) from the insert into the first flue tile of the chimney (USA), see Figure 2.3 , or a continuous stainless steel...

  • Page 7: Section 2.0 Installation

    Section 2.0 Installation 2.1 Clearances To Combustibles (Measured From Insert Body) CW2500 Sidewall (A) 12” (305 mm) Top mantle (B) 10” (255 mm) Side mantle (C) 10” (255 mm) Combustible Shelf (D) 17” (430 mm) Table 2.1 CLEARANCES Figure 2.1 Note: If side mantle protrudes more than 1.5”...

  • Page 8: Hearth Requirements

    2.1.1 Hearth Requirements If the non-combustible hearth is flush with the floor, then the hearth must be 16”/406mm (18”/450mm in Canada) in front of the loading door (see Figure 2.1.2). If the non- combustible hearth is a minimum of 4” (102mm) above the floor, then the hearth can be 6” (152mm) out from the fan housing with a 10”...

  • Page 9: Safety Information

    Floor protection to the front is to be measured from the fuel loading door opening. 5. Century recommends that you install a listed smoke detector or alarm in your home. Normal operation of the insert will have no effect on the detector or alarm.

  • Page 10: Installation Instructions

    2.4 Installation Instructions 1. Inspect the fireplace according to the safety information and fireplace requirements and have it cleaned and/or upgraded as necessary. 2. If the installation of the unit renders the existing damper control inaccessible, it will be necessary to either secure the damper wide open or remove it entirely.

  • Page 11: Air Control Plate, Faceplate And Fan Assembly Instructions

    2.5 Air control plate, faceplate and fan Assembly Instructions 1. Place the faceplate panels with the finished side down on a flat, soft, non-abrasive surface. 2. Assemble the faceplate trim, attaching the mitered corners with the corner brackets. (see Figure 2.4) 3.

  • Page 12: Section 3.0 Operation

    Do not abuse the unit, either by over firing or by using wood or combustibles with salt content, or harmful chemicals. Misuse is not covered by warranty. Even though your Century insert has been specifically designed and tested to prevent smoke spillage, always open the door slowly as this will minimize the likelihood of smoke spillage or a back draft causing flame or smoke to spill into the room.

  • Page 13: Fuel

    3.2 Fuel Fuel for the insert must not be stored closer than the required clearances to combustibles and not in the space required for ash removal. Your Century insert is designed to burn . Do not burn coal, charcoal, or ORDWOOD trash in the unit.

  • Page 14: Simple Wood Moisture Test

    Decayed wood or low density wood has very little energy content or heating value, and will not burn satisfactorily for long periods of time. An example of the energy values of some common wood fuels is given in Table 3.1 For recommended wood sizes, refer to the specifications.
  • Page 15 Light a fire at the bottom of the crumpled paper and close the door. If the fire tends to go out, momentarily hold the door slightly ajar to fan the fire. As soon as the fire catches hold, close the door.

  • Page 16: Maintaining The Fire

    3.5 Maintaining The Fire Your Century insert will work best if a thick bed of hot embers is maintained in the bottom of the firebox, and a minimum of two large pieces of seasoned fuel are added. Combustion efficiency is largely related to establishing a hot ember bed, and hot firebox temperatures.

  • Page 17: Section 4.0 Maintenance

    Section 4.0 Maintenance 4.1 Care And Cleaning Clean the insert frequently so that soot, ash and creosote do not accumulate. Do not attempt to clean the insert, glass or door when the unit is hot. Special care must be taken with plated surfaces in order to maintain the finish at its original brilliance.

  • Page 18: Ash Removal

    Century dealer. Your Century insert has been designed to reduce the amount of creosote produced. Even so, the chimney connector pipe and chimney should be inspected at least once every two months during the heating season to determine if a creosote build-up has occurred.

  • Page 19: Baffle Installation For Cw2500

    Baffle Installation for CW2500 BAFFLE CENTRAL & REAR TUBE TUBE AVANT BRICK SUPPORT Figure 4.1 – Baffle installation & removal for CW2500...
  • Page 20 All firebrick and vermiculite baffles must be properly in place for correct burning operation. Have any damaged firebricks replaced. Check the firebricks annually for damage and replace if they are broken or damaged. See Figure 4.3 and 4.4 for the firebrick layout. Install the side & back firebricks first, and then the bottom firebricks.

  • Page 21: Secondary Air Tube Replacement

    4.5 Secondary Air Tube Replacement (see Figure 4.5) Remove cotter pin at RH end of tube. Slide tube to left and lower tube end below RH plenum. Slide tube to right to remove. Reassemble in reverse order using a new cotter pin. The cotter pin is a hammerlock style and locks into place by hitting the head sharply with a hammer.

  • Page 22: Fan Maintenance & Care

    4.6 Fan Maintenance & Care Clean the fan air inlet louvers and squirrel cage impeller regularly. The fan should be kept clean and dust free. Life of the fan will be shortened if operated in a dust filled environment, or if the fan is overheated by restricting air supply.

  • Page 23: Section 5.0 Specifications

    Section 5.0 Specifications 5.1 CW2500 Insert Fuel Type Cordwood Test Standards ULC S628 (CSA B366.2) & UL 1482 residential. Heat Output Max of 57800 BTU/hr. with EPA test wood BTU/Hr (63% default efficiency). Max of 65000 BTU/hr. with seasoned cordwood.

  • Page 24: Century Heating Limited Warranty

    Proof of purchase (dated bill of sale), model name and serial number must be supplied when making any warranty claim to your CENTURY dealer.
