CW2800
(CB00030 model)
11 5/8"
294mm
MAX
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS
IN THE AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD INSERT. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
Printed in Canada
READ AND KEEP THIS MANUAL FOR REFERENCE

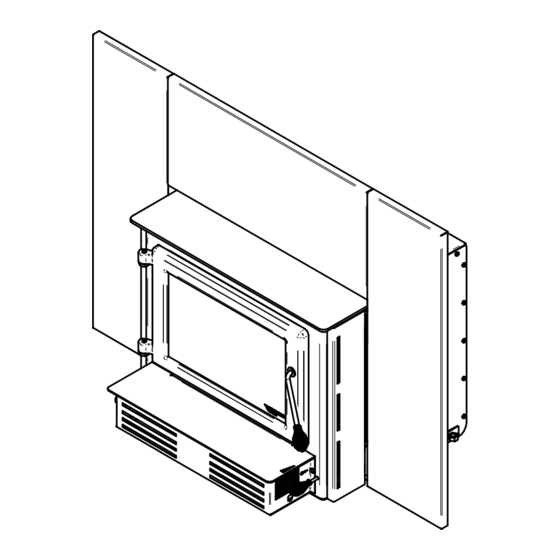

Wood Insert
Owner's Manual
Part 2 of 2
INSTALLATION AND
OPERATION REQUIREMENTS
Safety tested according to
CAN/ULC 628, UL 1482 and
UL 737 by an accredited
US Environmental Protection
Agency phase II certified
wood insert compliant with
2020 cord wood standard.
laboratory.
EPA
< ≤
2.5
g/h
46355_IA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Century Heating CW2800
Summary of Contents for Century Heating CW2800
- Page 1 Wood Insert Owner's Manual Part 2 of 2 INSTALLATION AND OPERATION REQUIREMENTS CW2800 (CB00030 model) Safety tested according to CAN/ULC 628, UL 1482 and UL 737 by an accredited laboratory. US Environmental Protection Agency phase II certified wood insert compliant with 2020 cord wood standard.
- Page 2 ONLINE WARRANTY REGISTRATION If the unit requires repairs during the warranty period, proof of purchase must be provided. The purchase invoice must be kept. The date indicated on it establishes the warranty period. If it can not be provided, the warranty period will be determined by the date of manufacture of the product. It is also highly recommended to register the warranty online at https://www.century-heating.com/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit.
-
Page 3: Table Of Contents
Optional Fresh Air Intake Kit Installation...............23 Optional Fire Screen Installation ..................24 Log Retainers Installation ...................26 Air Tubes and Baffle Installation ..................27 Removal Instructions ....................30 Exploded Diagram and Parts List ................31 CENTURY LIMITED LIFETIME WARRANTY ................34 Product Specification Manual - CW2800 Page 3... -
Page 4: Certification Plate
1. CERTIFICATION PLATE Page 4 Product Specification Manual - CW2800... -
Page 5: General Information
This appliance is officially tested and certified by an independent agency. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and ASTM E3053-17. Based on EPA letter dated November 1, 2022. Carbon monoxide. Product Specification Manual - CW2800 Page 5... -
Page 6: Specifications
CAN/CSAZ240 MH standard. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and ASTM E3053-17. Based on EPA letter dated November 1, 2022. Page 6 Product Specification Manual - CW2800... -
Page 7: Dimensions
© 2023, FABRICANT DE POÊLES INTERNATIONAL INC. TOUS DROITS RESERVÉS 6 5/8" 24 1/4" 169mm 16 1/2" 616mm 419mm 17 5/8" 446mm 22 1/4" 565mm Figure 3 : Front View Figure 4 : Side View - Maximum Insert Projection Product Specification Manual - CW2800 Page 7... - Page 8 2023, FABRICANT DE POÊLES INTERNATIONAL INC. TOUS DROITS R 11 7/8" 303mm 19 5/8" 498mm 13 1/2" 343mm Figure 6 : Front View - Combustion Chamber Figure 7 : Side View - Combustion Chamber Page 8 Product Specification Manual - CW2800...
-
Page 9: Epa Loading Procedure
The front (3rd) piece should stand off on the steel andirons by approximately 1-2 inches. The 2 other pieces should be added on top of the first Product Specification Manual - CW2800 Page 9... - Page 10 4 inches cross section dimensions approximately) on top. To make sure combustion is equal, put the smallest piece on top of the first three, at the back of the firebox (see Figure 16 for an example of low burn load). Page 10 Product Specification Manual - CW2800...
- Page 11 For optimal medium fire load, use medium to large size fuel pieces (between 4- and 5.5-inches cross section dimensions approximately) on the bottom and use small to medium size fuel pieces (2.5 to 4 inches cross section dimensions approximately) on top. To make sure combustion is Product Specification Manual - CW2800 Page 11...
- Page 12 4 and 15 minutes after the loading period. Before closing further, make sure the flame intensity is increasing or stable. Turn ON the blower at maximum speed. Page 12 Product Specification Manual - CW2800...
-
Page 13: Clearances To Combustible Material
27 ½" (700 mm) 12 ¾" (324 mm) If a fresh air intake is required, it is recommended to add at least 4" to the width of the minimum opening of the hearth. Product Specification Manual - CW2800 Page 13... -
Page 14: Floor Protection
(406 mm USA) and at least 18" (457 mm Canada) without an R value. If the hearth elevation is lower than 5" (127 mm), the non-combustible (B) floor protection in front of the insert should have an R value equal or greater than 1.00 and shall extend 23" (584 mm) in front of the unit. Page 14 Product Specification Manual - CW2800... -
Page 15: R Value
1.95 0.51 Hardibacker® 500 0.44 Wonderboard® 3.23 0.31 Cement mortar 5.00 Common brick 5.00 Face brick 9.00 0.11 Marble 14.3 – 20.00 0.07 – 0.05 Information as reported by manufacturers and other resources. Product Specification Manual - CW2800 Page 15... - Page 16 K value = 0.75 Thickness = 1 R value = Thickness/K = 1/0.75 = 1.33 Horizontal still air can’t be «stack» to accumulate R-values; each layer must be separated with another non-combustible material. Page 16 Product Specification Manual - CW2800...
-
Page 17: Installing Options On Your Product And Replacing Parts
Leave about ½″ (10 mm) long of the gasket when cutting and press the end into the groove. Tuck any loose fibers under the gasket and into the silicone. Close the door. Do not use the insert for 24 hours. Product Specification Manual - CW2800 Page 17... - Page 18 Using a flat screwdriver, turn the adjustable hinge rods in the direction shown to adjust the doors. Tighten all door hinge pressure screws when they are at the desired positions. Configurations 1-2-3-4-5-6, show in which direction these act on the adjustment of the door. Page 18 Product Specification Manual - CW2800...
- Page 19 Cut the gasket to the required length. Pinch the gasket onto the glass in a U shape, all around the glass. By following these instructions, the edge clearances are maintain. Product Specification Manual - CW2800 Page 19...
-
Page 20: Blower And Ash Lip Installation
Screw the fan onto the insert under the and install the ash lip by screwing it in ash shelf. The screws are included in the place with 3 screws, located in the user manual kit. manual kit Page 20 Product Specification Manual - CW2800... -
Page 21: Faceplate Installation
Lay the panels on a flat and non abrasive surface. Align the top panel holes (A) with the left and right panels (B). Secure together using the bolts (D) and nuts (C) provided. Product Specification Manual - CW2800 Page 21... - Page 22 (P). Then push towards the fireplace. Once the faceplate is in place, secure the assembly by tightening nuts (P) using a 7/16" (11 mm) open end wrench. Page 22 Product Specification Manual - CW2800...
-
Page 23: Optional Fresh Air Intake Kit Installation
(J) using the other pipe clamp. The outside wall termination must be installed outside of the home. he pipe must be HVAC type, insulated, and must comply with ULC S110 and/or UL 181, Class 0 or Class 1. Product Specification Manual - CW2800 Page 23... -
Page 24: Optional Fire Screen Installation
In the United States or in provinces with a particulate emissions limit (e.g.: US EPA), the use of open- door wood stoves with a rigid firescreen is prohibited. Open the door. Hold the fire screen by the two handles and bring it close to the door opening. Page 24 Product Specification Manual - CW2800... - Page 25 Lift the fire screen upwards and push the bottom part towards the insert then let the fire screen rest on the bottom of the door opening. Warning: Never leave the insert unattended while in use with the fire screen. Product Specification Manual - CW2800 Page 25...
-
Page 26: Log Retainers Installation
Log Retainers Installation Page 26 Product Specification Manual - CW2800... -
Page 27: Air Tubes And Baffle Installation
« Vise grip » hold the tube and lock it in place by turning the tube as shown. Make sure the notch reaches the end of the key way. Install the baffle. Repeat steps 1 and 2 for the three other tubes. To remove the tubes use the above steps in reverse order. Product Specification Manual - CW2800 Page 27... - Page 28 Note that secondary air tubes (A) can be replaced without removing the baffle board (B) and that all tubes are not necessarely identical (look at the part number on the tube). Page 28 Product Specification Manual - CW2800...
- Page 29 Product Specification Manual - CW2800 Page 29...
-
Page 30: Removal Instructions
Remove faceplate (C) by pulling on it. Remove the blower assembly (D). Remove the three screws securing the pipe connector (A). 5. Unscrew the bolts securing the insert to the floor on each side of the unit (E). Page 30 Product Specification Manual - CW2800... -
Page 31: Exploded Diagram And Parts List
Exploded Diagram and Parts List DETAIL C DETAIL A DETAIL B Product Specification Manual - CW2800 Page 31... - Page 32 SECONDARY AIR TUBE PL75747 1.7 SERIES SECONDARY AIR TUBE 21586 18 7/8'' X 9 1/2'' X 1 1/4'' VERMICULITE BAFFLE PL75751 FACEPLATE 32 X 44 TOP PANEL PL75750 FACEPLATE 32 X 44 SIDE PANEL Page 32 Product Specification Manual - CW2800...
- Page 33 POWER CORD 96" X 18-3 type SJT (50 pcs per carton) 44080 RHEOSTAT WITHOUT NUT (MODEL KBMS-13BV) 44087 RHEOSTAT NUT 44085 RHEOSTAT KNOB AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL SE46355 CB00030 INSTRUCTION MANUAL KIT Product Specification Manual - CW2800 Page 33...
-
Page 34: Century Limited Lifetime Warranty
Before shipping your unit or defective component to our plant, you must obtain an Authorization Number from your CENTURY. Any merchandise shipped to our plant without authorization will be refused automatically and returned to sender. Page 34 Product Specification Manual - CW2800... - Page 36 This document is available for free download on the Stove Builder International inc. manufacturer’s website. It is a copyrighted document. 250, rue de Copenhague, Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 1-877-356-6663...
