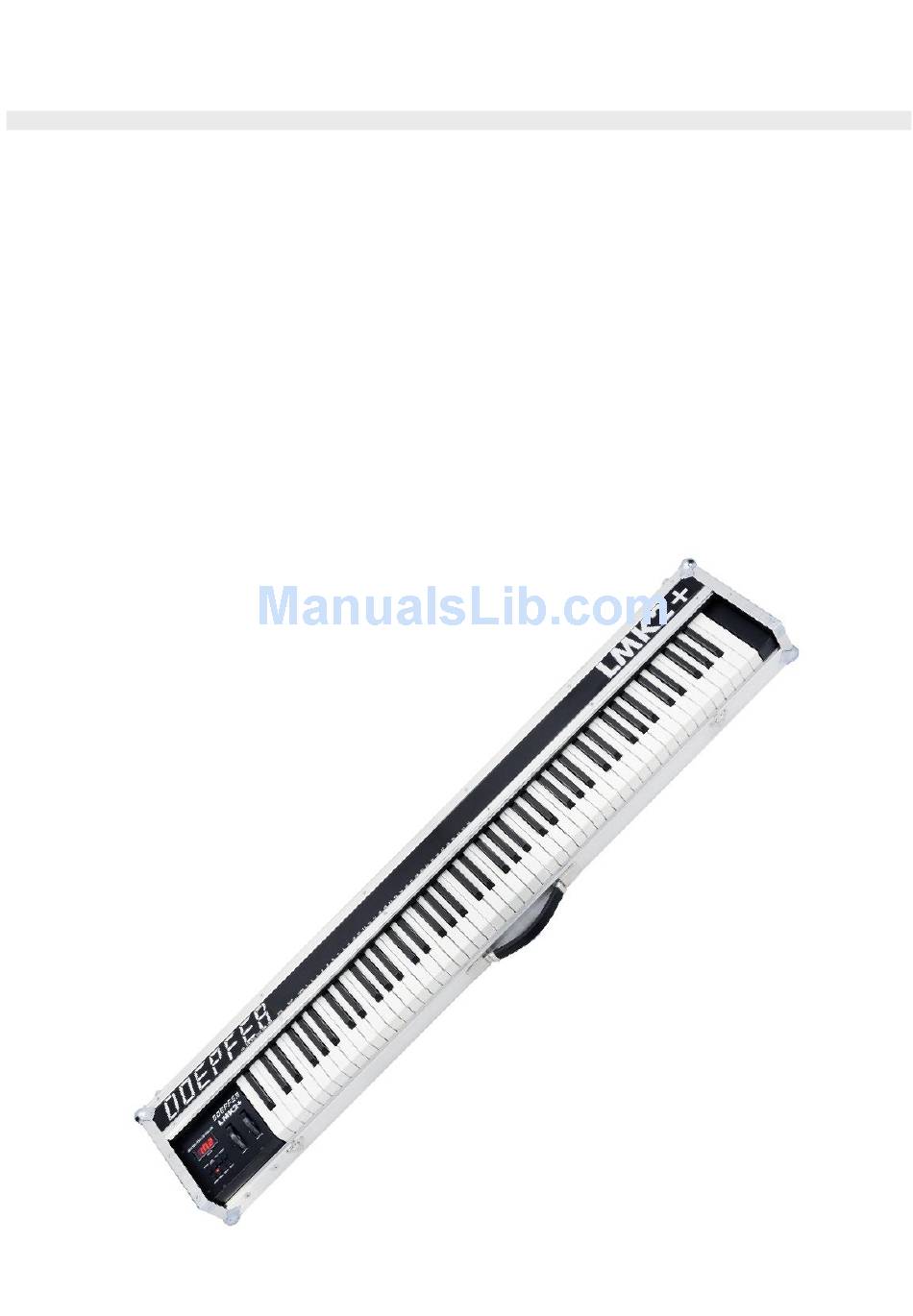

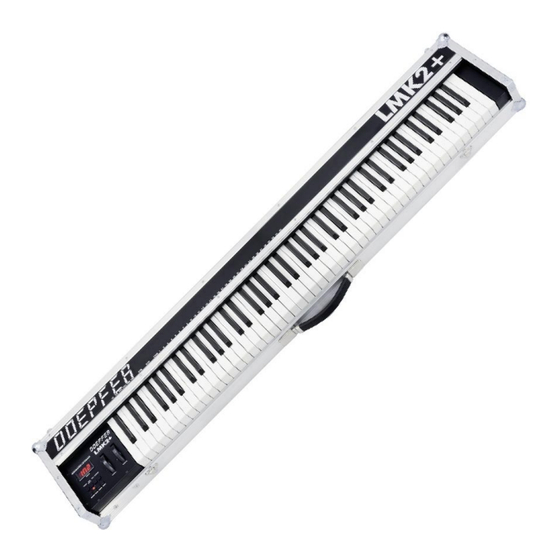

- Page 1 DOEPFER Midi Master Keyboard LMK2+ LMK2+ LMK2+ LMK2+ User's Guide USB-Version...
-
Page 2: Table Of Contents
LMK2+/USB User's Guide INDEX Power Supply Midi Connection USB Connection Connection of External Pedal and Foot Controller Controls OPERATING AND SECURITY INSTRUCTIONS Operation of the Keyboard Switching the Keyboard ON Menu Structure Description of Menus 7.3.1 PRESET 7.3.2 PROGRAM CHANGE/BANK/REALTIME 7.3.3 SPLIT 7.3.4 CHANNEL 7.3.5 TRANSPOSE... -
Page 3: Power Supply
#64) and SOSTENUTO pedal function (Midi controller #66). If a single foot switch is used only the SUSTAIN function is available. A suitable foot switch is the DOEPFER VFP2. If a foot controller is connected to the Foot Control jack it has volume function (Midi controller #7). A suitable foot controller is the DOEPFER FP5. -
Page 4: Controls
5. CONTROLS The LMK2+ features the following controls and displays: • 3-digit LED display • 8 MENU-buttons in 2 rows of 4 buttons each • 8 LEDs (serving as indicators for the MENU-buttons) • 1 Wheel without spring (assignable to any Midi Controller #1..31) •... -
Page 5: Operation Of The Keyboard
7. OPERATION OF THE KEYBOARD 7.1 SWITCHING THE KEYBOARD ON When the keyboard is switched ON – i.e. if the external power supply is connected or a USB connection is established – a message regarding the software version will appear for several seconds on the display (for example "201"... -
Page 6: Description Of Menus
7 CONTROLLER In this menu the on/off status of each wheel, the after touch sensor, the external foot switches and the external foot controller is determined for each keyboard zone, as well as the controller number (#1...31) for the first wheel (the not spring loaded type). - Page 7 7.3.1 PRESET (1) Leftmost button in the upper row The PRESET-menu serves to call up the user preset (1) or one of the 16 factory presets (2-17). Each preset contains all data about the 4 keyboard zones, i.e. the corresponding keyboard ranges, Midi-channels, transpositions, allocation and activation of the controllers and the velocity-response curves.
-
Page 8: Split
Sending a realtime instruction The upper three white keys of the lowest octave are assigned to the real time instructions START (G), STOP (A), and CONTINUE (H). If one of these three keys is pressed while beeing in menu 2 the corresponding realtime instruction is sent. - Page 9 7.3.7 CONTROLLER (7) Third button in the lower row This menu serves to activate or deactivate the wheels, the after touch, the external footswitches and the external foot controller in the 4 keyboard zones. Additionaly the controller number for the wheel without spring is determined in this menu.
- Page 10 Appendix A: Information about the velocity-response curves When defining the parameters of the keyboard zones, one can select among 8 velocity-response curves. In the following paragraph the reasons for this feature shall be discussed briefly. The special Midi-chip used inside the LMK2+ to poll the key-contacts uses the time difference required by the switch-contact to derive the velocity response (or dynamics-value).
-
Page 11: Foot Switch
Appendix B: Pin Assignment of the Jack Sockets Power Supply 1 = +7...12V DC 2 = GND "high" "low" Foot Control 2...10k linear Foot Switch Foot Switch 2 (Sostenuto) Foot Switch 1 (Sustain) LMK2+/USB User's Guide Page 11... - Page 12 Appendix C : Velocity-Response Reduction Factor for the Black Keys Because of the shorter leverage the black keys have a slightly higher velocity response than the white keys with pressure being equal. The LMK2+ enables to reduce the velocity values of the black keys in comparison to the white keys.
