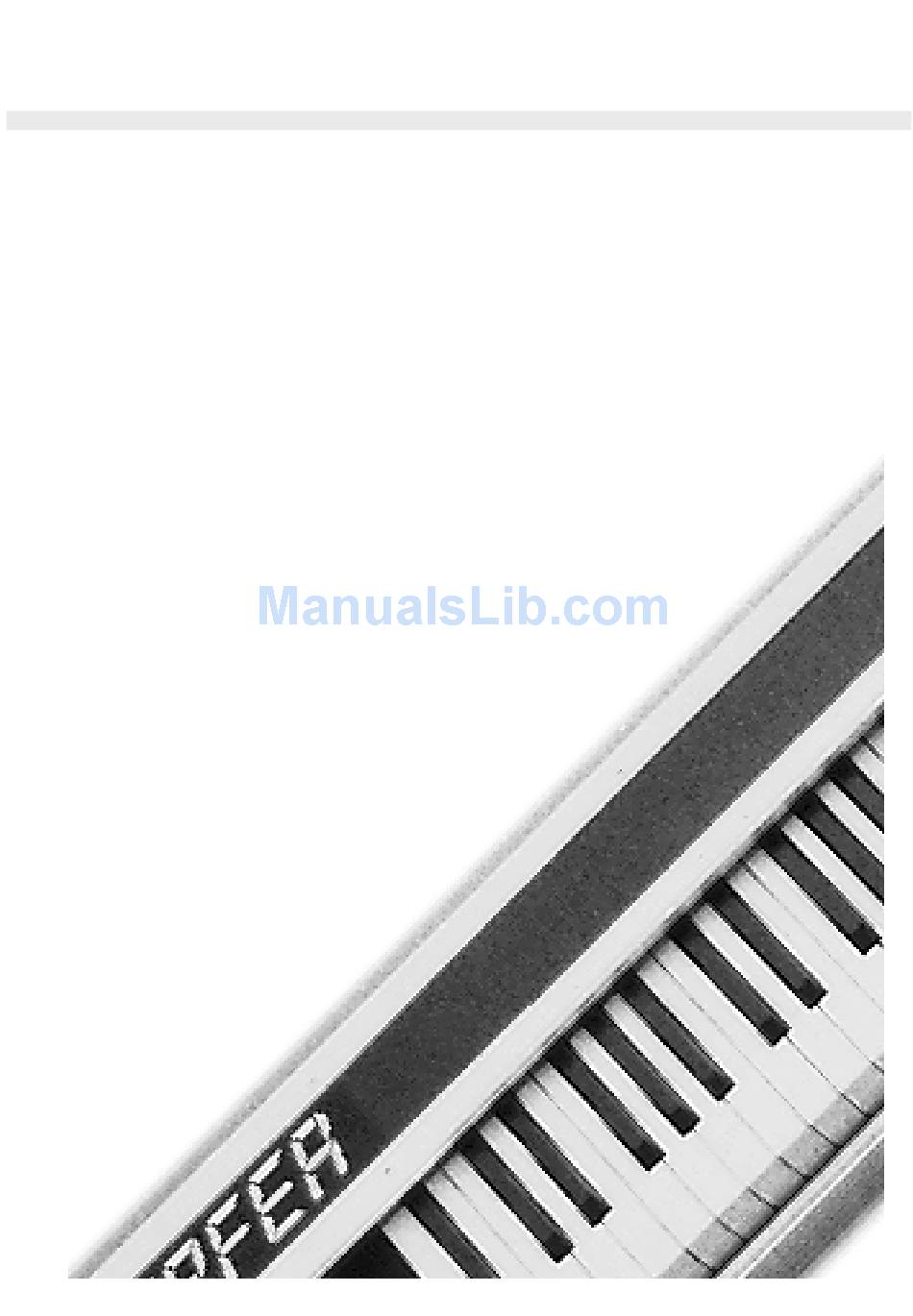

- Page 1 DOEPFER MIDI Master Keyboard LMK1+ User's Guide...
- Page 2 (MIDI controller #66). If a single foot switch is used only the SUSTAIN function is available. A suitable double foot switch is the DOEPFER VFP2. If a foot controller is connected to the VOLUME jack it has volume function (MIDI controller #7). A suitable foot controller is the DOEPFER FP5.
- Page 3 LMK1 transmits all MIDI messages on MIDI channel 1: • note on/off (with velocity) • modulation wheel (controller #1) • pitch bend • monophonic after touch • volume (controller #7) • sustain (controller #64) • sostenuto (controller #66) if the foot controllers in question are connected. If desired another MIDI channel can be adjusted by authorized service personal (additional price).
- Page 4 APPENDIX: Pin Assignment of the Jack Sockets Power Supply 1 = +7...12V DC 2 = GND "high" "low" Foot Controller ("Volume") 2...10k linear Foot Controller ("Sustain") Foot Switch 2 (Sostenuto) Foot Switch 1 (Sustain) LMK1+ User's Guide Page 4...
