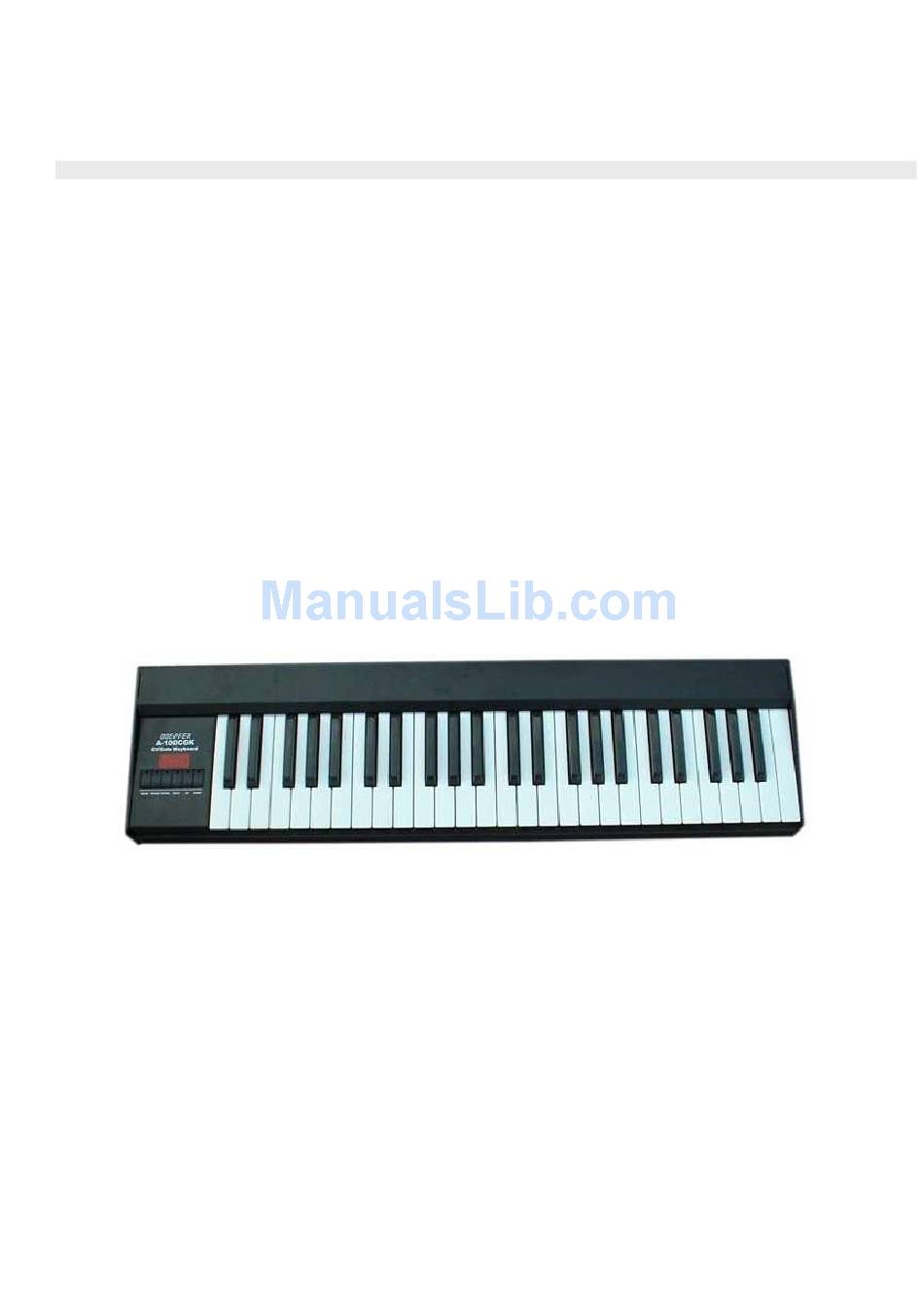

- Page 1 DOEPFER CV/Gate-Keyboard CV/Gate-Keyboard CV/Gate-Keyboard CV/Gate-Keyboard A-100CGK A-100CGK A-100CGK A-100CGK User’s Guide www.doepfer.com...
-
Page 2: Operating And Safety Instructions
OPERATING AND SAFETY INSTRUCTIONS Please follow the given instructions for use of the instrument because this will guarantee correct instrument operation. Due to the fact that these instructions touch on Product Liability, it is absolutely imperative that they be read carefully. Any claim for defect will be rejected if one or more of the items was observed. - Page 3 1V/octave standard. In addition the A-100CGK has a Midi output. The A-100CGK is a available as a ready built device with black metal case and a four octave keyboard or as an OEM module. The OEM module contains only the electronics kit and can be combined with any Fatar keybed with 2, 3, 4 or 5 octaves (e.g.
- Page 4 A-100CGK. In other countries the power supply has to be purchased by the user in his country. If there is a Doepfer representative in your country (see dealer link on our website) please ask the representative if the power supply is included in your country.
-
Page 5: Midi Out
DC voltage connector is: outside ring = GND, inside lead = +7...12V. An external power supply of high quality and safety should be used. The A-100CGK is switched ON by plugging the AC adapter into a wall outlet and connecting it to the appropriate jack of the A-100CGK. There is no separate ON/OFF switch. - Page 6 100CGK and an A-100 system with one cable only by means of the planned A- 100CGK adapter module. The connector carries the signals Gate, CV1, CV2, CV3 and midi out. In addition the A-100CGK is powered by the power supply of the A-100 system if the adapter board is used. The power supply connector is then no longer used.
- Page 7 This 3,5 mm jack socket is the control voltage output of the A-100CGK that is controlled by the velocity of the key pressed on the keyboard. The voltage range is 0...+5V. There are no fixed rules how to connect this socket to CV inputs of A-100 modules.
-
Page 8: Operation
Operation A-100CGK is switched on by plugging the AC adapter into a wall outlet and connecting it to the appropriate power supply socket . There is no separate ON/OFF switch. After power on the six LEDs will light up for a short time and the display shows the software version (e.g. - Page 9 0, 1, 2, 3 to 12 (+ 1, 2, 3, …12 semitones) • Remark: For the OEM versions of the A-100CGK the transposition ranges are different according to the keyboard type: 2 octaves keyboard: 0 to 36 •...
- Page 10 Configuration Mode: Adjustment of basic parameters Remark: If you have ordered the A-100CGK with metal case and 4 octaves keyboard, and want to use it in combination with the A-100 system it is not necessary to call up the configuration mode as the factory settings are chosen exactly for this application –...
-
Page 11: Extent Of Delivery
• This A-100CGK user's guide 2. OEM version • A-100CGK electronic kit (two pc boards with ribbon cable to connect the boards) • Power Supply (230V mains voltage, European type mains plug, output voltage range 7...12V, current min. 100 mA) included only for shipments within Germany, for shipments outside Germany please contact your local representative or dealer •... - Page 12 Doepfer Musikelektronik www.doepfer.com © 2008 by Doepfer Musikelektronik GmbH Geigerstr. 13 82166 Graefelfing Germany Phone: #49 89 89809510 Fax: #49 89 89809511 Web Site: www.doepfer.de Email: sales@doepfer.de...
