Slugger
Slugger Portable Magnetic Drilling Machine
OPERATOR'S MANUAL
before use
EYE PROTECTION
REQUIRED
Serial #
Magforce
™
With Smart Magnet™ Circuitry
WARNING!
,
be sure everyone using this machine reads and understands
all safety and operating instructions in this manual
HEARING PROTECTION
NEVER PLACE
REQUIRED
FINGERS NEAR
CUTTING AREA OR
MACHINE ARBOR
MOdEL #06920
.
LINE VOLTAGE
BEWARE OF
PRESENT
ROTATING
MACHINE PARTS
Date of Purchase
™
ALPHA INDUSTRIAL TOOL &
EQUIPMENT
51 Tamarack Drive
Thornhill, Ont
L3T 4 W2
Canada
PH. 905-731-1310
FAX 905-731-1044
Advertisement
Table of Contents
Related Manuals for Slugger Magforce 06920
Summary of Contents for Slugger Magforce 06920

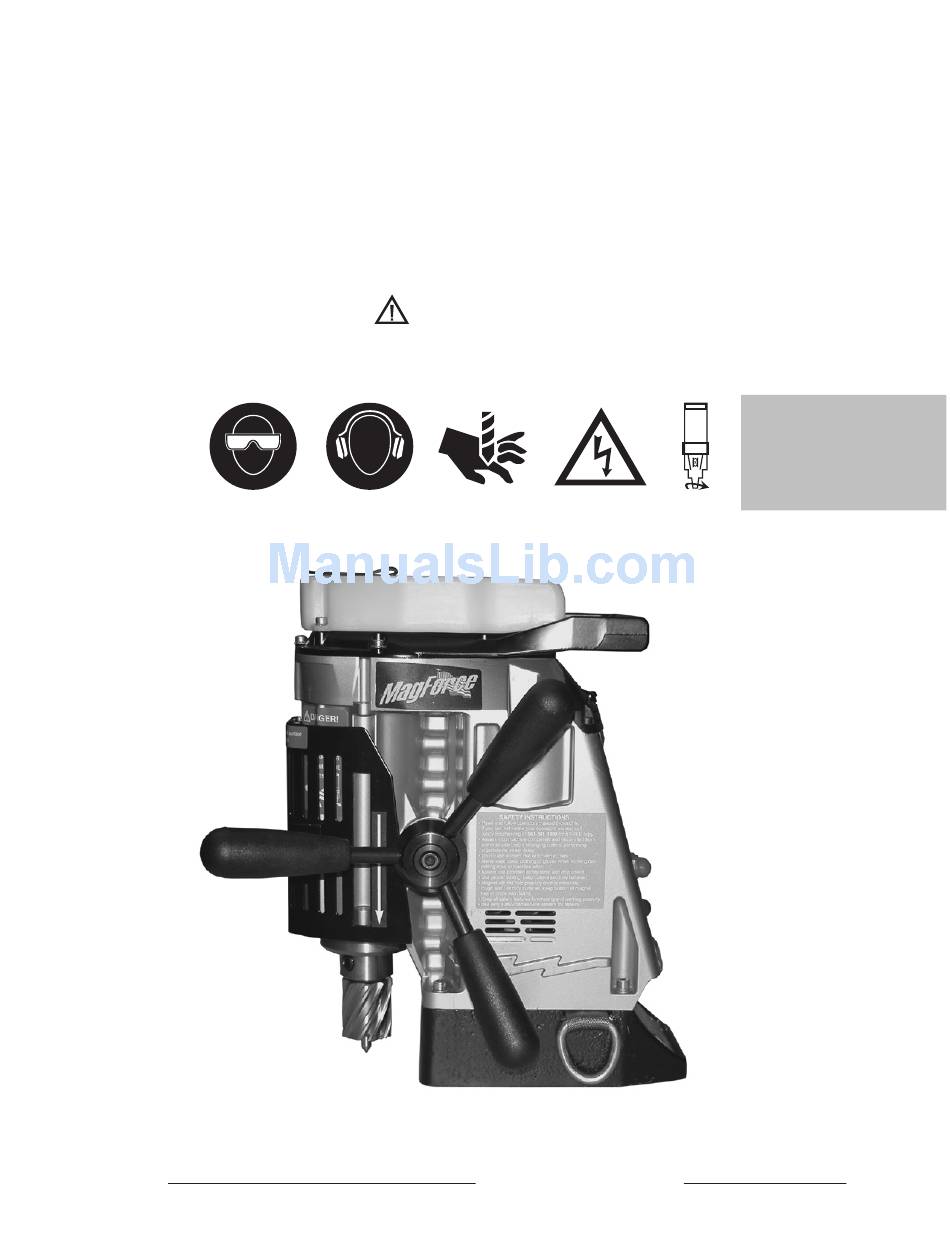

- Page 1 Slugger Magforce ™ ™ With Smart Magnet™ Circuitry Slugger Portable Magnetic Drilling Machine OPERATOR’S MANUAL WARNING! before use be sure everyone using this machine reads and understands all safety and operating instructions in this manual ALPHA INDUSTRIAL TOOL & EQUIPMENT...
-
