Aquasound ASV1743 N Operation Manual

Wireless waterproof lcd tv
Hide thumbs

Advertisement

Quick Links

Download this manual
Enlarged version

Operation Manual

Wireless Waterproof LCD TV
ASV1743 N
O
ASV1743 B
O
ASV1743 BD (DVB-T)
O
O
ASV1743 IN
O
ASV1743 IB
O
ASV1743 ID (DVB-T)

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASV1743 N and is the answer not in the manual?

Questions and answers

Related Manuals for Aquasound ASV1743 N

Summary of Contents for Aquasound ASV1743 N

  • Page 1: Operation Manual

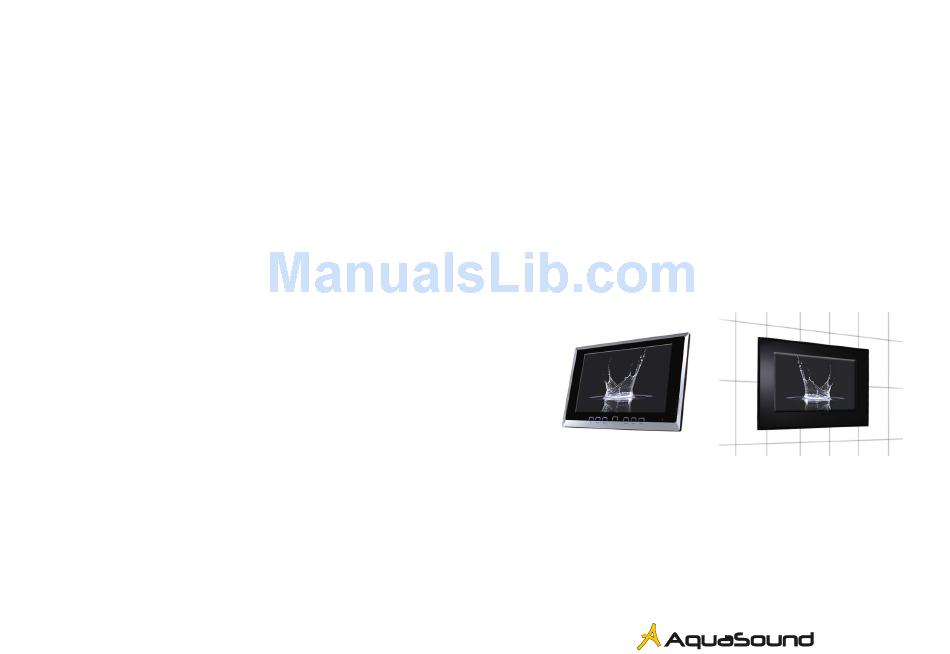

    Operation Manual Wireless Waterproof LCD TV ASV1743 N ASV1743 IN ASV1743 B ASV1743 IB ASV1743 BD (DVB-T) ASV1743 ID (DVB-T)
  • Page 2 Specification Safety Guide III. List of Package and Installation Connections Remote Controller Keys Operation Instruction Teletext Operation (ASV1743B/BD/IB/ID only) VIII DVB-T Operation (ASV1743BD/ID only) Troubleshooting And Advice AquaSound www.aquasound.nl De Run 6720 info@aquasound.nl 5504 DV Veldhoven tel. 040-2534205 fax 040-2541645...

  • Page 3: Specification

    Specification Model ÀSV1743 N/B/BD ASV1743IN/IB/ID 17 Inch Screen size Aspect ratio 16:9 ≥385cd/ m² Screen brightness Contrast ratio: 400:1 1440*900 Pixel H x V: Response time: 3W*2 frequency range 400~20KHz Speaker (built-in) Waterproof grade: IPX6 Power consumption DC12V/3A/36W Dimension: (mm) 500mm*355mm*72mm 367.3mm(H)*229.6mm(V) Visiua/window: (mm)

  • Page 4: Safety Guide

    II. Safety Guide General Cautions: Read manual carefully before using the product, and follow instructions of the manual. Stop using the product when cases of following occur: Smoking, burning smell, no image, no sound, damage of outer housing, liquor or objects entering into product, or other irregular condition that might cause fire or electronic shock.
  • Page 6 III. List of Package and Installation: ASV 1743N/B/BD: PO W ER TV/ AV SLEEP M UTE DI SPLAY TEXT SO UND PI CTURE NI CAM I NCRED . M ODE D. O K D. M UNE M UNE SUBPAGE RECALL D.
  • Page 7 ASV1743IN/IB/ID: TV Set (+backbox) Power adaptor for TV TV/ AV SLEEP M UTE PO W ER PI CTURE DI SPLAY TEXT SO UND NI CAM I NCRED . M O D E D. O K D. M UNE M UNE SUBPAGE RECALL D.
  • Page 8 Speaker Speaker Cap G asket R ack M ount N U T H angi ng R od B ack B oard Flush type parts S- plug to VGA plugs...
  • Page 9 Installation: (ASV1743N/B/BD) Generally the TVs are wall-mounted by a pallet which complies with VESA 100x100 standard. Wall Mount Installation Instruction 1.Specification 1-1.Outlook Specification 1-2.Technical Specification TV type Product installation Load weight (inch) (mm) (mm) (kg) (kg) 12”~23” 230*149*15 100*100 1-3.Main Fuction parts material:...
  • Page 10 A. Main parts: Sheetmetal SPCC Fixed wall plate B. Coating: a. Color as per real object b. Peel off: 2H c. Salt Water spray 6H-8H 2. Installation Instruction: 2-1.Accessonies: 2-2. Installation steps Installation are made only to interface of suitable hardness 1.
  • Page 11 4. Put the locked TV on the fixed plate on the installation surface. Note: This step need 2 people to finish. 1.Check to see all fixing parts are screwed tight before use!

  • Page 12: Installation Steps

    Installation: (ASV1743IN/IB/ID) .Outlook Specification 1 NUT 2 Gasket 3 Rack Mount 4 Log Screw 5 Hanging Rod 6 Expanding Rubber Staff 7 Cross Sunk Screw 8 BackBox 9Hook Groove G asket R ack M ount Expandi ng rubber staff Log screw N U T H angi ng Sti ck Back Board...
  • Page 13 1 Drill holes of the right size. 2 Fill in the rubber. 3 Put Embed box into the recess hold. 4 Fix 3.5x30KM Stainless screw to fix the BackBox. 5 Lift the TV carefully to put the rod into the hook groove to be stuck. I nst al l at i on sur f ace Not e: m easur e t he posi t i on bef or e Embed Size...
  • Page 14 IV. Connections ASV1743N/B/BD VGA input HD input Right audio input AUDIO Left audio input VIDEO Video input CATV POWER Power adaptor DC IN 12V Side Function Interfaces VGA PO RT Di se Pl ay TV HD PO RT YPbPr GND PR Coaxi al Cent r al Vi deo...
  • Page 15 VGA PO RT Di se Pl ay TV HD PO RT YPbPr GND SCART Por t Coaxi al Vi deo AUDIO Cabl e VIDEO S O ut YPbPr O ut POWER DC IN 12V SCARTLi ne SCART Connection Chart ASV1743IN/IB/ID Connections VGA input YPbPr&Audio output YPbPr input &Audio output L.R...
  • Page 16 VGA PO RT Speaker(R) AUDIO R Speaker(L) AUDIO L YPbPr&Audio output Di se Pl ay TV HD PO RT YPbPr GND AUDIO SCART Por t S R Cent r al Coaxi al Vi deo VIDEO Cabl e Bass LR GND S O ut 5.
  • Page 17 V Remote Controller Keys (ASV1743B/BD and ASV1743IB/ID only) TV/ AV SLEEP M UTE PO W ER PI CTURE SO UND DI SPLAY TEXT NI CAM I NCRED . M O DE D. O K D. M UNE M UNE SUBPAGE RECALL D.
  • Page 18 5.1 Remote control instructions in TV mode MUTE: Press to mute the sound. Press again or press VOL+ to unmated. POWER: Switch on LCD TV when at standby mode or vice versa. PICTURE: Press repeatedly to cycle through the available video picture modes: Personal–Movie–Sport–Weak signal-Game SOUND: Press to cycle through the different sound settings: PERSONAL -VOICE-...
  • Page 19 INFO: Shows information about the current channel EPG: Launches the EPG (Electronic Program Guide) LANGUAGE: Shows the list of audio languages available for the current channel EXIT: Exists from the menu or sub-menu and cancels the function in progress (if applicable) D.MENU: Shows the menu or sub-menu and cancels the function in progress (if applicable) THUMB STICK (▲/ ▼): When watching a channel, changes the channel, or moves to...
  • Page 20 VI Operation Instruction Panel Keys (ASV1743N/B/BD only) 1 Channel down 2 Channel up 3 TV/AV/DVB/PC/HD Switch 4 DC power ON/OFF 5 Main menu 6 Sound down 7 Sound up ON/OFF Key: press this button “ ” to turn on or off TV. “...

  • Page 21: Enter Sound Menu

    6.1 Enter sound menu 1. Press MENU key to open the main menu, or press color buttons A (RED). 2. Press ◄ / ► to select: 3. Press ▼ enter setting sound menu, the outline border turns red. 4. Press ▲/ ▼ to select option in the sound menu 5.
  • Page 22 1. Press MENU key to open the main menu, or press color buttons B (GREEN) 2. Press ◄/► to select: 3. Press ▼ enter setting picture menu, the outline border turns green. 4. Then press ▲/ ▼ to select options in the picture menu 5.
  • Page 23 Move Delete 6.4 Enter Setting menu 1. Press MENU key to open the main menu, 2. Press ◄/► to select: 3. Press ▼to enter the setting menu. 4. Then press ▲/ ▼ to select option in the setting menu 5. After setting, press MENU to quit. Or wait for few seconds it will be quit automatically. S h o w i n d i c a t o r L a n g u a g e E n g l i s h...
  • Page 24 Lock Lock code 0000 At first select Lock, press ◄/► to turn on the child lock. Second select Lock code, press No. key to set code. As long as the lock is on (see Lock in channel setting menu), you cannot enter move channel menu and setting menu until the lock is off again.
  • Page 25 The timer will be activated and the TV will switch to the program automatically after the predetermined period of time 6. Teletext lang. Each time you press ◄/►, the teletext language changes as follows: Pan European Cyrillic Greek 7. Teletext E/W Press ◄/►...
  • Page 26 Press ◄/► to select color system Remark: Auto NTSC-443 PAL-443 SECAM SECAM L/L 4. Sound system Press ◄/► to select sound system Remark: Auto 5. Auto store Press ◄/► to start auto search, all working channels will be saved automatically. After the search, it will display the first searched program.
  • Page 27 VII TELETEXT OPERATION (ASV 1743B/BD and ASV1743IB/ID only) Display teletext. 1. Select a TV station with a teletext signal. 2. Press the TEXT button to enter teletext signal. 3. Press the TEXT button again to return or exit to the normal TV mode. Page selection 1.

  • Page 28: Program Information

    VIII DVB-T OPERATION (ASV 1743BD and ASV1743ID only) 8.1 Program information At the end of the first installation or after the validation of a service in the service selector, the TV set turns into viewing mode. This mode is also called “TV/radio mode” according to the selected channel (TV or Radio).
  • Page 29 channel locked / audio language / scrambled / DVB-Subtitle presence). Only information about the present and the following events of the current service are available (8).By default, the present event is displayed. The following event is displayed by pressing the THUMB STICK (▲/ ▼)buttons (toggle between present and following events).
  • Page 30 Note : (HH) is the indication for Hard of Hearing (for hearing impaired people). 8.6 Electronic Program Guide (EPG) By pressing the EPG button while in viewing mode, a screen appears on which are Displayed the events of the current channel. The first day of the schedule events is the current day, and you can consult the events over seven days.
  • Page 31 8.9 Channel selector The Channel selector is activated by a press on the D.OK button while in viewing mode. This screen presents the channels of the current default/favorite lists. When selecting a channel of this list with the D.OK button, the DTV changes the video background accordingly. When you press the D.OK button on the selected service, the TV Set switches to viewing mode and changes the selected channel accordingly.
  • Page 32 From this menu, a few main categories of settings are available (management of TV and Radio favorites lists, different settings about the configuration of the DTV, installation of the antenna and channels, a few settings for user convenience and information about the model and version of the TV Set).
  • Page 33 This type of list setting is done with the second item of the list (Channels), and the third is used to select the encoding mode (available values are All, Scrambled or Free-To-Air). Once you have validated these parameters, the favorite list modification screen is automatically displayed (see description below).
  • Page 34 Default TV/Radio lists On these lists, only the “Lock/unlock” option is available: a press on the red button (A) will lock the highlighted channel if unlock and vice-versa (toggle behavior). TV/Radio favorite lists For all these lists, a few actions are available: •...
  • Page 35 This pop-up allows you to confirm or not the deletion of a favorite list: 8.11 Setup The “Setup” menu allows you to configure the DVB-T, in particular: the TV set configuration, the time settings and the reset to default factory settings.
  • Page 36 Time Settings This screen allows you to set the local time. Two modes are available to set the local time: • Automatic one which is based on time received from signal • Manual one which allows you to set manually local time Automatic mode In this mode, date and time are automatically set by data received from signal: There are still two parameters to be set:...
  • Page 37 Manual mode This mode allows you to set manually date and time: Two items are available: • Local Date: use digit buttons to set current date • Local Time: use digit buttons to set current time Factory settings This acknowledge pop-up allows you to erase all the custom parameters. If it is confirmed, all services lists and user preferences are deleted and the DVB-T restarts as for a “First Time installation”: 8.12 New channels...
  • Page 38 8.13 Installation This menu allows you to enter to the “Signal information” menu, to the “Channels installation” menu and to the “Timers” management. This menu allows you to completely install your DVB-T in order to watch TV regarding: • Program reception (antenna / channels installation) •...
  • Page 39 Signal Information This screen allows you to adjust your terrestrial antenna. Two signal bar graphs are proposed. The first indicates the power of the signal, the second indicates the quality of the signal measured by the Bit Error Rate (BER). You can check the quality of different channels by selecting new one with the THUMB STICK (◄...
  • Page 40 Three items are available to configure the channel list: • Installation Type: The installation can be a new one (removing all current channels installed and all timers previously set) or can be an addition to the current installation. • Installation Mode: The installation can be “standard” (full automatic scanning through the tuner) or “manual”.
  • Page 41 8.14 User preferences This screen allows you to customize the DVB-T. You can set your preferred languages, modify few visual features, activate or not some locking and change the PIN code. Languages This screen allows you to select the menu language, the audio language and the subtitles language.
  • Page 42 For each item, select the wanted language in predefined lists. Appearance This screen allows you to modify the appearance of information displayed during the viewing mode. Configurable values are: • Banner Timeout: Allows you to set the duration of the display of banner in viewing mode, available values are from 3 to 10 seconds.
  • Page 43 Following settings are available: • Parental Control: If the parental control item is disabled then all the locking are deactivated, If it is enabled then all the locking are applied according to your choice. • Receiver Lock: If this item is set to Yes, each time the DVBT turns to running mode (leaves the standby mode), the PIN code has to be input.

  • Page 44: Troubleshooting And Advice

    code (after the “First Time Installation” or “Factory System Reinstallation”) is “0000”. Then enter the new wanted PIN code, enter it a second time in Confirm item, just to be sure that there is no typing fault. 8.15 System Information This screen gives you some information about the DVB-T (Device Version and Software Version) IX TROUBLESHOOTING AND ADVICE Before calling our customer service centre, please check if you can solve the problem by yourself.
  • Page 45 No signal Please check that all cables are correctly plugged in. No color shades Adjust the contrast, the color and the brightness Stain show on the screen. May be the result of an electrical signal from car motor, neon light or other electrical devices or appliances. Double or multiple display image May be the result of an electrical wave disturbance from another TV, Computer, Game players or Radio.
  • Page 46 You cannot select all Some channels have been Use the <All channels> key to select of the channels and selected as favorites and the another Favorite list or the default TV the <P+/P-> or <Arrow favorites mode is on. channels list. down/up>...
