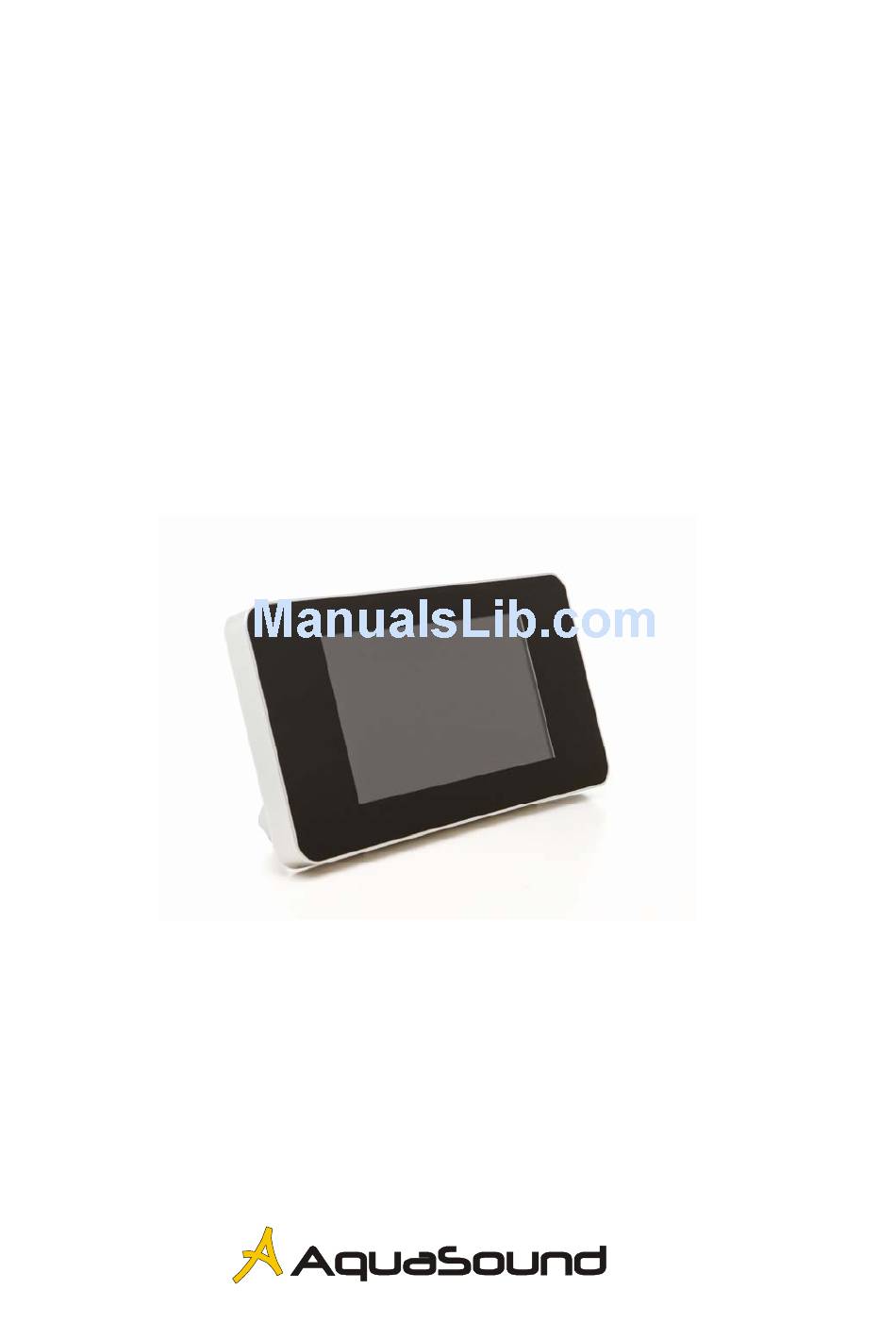

Page 1: Operation Manual
Operation Manual Portable Waterproof LCD TV • ASV1026N • ASV1026B • ASV1026BD... - Page 3 Statement: AquaSound has right to correct Typographical errors in the manual anytime, to revise or change inaccurate information stated in the manual and to upgrade software or change elements used in product without prior notice. But, all update will be compiled in our latest instructional manual. The All rights reserved.
-
Page 4: Rechargeable Battery
+5℃（+41℉）to +45℃（+113℉）Using it with a Non-AquaSound battery charger or product may result in malfunction or accidents. for the cases, AquaSound can not be held liable. 2. Battery working time depends on different working condition and ambient temperature. In general, a fully charged battery working time is 3 hour. - Page 5 Model ASV1026 N / B / BD Screen size 10.2 Inch Aspect ratio 16:9 Screen brightness ≥385cd/ m² Contrast ratio: 400:1 Pixel H x V: 800(RGB)*480 Response time: Speaker (built-in) 3W*2 frequency range 400~20KHz Waterproof grade: IPX6 Dimension: (mm) 360mm*200mm*48mm Visiua/window: (mm) 222mm(H)*132mm(V) Power consumption...
-
Page 6: Safety Guide
Safety Guide General Cautions: Read manual carefully before using the product, and follow instructions of the manual. Stop using the product when cases of following occur: Smoking, burning smell, no image, no sound, damage of outer housing, liquor or objects entering into product, or other irregular condition that might cause fire or electronic shock. - Page 7 III. List of Package and Installation: M UTE PO W ER TV/ AV SLEEP DI SPLAY TEXT SOUND PI CTURE NI CAM I NCRED . M O DE D. O K D. M UNE M UNE RECALL SUBPAGE D. EXIT CANCEL I NFO LAN G...
- Page 8 IV、Remote Controller Keys M U TE TV/AV SLEEP PO W ER PICTU RE SO U N D TEXT D ISPLAY N ICAM IN CRED . M O D E D . O K D.MENU MENU SU BPAG E RECALL D . EXIT CAN CEL IN FO LAN G...
- Page 9 4、1 Remote control instructions in TV mode 1、MUTE: Press to mute the sound. Press again or press VOL+ to unmated. 2、POWER: Switch on LCD TV when at standby mode or vice versa. 3、PICTURE: Press repeatedly to cycle through the available video picture modes: Personal– Movie–Sport–Weak signal-Game 4、SOUND: Press to cycle through the different sound settings: PERSONAL -VOICE- MUSIC-THEATER.
- Page 10 12、A, B, C, D: Color buttons (respectively red, green, yellow and blue) used in a few sub- menus 13、FAV: Allows you to switch between default and favorite lists 4、4 Battery Usage Caution (ASV 1026 B / BD only) a) Open the cover b) Lithium Cell CR2025 batteries, Put in the Lithium batteries, make sure correct polarities as per “+”...
- Page 11 2. Press ◄ / ► to select: 3. Press ▼ enter setting sound menu, the outline border turns red. 4. Press ▲/ ▼ to select option in the sound menu 5. After setting, press MENU to quit. Or wait for few seconds it will be quit automatically. V o l u m e B a l a n c e B a s s...
- Page 12 B r i g h t n e s s C o n t r a s t C o l o u r S h a r p n e s s T i n t D y n . s k i n t o n e O f f 5.3 Enter Overview menu 1.
- Page 13 Remark: Italy Netherlands Switzerland Turkey Austria Belgium France Gr.Britain Germany 4. Child lock. Press ► to enter Child lock submenu. Then press ▲/ ▼ to select option. Lock Lock code 0000 At first select Lock, press ◄/► to turn on the child lock. Second select Lock code, press No.
- Page 14 6. Teletext lang. Each time you press ◄/►, the teletext language changes as follows: Pan European Cyrillic Greek 7. Teletext E/W Press ◄/► to select West or East. 5.5 Enter channel Setting menu Notice: This menu is only available in TV mode. 1.
-
Page 15: Teletext Operation
S o u n d s y s t e m A u t o s t o r e A u t o F r e q u e n c y 7 7 3 . 5 0 M h z A F C S k i p O f f... - Page 16 VII、DVB-T OPERATION (ASV 1026 BD only) 7.1 Program information At the end of the first installation or after the validation of a service in the service selector, the TV set turns into viewing mode. This mode is also called “TV/radio mode” according to the selected channel (TV or Radio).
- Page 17 7.3 TV / Radio switching In viewing mode, a press on the TV/Radio button swaps between the current TV channel and the current radio channel. 7.4 Teletext The Teletext must be activated from the TV Set using the remote control of the TV Set (VBI Teletext).
- Page 18 A press on the THUMB STICK (◄ / ►) buttons allows you to change to previous/next day of event presentation. 7.7 Language If the current channel has several audio tracks, the Language button allows you to choose between them. Selecting a new one amongst the list of available languages changes the audio language for the current channel.
- Page 19 From everywhere, a press on the D．MENU button displays the main menu: From this menu, a few main categories of settings are available (management of TV and Radio favorites lists, different settings about the configuration of the DTV, installation of the antenna and channels, a few settings for user convenience and information about the model and version of the TV Set).
- Page 20 This type of list setting is done with the second item of the list (Channels), and the third is used to select the encoding mode (available values are All, Scrambled or Free-To-Air). Once you have validated these parameters, the favorite list modification screen is automatically displayed (see description below).
- Page 21 lock the highlighted channel if unlock and vice-versa (toggle behavior). TV/Radio favorite lists For all these lists, a few actions are available: • Add/Skip: toggle behavior on the Green button (B), in front of the channel list a color icon indicates the status (white for skipped, blue for added) •...
- Page 22 7.10 Setup The “Setup” menu allows you to configure the DVB-T, in particular: the TV set configuration, the time settings and the reset to default factory settings. Time Settings This screen allows you to set the local time. Two modes are available to set the local time: •...
- Page 23 Two items are available: • Local Date: use digit buttons to set current date • Local Time: use digit buttons to set current time Factory settings This acknowledge pop-up allows you to erase all the custom parameters. If it is confirmed, all services lists and user preferences are deleted and the DVB-T restarts as for a “First Time installation”: 7.11 New channels...
- Page 24 7.12 Installation This menu allows you to enter to the “Signal information” menu, to the “Channels installation” menu and to the “Timers” management. This menu allows you to completely install your DVB-T in order to watch TV regarding: • Program reception (antenna / channels installation) •...
- Page 25 Signal Information This screen allows you to adjust your terrestrial antenna. Two signal bar graphs are proposed. The first indicates the power of the signal, the second indicates the quality of the signal measured by the Bit Error Rate (BER). You can check the quality of different channels by selecting new one with the THUMB STICK (◄...
- Page 26 Three items are available to configure the channel list: • Installation Type: The installation can be a new one (removing all current channels installed and all timers previously set) or can be an addition to the current installation. • Installation Mode: The installation can be “standard” (full automatic scanning through the tuner) or “manual”.
- Page 27 Languages This screen allows you to select the menu language, the audio language and the subtitles language. For each item, select the wanted language in predefined lists. Appearance This screen allows you to modify the appearance of information displayed during the viewing mode.
- Page 28 Configurable values are: • Banner Timeout: Allows you to set the duration of the display of banner in viewing mode, available values are from 3 to 10 seconds. • Volume bar display: Allows you to display or not the volume bar •...
-
Page 29: Troubleshooting And Advice
The menu to modify PIN code is protected by requesting PIN code access. The default DVB- T PIN code (after the “First Time Installation” or “Factory System Reinstallation”) is “0000”. Then enter the new wanted PIN code, enter it a second time in Confirm item, just to be sure that there is no typing fault. - Page 30 DVD player not working properly Ensure disc is correctly inserted into the player. Ensure the disc is not damaged and with correct format. Please wait patiently as some discs need longer time to play. Problem Possible cause Action No picture, no sound Your Receiver is not plugged into Check mains connection and press and the front panel red...
- Page 31 §6.2.1. If you have a widescreen TV, or squashed. you may also need to check the settings on your TV. www.aquasound.nl De Run 6720 info@aquasound.nl 5504 DV Veldhoven tel. 040-2534205 fax 040-2541645...
