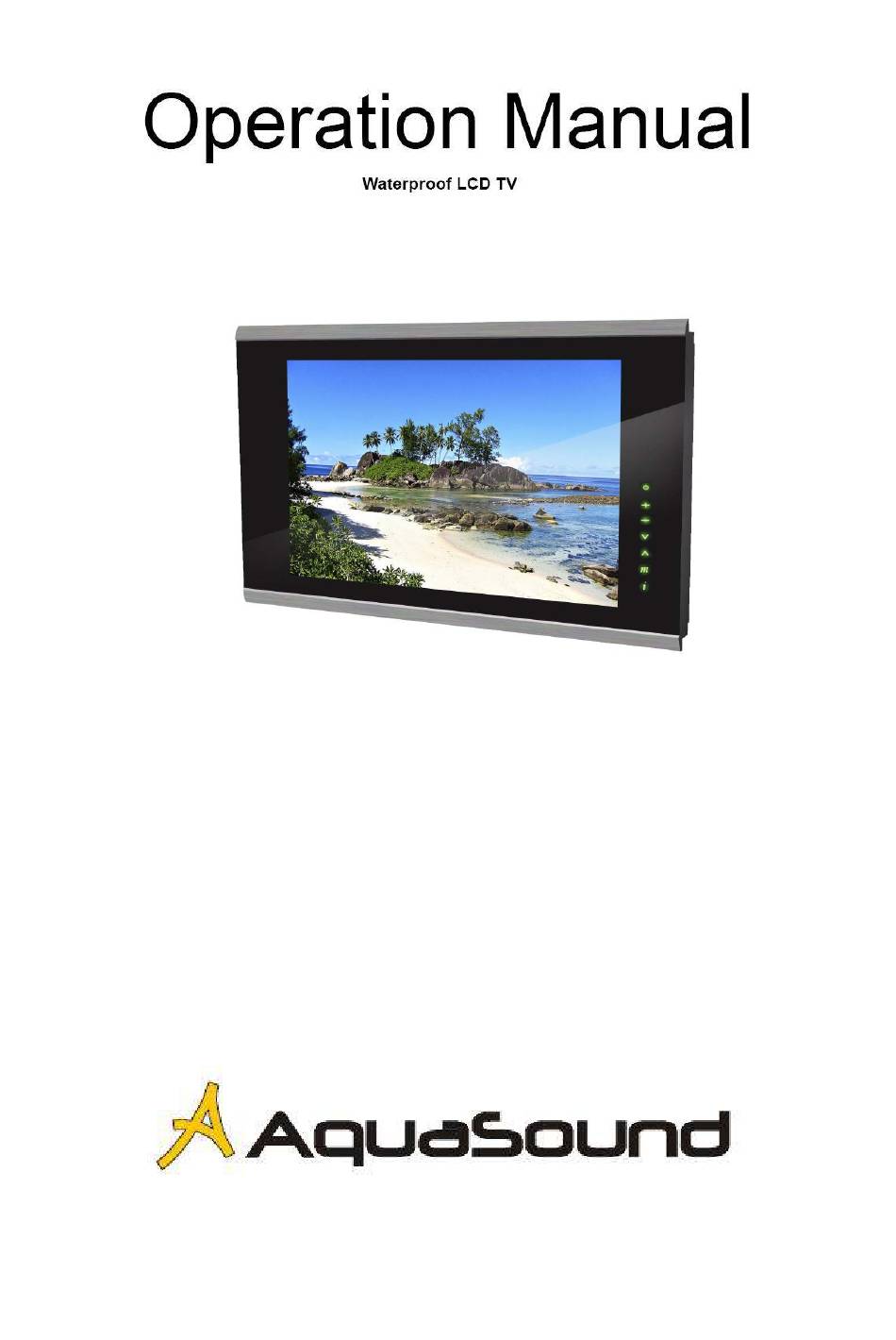

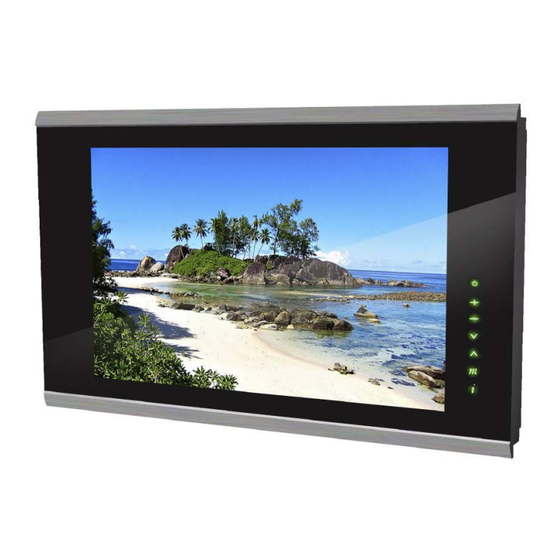

- Page 1 ASV2256N / ASV2256B / ASV2256D...
- Page 2 Table of Contents Important Instructions Overview Accessories Remote Controller 5~7P Media Box Source List Screen Menu 1. TV Mode Channel Menu 10~11P Picture Menu 11~12P Sound Menu 12~13P Time Menu 13~14P Option Menu 14~16P 2. USB Mode Photo Menu Music Play Film Play Text Show Technical Specification...
-
Page 3: Important Instructions
Important Instructions WARNING! Do not remove any cover. WARNING! Do not insert any objects into any openings of this TV. WARNING! Clean only with a damp, dry and soft towel. Do not use harsh abrasives as these may damage the aluminum and steel parts. - Page 4 Overview - This is a simplified representation of front panel. Front View Back View Accessories 1 : Power Cord 2 : Adaptor 3 : RF Antenna cable 4 : Remote controller with battery 5 : CD-ROM of manual - Check if the accessory bag contains the above accessories.
-
Page 5: Remote Controller
Remote controller... - Page 6 (1) Power button (17) TIMESHIFT button Press this button to switch on the TV . Press this button to enter timeshift mode in DTV (2) MUTE button Source menu. Press this button to mute volume or recover. (18) ▲▼ button (3) FAV button Menu button for left, right, up and down Press this button to switch in favorite list, valid in digital TV...
- Page 7 (35) ECO button Press this button to enter power saving mode, when both hardware and software support. (36) LIST button Press this button to enter channel list in ATV and DTV model. (37) CANCEAL button Press this button to cancel teletext in analog TV. (38) SIZE button Press this button to magnify teletext page in analog TV.
-
Page 8: Media Box
MEDIA BOX Button Name Function description DC 12V Input Connect DC Input of Power cord USB Input Connect USB cable or USB Storage device HDMI Input Connect HDMI output jack of DVD player or PC VGA Input Connect VGA output jack of PC COMPOSITE Input Yellow input for VIDEO In, White input for AUDIO(L), Red input for AUDIO(R) COMPONENT Input... -
Page 9: Source List
Source List Press Source button to show source list Press▲▼ button to choose the mode Press OK button to enter the mode... -
Page 10: Screen Menu
Screen Menu 1. TV MODE Press SETUP button to show Channel, Picture, Sound, Time, Option, Lock menu. Press OK button to select specific submenu and the adjustable value. In the submenu, press ▲▼ or button to select menu item. Channel Menu Auto Tuning Press ▲▼... -
Page 11: Picture Menu
DTV Manual Tuning Press ▲▼ button to select DTV Manual Tuning, and then press OK button then press button to select channel number, or directly press number keys to select channel number, and then press OK to begin to search channel. ATV Manual Tuning Press ▲▼... -
Page 12: Sound Menu
Picture Mode Press ▲▼ to select Picture mode, and then OK button to enter. Press button to select standard/mild/dynamic mode and press ▲▼ or to adjust value. Color Temperature Press ▲▼ to select Color Temperature, and then OK button to enter and press button to select cool/ warm/ user mode. -
Page 13: Spdif Mode
Balance Press ▲▼to select Balance, and OK button to enter submenu, press button to adjust balance value. Surround Sound Press ▲▼to select Surround Sound, and then OK button to enter submenu, then press ▲▼ button to select off/surround/SRS trusurround XT mode. AD Switch Press ▲▼to select AD Switch, and then OK button to select on/ off, and you can adjust AD volume value by pressing... -
Page 14: Option Menu
Time Zone Press ▲▼to select Time Zone, and then OK button to enter submenu, and press ▲▼ or to adjust the time zone. Option Menu OSD Language Press▲▼to select OSD Language, and then OK button. Press ▲▼ or button to choose language choices. - Page 15 PVR File system Press▲▼to select PVR File system, and then OK button to select Disk C and press▲▼to adjust. Restore Factory Default Press▲▼to select Restore Factory Default, and then OK button to select sure or not. OSD Animation Rotation Only Press▲▼to select OSD Animation Rotation, and then OK button to select on or only.
-
Page 16: Usb Mode
Block Program Press▲▼to select Block Program, and then OK button to enter the submenu and then green button to choose lock/ unlock mode. Parental Guidance Press▲▼to select Parental Guidance, and then OK button to select off/4/5 etc. 2. USB Mode Press setup button to show Photo, Music, Film, Text. -
Page 17: Music Play
Music Play Select C:\，press OK button to enter submenu 1． Insert USB Port to USB entry. 2． Press to select music, and then OK button to enter submenu. 3． Select C:\，press OK button to enter submenu 4． Select the specific music, and press button to play, press button to play previous one，press... - Page 18 Text Show Select C:\，press OK button to enter submenu 1. Insert USB Port to USB entry. 2. Press to select text, and then OK button to enter submenu. 3. Select C:\，press OK button to enter submenu 4. Select the specific text, and press button to play, press button to play previous one，press...
-
Page 19: Technical Specification
Technical Specification Size 22 inch Wide (LG Display) Resolution 1680 x 1050 Aspect Ratio 16:10 Contrast Ratio 1000 : 1 (Typ.) Brightness 300cd/ (Typ.) Panel Response Time 5ms (Rise + Decay time) Viewing Angle (Wide) Horizontal : 160°(L/R) ,Vertical : 160°(U/D) Display Area 473.7mm (W) x 296.1mm (H) Display Color... - Page 20 English, Polish, French, Spanish, German Language Italian, Portuguese, Russian Audio sound output Max. 10W (5Wx2, 1 way 2 speakers system) Power Power supply AC 110~240V, 50/60Hz input, DC 12V/3.33A Power consumption Operating 40W, Stand by less than 0.5W TV (WxHxD) 632mm x 387mm x 36mm Size Media box (WxHxD)
-
Page 21: Troubleshooting
Troubleshooting NOTE : Please check if all cables are properly connected to the MEDIA BOX at all times. - Page 22 Installation Guide 1. Check if the Extension cable attached with the TV. 2. Make hole as big as the Back box size on wall. 3. Secure a small hall so the Extension cable comes out. 4. Insert the Back box into the wall hall. 5.
