Page 1: Operation Manual

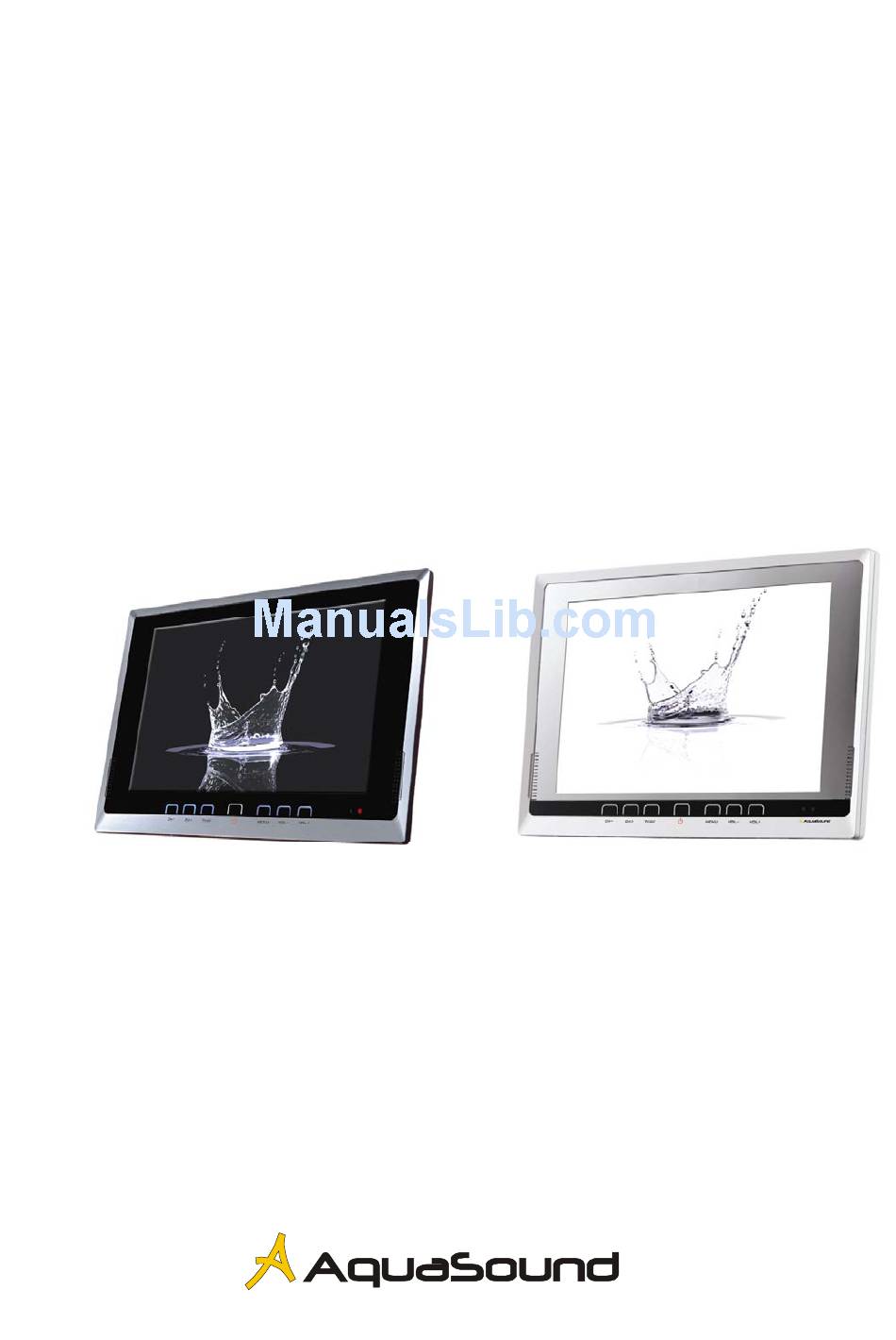

Operation Manual Waterproof LCD TV ASV1743 B ASV1743 S... - Page 2 Catalogue Specification Safety Guide III. List of Package Wires Connection Panel Key Functions Operation Instruction VII. Trouble-shooting AquaSound www.aquasound.nl De Run 6720 info@aquasound.nl 5504 DV Veldhoven tel. 040-2534205 fax 040-2541645...
-
Page 3: Specification
I. Specification Model ASV1743 B / ASV1743 S Screen size 17” Aspect ratio 16:9 Screen brightness 385cd/ m² -No X ray radiation, compliant with environmental needs -Waterproof grade meet IPX6 (Dust-tight and protected from moisture challenges up to powerful water jet... -
Page 4: Safety Guide
II. Safety Guide General Cautions: Designation and production of this LCD TV series meet international safety standard. User should read manual carefully before using the product, and follow instructions of the manual to ensure correct usage. Any of the following cases happen; user should stop using the product: Smoking, burning smell, no image, no sound, big sound, damage of outer housing, liquor or objects entering into product, or other irregular condition that might cause fire or electronic shock. - Page 5 Cautions On Installation: For safety, please use devices and follow instructions provided by manufacturer for installation. Don’t apply excessive force on forward part or top to avoid turn-over of the product. Cautions On Operations 1. Do not dismantle/remodel the TV and do not press or knock LCD screen. 2.
- Page 6 III List of Package: please find following parts in the package. TV set Remote controller PALmale to F female AV wire SCART plug to 3RCA plug Power adaptor B ol t N ut Tube B ase M ai n Fr am e M ai n Fr am e N ut Plate for bath room (wall-mounting) Stainless tube for bath tub (tub fixed)
- Page 7 IV. Connections Right audio input Left audio input Video input Television antenna input Power adaptor input Side function interfaces D i se Pl ay PR C oaxi al C ent r al Vi deo C abl e Bass S O ut 5.
- Page 8 D i se Pl ay SC AR T Por t S R C ent r al Vi deo C abl e Bass S O ut 5. 1Audi o out SC AR TLi ne SCART Connection Chart Connection of TV signal: Input impedance of the product is 75Ω, a 75Ω...
-
Page 9: Panel Key Functions
V. Panel Key Functions 5. 1 Panel Keys 1 Channel down 2 Channel up 3 AV/TV Switch 4 DC power ON/OFF 5 Main Menu 6 Sound down 7 Sound up 5. 2 Remote Controller Keys ON/OFF Mute Sound down Sound up Channel down Channel up AV/TV switch... - Page 10 VI. Operation Instruction Note: In this paragraph, operation for TV panel is “Touch”, and operation for remote controller is “Press” Confirm right connection and power light is on. Set on TV power source, to light up the backlight of keys, which are clearly shown on the screen panel, so further operations are possible.
- Page 11 is selected. Press “MENU” to select the function for adjustment. As same as above stated, you can enter into every sub-menu to adjust the function. “MENU” means confirmation, through “VOL-” and “VOL+” to adjust it. “MENU” has another function: press this button for 5 seconds to lock all keys on panel. Once locked, indication light twinkles every 2 seconds.
- Page 12 6.8.2 Pre-set Menu After entered into pre-set menu, through “VOL-” and “VOL+” to select a function for adjustment or exit, press “MENU” to confirm. Through above combined operation, can set “auto search” “Manual search” “Tuning”, “Channel”, “TV system”, “channel switch” and “Skip”.
- Page 13 6. 8. 4 Sound Menu The menu can realize canceling sound output or resume to original sound volume. Operation is same as above, its function is same with “mute” button. 6. 8. 5 Reset Menu When in reset menu, through “VOL-” and “VOL+” to select “reset”, “blue screen” or “exit”...
- Page 14 6. 8. 6 Exit from menu This menu is selected to back out main menu, by pressing “menu” and confirm exit.
-
Page 15: Troubleshooting
VII. Trouble-shooting Before applying for repair, please read below sheet to see if it can be worked out by yourself. If you need help, contact distributors or after-sales service center. Troubles Trouble-shooting power source, Check if power source plug is in socket, or loose out of socket. indicator light off After plug off, wait for 15 seconds before plug again. - Page 16 About Usage under low temperature When use under low temperature, reaction of LCD screen might slow down. In some cases, the feature might cause image remaining, it is not fault. Once back to normal temperature, it will resume. AquaSound www.aquasound.nl De Run 6720 info@aquasound.nl 5504 DV Veldhoven tel.
