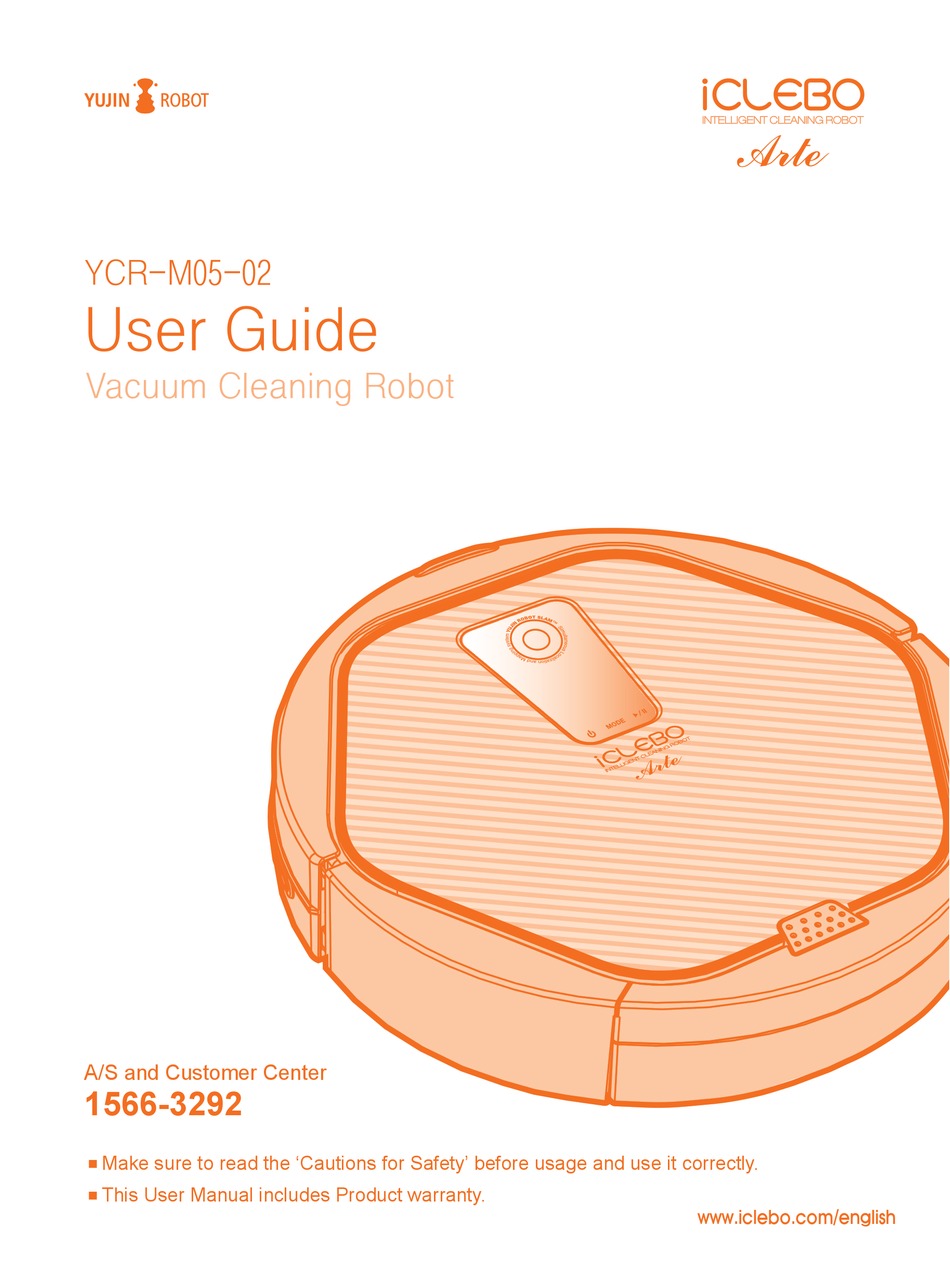

Page 1: User Guide
YCR-M05-02 User Guide Vacuum Cleaning Robot A/S and Customer Center 1566-3292 ■Make sure to read the ‘Cautions for Safety’ before usage and use it correctly. ■This User Manual includes Product warranty. www.i c l e bo.com/engl i s h... -
Page 2: Safety Precautions
Safety Precautions Components and detailed names Reference For e ective cleaning Operating principles of robot cleaner • Principles of Vacuum Cleaning Robot • Suction of robot cleaner Installing the robot cleaner Check list before using • Assemble side-brush • Remove protection film •... - Page 3 This content is for the user’s safety and to prevent any property loss. Read the below carefully and use it with care. Users must be aware of necessary details for using this product. Prohibition Users must follow the instructions to avoid serious injury or death.
- Page 4 Precautions before using - Do not touch the power cord of the charger with wet hands. It may cause electric shock. Prohibition - Arrange the cable or wire before use to avoid being wrapped with cable or wire. It may cause re or electric shock due to damaged cable. Warning - Remove light objects or bers before use.
- Page 5 Precautions while using - In case the robot cleaner has unusual sound, smell or smoke, separate the ba ery immediately and block the power switch then contact customer center (1566-3292). Warning It may cause electric shock or re. - Do not use the robot cleaner on the table or any place high. It may damage the product.
- Page 6 Components YCR -M0 5-02 퀵 가 이 드 Qu ick Gu ide 청소 로봇 Vacuu m Clean ing Robo t 서비 스센 터 1566 -329 2 Robot cleaner Charging station Remote control Quick Guide (included battery) Side-brush(L) Antibacterial filter Adapter Mop plate Side-brush(R) Cleaning brush...
-
Page 7: Remote Controller
● Charging station ● Dust bin Filter Antibacterial /blackout filter Filter case Charging display Dust bin Infrared generator Blade non-slip Charging terminal ● Remote control ● Display screen Start/stop Power button Battery Set-time button status status Time setting Timer button button Door sill height Clock/... -
Page 8: For Effective Cleaning
For effective cleaning Please follow the instructions below for high cleaning e ciency. - Empty the dust bin a er using the robot cleaner. - Separate the place not to be cleaned using entrance prevention tape or by closing the door. (Refer to P.10 How to install entrance prevention tape) - Remove all the non- xed objects such as toys, magazines or shoes before cleaning. - Page 9 Check list before using Assemble side-brush 1. A er ipping over the vacuum cleaning robot, verify the positions of the le and right side brushes. 2. Match L side brush to L marked part in the direction of the groove, and push in hard. 3.
- Page 10 Check list before cleaning Install base (charging) station 1. Open the cover of the backside of the charging station, and install the adapter with connected power plug as in the gure. 2. Completely connect the charging jack of the adapter to the jack inside the charging station. Ba ery is discharged at the time of the purchase of the product, Charging so it shall be charged manually in the beginning.
-
Page 11: Time Setting
Time setting ※ Make sure to set time for timer cleaning. 1. Press clock bu on of the remote controller. 2. Set “hour” with (+)(-) bu on of the remote controller, and press Enter bu on. 3. Set “minute” with (+)(-) bu on of the remote controller, and press Enter bu on. 4. -
Page 12: Power On/Off
Using the robot cleaner Power On/Off Using move, charge, turbo function 1. U se the direction bu on of Press power bu on ( ). remote control to send the If you press it one more time, robot cleaner to speci c area. it is turned o . - Page 13 If you press the door sill (CLIMB) bu on on the remote controller, Cleaning the climbing performance can be increased up to 20mm. mode (But, it may be di erent for environment such as the structure of the door sill, etc.) Door Sill Wet Mop Mode...
- Page 14 Emptying Dust Bin and Mending Sterilization Filter 1. While pressing the dust bin out bu on of the main body as in the gure and carefully separate the dust bin toward the back. 2. Hold the blade of the dust bin as in the gure, and dust o the li er. 3.
- Page 15 Mending Main Brush 1. T urn the robot cleaner 2. U nlock le /right xed over and place the bo om clip of the main brush. facing upside. 3. Separate the brush cover then remove the main brush. 4. A er each cleaning session, remove hairs or foreign substances stuck on the main brush using the cleaning brush.
-
Page 16: Purchase Accessories
2. Place it where it is cool and ventilated. Purchase accessories If you wish to purchase accessories of the vacuum cleaning robot such as battery or brush, or sterilization filter, please visit www.iclebo.com for the purchase. - Page 17 Below is the explanation about the most occurred ‘breakdowns’ when using this product. If you can’t solve the problem with information below, please call your Customer service center. Problem C a u s e S o l u t i o n See <Product control &...
- Page 18 Dust bin is full or lter is Empty and clean the dust bin. dirty. Noise of the See <Product control & maintenance> Main brush is dirty. robot cleaner is (page 13) and clean the lter. Main brush is dirty or hairs ge ing worse.
-
Page 19: Warranty
Warranty Product name Model name Robot cleaner YCR-MO5-02 iClebo Arte Color Product serial number Phone number Customer name Address Place of purchase Date of purchase 1 year warranty (6 months for battery) Customer compensation Compensation details Category Type of consumer damage... - Page 20 This vacuum cleaning robot contains open source software. Yujinrobot Co., Ltd. hereby provides a complete copy of the corresponding source code.
-
Page 21: Lithium Ion (Li-Ion)
Noise 58 db ※ Cleaners from YUJIN Robots, iclebo series is designed to comply with Energy star standard, which is the new energy consumption efficiency certification system in Europe, and it achieves the highest energy efficiency level in the industry.
