Page 1: User Guide

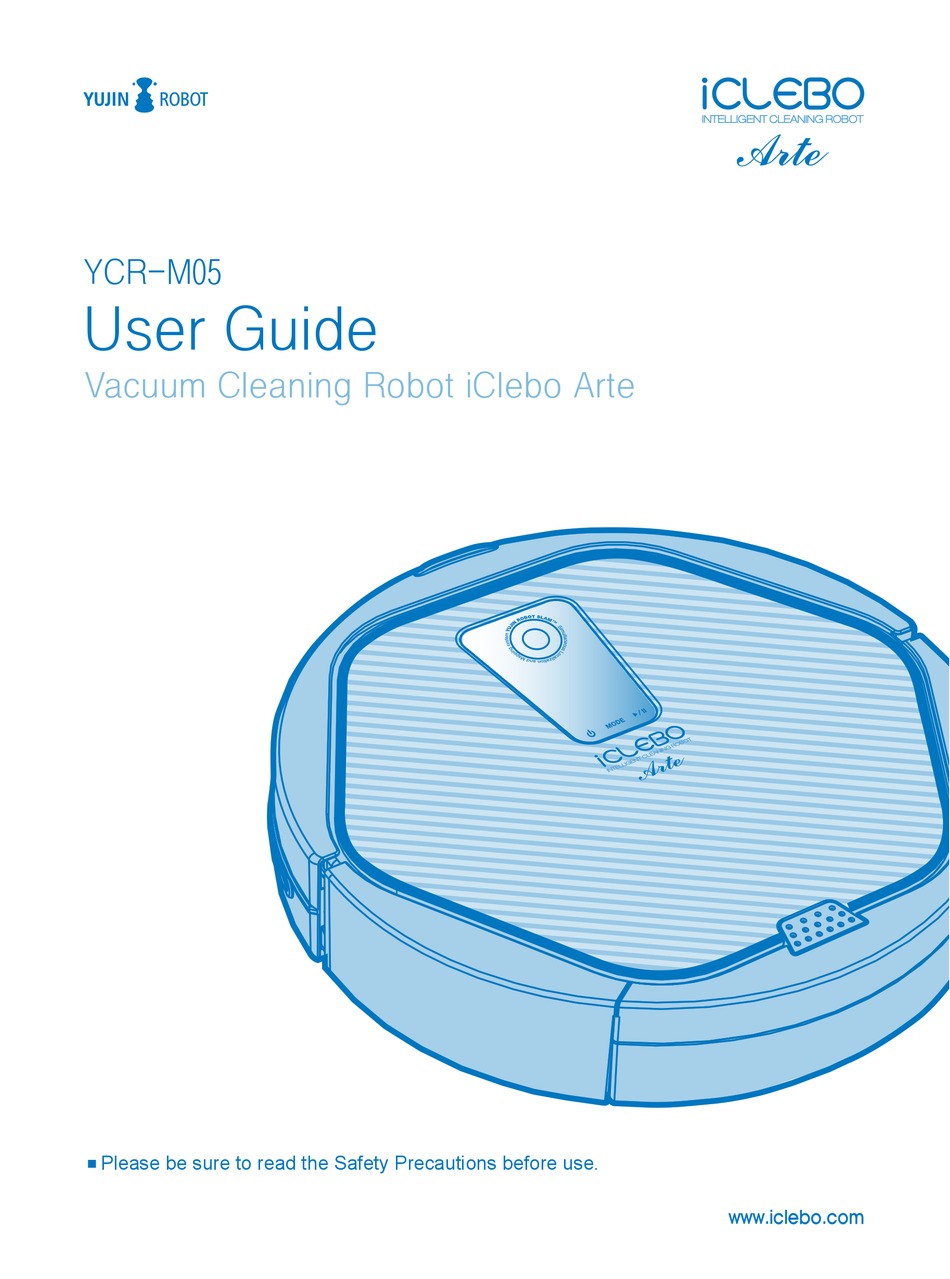

YCR-M05 User Guide Vacuum Cleaning Robot iClebo Arte ■Please be sure to read the Safety Precautions before use. www.i c l e bo.com... -
Page 2: Safety Precautions
• Power On/Off • Start / Stop cleaning • Using move, charge function Cleaning mode Timer cleaning iClebo care & maintenance Emptying dust bin and servicing the antibacterial filter Cleaning side brush Cleaning sensor Cleaning main brush Cleaning front wheel... - Page 3 Please read this manual carefully and follow all warnings and instructions. Users must be aware of prohibited operation of this product. Prohibition Users must follow the instructions to avoid serious injury or death. Warning Users must follow the instructions to avoid injury or product damage.
- Page 4 Precautions before using - Do not touch the charger's power cord with wet hands. It may cause electric shock. Prohibition - Arrange cables or wires before use to avoid entangling with the robot It may cause re or electric shock due to damaged cable. Warning - Remove light objects or clothes before use.
- Page 5 Precautions while using - In the event of an unusual sound, smell or smoke emanates from the product, immediately turn o the robot cleaner and place it a safe distance away from anything ammable. Warning It may cause electric shock or re. - Do not use the robot cleaner on a table or any high surface.
- Page 6 Components MODE CLOCK TIMER Robot Cleaner Charging Cleaning Brush Remote Control Station (included battery) YCR -M0 5-02 Qu ick Gu ide Vacuu m Clean ing Robo t Adapter Antibacterial Filter Mop Plate User Guide Quick Guide Side-Brush(R) Side-Brush(L) Area Boundary Ultra Microfiber Tape Wet Mop...
-
Page 7: Remote Controller
● Charging Station ● Dust Bin Filter Antibacterial /Blackout Filter Filter Case Charging Display Dust Bin Infrared Generator Blade Non-Slip Charging Terminal ● Remote Control ● Display Screen Start/Stop Power Button Button Battery Set-Time Status Status Direction Button Time Enter Button Setting Clock/ Button... - Page 8 For effective cleaning Please follow the instructions below for high cleaning e ciency. - Empty the dust bin a er each use of the robot cleaner. - Use Magnetic strip to con ne the robot to an area or by closing the door. (Refer to P.10 How to install entrance prevention tape) - Fix up the magnetic strip not to apart from the oor.
- Page 9 Check list before using Assemble side-brush 1. A er turning over robot vacuum, identify the position of the le and right side brushes. 2. Match the L side brush to the L marked part in the direction as the groove, then push in rmly. 3.
- Page 10 Check list before cleaning Install base (Charging) Station 1. Open the back cover of the Charging Station, and install the adapter with connected power plug as shown in the gure 2 above. 2. Completely connect the charging jack of the adapter to the jack inside the charging station.
- Page 11 Current Time setting ※ Make sure to set time for timer cleaning. 1. Press the Clock bu on on the remote control. Time display of the display screen will ash. 2. Set “hour” with (+)(-) bu on of the remote controller, and press Enter bu on.
- Page 12 ※During the basic cleaning, robot performs the 3. Use MODE to select AUTO or NDOM. (During the se ing of NDOM mode, set cleaning in vision mapping method, and the robot cleaning time using +,- bu on: Default is 60 min.) decides when to nish the cleaning.
- Page 13 ※ The default climbing height of obstacles for the robotic vacuum cleaner is up to about 18mm. Cleaning ※ If you wish to set the robot not to go over obstacles over 5mm or mode doorsill, etc., click CLIMB button to turn off CLIMB mode! : Please turn off CLIMB mode if you wish to protect carpet, etc.
- Page 14 Emptying dust bin and servicing the antibacterial filter 1. Hold the dust bin as in the gure and separate sterilization lter cover. 2. Clean the lter using cleaning brush. ※ Dust bin can be washed with water. However, completely dry them before assembling and using them again. Cleaning Side Brush 1.
- Page 15 Cleaning Main Brush 4. Separate the brush cover then remove the main brush. 5. Clean hair, carpet ber and other substances substances stuck on the main brush using the cleaning brush. Over time, hairs and bers accumulate between the main brush and the bearing. is extra friction which will causes less e cient cleaning, more ba ery strain leading to shorter running time and may ultimately stop the Robot Vacuum Cleaning.
- Page 16 Storage 1. If the Vacuum Cleaning Robot is not used for a long period of time, turn o the Power Switch on the side of the Main Body. ※ Please be aware that the ba ery could be discharged a er an extended period of non-use.
- Page 17 Below is the explanation about the most occurred ‘breakdowns’ when using this product. If you can’t solve the problem with information below, please call your Customer service center. Problem C a u s e S o l u t i o n Dust Bin is full.
- Page 18 Dust bin is full or lter is Empty and clean the dust bin. dirty. Noise of the See <Product control & maintenance> Main brush is dirty. robot cleaner is (page 13) and clean the lter. Main brush is dirty or hairs ge ing worse.
- Page 19 Sensor Charging Time 110 min. Usage Time 120 min. (based on normal floor) Noise 58 dB[A] iClebo Customer Support : 1.855.926.1601 ㆍMonday-Friday 9 am to 6pm PST Closed ㆍSaturdays Closed ㆍSundays MADE IN KOREA ©2014 Yujin Robot Inc. 16410 Manning Way, Cerritos, CA 90703 support@iclebo.com...
