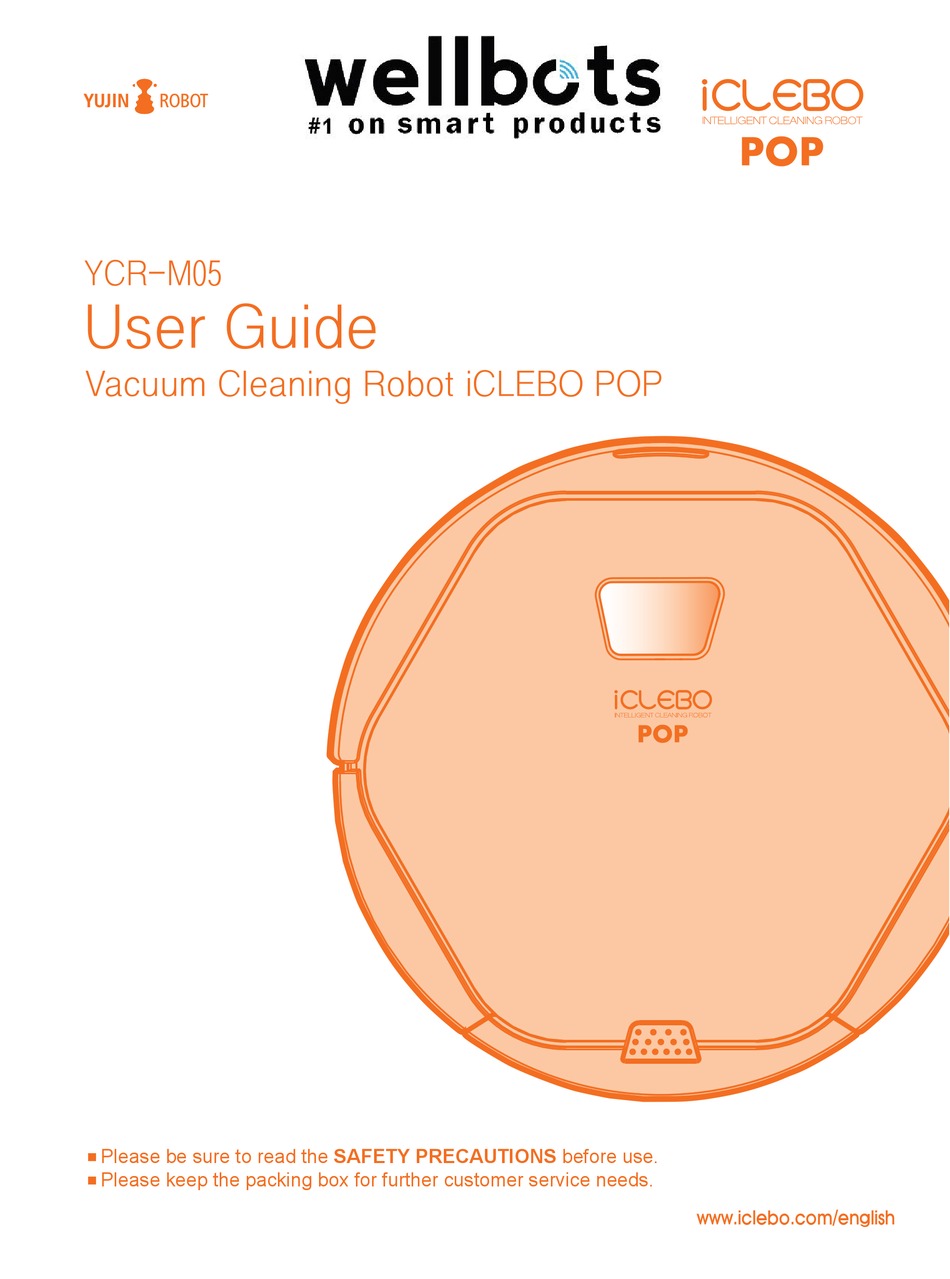

Page 1: User Guide
YCR-M05 User Guide Vacuum Cleaning Robot iCLEBO POP ■Please be sure to read the SAFETY PRECAUTIONS before use. ■Please keep the packing box for further customer service needs. www.i c l e bo.com/engl i s h... - Page 2 SAFETY PRECAUTIONS COMPONENTS AND DETAILED NAMES REFERENCE Remote control Details for best cleaning Operation principles of robot vacuum cleaner • Principles of running • Principles of vacuuming INSTALLING THE ROBOT CLEANER Check list before using • Assemble side brush • Insert remote control battery •...
- Page 3 This content is for the user’s safety and to prevent any property loss. Read the below carefully and use it with care. Users must be aware of necessary details for using this product. Prohibition Users must follow the instructions to avoid serious injury or death.
- Page 4 Precautions before using - Do not touch the power cord of the charger with wet hands. It may cause electric shock. Prohibition - Arrange any cables or wires before use to avoid them being wrapped or caught by the robot Warning It may cause re or electric shock due to damaged cable.
- Page 5 Precautions while using - In case the robot cleaner has unusual sound, smell or smoke turn o the robot immediately and place well away from ammable objects. Warning It may cause electric shock or re. - Do not use the robot cleaner on the table or any place high. It may damage the product.
-
Page 6: Charging Station
Components Cleaning brush Side-brush Robot Vacuum cleaner Charging station (Cleaning brush is contained inside of charging station) Mop plate YCR -M0 5 Qu ick Gu id e Vac uum Cle ani ng Rob ot iCL EBO PO P Adapter ※ For more detailed instruct ions refer to (The comple te... -
Page 7: Using Remote Control
● Charging station ● Dust bin Filter Antibacterial filter Filter frame Charging display Dust bin Infrared generator Dust bin blade Anti-slip Charging terminal ● Remote control ● Display screen Start/stop Power button button Automatic cleaning mode indication Climb mode indication Direction button AUTO... - Page 8 Operating principles of robot cleaner Principles of running iClebo POP operate Random and Spot cleaning mode with recognizing obstacles via various sensors. With about 20 detection sensors, it can avoid walls or objects (chair, vase, etc) It climbs a doorsill of up to 18mm, and floor sensors help it to avoid falling down stairs. Be careful that pets or children do not force the robot to fall by playing with it.
-
Page 9: Check List Before Using
Check list before using Assemble side-brush 1. After flipping over the vacuum cleaning robot, verify the positions of the side brush. 2. Match the side brush in the same direction of the groove, and push in hard. Insert remote control battery There is no battery inside the remote controller at the time of purchase. - Page 10 Precaution before using Installation of charging station ※How to connect adapter Open the cover of the backside of the charging station, and install the adapter with connected power plug as in the figure. Battery is discharged at the time of the purchase of the product, Charging so it must be fully charged before using the robot for the first time.
- Page 11 Usage of Robot Cleaner Start/stop Cleaning ● Spot Mode Spot (Spiral) cleaning mode, it moves in ● Basic cleaning spiral around within 1.5m radius. 1. Press Start/Stop(or Power) button. ( 1. Press Start/Stop button. ( (Turn on with alarm sound) 2.
- Page 12 Set cleaning time ● Climb (Carpet) mode ● Set cleaning time The default climbing height of obstacles Press time button to set cleaning time( for the robotic vacuum cleaner is up to Every time you press the button, the time about 5 mm.
- Page 13 Emptying dust bin and servicing the antibacterial filter 1. While pressing the dust bin's out button of the main body as shown in the figure, carefully separate the dust bin toward the back. 2. Hold the blade of the dust bin as in the figure, and dust off the litter.
-
Page 14: Cleaning Side-Brush
Cleaning Side-brush 1. Separate the side-brush with both hands. 2. Clean dust and foreign substance using the cleaning brush. ※ When disassembling the side brush, hold the whole three strip brushes together at the same time and pull it out. Cleaning Sensors 1. - Page 15 Storage 1. If the vacuum cleaning robot is not used for a long period of time, turn off the power switch on the side of the main body. ※ Please be aware that the battery could be discharged. 2. Keep the robot cleaner away from direct sunlight rather place in well-ventilated place.
- Page 16 If you can’t solve the problem with information below, please call your Customer service center. Problem Cause Solution ▶See <Product control & maintenance> and empty the dust bin. ▶Dust bin is full. ▶See <Product control & maintenance> It is not ▶Main brush is dirty.
- Page 17 ▶Dust bin is full or filter is dirty. ▶Empty and clean the dust bin. Noise of the ▶Main brush is dirty or hairs ▶See <Product control & maintenance> robot cleaner are accumulating between (page 12) and clean the filter. is getting the main brush and the ▶See <Product control &...
-
Page 18: Lithium Ion (Li-Ion)
Model Name iClebo POP (YCR-M05) Power 100V ~ 240V Standby energy consumption below 0.1W Main body energy consumption Battery Lithium ion (Li-ion) Diameter 35 cm Height 8.9 cm Weight 2.75 kg Speed 30cm/s Filter Sterilization filter Sensor IR, PSD, Encoder, Bumping Charging Time 100 min.
