Viper 4103XV Installation Manual

Car security
Hide thumbs
Table of Contents

Advertisement

Quick Links

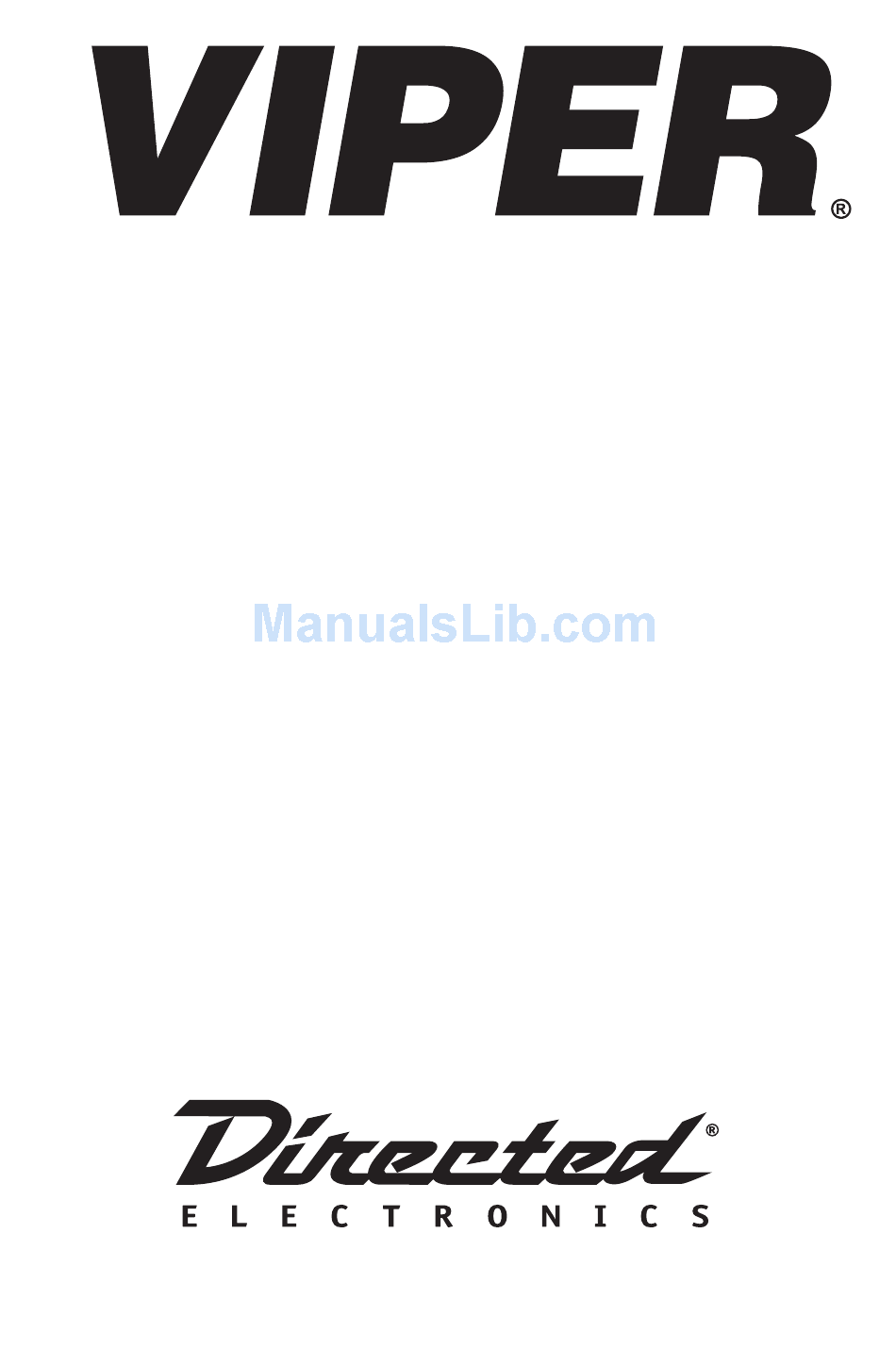

Model 4103XV
Installation Guide
This product is intended for installation by a professional in-
staller only! Any attempt to install this product by any person
other than a trained professional may result in severe damage
to a vehicle's electrical system and components.
© 2009 Directed Electronics, Vista, CA
N4103V 2009-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4103XV and is the answer not in the manual?

Questions and answers

Related Manuals for Viper 4103XV

Summary of Contents for Viper 4103XV

  • Page 1 Model 4103XV Installation Guide This product is intended for installation by a professional in- staller only! Any attempt to install this product by any person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.
  • Page 2 Bitwriter®, Code Hopping™, Doubleguard®, ESP™, FailSafe®, Ghost Switch™, Learn Routine™, Nite-Lite®, Nuisance Prevention® Circuitry, Reveng- er®, Silent Mode™, Soft Chirp®, Stinger®, Valet®, Vehicle Recovery System®, VRS®, and Warn Away® are all Trademarks or Registered Trademarks of Di- rected Electronics. The Bitwriter® (p/n 998U) requires chip version 2.6 or newer to program this unit.

  • Page 3: Table Of Contents

    Contents Warning! Safety first ..................4 What is included ....................7 Installation points to remember ................8 Virtual tach ....................9 D2D ......................9 Component locations and finding wires .............10 Making your wiring connections ...............10 Primary harness (H1) wiring diagram ............11 4-pin satellite harness diagram ..............11 Heavy gauge relay wiring diagram ............11 Door lock harness, 3-pin connector ............12 Remote start harness (H2) wiring diagram ..........12...

  • Page 4: Warning! Safety First

    Warning! Safety first The following safety warnings must be observed at all times: • Due to the complexity of this system, installation of this product must only be performed by an authorized Directed Electronics dealer. • When properly installed, this system can start the vehicle via a command signal from the remote control.
  • Page 5 tion immediately and consult with the user to fix the problem immediately. After the remote start module has been installed, test the remote start module in accordance with the Safety Check outlined in this Installation Guide. If the vehicle starts when performing the Neutral Safety Shutdown Circuit test, the remote start unit has not been properly installed.

  • Page 7: What Is Included

    What is included • The control module (see diagram) • XR Plus antenna receiver • Two remote controls (P/N 7142V) • A push-button Valet switch • A hood pinswitch • A shut-down toggle switch 4103XV © 2009 Directed Electronics. All rights reserved.

  • Page 8: Installation Points To Remember

    Installation points to remember Important: This product is designed for fuel-injected, automatic transmission vehicles only. Installing it in a standard transmission vehicle is dangerous and is con- trary to its intended use. Before beginning the installation: • Please read this entire Installation Guide before beginning the installation.

  • Page 9: Virtual Tach

    ➢ Virtual tach Virtual Tach is the default RPM-sensing method for new remote start systems. Virtual Tach gives the installer the performance of a hardwired tach wire, with the convenience of voltage sensing. It is far superior to any voltage-sense feature you’ve tried before. Virtual Tach monitors the cranking voltage of the vehicle using a very fast micro-controller and an analog-to-digital converter.

  • Page 10: Component Locations And Finding Wires

    Component locations and finding wires For detailed information on where to locate components, and how to find the wires you need, please refer to the Direct Tech web site at www.directechs.com. Making your wiring connections Before making your connections, plan how your wires will be routed through the vehicle.

  • Page 11: Primary Harness (H1) Wiring Diagram

    ➢ Primary harness (H1) wiring diagram H1/1 LIGHT GREEN/ (-) 200mA FACTORY ALARM DISARM BLACK H1/2 GREEN/WHITE (-) 200mA FACTORY REARM H1/3 YELLOW (+) IGNITION OUT (TO ALARM) H1/4 WHITE/BLUE (-) ACTIVATION INPUT H1/5 ORANGE (-) 500mA GROUND WHEN LOCKED H1/6 BROWN (-) 200mA HORN OUTPUT...

  • Page 12: Door Lock Harness, 3-Pin Connector

    ➢ Door lock harness, 3-pin connector BLUE (-) UNLOCK OUTPUT EMPTY NOT USED GREEN (-) LOCK OUTPUT ➢ Remote start harness (H2) wiring diagram H2/1 BLACK/WHITE (-) NEUTRAL SAFETY SWITCH INPUT H2/2 VIOLET/WHITE TACHOMETER INPUT WIRE H2/3 BROWN (+) BRAKE SWITCH SHUTDOWN WIRE H2/4 GRAY (-) HOOD PINSWITCH SHUTDOWN WIRE...

  • Page 13: Primary Harness (H1), 9-Pin Connector

    Primary harness (H1), 9-pin connector H1/1 LIGHT GREEN/ (-) FACTORY ALARM DISARM BLACK This wire sends a 200mA negative pulse every time the remote start is activated or the doors are unlocked. This can be used to pulse the disarm wire of the vehicle’s factory anti-theft device. Use a relay to send a (-) or (+) pulse to the disarm wire as shown in the following diagram Relay for Negative (-) Disarm Wire ©...
  • Page 14 Relay for Positive (+) Disarm Wire H1/2 GREEN/WHITE (-) FACTORY REARM This wire sends a 200mA negative pulse every time the remote start shuts down or the doors are locked. This can be used to pulse the arm wire of the vehicle’s factory anti-theft device. Use a relay to send a (-) or (+) pulse to the arm wire.
  • Page 15 H1/4 WHITE/BLUE (-) ACTIVATION INPUT This input comes from the factory set to 1 activation pulse. This means that it is necessary to have 1 ground pulse on the white/blue wire for the remote start to activate or to deactivate. It is not mandatory to con- nect this wire unless the remote start is being activated by a security or keyless entry system.
  • Page 16 H1/6 BROWN (-) HORN OUTPUT This wire supplies a (-) 200 mA output that can be used to honk the vehicle horn. It outputs a single pulse when locking the doors with the remote, and two pulses when unlocking with the remote. This wire also outputs pulses for 30 seconds when Panic Mode is activated.
  • Page 17 H1/8 BLACK (-) CHASSIS GROUND CONNECTION We recommend that you do not use a factory ground. Ground all your components to the same point in the vehicle, (preferably the kick panel). Scrape away any paint and use a factory bolt or make your own ground with a self-tapping screw and a star washer.
  • Page 18 Note: For parking light systems that draw 10 amps or more, the jumper must be placed on the (-) light flash output. (refer to the Pro- gramming Jumpers section of this guide.) P/N 8617 or a standard automotive SPDT relay must be used on the H1/9 light flash output wire.

  • Page 19: Heavy Gauge Relay Interface

    Heavy gauge relay interface The heavy gauge wires are used to energize the ignition circuits in the vehicle. It is crucial that these connections are made correctly so that they are capable of handling the current demands. For this reason, scotch locks, T-taps and other such connectors should not be used.

  • Page 20: Remote Start Harness (H2), 5-Pin Connector

    PINK/WHITE (+) PROGRAMMABLE OUTPUT FOR ACCESSORY OR IGNITION Connect this wire to the second ignition or accessory wire in the vehicle. (Selectable by using menu 2 feature 6.) Note: For vehicles that do not have a second ignition or accessory wire, this connection is not required.
  • Page 21 Figure A Figure B Important! Always use the Vehicle Safety Check section of this guide to verify that the vehicle cannot be started in ANY drive gear and that the override switch is functioning properly. H2/2 VIOLET/WHITE TACHOMETER INPUT WIRE This input provides information to the unit about the engine’s revolutions per minute (RPMs).
  • Page 22 H2/3 BROWN (+) BRAKE SWITCH SHUTDOWN WIRE This wire MUST be connected to the vehicle’s brake light wire. This is the wire that shows (+) 12V when the brake pedal is depressed. The remote start will be disabled or shut down any time the brake pedal is depressed.

  • Page 23: Optional Anti-Grind Relay

    The anti-grind relay prevents the starter from engaging if the ignition key is accidentally turned to the starter position during remote start operation. Plug-in program switch The Program switch plugs into the blue two-pin connector. BLUE 2-pin port 4103XV © 2009 Directed Electronics. All rights reserved.

  • Page 24: Neutral Safety Switch Interface

    Neutral safety switch interface Some vehicles do not have an electrical neutral safety switch but in- stead have a mechanical neutral safety switch that physically interrupts the starter wire when the vehicle is in any drive gear. When the remote start is interfaced before this switch, it provides protection from starting in gear.

  • Page 25: D2D And Programmer Interface

    If the vehicle is not a General Motors product or a Dodge Dakota pickup, please call Directed Electron ics Technical Support for an alter- native shut-down method. Do not return the vehicle to the customer until this feature is properly installed! D2D and programmer interface The 4-pin red port is for interfacing with an Xpresskit module through...

  • Page 26: Programming Jumpers

    Programming jumpers 4103XV ➢ Light flash (+)/(-) This jumper is used to determine the light flash output polarity. In the (+) position, the on-board relay is enabled and the unit will output (+)12V on the WHITE wire, H1/9. In the (-) position, the on-board relay is dis- abled.

  • Page 27: Virtual Tach Learning

    Virtual tach learning To program Virtual Tach: After the install is complete, remote start the car. If the car does not start on the first attempt, let the remote start at- tempt again. Once the car starts, let it run until the parking lights come on. When the parking lights come on, shut off the remote start with the remote - that’s it! Virtual Tach is programmed.

  • Page 28: Tach Learning

    Tach learning Important: H2/2 Violet/white must be connected before this procedure is followed. ➢ To learn the tach signal 1. Start the vehicle with the key. DRW-96 HOLD 2. Within 5 seconds, press and the Pro- gram switch. 3. The LED will light constant when the tach signal is learned.

  • Page 29: Remote Control Learn Routine

    Remote control learn routine The system comes with two remote controls that have been taught to the system. The system can store up to 4 different remote control codes in memory. Use the following learn routine to add remote controls to the system.
  • Page 30 Channel Function Auto Learn Standard Configuration (default) The auto learn configuration automatically sets up the remote's button configuration. Delete remotes: This feature erases all remotes from the memory of the system. This is useful in cases when a customer’s remote is lost or stolen. Note: This does not reset the programmed features of the system or reset the Virtual Tach setting.

  • Page 31: Remote Configuration

    HOLD Channel One to Channel Two. Now, press and the Pro- gram switch. The LED will flash two times, do not release it. Learn Routine will be exited if: • Ignition is turned off. • Program switch is pressed too many times. •...

  • Page 32: Operating Settings Learn Routine

    Operating settings learn routine The System Features Learn Routine dictates how the unit operates. The programmable operating settings of this unit can be changed when- ever necessary through the computer-based Learn Routine. The Pro- gram push-button switch, plugged into the blue port, is used with a programmed remote control to change the settings.
  • Page 33 Transmit. The remote control is used to select the desired setting. Pressing turns on the LED. Press- on the remote will cycle through the avail- able options in each feature. Release. The Program switch can now be re- ������� ������� leased.

  • Page 34: Features Menu

    Features menu bold The factory default settings are indicated in text in the table be- low. ➢ Menu 1 Fea- Feature Opt. 1 Opt. 2 Opt. 3 Opt.4 Opt. 5+ ture # Honk pulses 20 mS 30 mS 40 mS 50 mS Ignition con- trolled lock...

  • Page 35: Menu 2

    ➢ Menu 2 Fea- Feature Opt. 1 Opt. 2 Opt. 3 Opt.4 Opt. 5+ ture # Engine checking Virtual tach voltage tachometer Run time 12 min 24 min 60 min Park lights Constant Flashing Crank time 0.6 sec. 0.8 sec. 1.0 sec.

  • Page 36: Feature Descriptions

    Feature descriptions The features of the system are described below with default settings in bold. ➢ Menu 1 1 HORN HONk PULSES—ON, Turns On/Off the confirmation honks when locking/unlocking. Use it to change the output pulse duration for vehicles that require a longer pulse for the horn to honk.
  • Page 37 5 UNLOCk OUTPUT— , 2 PULSES: This programs the unlock output to one or two pulses. When in two pulse setting, the BLUE unlock wire supplies two negative pulses instead of a single pulse. This makes it possible to directly interface with double pulse vehicles without any extra parts.

  • Page 38: Menu 2

    10 PANIC /Off: When on, the panic feature can be activated at any time from the remote and will sound for 30 seconds. When off the panic feature does not function. ➢ Menu 2 1 ENGINE CHECk— VIRTUAL TACH(1) /VOLTAGE(2) /OFF(3) /TACHOMETER (4) When set to “virtual tach”...
  • Page 39 CONSTANT 3 PARkING LIGHTS— /FLASHING: In the default setting, the parking lights will come on solidly for the entire run duration. In the flashing setting, the parking lights will flash for the entire run duration. 4 CRANk TIME— /0.8/1.0/1.2/1.4/1.6/1.8/2.0/4.0 Sec- onds: If Feature 2 is programmed to the voltage sense setting, the crank time must be set to the appropriate duration.
  • Page 40 NORMAL 8 2nd STATUS OUTPUT— /LATCHED/PULSED: If programmed to normal mode, this output turns on when the remote start is activated. This output can be programmed as a Latched or Pulsed output and can be used to activate the rear defroster when the vehicle is remote started.

  • Page 41: Timer Mode, Rear Defogger

    ➢ Timer mode, rear defogger For information on Timer Mode and Rear Defogger mode, refer to the Owner’s Guide at www.directed.com. Bitwriter ® The Bitwriter has the ability to fine tune certain features of the sys- tem. These features and the adjustments that may be programmed are described in the table below.

  • Page 42: Owner Recognition

    ➢ Owner recognition Owner recognition is a revolutionary feature avail able only from Direct- ed. Using the Directed Bitwriter you can program different settings for each trans mit ter used with the system. Then, when a specific transmitter is used the settings assigned to it are recalled. Up to four users may have settings to meet their specific needs.

  • Page 43: Shutdown Diagnostics

    Shutdown diagnostics The unit has the ability to report the cause of the last shutdown of the remote start system. To enter diagnostic mode: 1. Turn the ignition off. HOLD 2. Press and the Program switch. 3. Turn the ignition on and then off. 4.

  • Page 44: Safety Check

    Shutdown Flash Patterns led flasHes sHutdown mode System timed out Over-rev shutdown Low or no RPM, Low battery (for voltage & Virtual tach modes) Remote control shutdown (or optional push button) (-) Hood shutdown (+) Brake shutdown Neutral safety Safety check Before vehicle reassembly, the remote system must be checked to en- sure safe and trouble-free operation.
  • Page 45 Test the NEUTRAL SAFETY shutdown circuit: Important: Make sure there is adequate clearance to the front and rear of the vehicle before attempting this test. a. Make sure the hood is closed and no other shutdown circuits are active. b. Set the emergency brake. c.

  • Page 46: Troubleshooting

    Troubleshooting The starter cranks for six seconds but does not start. • Either the wrong ignition wire is being energized, the system’s ignition and accessory wires have been connected backwards, or the vehicle has two ignition circuits. Try activating the unit with the ignition key in the “run”...
  • Page 47 Does the vehicle have an immobilizer? Some immobilizer systems will not allow the vehicle to crank if active. Check connections. The two red heavy gauge input wires on the relay satellite should have solid connections. “T-taps”, or “scotch locks” are not recommended for any high current heavy gauge wiring.
  • Page 48 The vehicle will start and run only for about 10 seconds. • Is the remote start programmed for voltage sense? Try program- ming the unit for low voltage reference. If this does not work, a tach wire should be used. Check diagnostics.

  • Page 49: Notes

    Notes © 2009 Directed Electronics. All rights reserved.

  • Page 50: Wiring Quick Reference Guide

    Wiring quick reference guide BROWN (-) 200mA horn honk output BLUE/WHITE (-) 200mA 2ND status output/defogger Off On © 2009 Directed Electronics. All rights reserved.
  • Page 51 ORANGE (-) 500 mA ground when locked GREEN/WHITE (-) 200mA factory alarm rearm GREEN/BLACK (-) 200mA factory alarm disarm red 4 pin d2d bitwriter port © 2009 Directed Electronics. All rights reserved.
  • Page 52 The company behind this system is Directed Electronics Since its inception, Directed Electronics has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology.
