SLC Device Installation
5.5.2
SLC Devices with Dip Switches
Input and relay module addresses are set using the dip switches on the module board. The
chart below shows the available addresses. For example, to select address 3, place dip
switches 1 and 2 in the up position. The range of valid addresses is 1-127. 0 is an invalid
address.

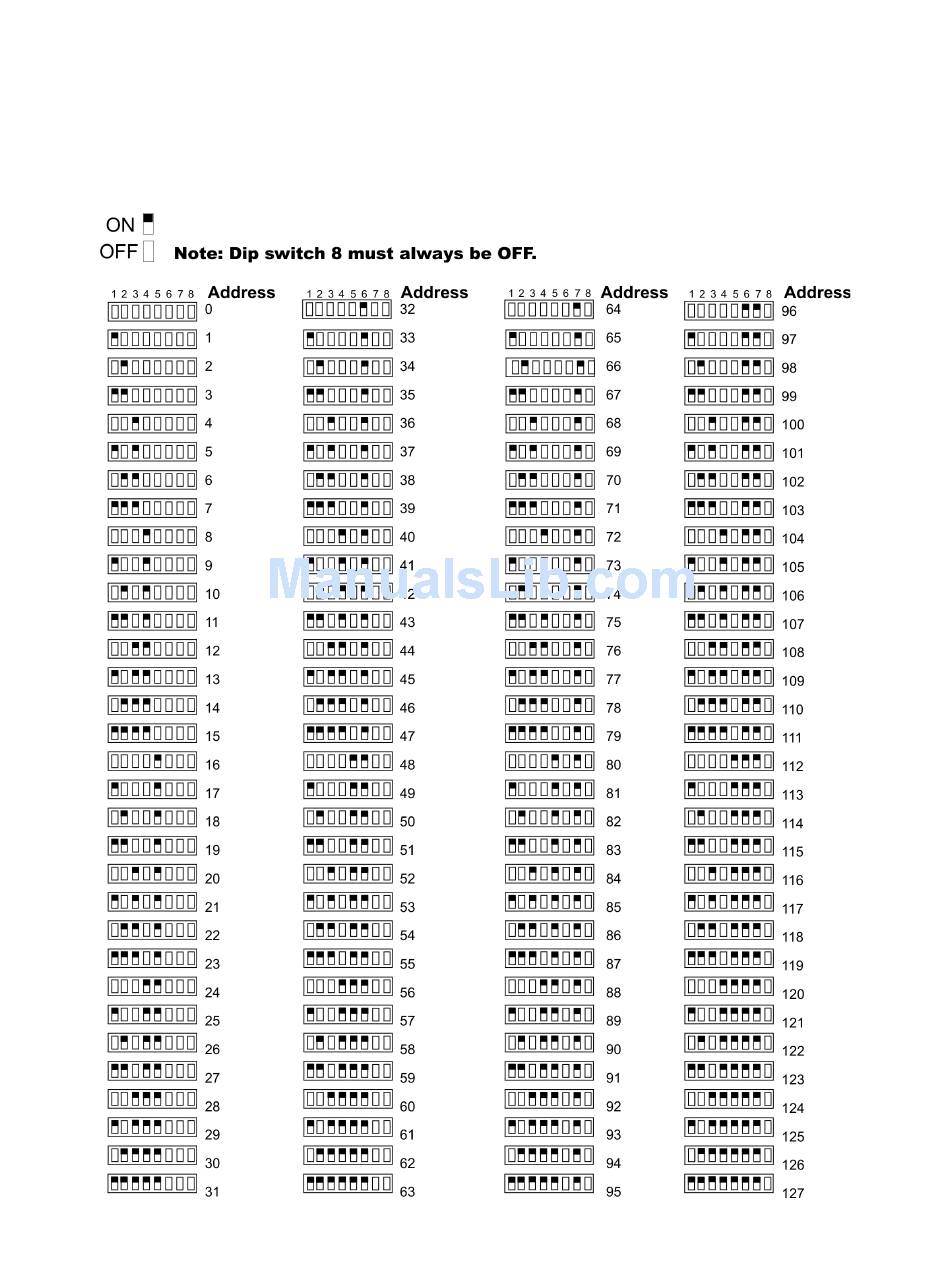

Figure 5-6 SLC Device Addressing Using Dip Switches
151274
5-7
