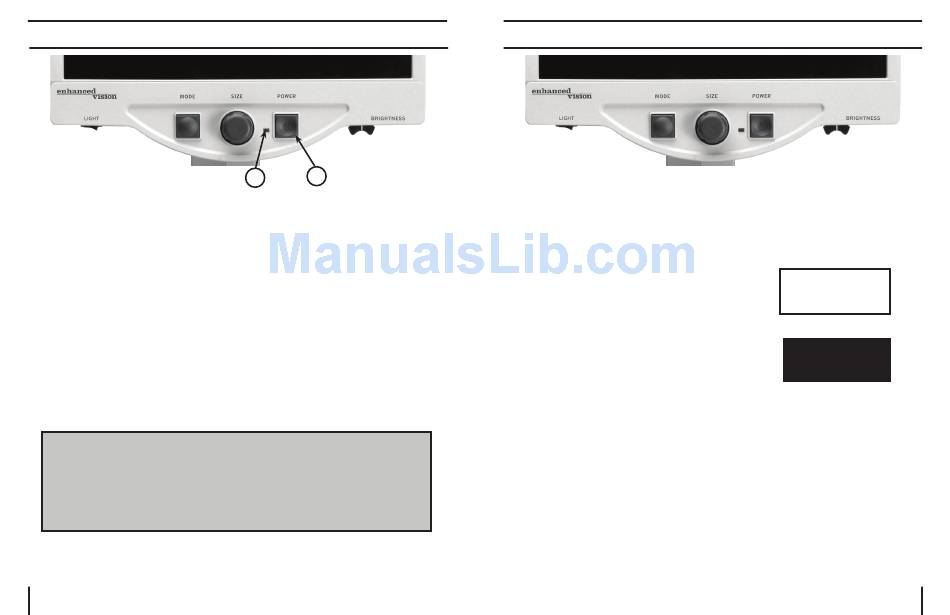

TURNING ON MERLIN HD

Merlin HD Power Button
The Power button on your Merlin HD is located on the far right of
the control panel (item #1 above).
• Press the Power button. Notice the green light will illuminate on
the Control Panel, indicating the power is ON (item #2 above).
• The screen should automatically come on in a few seconds.
If the green light does not illuminate or if an image does not appear
on the LCD monitor, please check the power supply connections
(review steps 2-4 on page 11 for details). Unit turns ON by default
upon plugging it in the AC mains.
NOTE: If your Merlin HD is plugged into a power strip/surge
protector, make sure the power switch is turned on before
attempting to turn on Merlin HD. If the power strip/surge
protector comes with a circuit breaker, make sure the circuit
breaker has been reset before attempting to turn on Merlin HD.
12 Turning on Merlin HD
#1
#2

CHANGING VIEWING MODES

You can choose a viewing option by pressing the MODE button on the
control panel. Each press will cycle through all 7 viewing options. These
available options are:
• Full Color Image
• Black and White Image
• Enhanced Positive Image
• Enhanced Negative Image
• Color Select 1
• Color Select 2
• Color Select 3
• Color Select 4 - Off by default
• Color Select 5 - Off by default
Full Color Image
This mode is used most often because it gives you a true color
representation of the image that is being magnified. When Merlin HD is
first turned on, it displays the image in full color.
Black and White Image
Based on preference, you can choose the black-and-white mode.
Changing Viewing Modes
Crisp, Clear
Text Images!
Enhanced Positive
Crisp, Clear
Text Images!
Enhanced Negative
