Summary of Contents for ENHANCED VISION 13.3” Portable Monitor

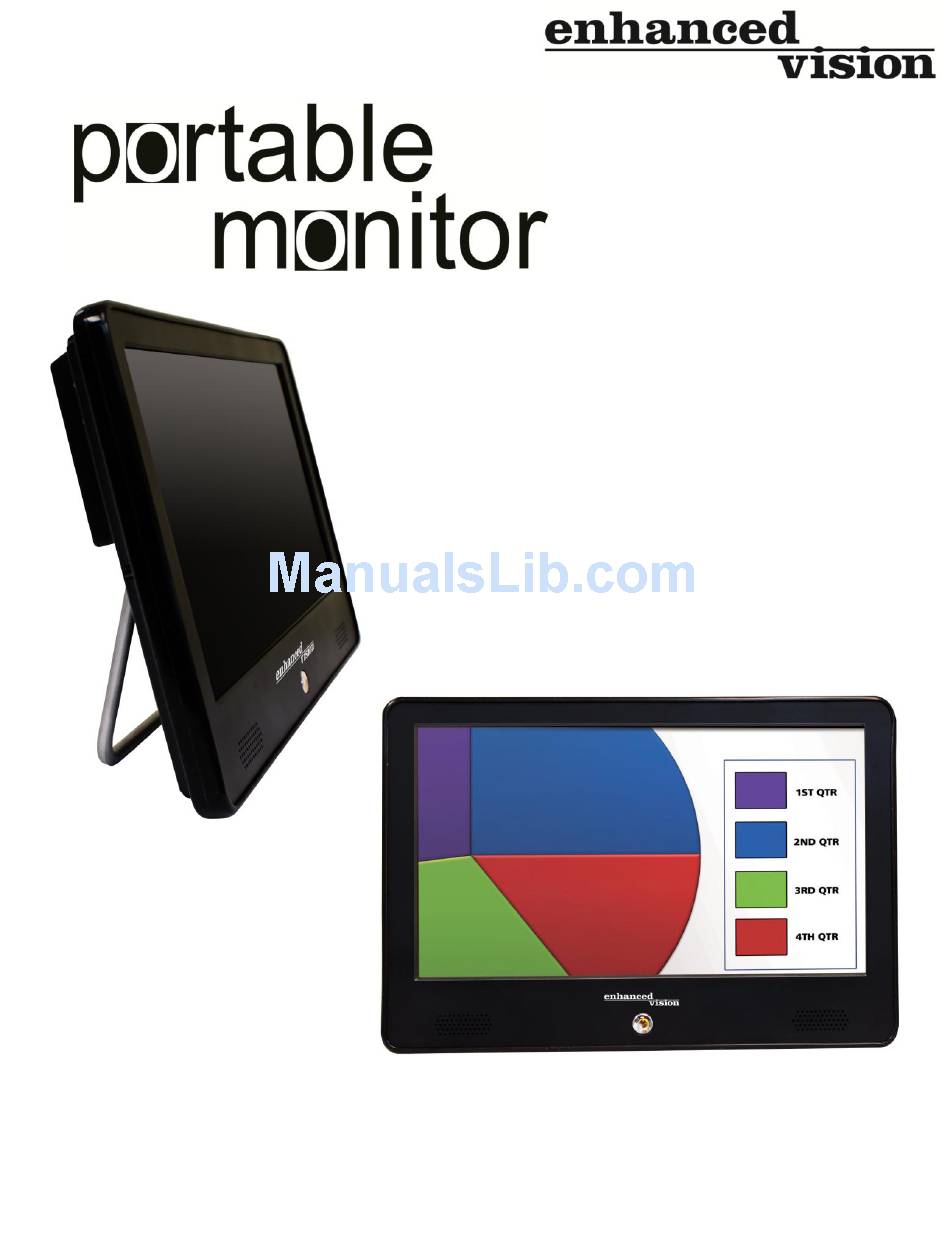

- Page 1 13.3” User Manual...
- Page 2 Congratulations on your purchase of 13.3” Portable Monitor from Enhanced Vision. Like all Enhanced Vision products, the Portable Monitor is designed to give you the highest quality and convenience available. The Portable Monitor is compatible with many other Enhanced Vision Products such as Acrobat HD/VGA/TV Short Arm/Long Arm, Transformer VGA, and Max.
-
Page 3: Fcc Compliance Notice
FCC COMPLIANCE NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Table Of Contents
Portable Monitor ..............7 Portable Monitor Package Contents Connections & Controls..................8 ................9 -11 Using the Portable Monitor Connecting to Other Enhanced Vision Products ........12 Connecting to Acrobat HD Short Arm / Long Arm ................13 Connecting to Transformer ....................14 Connecting to Max Troubleshooting…………………………………………………………………………... -
Page 5: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS For your safety and to obtain the most benefit from the Portable Monitor, please read these safety precautions very carefully. The Portable Monitor is not designed to restore vision, correct eye conditions or halt degenerative vision loss. An eye care professional can determine the usefulness and suitability of the Portable Monitor for a patient’s individual condition. - Page 6 Compliance Warnings • Electromagnetic compatibility: The use of accessories and cables other than those specified by Enhanced Vision may result in increased emissions or decreased immunity of the Portable Monitor. • Placement of equipment: The Portable Monitor should not be used adjacent...
-
Page 7: Portable Monitor
PORTABLE MONITOR PACKAGE CONTENTS The Portable Monitor is comprised of the following items: 1. Portable Monitor: 13.3” TFT Monitor 2. Bonnet: used to protect 13.3” Portable Monitor 3. 12V DC Power Cord: connects power from the Portable Monitor to the camera system control box (not used with Transformer) 4. -
Page 8: Connections & Controls
CONNECTIONS & CONTROLS 1. Battery On/Off – Turn Off if the Portable Monitor will not be in use for an extended period of time and when transporting 2. 19V Input power 3. Composite Video input (CVBS) 4. VGA Input 5. HDMI Input (with audio) 6. -
Page 9: Using The Portable Monitor
USING THE PORTABLE MONITOR The Portable Monitor can be used with the power supply connected - or - using its own internal battery. The system is shipped from the factory with the battery disabled. Prior to first use the ‘Battery Off/On’... - Page 10 Turning the Portable Monitor On/Off To turn the Portable Monitor on, press the Power Button on the front of the Portable Monitor – the power symbol on the power button will illuminate ‘Blue’. If no video signal is present, the power button will illuminate ‘Yellow’...
- Page 11 Checking the Battery Level** To check the battery level, press the MENU button on the right side of the Portable Monitor (See below). ** The Portable Monitor must be powered on, and a video signal must be present, to check the battery level When the battery has less than 1 hour of charge left the ‘Critical’...
-
Page 12: Connecting To Other Enhanced Vision Products
CONNECTING TO OTHER ENHANCED VISION PRODUCTS The following three pages provide details on how to connect other Enhanced Vision Products to the Portable Monitor. Please refer to your Enhanced Vision product User Manual for detailed information on the use of that specific product. -
Page 13: Connecting To Transformer
Connecting Transformer VGA The Transformer VGA comes with a specially-designed VGA cable which is used to connect the Transformer VGA dongle to the back of the Portable Monitor (See Figure 1). Please note that if you purchased the Transformer VGA and the Portable Monitor together this cable is already connected to the back of the monitor. -
Page 14: Connecting To Max
Connecting Max / Flipper / Acrobat TV If you have purchased the Portable Monitor to use with one of the Enhanced Vision devices listed above, please follow the connections below: 1) Connect one end of the RCA cable to the VIDEO input on the Power/Control Box (See Figure 1 - A). -
Page 15: Troubleshooting
3. Why is there a USB power port on the back of the Portable Monitor? The USB power port is not currently used for any Enhanced Vision products. It can be used to charge a cell phone or any other device, if... -
Page 16: Specifications
PORTABLE MONITOR SPECIFICATIONS Features: Features: • Lightweight, portable design • Lightweight, portable design • Built in 2x 1.5W Speakers • Built in 2x 1.5W Speakers • Front Bezel power on/off button with integrated LED’s • Front Bezel power on/off button with integrated LED’s •... -
Page 17: Warranty Statement
Vision warrants the Portable Monitor against defects in material and workmanship under normal use for two (2) years from the date of original purchase. Enhanced Vision, at its option, will at no charge either repair the product or replace it during the warranty period. There are no other expressed or implied warranties accompanying this product. -
Page 18: Other Enhanced Vision Products
OTHER ENHANCED VISION PRODUCTS DaVinci DaVinci is a high performance desktop video magnifier (CCTV), featuring HD, text-to-speech (OCR) and a 3-in-1 camera. With HD you will experience high definition color and contrast giving you a beautiful, crystal clear picture and vibrant colors. - Page 19 Transformer Transformer is the most flexible and portable solution for reading, writing and viewing magnified images at any distance. Compatible with popular magnification software and the latest Windows operating systems. Transformer’s unique design is perfect for work, home or school. Weighs less than 3 pounds. Battery operated up to 4 hours.
-
Page 20: Contact Information
Pebble HD Pebble HD boasts a new HD camera providing a crisp, clear, colorful, high definition picture. A new ergonomic lightweight compact design makes it the perfect companion whether at home or on the go. Carry Pebble HD in your purse, pocket, or clip it on your belt with the included carrying case. - Page 21 (800) 440-9476 (US Office, toll free) (714) 465-3400 (US Office) +44 (0) 115 9442317 (UK Office) Tel. +49 (0) 6078 969827-0 (DE Office) Fax +49 (0) 6078 969827-33 (DE Office) MAN-0810-00 Rev1- Oct-2013 Copyright © 2013 by Enhanced Vision. All rights reserved.
