Copyright 2000 Carrier Corporation
Product
Data
THE ENVIRONMENTALLY SOUND REFRIGERANT

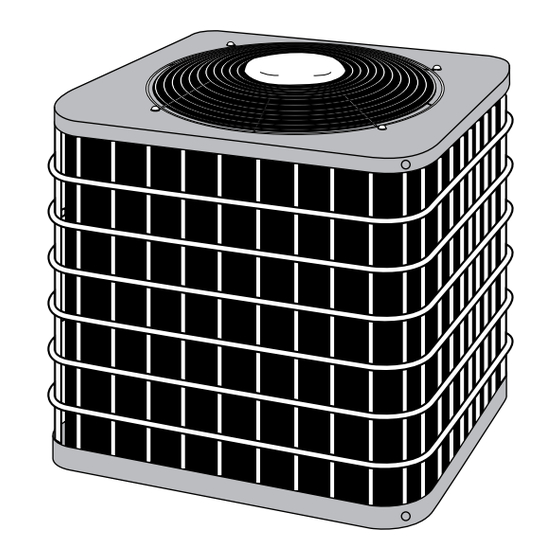

12 SEER Split-System Cube
Heat Pump with Puron
FEATURING PURON
Carrier's technological leadership
has risen to a new level with the
development of the 38EYA Heat
Pump, the outdoor section of a
superior split heat pump system. This
leadership effort has yielded a
product that delivers proven
performance to the new construction
market.
Puron®, the environmentally
sound refrigerant —The 38EYA
uses Puron, the environmentally
sound refrigerant which provides
homeowners with additional peace of
mind because Puron has zero ozone-
depletion potential.
In addition, thanks to the
performance advantage of Puron, the
38EYA is extremely efficient with
ratings from 12 to 14 SEER.
Maximum performance and
efficiency are made possible through
the use of the FX4A and FV4A fan
coils, which are custom made for
Puron applications.
Puron refrigerant also protects
homeowners against the future cost
of service from the potentially
increased cost of servicing units
using R-22 as it is phased out due to
legislated production limits.
AVAILABLE OPTIONS
PressureGuard™/Ease of
Installation —Another unique
feature of the 38EYA is the patent-
pending PressureGuard™, which
enables the use of standard line sets
currently used in the industry.
Compressor —The 38EYA features
the efficient Copeland Scroll
compressor, specially designed for
Puron applications, with its thicker
38EYA (60Hz)
®
Refrigerant
Sizes 024 thru 060
Form 38EYA-1PD
®
Advertisement
Table of Contents
Related Manuals for Carrier 38EYA
Summary of Contents for Carrier 38EYA
- Page 1 R-22 as it is phased out due to legislated production limits. AVAILABLE OPTIONS PressureGuard™/Ease of Installation —Another unique feature of the 38EYA is the patent- pending PressureGuard™, which enables the use of standard line sets currently used in the industry. Compressor —The 38EYA features...
-
Page 2: Model Number Nomenclature
Coil Discharge Muffler —Minimizes low- Thermostatic Expansion Valve can be cleaned with a common garden frequency sound and pressure (TXV) —The 38EYA Heat Pump hose. pulsation generated by compressor must be installed with a Puron TXV discharge gas. -
Page 3: Physical Data
® CERTIFICATION APPLIES ONLY WHEN THE COMPLETE SYSTEM IS LISTED WITH ARI. REGISTERED As an ENERGY STAR® Partner, Carrier Corporation has deter- mined that this product meets the ENERGY STAR® guidelines QUALITY SYSTEM for energy efficiency. Physical data UNIT SIZE-SERIES... - Page 4 ** Outdoor temperature sensor is an accessory for all Carrier electronic thermostats, except the non-programmable air conditioner version and builder’s thermostats. It allows the temperature at a remote location (outdoors) to be displayed on the thermostat.
-
Page 5: Accessory Usage Guideline
12. Outdoor Air Temperature Sensor A device that allows the temperature at a remote location (outdoors) to be displayed at the thermostat. SUGGESTED USE: All Carrier programmable thermostats. 13. Outdoor Thermostat An SPDT temperature actuated switch which turns on supplemental electric heaters when outdoor air temperature drops below set point. -
Page 6: Electrical Data
Accessory description and usage (Listed alphabetically) continued 16. Thermostatic Expansion Valve (TXV) — Bi-Flow A modulating flow control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator. Kit includes valve, adapter tubes, external equalizer tube. - Page 7 Dimensions...
- Page 8 BUILDING HEAT LOSS, 1000 BTU/HR UNIT INTEGRATED HEATING CAPACITY, 1000 BTU/HR...
-
Page 9: Combination Ratings
Combination ratings* ARI STANDARD RATINGS* Cooling Heating Seasonal Efficiency SEER Field-Supplied High-Temp Low-Temp Factory- Accessory‡ Supplied UNIT SIZE- INDOOR Enhance- Standard Puron Puron TXV SERIES UNIT ment Rating HSPF & TDR** FX4ANF030† 24,000 TXV+TDR 12.00 — — 9.75 25,000 3.26 15,400 2.20 7.30... - Page 10 Combination ratings* continued ARI STANDARD RATINGS* Cooling Heating Seasonal Efficiency SEER Field-Supplied High-Temp Low-Temp Factory- Accessory‡ Supplied UNIT SIZE- INDOOR Enhance- Standard Puron Puron TXV SERIES UNIT ment Rating HSPF & TDR** CC5A/CD5AA042 33,400 NONE — — 12.00 10.30 37,000 3.40 23,000 2.42...
- Page 11 Combination ratings* continued ARI STANDARD RATINGS* Cooling Heating Seasonal Efficiency SEER Field-Supplied High-Temp Low-Temp Factory- Accessory‡ Supplied UNIT SIZE- INDOOR Enhance- Standard Puron Puron TXV SERIES UNIT ment Rating HSPF & TDR** COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE CC5A/CD5AC048 39,000 —...
- Page 12 ** In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance. Use either the accessory Time-Delay Relay KAATD0101TDR or a furnace equipped with TDR. All Carrier furnaces are equipped with TDR except for the 58GFA.
-
Page 13: Detailed Cooling Capacities
Detailed cooling capacities* CONDENSER ENTERING AIR TEMPERATURES °F EVAPORATOR Capacity Total Capacity Total Capacity Total Capacity Total Capacity Total Capacity Total MBtuh† Sys- MBtuh† Sys- MBtuh† Sys- MBtuh† Sys- MBtuh† Sys- MBtuh† Sys- Total Sens‡ Kw** Total Sens‡ Kw** Total Sens‡ Kw** Total Sens‡... - Page 14 Detailed cooling capacities* continued CONDENSER ENTERING AIR TEMPERATURES °F EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity Total Total Total Total Total Total MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† System System System System System System Total Sens‡ Kw** Total Sens‡ Kw** Total Sens‡...
- Page 15 Detailed cooling capacities* continued CONDENSER ENTERING AIR TEMPERATURES °F EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity Total Total Total Total Total Total MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† System System System System System System Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡...
- Page 16 Detailed cooling capacities* continued CONDENSER ENTERING AIR TEMPERATURES °F EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity Total Total Total Total Total Total MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† System System System System System System Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡...
- Page 17 Detailed cooling capacities* continued CONDENSER ENTERING AIR TEMPERATURES °F EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity Total Total Total Total Total Total MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† System System System System System System Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡...
- Page 18 Detailed cooling capacities* continued CONDENSER ENTERING AIR TEMPERATURES °F EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity Total Total Total Total Total Total MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† System System System System System System Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡...
-
Page 19: Heat Pump Heating Performance
Heat pump heating performance OUTDOOR COIL ENTERING AIR TEMPERATURES °F INDOOR –3 Capacity Total Capacity Total Capacity Total Capacity Total Capacity Total Capacity Total Capacity Total Capacity Total (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† 38EYA024-30, 31 Outdoor Section With FX4ANF030 Indoor Section 10.6 9.72 1.86 12.8 11.7 1.89 15.3 14.0 1.94 18.0 16.0 2.00 21.3 19.4 2.08 24.9 24.9 2.17 25.8 25.8 2.28 27.2 27.2 2.34 10.7 9.87 1.90 13.0 11.9 1.91 15.5 14.2 1.94 18.3 16.3 1.99 21.6 19.7 2.06 25.3 25.3 2.13 26.4 26.4 2.23 27.4 27.4 2.24... - Page 20 Heat pump heating performance continued OUTDOOR COIL ENTERING AIR TEMPERATURES °F INDOOR –3 Capacity Total Capacity Total Capacity Total Capacity Total Capacity Total Capacity Total Capacity Total Capacity Total (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† 38EYA030-30, 31 Outdoor Section With FX4ANF030 Indoor Section 12.9 11.9 2.14 15.6 14.3 2.17 18.6 16.9 2.23 21.9 19.5 2.30 25.7 23.4 2.38 29.9 29.9 2.48 32.9 32.9 2.47 35.4 35.4 2.54 1050...
- Page 21 Heat pump heating performance continued OUTDOOR COIL ENTERING AIR TEMPERATURES °F INDOOR –3 Total Total Total Total Total Total Total Total Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh)
- Page 22 Heat pump heating performance continued OUTDOOR COIL ENTERING AIR TEMPERATURES °F INDOOR –3 Total Total Total Total Total Total Total Total Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh)
- Page 23 Heat pump heating performance continued OUTDOOR COIL ENTERING AIR TEMPERATURES °F INDOOR –3 Total Total Total Total Total Total Total Total Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh)
- Page 24 Heat pump heating performance continued OUTDOOR COIL ENTERING AIR TEMPERATURES °F INDOOR –3 Total Total Total Total Total Total Total Total Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- Capacity Pow- (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh) (MBtuh)
-
Page 25: System Design
System Design 1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc. 2. Minimum outdoor operating air temperature for cooling mode without low-ambient operation accessory is 55°F (12.8°C). 3. -
Page 28: Guide Specifications
Indianapolis, IN 46231 3-00 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Book Page 28 Catalog No. 523-776 Printed in U.S.A. PC 101 Form 38EYA-1PD Replaces: NEW 5a 5a...
