59TN6A
InfinityR Two---Stage, Variable Speed
4---Way Multipoise
Condensing Gas Furnace
Series 100

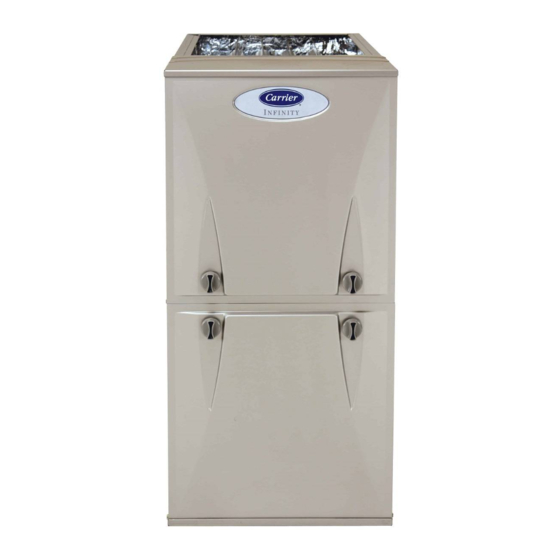

The 59TN6A Multipoise Variable- -Speed Condensing Gas Furnace
features the two- -stage InfinityR System. The Comfort Heat
TechnologyR two- -stage gas system is at the heart of the comfort
provided by this furnace, along with the variable- -speed ECM
blower motor, and two- -speed inducer motor. With an Annual Fuel
Utilization Efficiency (AFUE) of up to 96.7%, the Infinity
two- -stage gas furnace provides exceptional savings when
compared to a standard furnace. This Infinity Gas Furnace also
features 4- -way multipoise installation flexibility, and is available
in four model sizes. The 59TN6A can be vented for direct
vent/two- -pipe,
ventilated
applications. A Carrier Infinity Control and Infinity Air
Conditioner or Heat Pump can be used to form a complete Infinity
System. All units meet California Air Quality Management District
emission requirements. All sizes are design certified in Canada.
STANDARD FEATURES
S InfinityR System; compatible with single- - and multiple- -zone
Infinity systems
S Quiet operation. Compare for yourself at HVACpartners.com
S Ideal height 35- -in. (889 mm) cabinet: short enough for taller
coils, but still allows enough room for service
S Infinity Features—match with the Infinity Control for Infinity
Product Data
combustion
air,
or
single- -pipe
System benefits
S Integral part of the Ideal Humidity SystemR Technology
S Silicon Nitride Power Heat™ Hot Surface Igniter
S SmartEvap™ technology helps control humidity levels in the
home when used with a compatible humidity control system
S ComfortFan™ technology allows control of continuous fan
speed from a compatible thermostat
S External Media Filter Cabinet included
S 4- -way multipoise design for upflow, downflow or horizontal
installation, with unique vent elbow and optional through- -
the- -cabinet downflow venting capability
S Variable- -Speed blower motor, two- -speed inducer motor, and
two- -stage gas valve
S Self- -diagnostics and extended diagnostic data through the
Advanced Product Monitor ( APM) accessory or Infinity User
Interface
S Adjustable blower speed for cooling, continuous fan, and
A11263
dehumidification
S Aluminized- -steel primary heat exchanger
S Stainless- -steel condensing secondary heat exchanger
S Propane convertible (See Accessory list)
S Factory- -configured ready for upflow applications
S Fully- -insulated casing including blower section
S Convenient Electronic Air Cleaner and Humidifier connections
S Direct- -vent/sealed combustion, single- -pipe venting or
ventilated combustion air
S Installation flexibility: (sidewall or vertical vent)
S Residential installations may be eligible for consumer financing
through the Retail Credit Program

LIMITED WARRANTY*

S 10 year parts and lifetime heat exchanger limited warranty to the
original purchaser upon timely registration.
S Limited warranty period is five years for parts and twenty years
for the heat exchanger if not registered within 90 days of
installation.{
* For owner occupied, residential applications.
Jurisdictions where warranty benefits cannot be conditioned on registra-
{
tion will receive registered limited warranty benefits.
CERTIFIED
1
Use of the AHRI Certified
Mark indicates a
TM
manufacturer's participation in the program. For
verification of certification for individual products,
go to www.ahridirectory.org.
Always Ask For

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinity 59TN6A and is the answer not in the manual?

Questions and answers

Summary of Contents for Carrier Infinity 59TN6A

  • Page 1: Limited Warranty

    -pipe S Installation flexibility: (sidewall or vertical vent) applications. A Carrier Infinity Control and Infinity Air S Residential installations may be eligible for consumer financing Conditioner or Heat Pump can be used to form a complete Infinity through the Retail Credit Program System.
  • Page 2: Specifications

    SPECIFICATIONS Heating Capacity and Efficiency 060-14 080-14 100-20 120-22 Input High Heat (BTUH) 60,000 80,000 100,000 120,000 Low Heat (BTUH) 39,000 52,000 65,000 78,000 Output High Heat (BTUH) 58,000 78,000 98,000 117,000 Low Heat (BTUH) 37,000 50,000 63,000 76,000 Efficiency AFUE % (ICS) 96.3 96.2...
  • Page 3: Model Number Nomenclature

    MODEL NUMBER NOMENCLATURE 1 - 2 7 - 9 11 - 12 15 - 16 Family Htg. Stages Tier Effy. Major Series Htg. Cap. Motor Width Voltage Minor Series Airflow 08 - 800 CFM Family 10 - 1000 CFM 12 - 1200 CFM S - Single Stage 14 - 1400 CFM T - Two Stage...
  • Page 4 Carrier Infinity Air Purifier - 16x25 (406x635 mm) GAPAAXCC1625-A08 Carrier Infinity Air Purifier - 20x25 (508x635 mm) GAPAAXCC2025-A08 Carrier Infinity Air Purifier Repl. Filter- 16x25 (406x635 mm) GAPACCCAR1625-A05 Carrier Infinity Air Purifier Repl. Filter- 20x25 (508x635 mm) GAPACCCAR2025-A05 EZ Flex Cabinet 16” (406 mm) EZXCABCC1016-A20 EZ Flex Cabinet 20”...
  • Page 5 AIR DELIVERY - - CFM (BOTTOM RETURN WITH FILTER) (SW1-5 and SW4-3 set to OFF, except as indicated. See notes 1 and 2.) INPUT Cooling Switch Settings External Static Pressure (E.S.P .) BTUH SW2-3 SW2-2 SW2-1 1060 1070 1080 1080 1075 1065 1050...
  • Page 6 AIR DELIVERY - - CFM (BOTTOM RETURN WITH FILTER) (CONTINUED) (SW1-5 and SW4-3 set to OFF, except as indicated. See notes 1 and 2.) INPUT Cooling Switch Settings External Static Pressure (E.S.P .) BTUH SW2-3 SW2-2 SW2-1 1850 1855 1860 1855 1850 1830...
  • Page 7: Venting System Length Calculations

    MAXIMUM EQUIVALENT VENT LENGTH - - FT. (M) NOTE: Maximum Equivalent Vent Length (MEVL) does NOT include elbows or terminations. Use Table 2 - Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application. Table 1 – Maximum Equivalent Vent Length - - Ft. (M) 0 to 4500 Ft.
  • Page 8 MAXIMUM EQUIVALENT VENT LENGTH - - FT. (M) (CONTINUED) NOTE: Maximum Equivalent Vent Length (MEVL) does NOT include elbows or terminations. Use Table 2 - Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application. Table 3 – Maximum Equivalent Vent Length - - Ft. (M) 4501 to 10,000 Ft.
  • Page 9 MAXIMUM ALLOWABLE EXPOSED VENT PIPE LENGTH INSULATION TABLE - - FT. / M Maximum Length of Uninsulated and Insulated Vent Pipe-Ft (M) No Insulation 3/8-in. (9.5 mm) 1/2-in. (12.7 mm) Winter Stage Pipe Pipe Diameter-in. (mm) Pipe Diameter-in. (mm) Pipe Diameter-in. (mm) Design Furnace Length in...
  • Page 10: Return Air Temperature

    RETURN AIR TEMPERATURE This furnace is designed for continuous return- -air minimum temperature of 60_F (15_C) db or intermittent operation down to 55_F (13_C) db such as when used with a night setback thermometer. Return- -air temperature must not exceed 80_F (27_C) db. Failure to follow these return air limits may affect reliability of heat exchangers, motors and controls.
  • Page 11 Carrier cased coil is used. It is combustion air to be drawn in through the outer pipe.
  • Page 12: Typical Wiring Schematic

    MEDIA FILTER CABINET 25-5/8" (651mm) 24-1/4” 23-5/8" (616mm) (600mm) Opening with Flanges Bent 23-1/8” 23-3/8” (588mm) (594mm) Opening Duct Side Furnace Side 23-3/4” (603mm) " Centerline Screw Slots (146mm) A11456A DIMENSIONS (IN. / MM) MEDIA FILTER CABINET SHIPPED WITH SIZES 040--- 08, 040--- 12, 060--- 08, 16 (406.4) 17 (432.8)
  • Page 13: Dimensional Drawing

    DIMENSIONAL DRAWING A11519...
  • Page 14: Guide Specifications

    Draft Inducer Motor Draft Inducer motor shall be two- -speed design. Catalog No: 59TN6A ---02PD Copyright 2011 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 10/11 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
