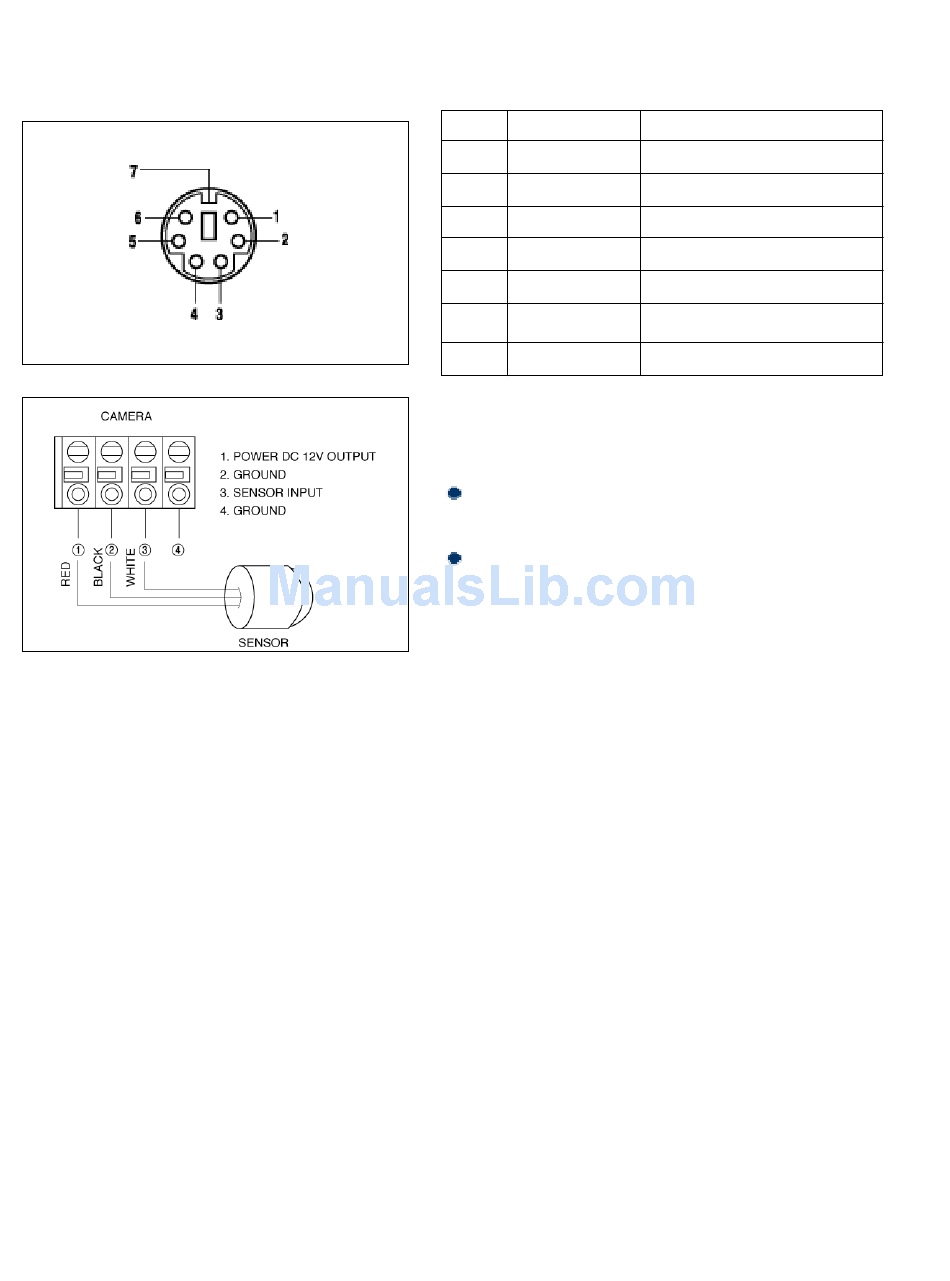

APPENDIX - A
PIN SPECIFICATION OF CABLE
PIN
COLOR
1
WHITE
2
BLACK
3
BLUE
4
GREEN
5
RED
6
YELLOW
7
'SHIELD'
TO PIR SENSOR
PROCEDURE
Connection PIR SENSOR to Camera sensor terminal.
NOTE
Ensure correct connections.
DESCRIPTION
VIDEO SIGNAL
AUDIO(monitor to camer)
N.C.
AUDIO B+
AUDIO(monitor to camer)
AUDIO B+
GROUND
-15-
